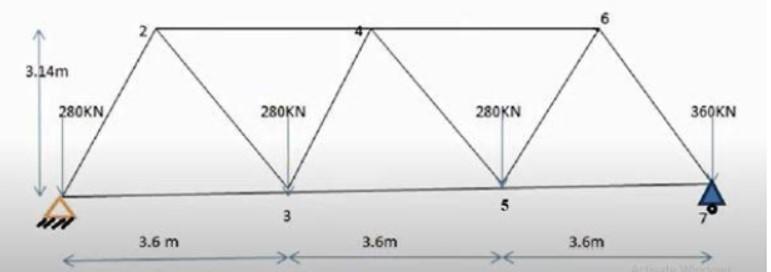

  In this tutorial we will go through the third step. We will review our results.

  1. Step 1

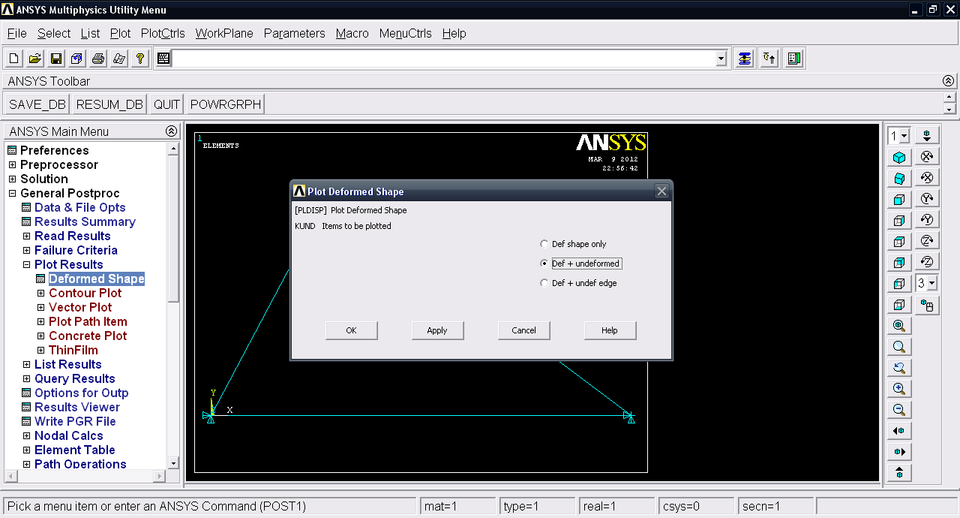

     Goto General Postproc >> Plot Results >> Deformed Shape.



  2. Step 2

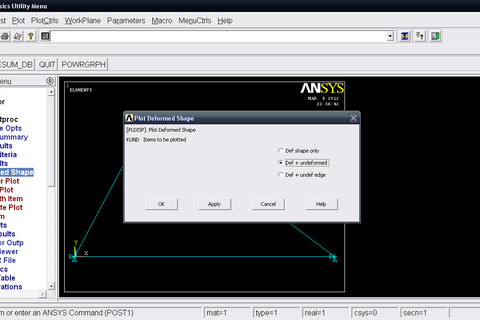

     Select Def + undeformed. Click OK.



  3. Step 3

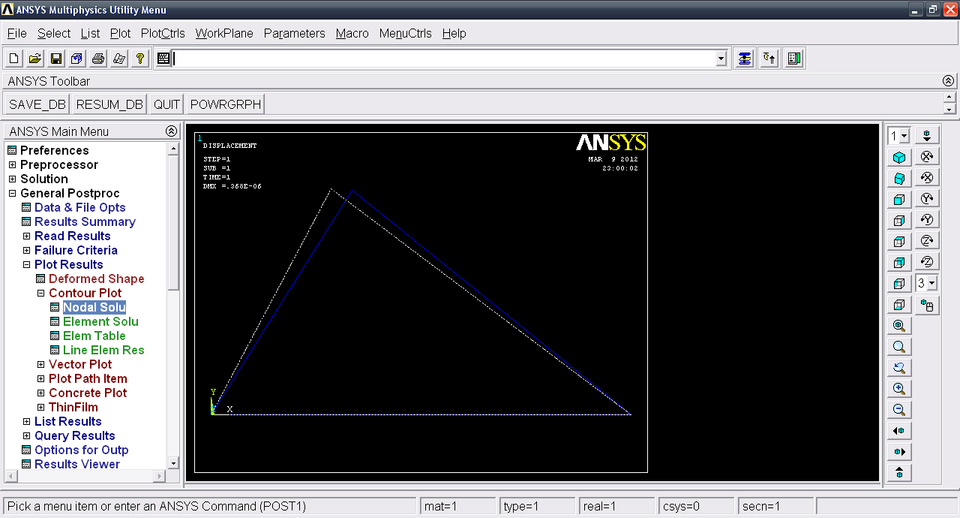

     We have deformation plot. Now goto Plot Results >> Contour plot >> Nodal Solu.



  4. Step 4

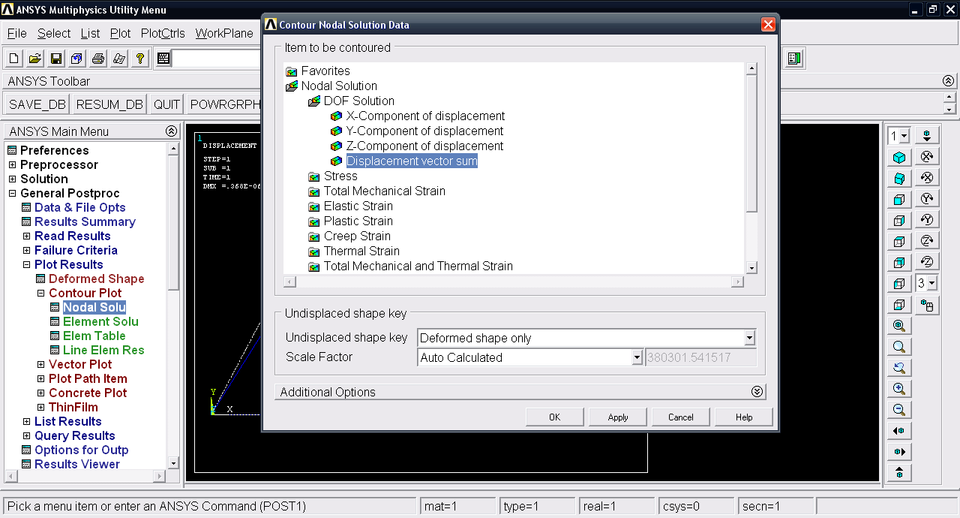

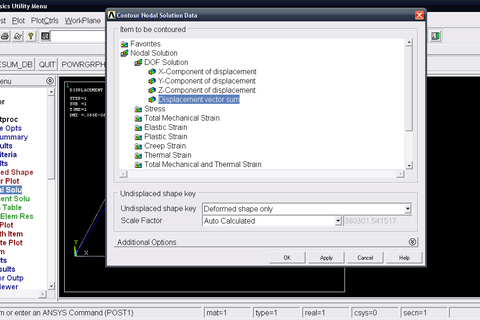

     Select DOF Solution >> Displacement vector sum and click OK.



  5. Step 5

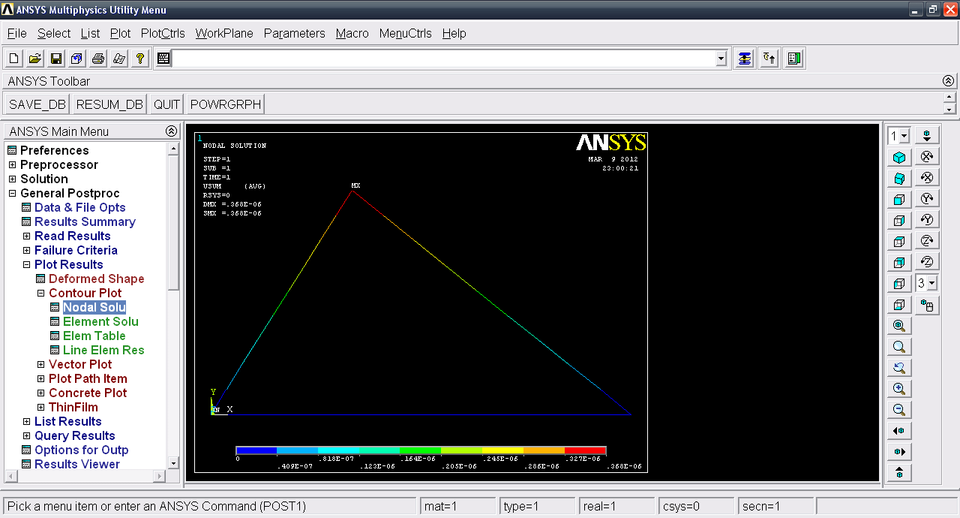

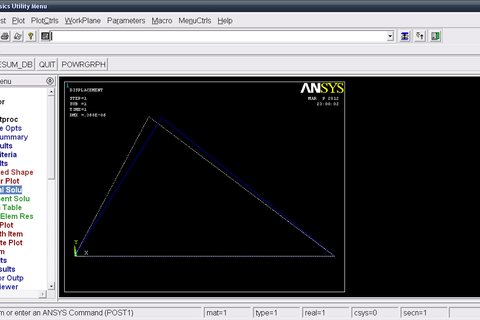

     Now we have displacement plot.



  6. Step 6

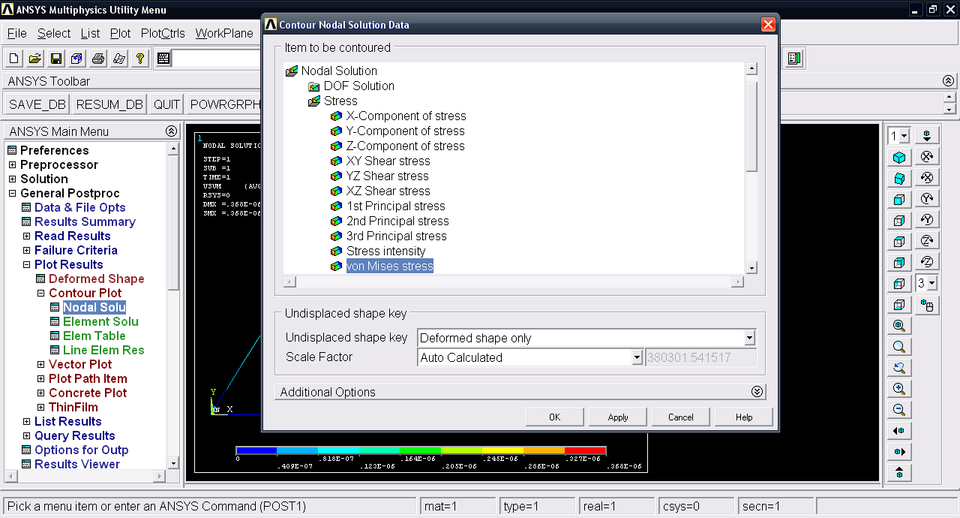

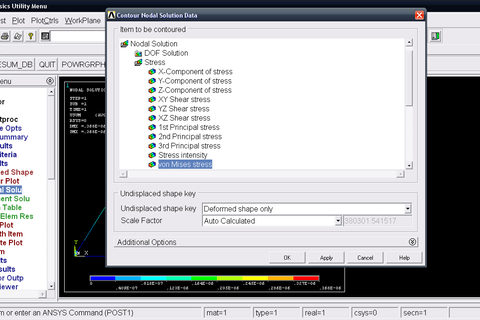

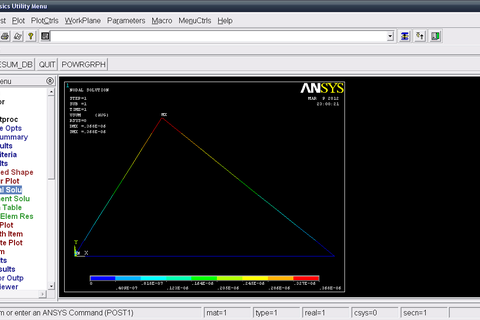

     Again goto Nodal Solu and select von mises stress under stress. Click OK.



  7. Step 7

     We have von-Mises plot.



  8. Step 8

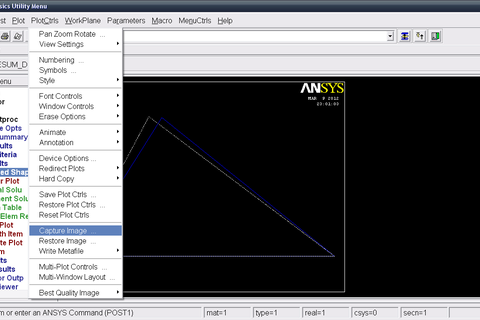

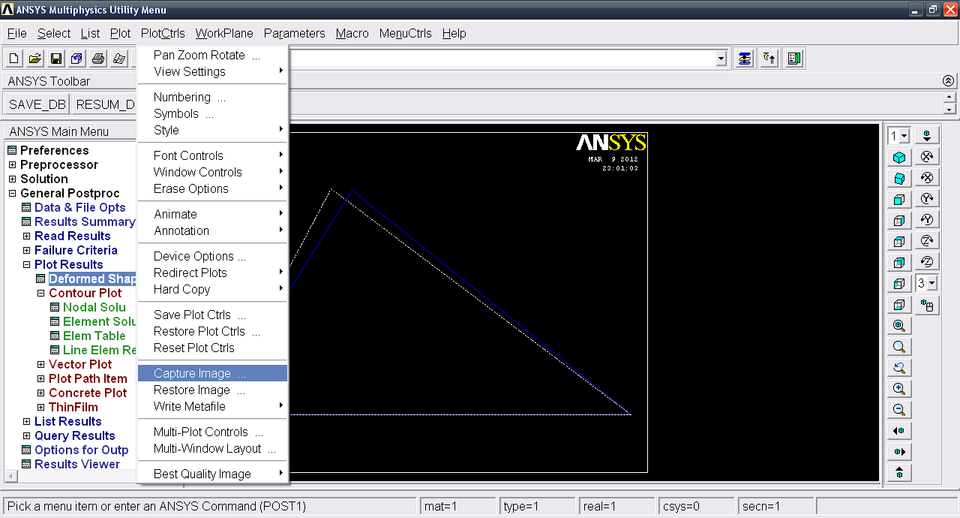

     Click PlotCtrls and then select Capture image.



  9. Step 9

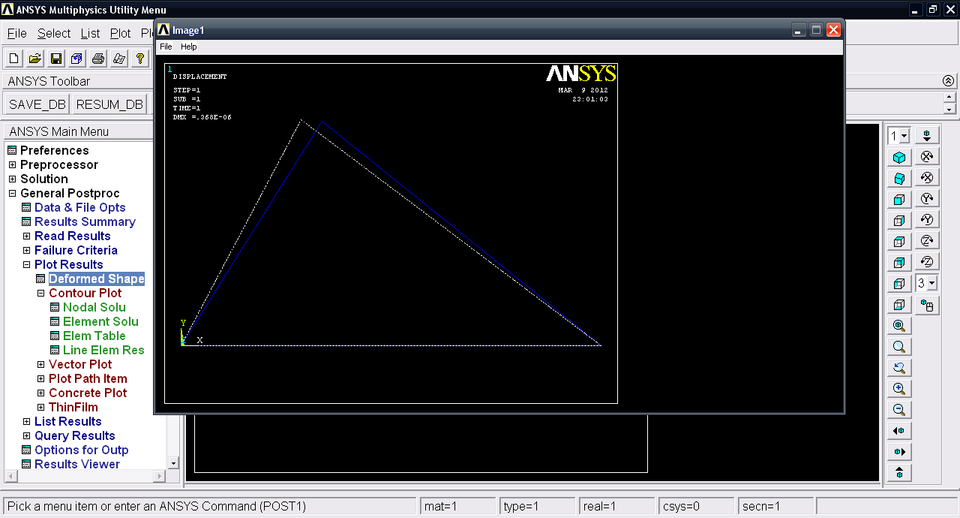

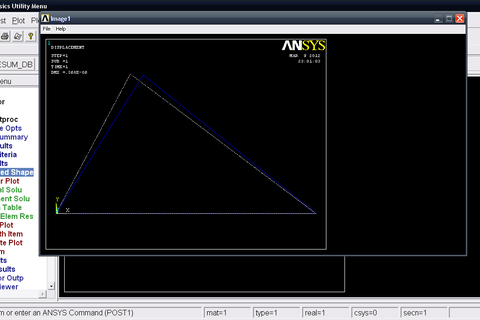

     Now the result image will be in seperate image.



  10. Step 10

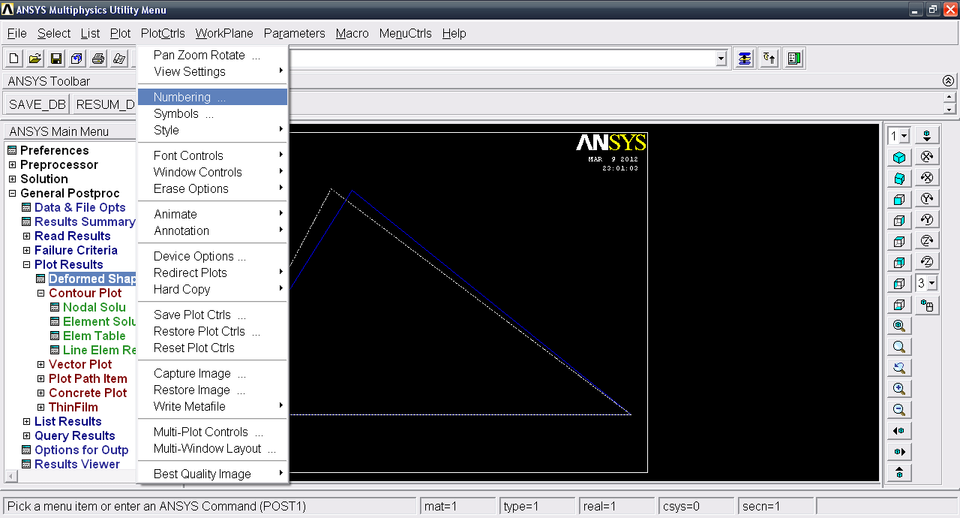

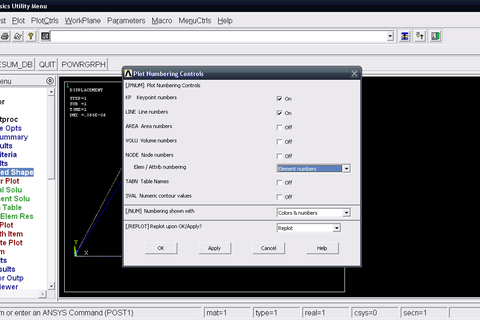

      Again PlotCtrls Menu and select Numbering.



  11. Step 11

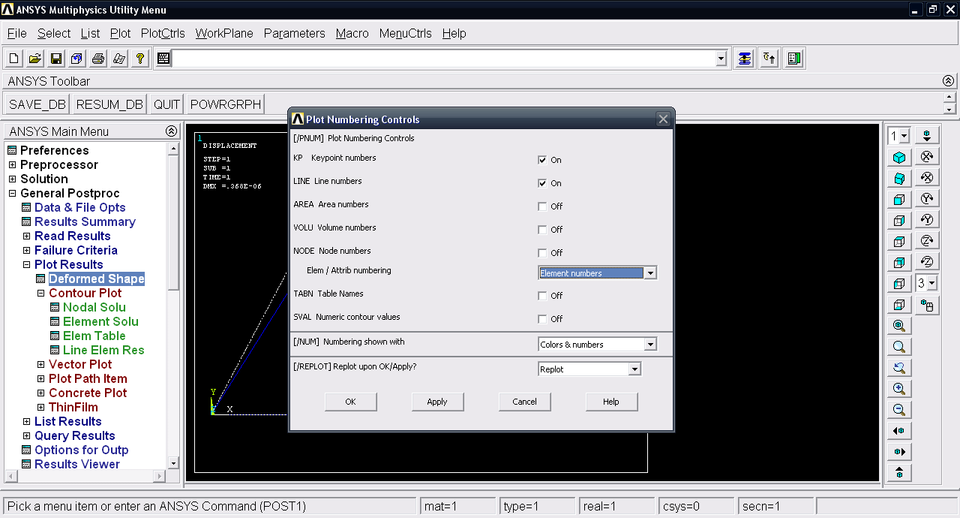

      Check KP, Line and Element numbers & click OK.



  12. Step 12

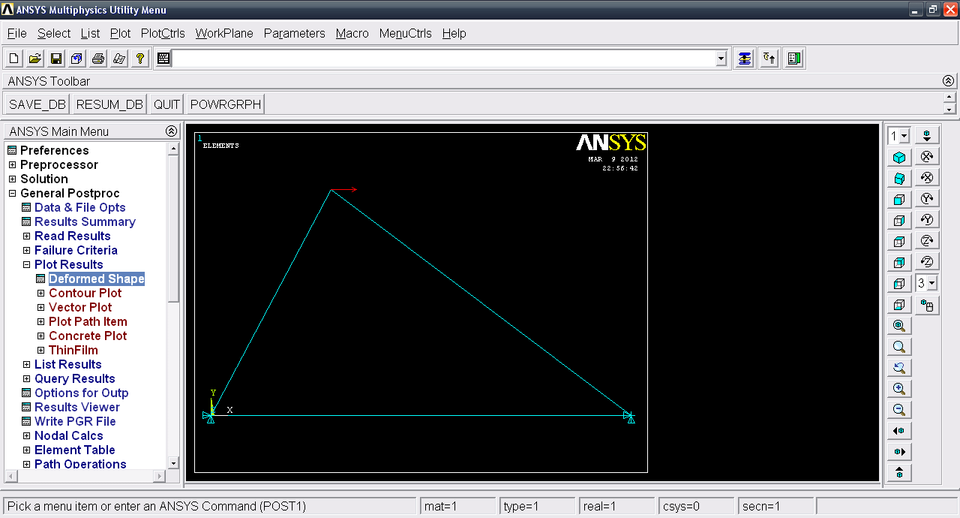

      Now we have the numbering for element.



  13. Step 13

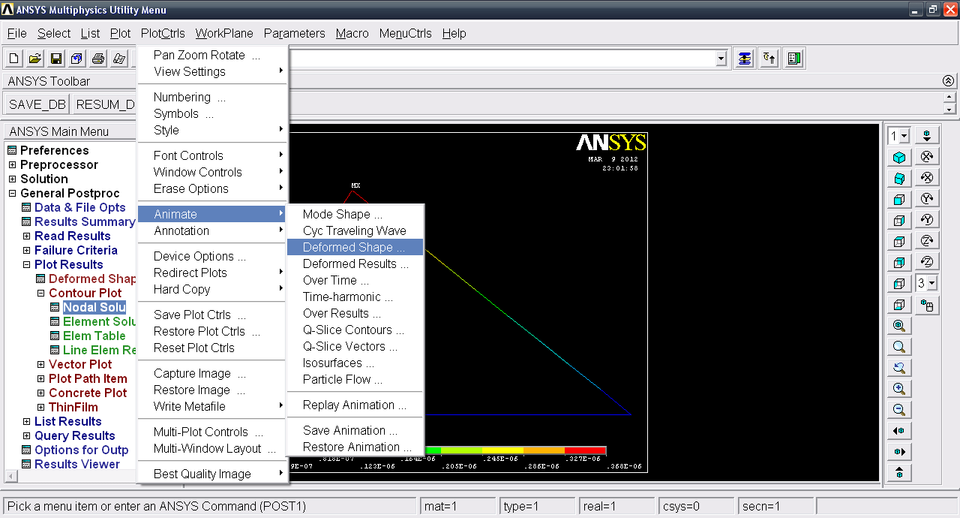

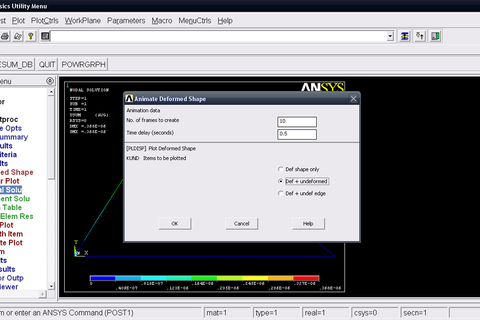

      Again goto PlotCtrls >> Animate >> Deformed shape.



  14. Step 14

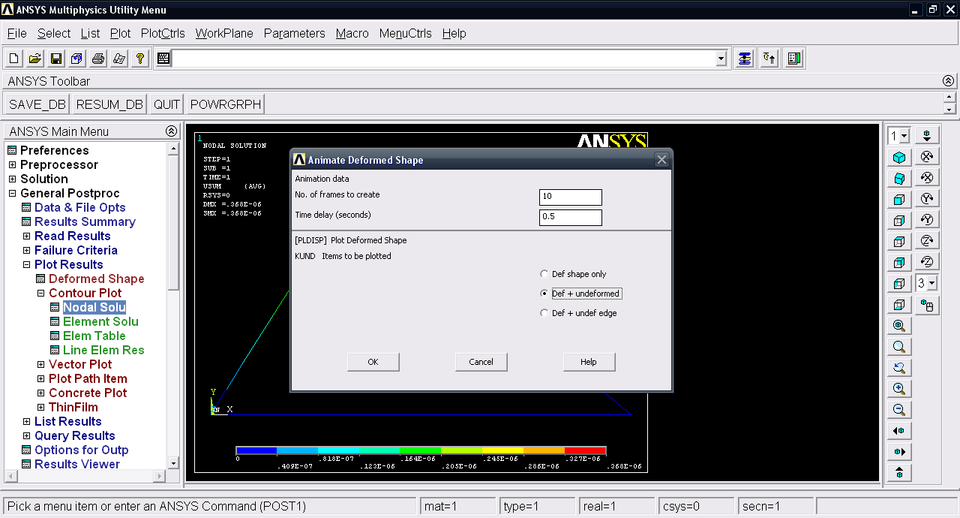

      Select Def + undeformed and click OK.



  15. Step 15

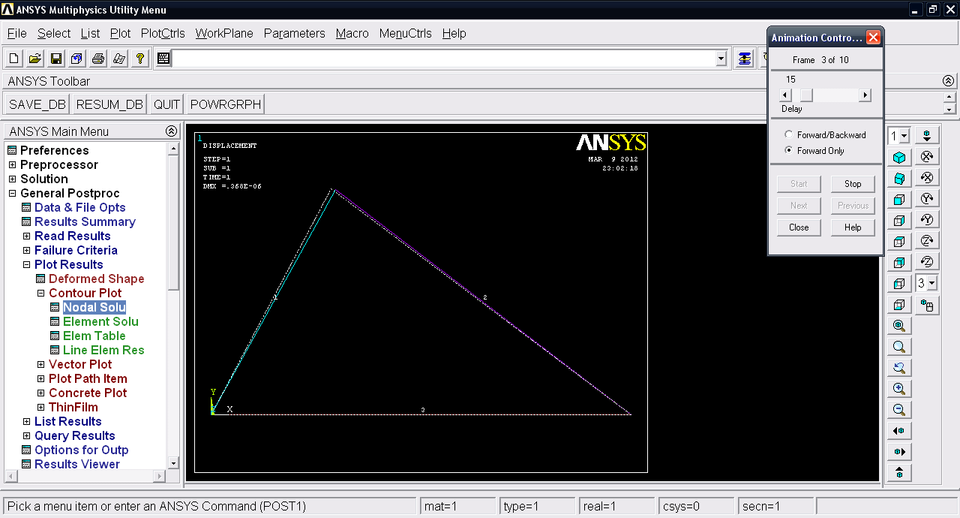

      The animation will start. Click Close.



  16. Step 16

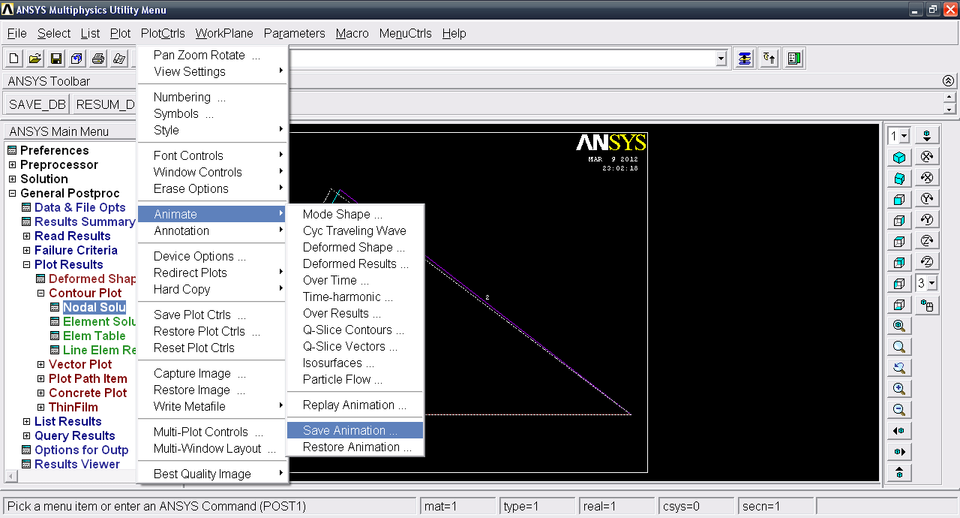

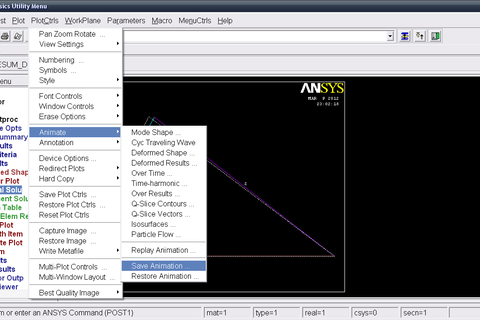

      Goto PlotCtrls Menu and then Animate >> Save Animation in case you want to save the animation.



  17. Step 17

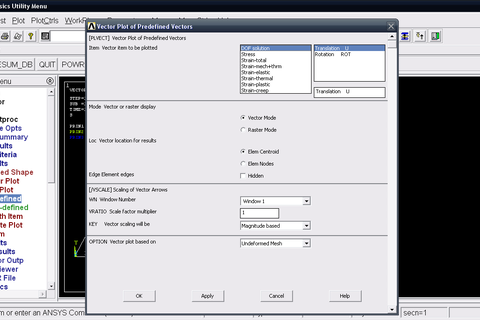

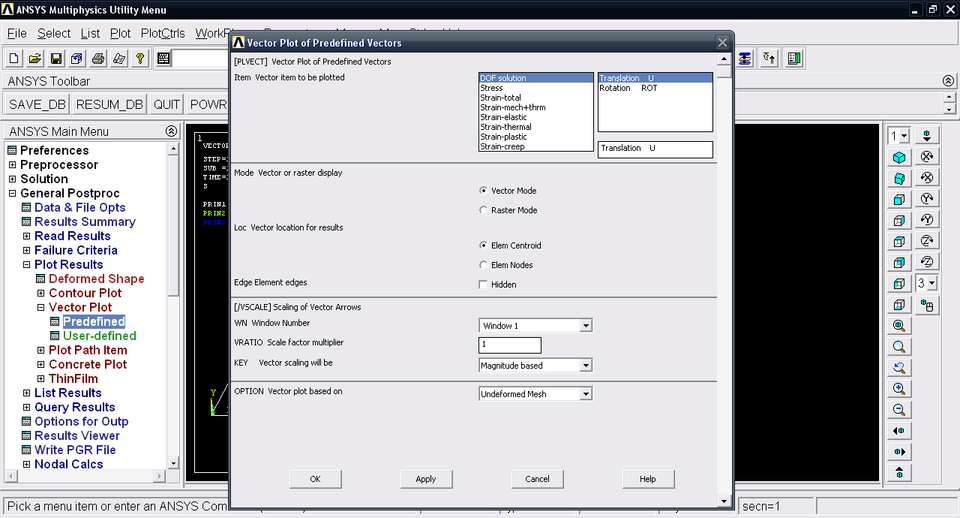

      Goto General Postproc >> Plot results >> Vector plot >> Predefined.



  18. Step 18

      Keep it to DOF solution and click OK.



  19. Step 19

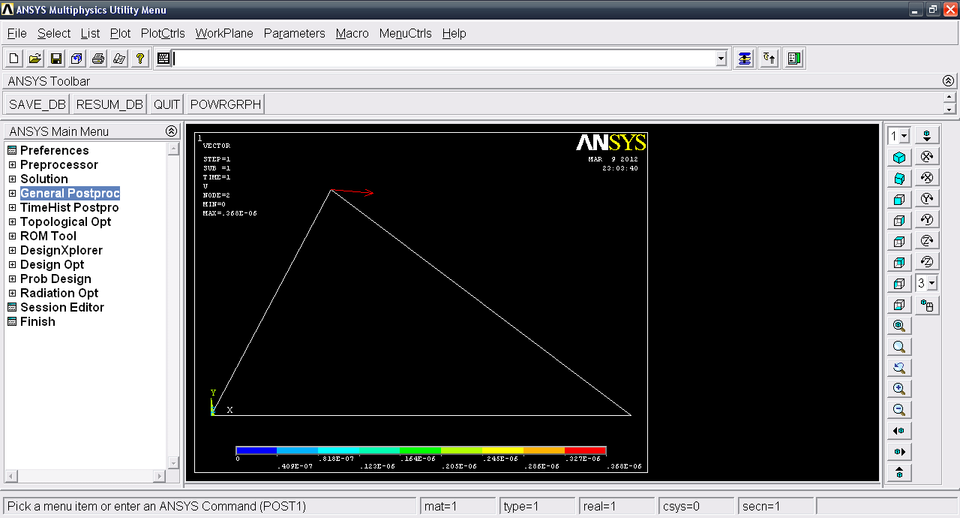

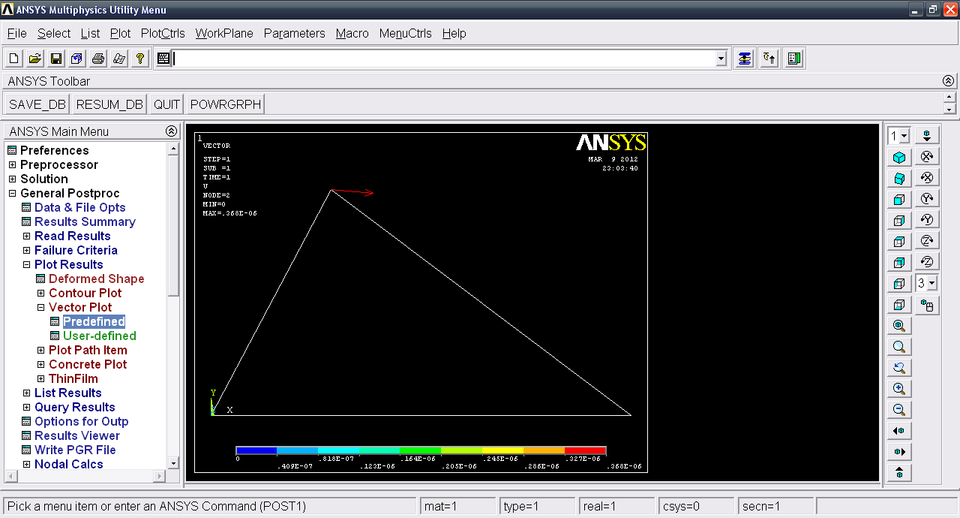

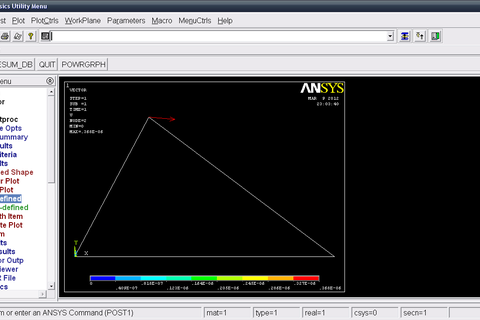

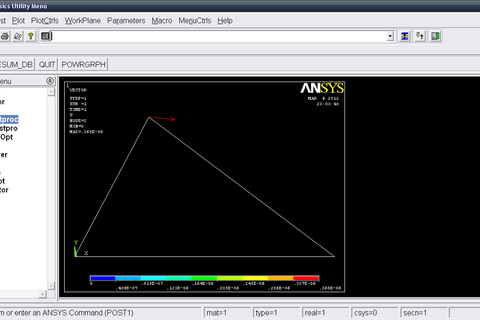

      We have the vector plot.



  20. Step 20

      Finally we have solved the problem in APDL.
