Tutorial - Spine feature in Creo Elements aka Pro/E?

By Sudhir Gill on 07 Mar 07:06 1 answer 1262 views 0 comments

Tutorial on spine feature in Creo Element pro aka Pro Engineer wildfire.

1 answer

  • Sudhir Gill
    Sudhir Gill over 2 years ago

    Here is the tutorial.

    1. Step 1

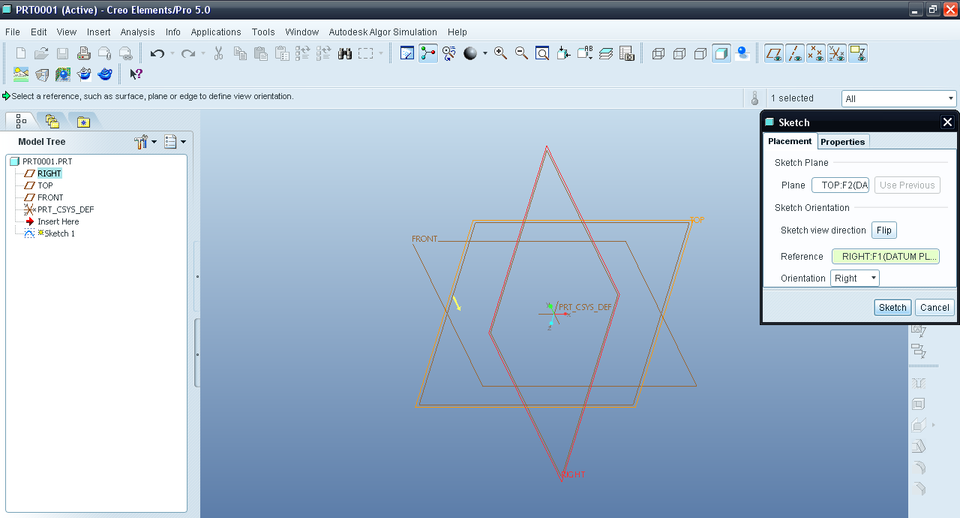

      Sketch >> Top plane.

      Medium

    2. Step 2

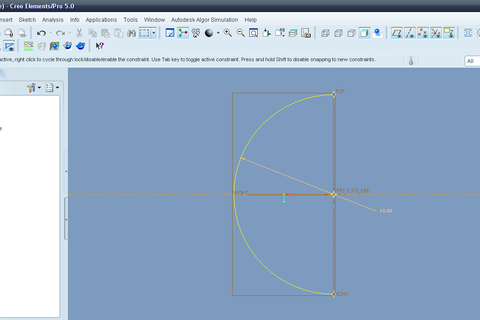

      Draw a semi-circle.

      Medium

    3. Step 3

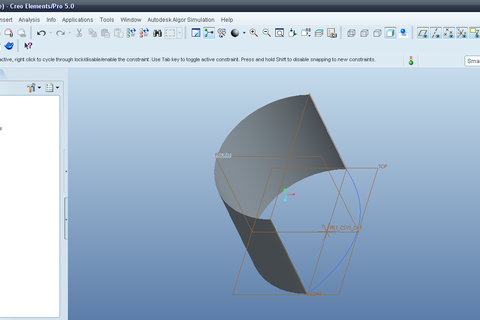

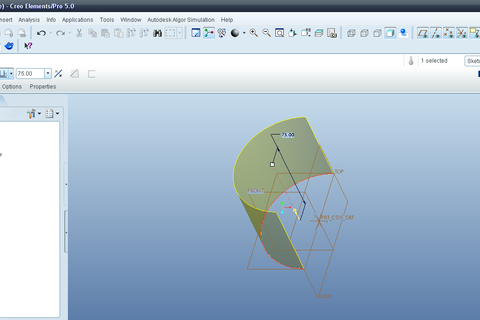

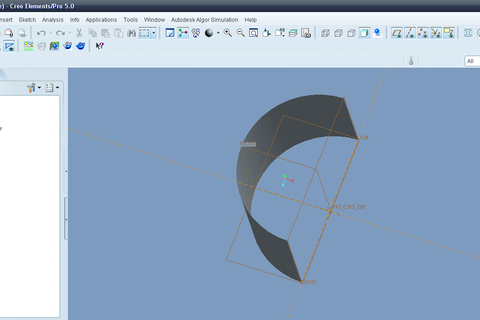

      Extrude it as surface.

      Medium

    4. Step 4

      Sketch >> Top plane.

      Medium

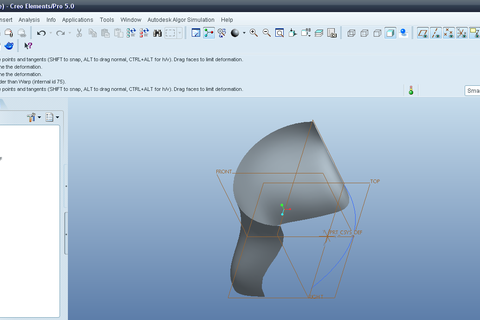

    5. Step 5

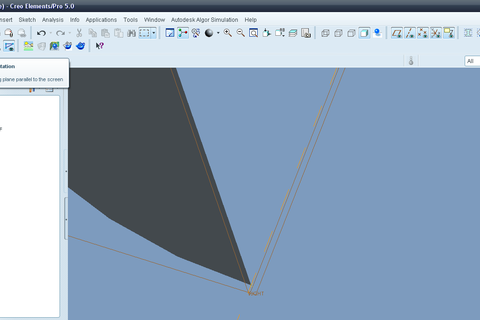

      Change the view from planar using mouse middle button.

      Medium

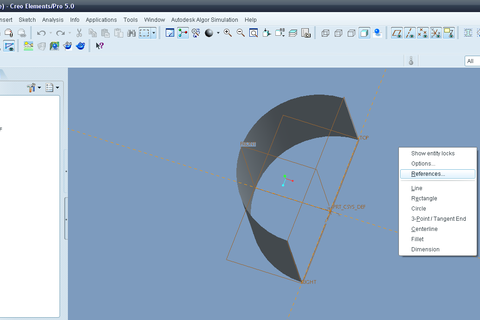

    6. Step 6

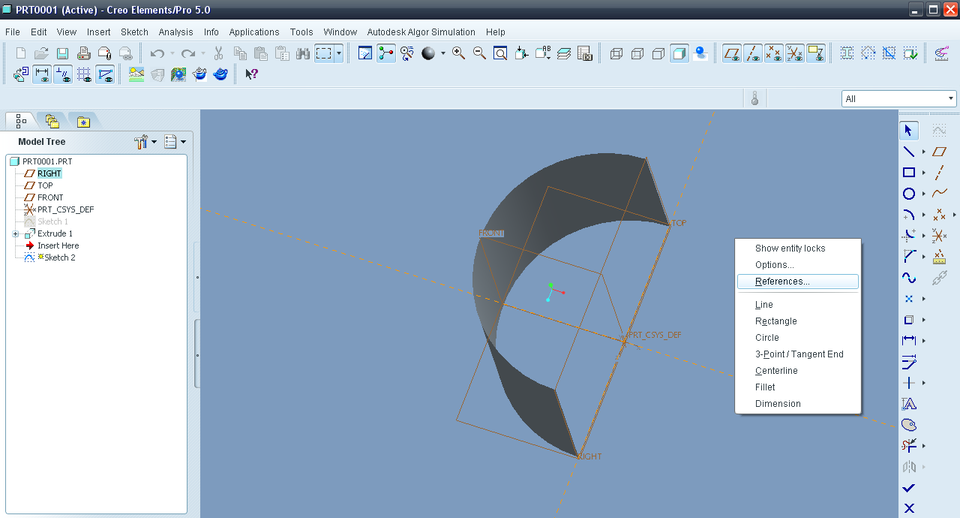

      Right click and hold it. Then select references.

      Medium

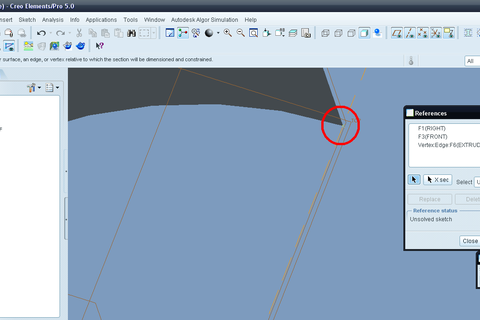

    7. Step 7

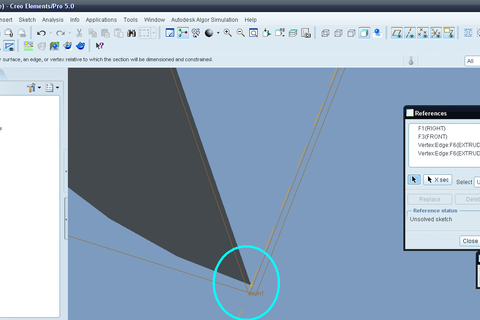

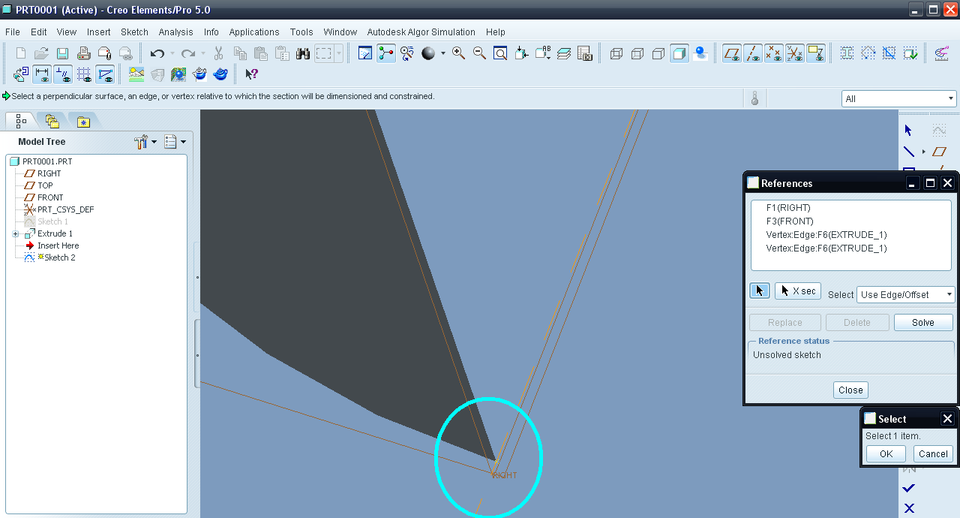

      Select the end points on top plane as reference.

      Medium

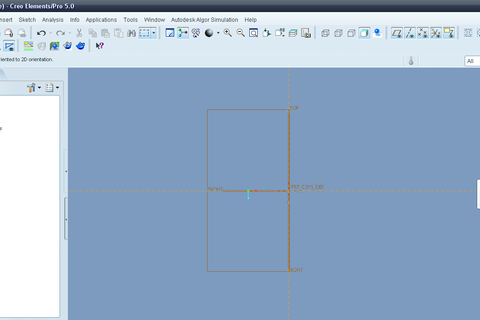

    8. Step 8

      Also select the other point too.

      Medium

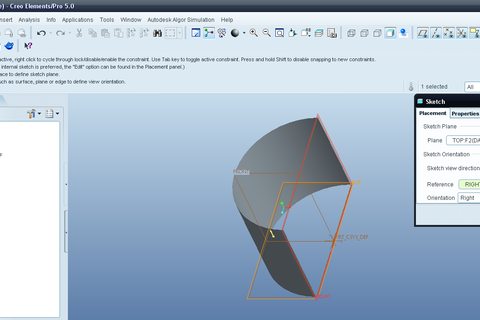

    9. Step 9

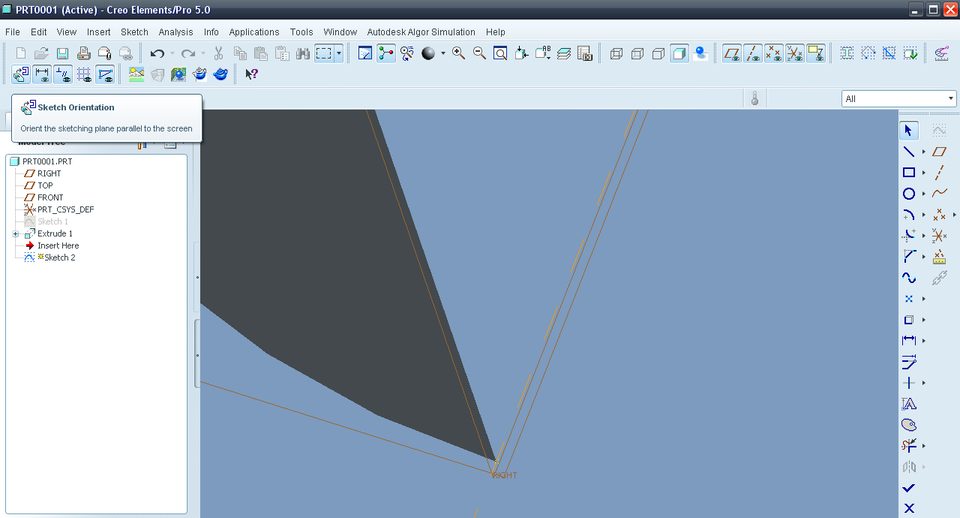

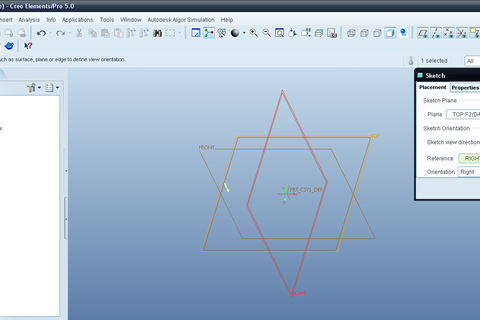

      Sketch orientation.

      Medium

    10. Step 10

      Spline tool.

      Medium

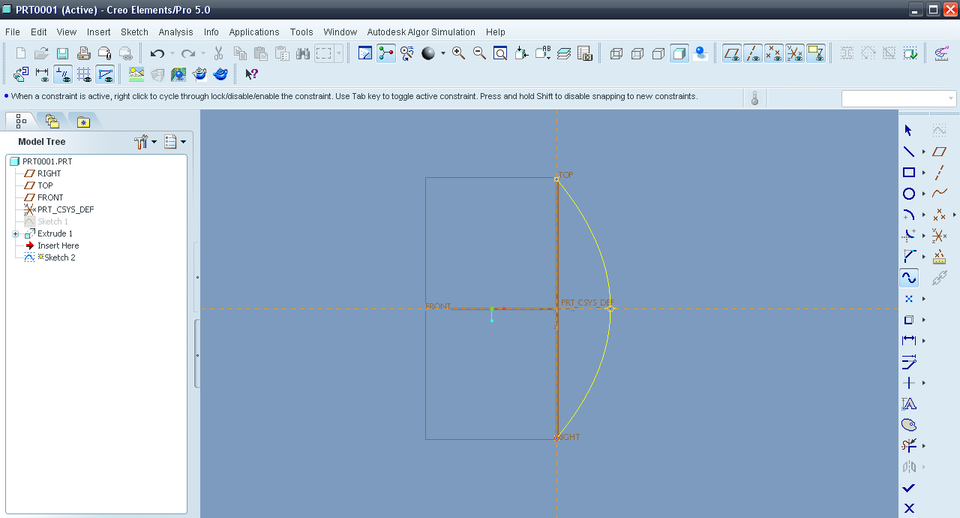

    11. Step 11

      Draw a spline by using vertex references.

      Medium

    12. Step 12

      Exit the sketch.

      Medium

    13. Step 13

      Insert >> Warp.

      Medium

    14. Step 14

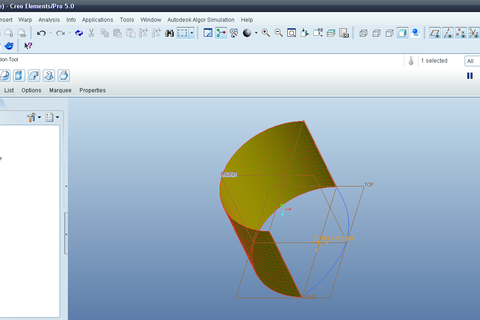

      Select the quilt as the body to deform.

      Medium

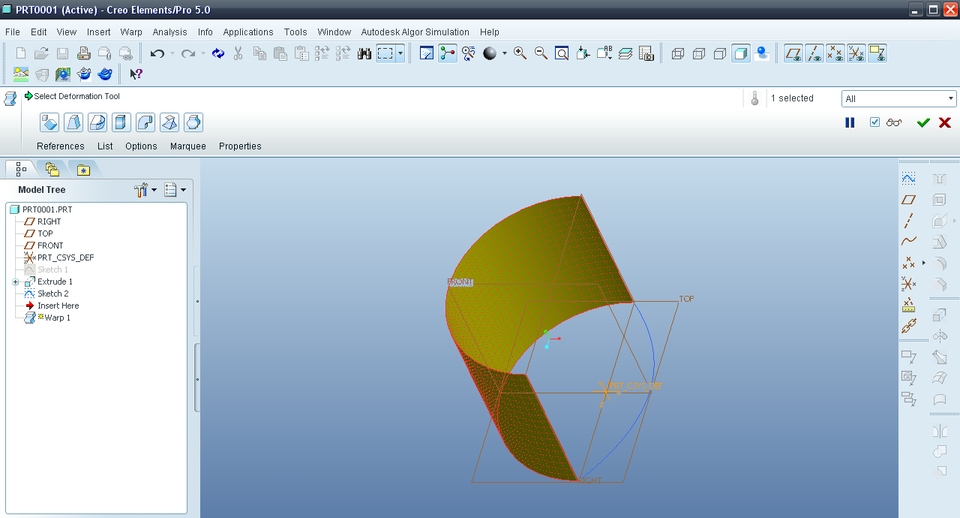

    15. Step 15

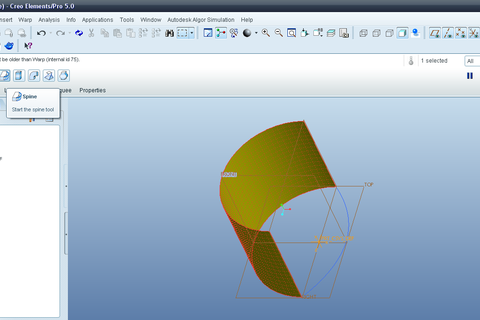

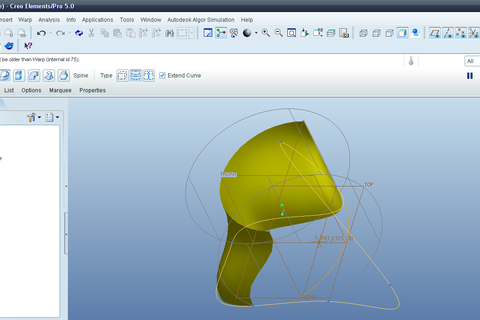

      Click Spine tool.

      Medium

    16. Step 16

      Select the spline as the chain.

      Medium

    17. Step 17

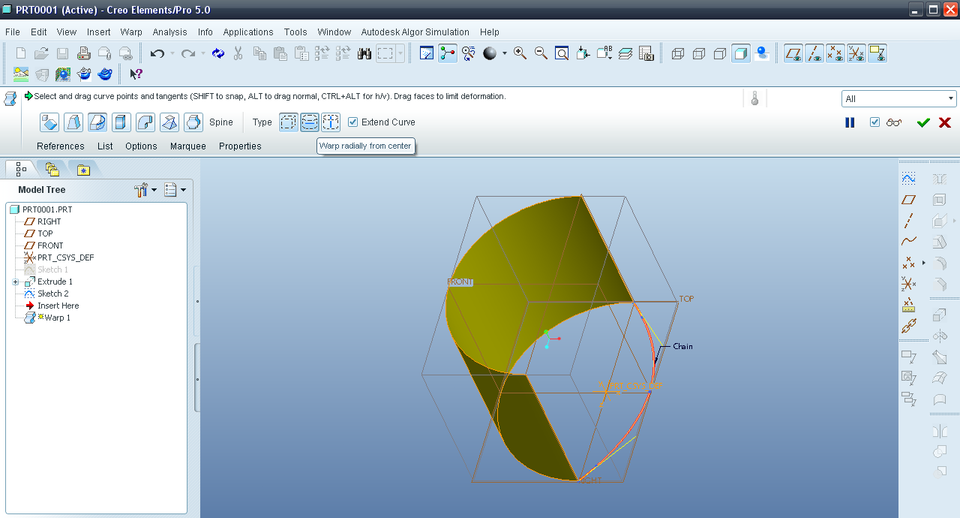

      Type to warp radially from center.

      Medium

    18. Step 18

      Now deform the quilt using the control points.

      Medium

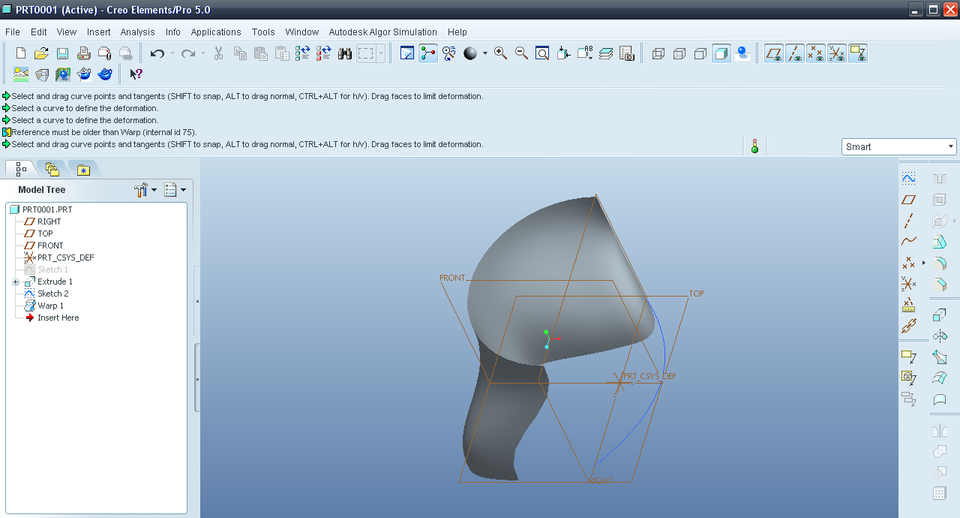

    19. Step 19

      Click OK and the feature is generated.

      Medium
