Unable to Show Radius /Diameter when user select axis and side in CATIA

By Nishant Shrivastrava on 26 Jul 10:06 1 answer 205 views 1 comment

unable to draw radius/diameter

Attachments

unable_to_Draw_radius.CATPart, 104 KB
Download

1 answer

Slavisa Todorovic 10 months ago

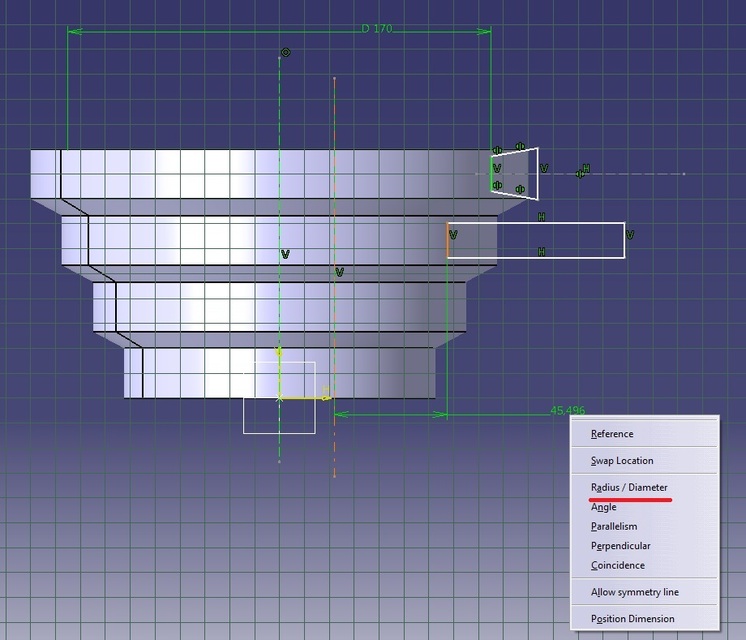

Use centerline or axis of existing solid, instead of construction line. Then you can check Radius/Diameter in contextual menu.
