Dimensions on isometric view in Catia

By ALOK KUMAR on 24 May 11:03 2 answers 0 comments

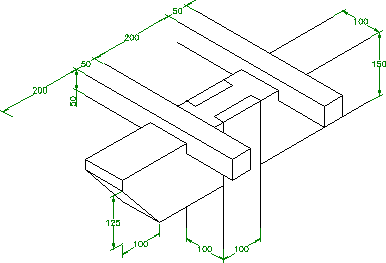

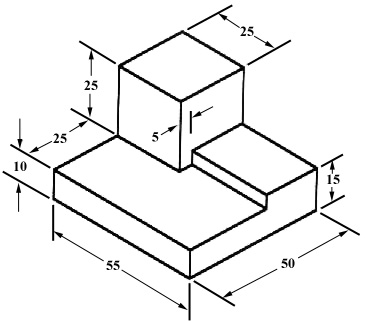

how can I put dimensions in a isometric view in Catia. I have given some examples as jpg files. Is it possible or not?

Added images

Square Square

2 answers

  • A J
    A J over 1 year ago

    Just generate the isometric view and put the dimensions. It should simply just work like that.

  • Catalin Mitru
    Catalin Mitru over 1 year ago

    Hello Alok,

    The method presented by A J works for simple parts but if you want to have also radii, diameters and anything else I would suggest you should do it in FTA module which let's you put dimensions directly on the 3D model.
