draw isometric view and side of this drawing?

By khaja on 30 Jun 10:40 3 answers 294 views 0 comments

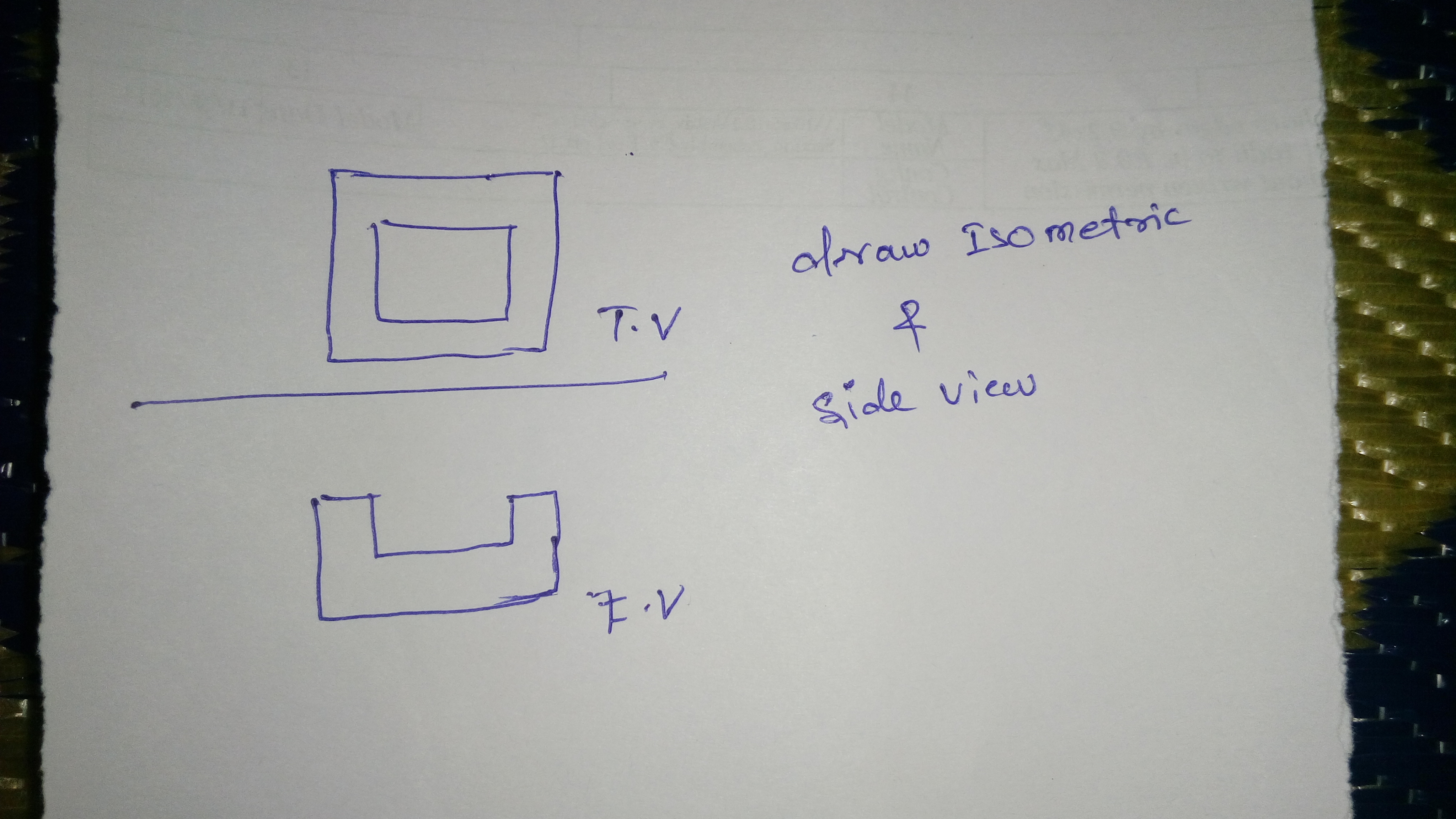

draw isometric view and side of this drawing,
hand sketch are make a model and send to me

Added images

Square

3 answers

  • FredSWUG
    FredSWUG about 1 year ago

    It is more of an exercise in showing why multiple views are needed. Or why hidden lines are needed.
    Without another view, or without hidden lines to show if a pocket exists, and its depth, I don't think you'll be able to determine the answer. A guess can be made, but why guess and waste time making the wrong part?
    You should also ask what the dimensions are.

  • khaja
    khaja 7 months ago

    wrong answer dude, its not square, not rectangle

  • yogesh patel
    yogesh patel 3 months ago

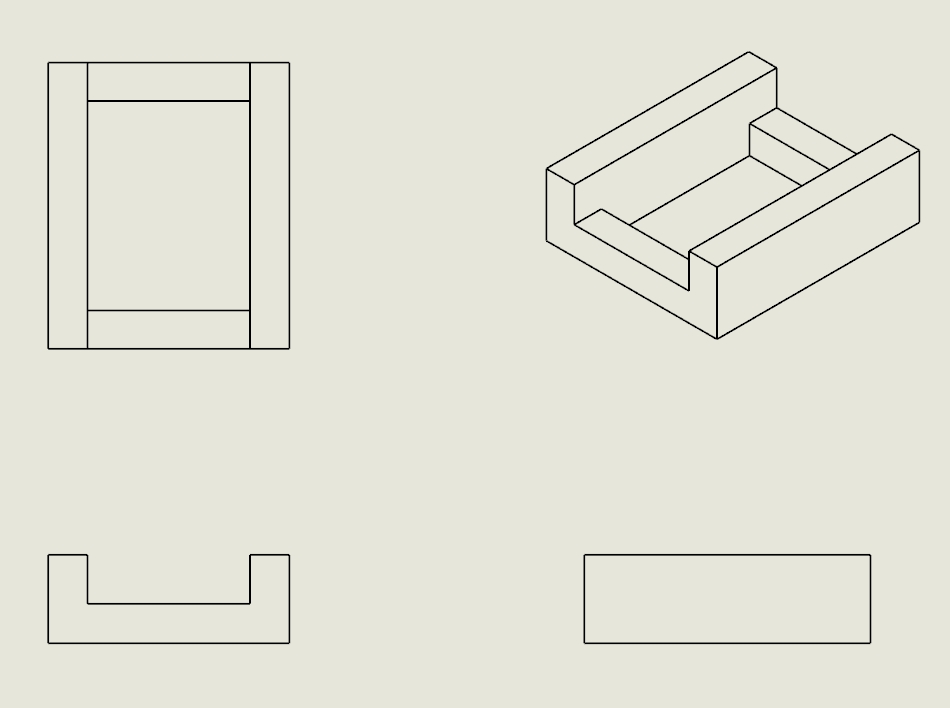

    you will show hidden line in drawing then make part.

Add your answer to: "draw isometric view and side of this drawing?"
