Fillet between two shapes in Shape Design/CATIA V5

By Daniel Atanasov on 07 Nov 16:27 2 answers 386 views 0 comments

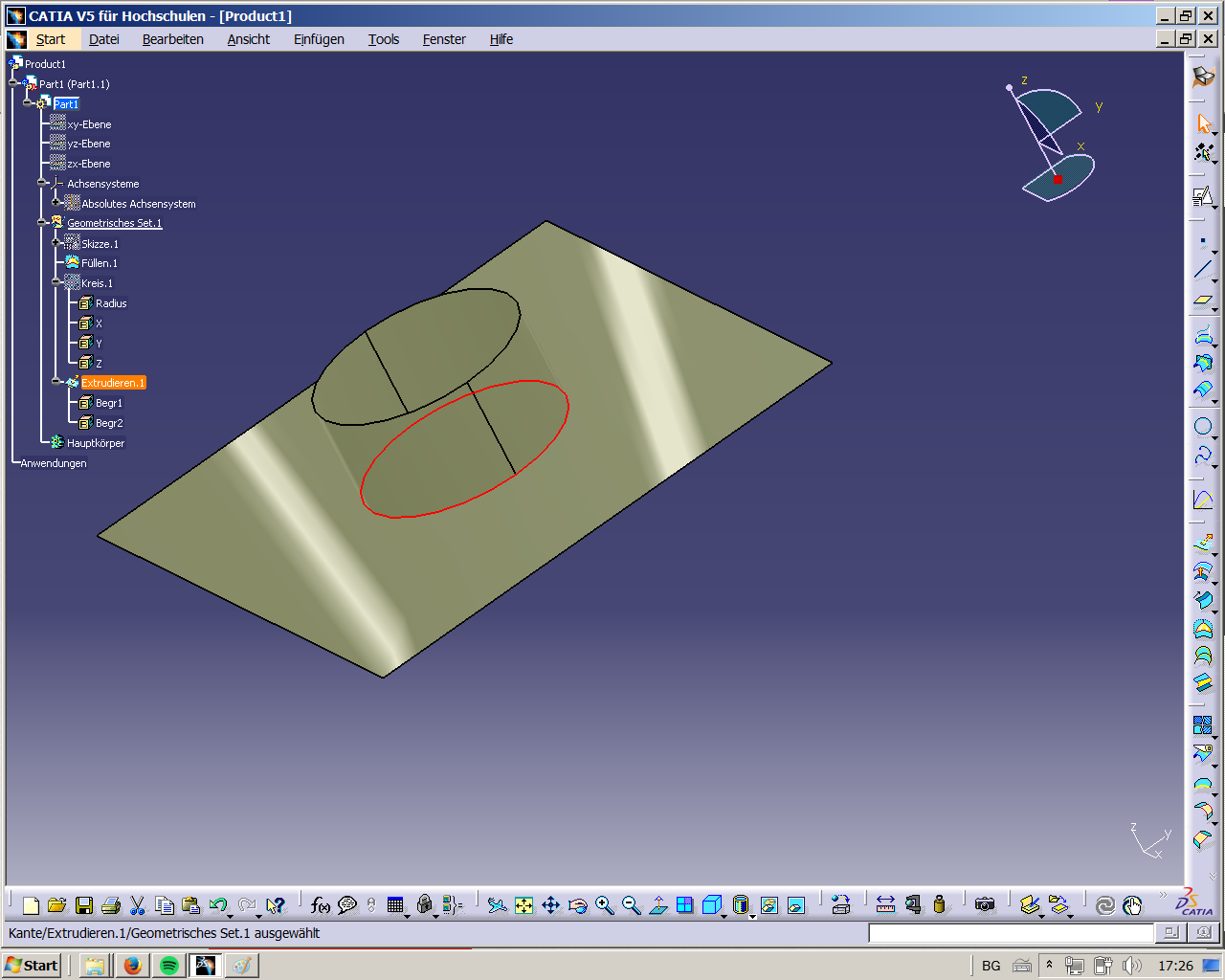

I have two shapes: a cylinder and a rectangle which I want to connect in order to make a fillet betweem them. I know how to do this in Part Design, but I need to make it in Shape Design. When I try to use the Join command I get an error message. I have highlighted the edge I want to fillet in the screenshot. Please help :)

Added images

Square

2 answers

  • özgür kesebir
    özgür kesebir 9 months ago

    You need to use Trim command before fillet.

    Just trim rectangular fill surface with cylindrical surface.

  • sumant kondaparthy
    sumant kondaparthy 9 months ago

    Hi Daniel ,

    Hope this attachment would help you

    Attachments

    Two different shapes and their fillet.CATPart, 73.3 KB
    Download
