How can I insert a picture of a view like a top view in a surface on generative shape design?

By wesley aaa on 24 Jul 14:40 2 answers 414 views 0 comments

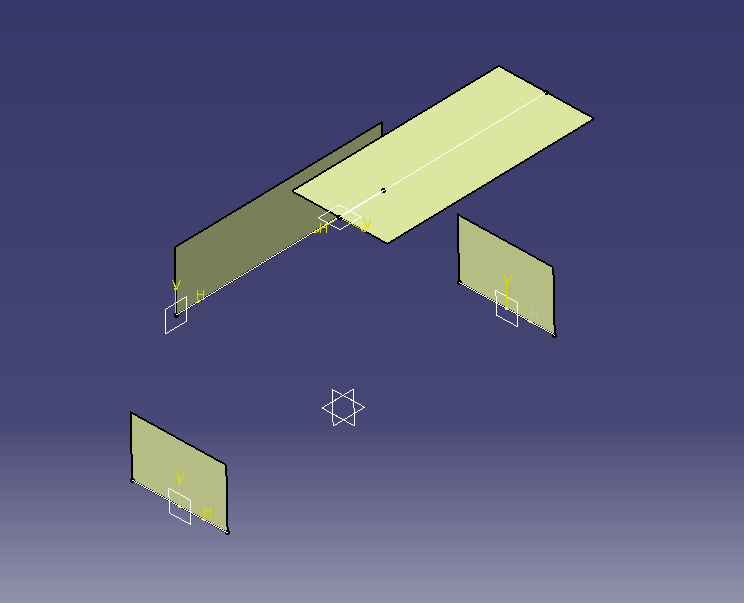

I saw one time is possible insert a picture view in a surface, I need to insert a top,front,side and back view from a car to design it. But I can't imagine how I can make it, I cliked on (photo studio) but without sucess.

Added images

Square

Attachments

ScreenHunter_007.bmp, 1.28 MB
Download

2 answers

  • özgür kesebir
    özgür kesebir about 3 years ago

    You can do that with apply material. Select surface feature and assign any material from material library and repeat this step for all surface seperatly. Then go specification tree and find material under extrude surface feature. Select material properties by clicking right. Go texture tab and select type as image.

  • Cedric Chaine
    Cedric Chaine about 3 years ago

    I don't think you can do it in photo studio. The best way to do it would be in "Sketch Tracer", it's in ''shape'' menu.
