how to change the default from radius to diameter while associating formula to circle?

Shifali Barwa
Shifali Barwa
14 Jul, 2020 11:22 AM

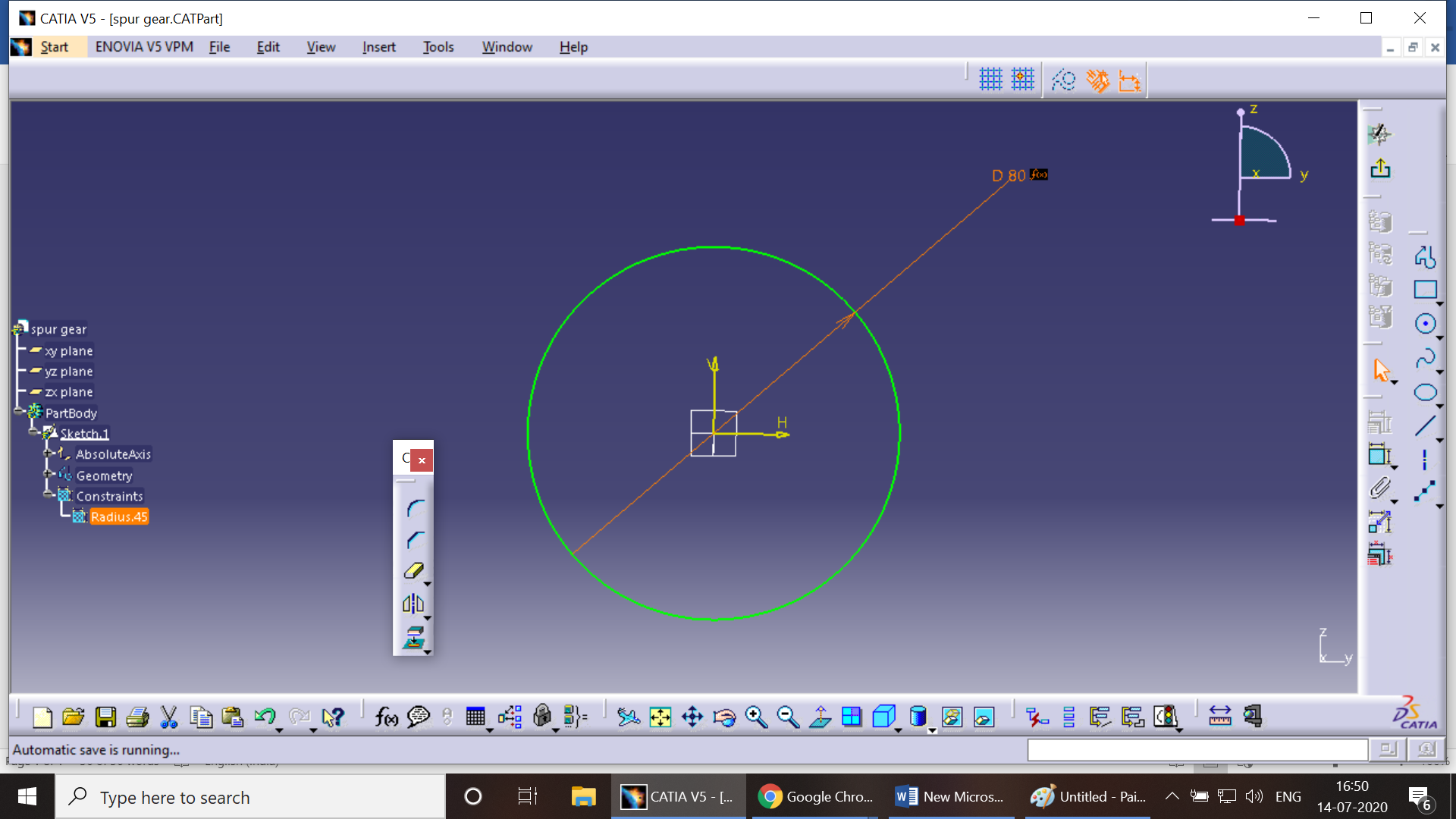

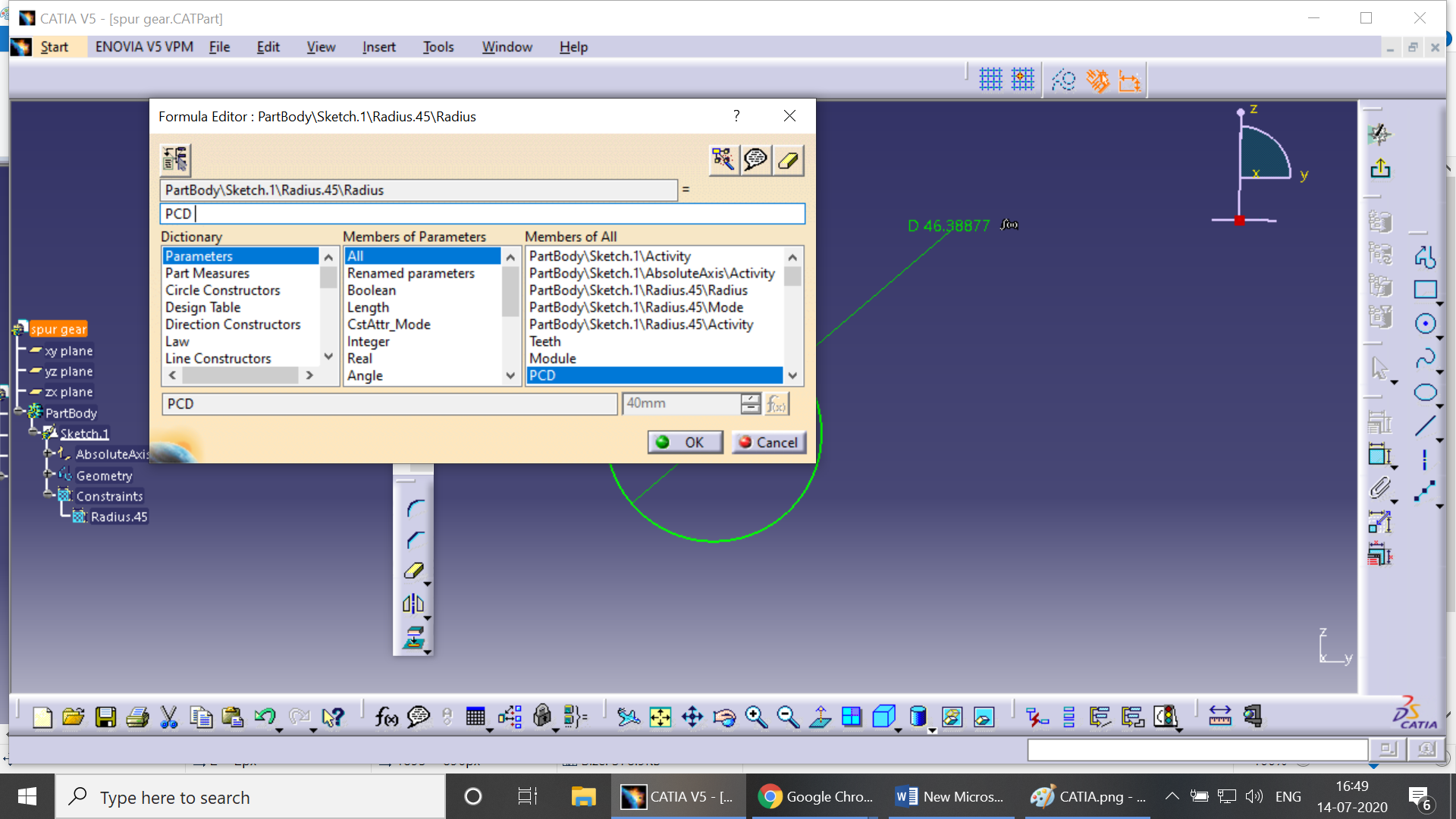

I made a formula list in which PCD=Teeth*Module. So basically I am putting diameter. But when I am associating it with circle and putting the dimension, it is taking radius by default

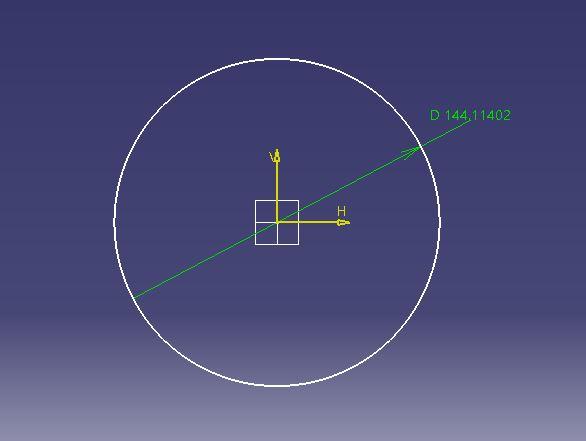

Like PCD =40mm but while associating it is taking D80..Is there anything to change default radius to diameter.

catia3.png catia3.png catia1.png catia1.png CATIA.png CATIA.png

3 Answers

Ananth Narayan
Ananth Narayan
Answered on 14 Jul, 2020 12:18 PM

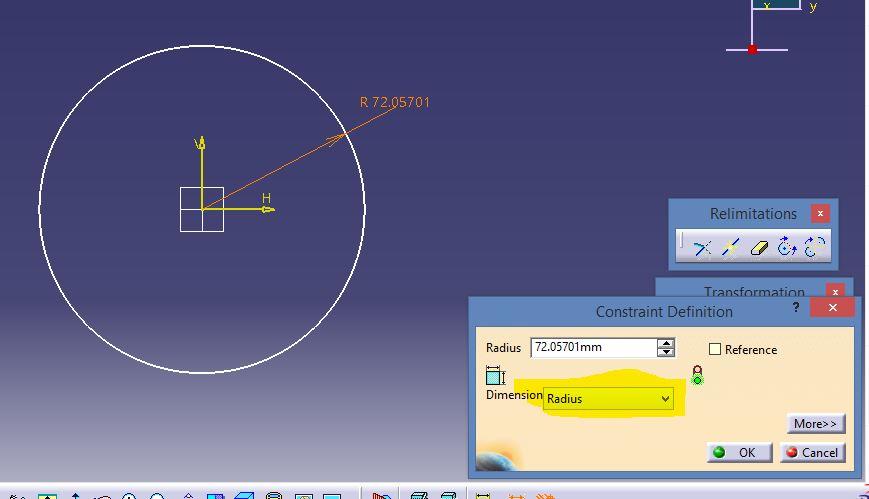

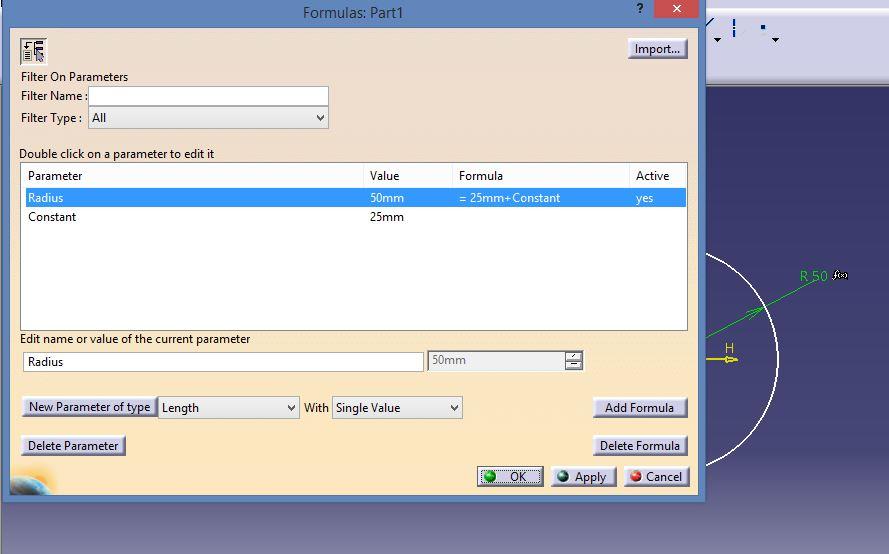

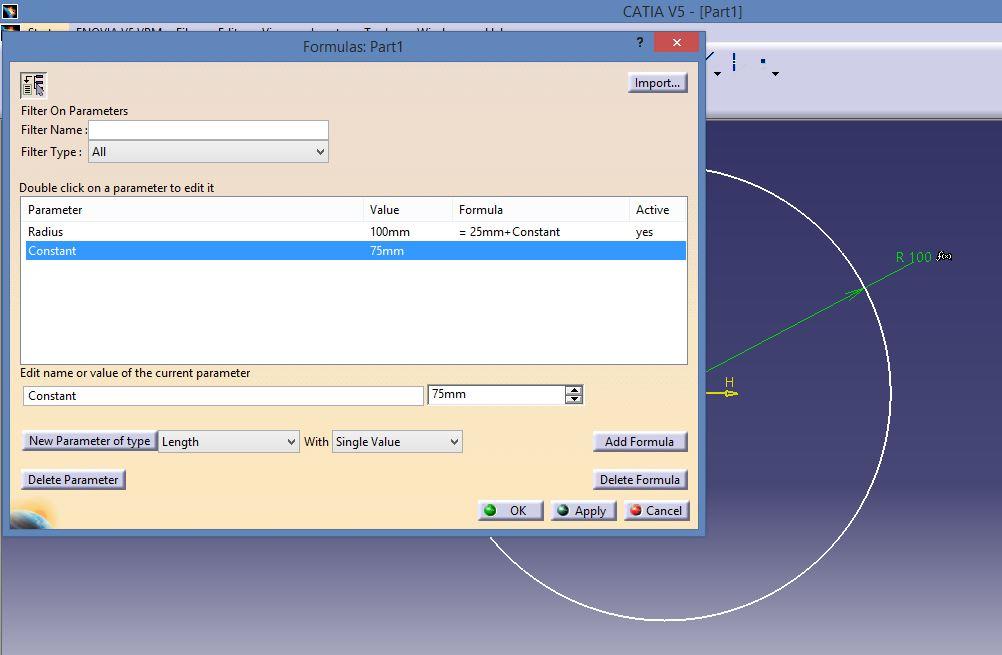

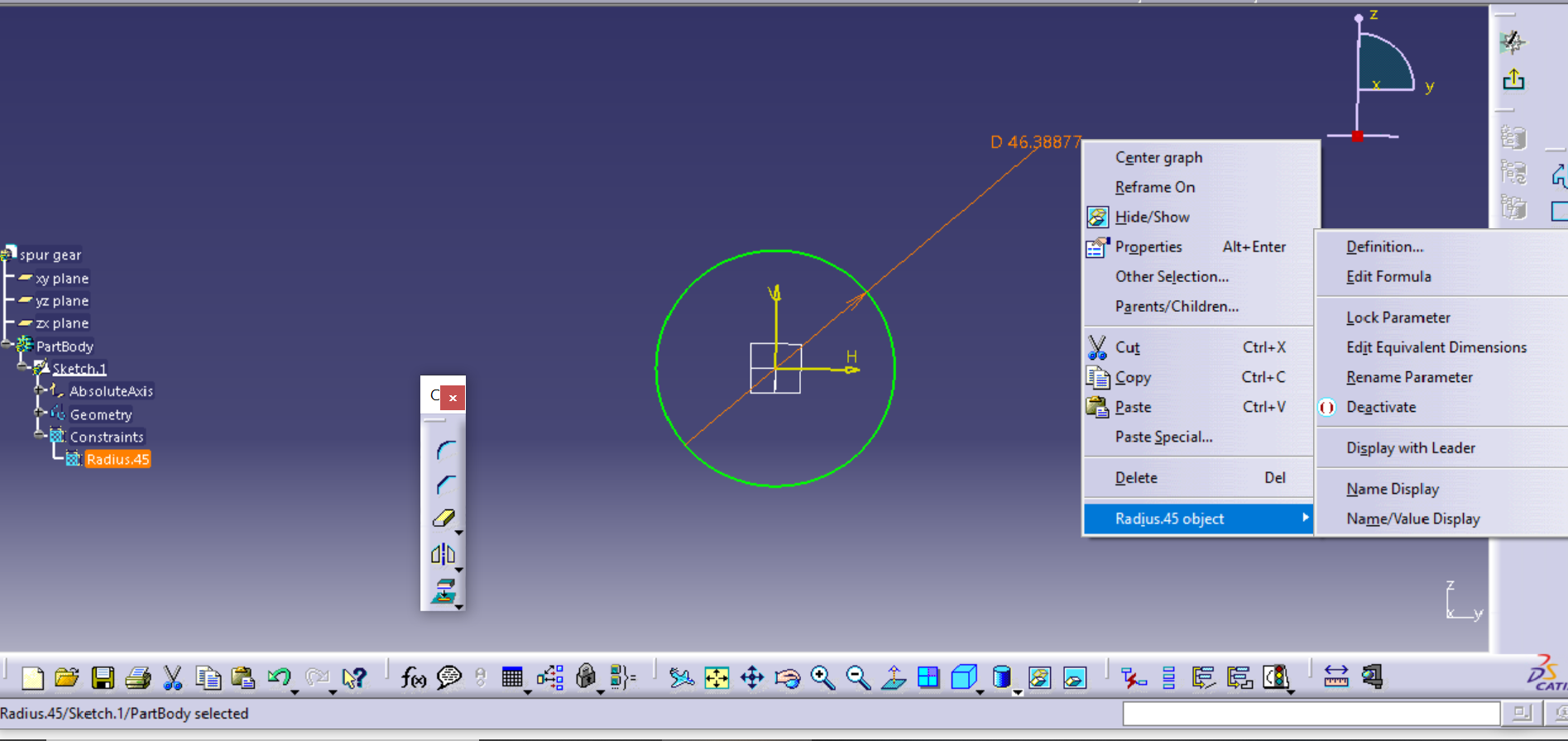

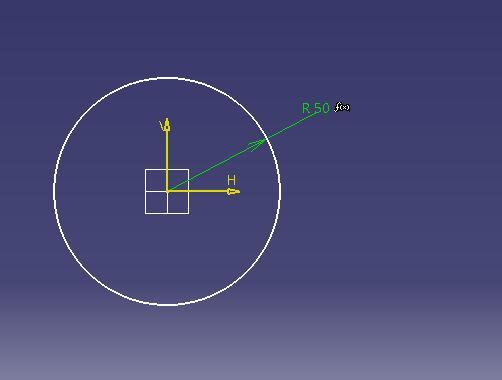

First of all you need to change the dimension type from diameter to radius, to do so, double click on dimension and change the type as radius from diameter as shown in 2.jpg, and then apply the formula.

5.JPG 5.JPG 4.JPG 4.JPG 3.JPG 3.JPG 2.JPG 2.JPG 1.JPG 1.JPG
Jack K
Jack K
Answered on 14 Jul, 2020 04:34 PM

you asked: "Is there anything to change default radius to diameter?"

No. CATIA parameters only use Radius to define the size of circles and arcs.

Ananth Narayan
Ananth Narayan
Answered on 15 Jul, 2020 09:50 AM

For creating gears on CATIA, this app is far better and useful, try this one. SPADANTECHNIC GEAR APP. https://spadantechnicgearcatiaapp.software.informer.com/download/.

According to my experience it is good and free, you can customize the basic values and then generate the gear in few seconds.
