How to convert enclosed surface to solid in CATIA?

I had created several surfaces such that they are having enclosed region. I want to create solid from this region. How to convert it?

check the file attached

Answer

Comments 2

10 Answers

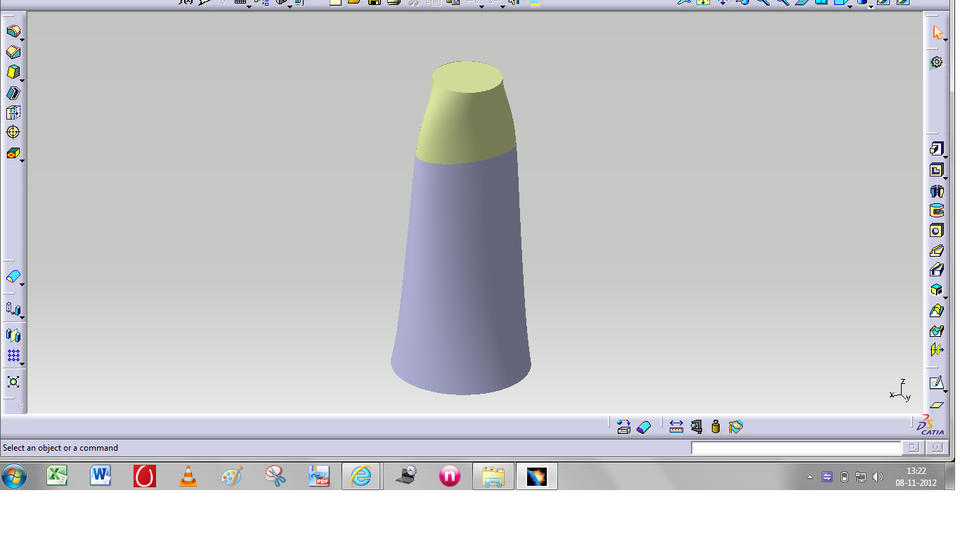

Small example from my side. As there is no software supporting to your .catpart file. I do have Catia v5 r19

Answered with a tutorial: https://grabcad.com/tutorials/how-to-convert-enclosed-surface-to-solid-in-catia--1


Comments 1

Hi sudhir
what you can do is use the following commands shell, close surface and thick surface and your surface will be created into a solid part


Comments 0

In part design workbench ,use close surface command, then hide the join ,you will get the solid as required .
In your model I can see their is a circular disk (hidden) is also present at the bottom (thick portion of the twist ) of twisted profile.


Comments 1

dear Sudhir Gill
you could import to catia with iges or step format and then thicked them to solid.


Comments 1

Please anyone help to make this design... i want a layer or coating as shown in figure... take the dimension according to u... coating is on crown surface .. curved surface dish type...


Comments 1

Hi everyone..
I work in an automobile industry (fresher) and i have to work in both catia and proe.. Mostly i receive surface models in igs format which sometime doesn't converted into solid..
Can anyone please tell me why this problem occurs and how can i solve it?
my contact info: anilkrishnashaw@gmail.com


Comments 0

1. Click icon Merge is displayed window definition of union.
2. Select surfaces or the curves to join.
3 change menu from generative shape design to part design.
4. select thick surface commands or close surface.
and is done. Good luck
