How to make belt mechanism in pro e?

By EDISON PHOENIX on 21 Apr 03:33 4 answers 6342 views 8 comments

How to make belt mechanism in pro e?

4 answers

  • EDISON PHOENIX
    EDISON PHOENIX over 3 years ago

    Belt tutorial.

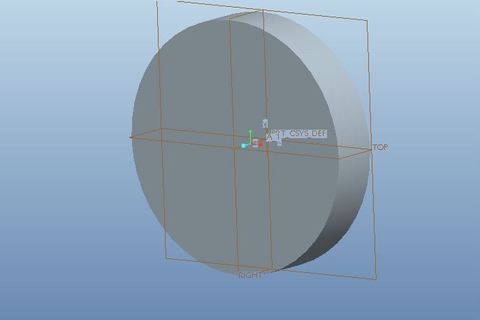

    1. Step 1

      Create the base feature.(pulley)

      Medium

    2. Step 2

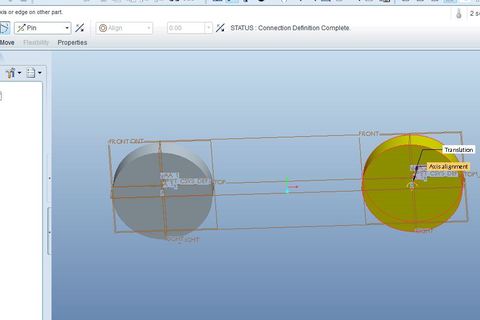

      Open a assembly model.
      Using pin joint connect the first bulley.

      Medium

    3. Step 3

      Connect the second pulley with pin joint.

      Medium

    4. Step 4

      Go to Application menu->Mechanism.

      Medium

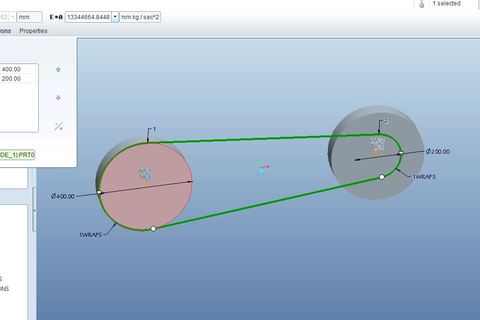

    5. Step 5

      Click belt mechanism and give the smaller and larger pulley diameters.

      Medium

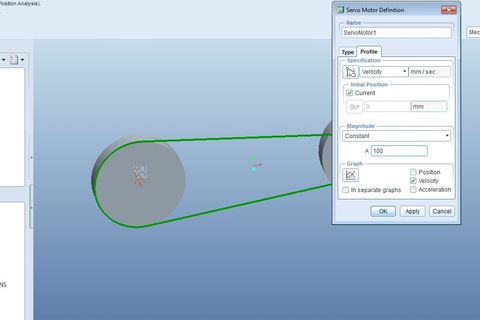

    6. Step 6

      Set a servo motor to a desired pulley.

      Medium

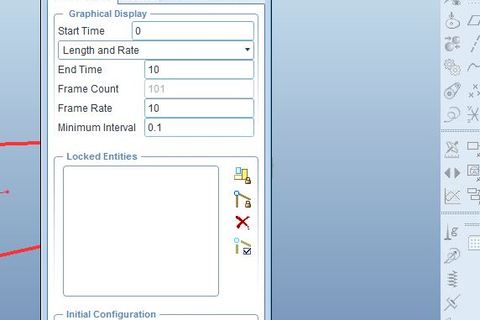

    7. Step 7

      Click Mechanism analysis.
      Then Run the mechanism.

      Medium

  • Anand babu
    Anand babu over 3 years ago

    it's own work

  • Suren RK
    Suren RK 6 months ago

    I'm using pro-e 4.0 but I can't see a Belt mechanism Icon on my work bench...
    but it is available in Pro-e 5.0
