How to model snail sink in SolidEdge/SolidWorks/Inventor?

Hi,

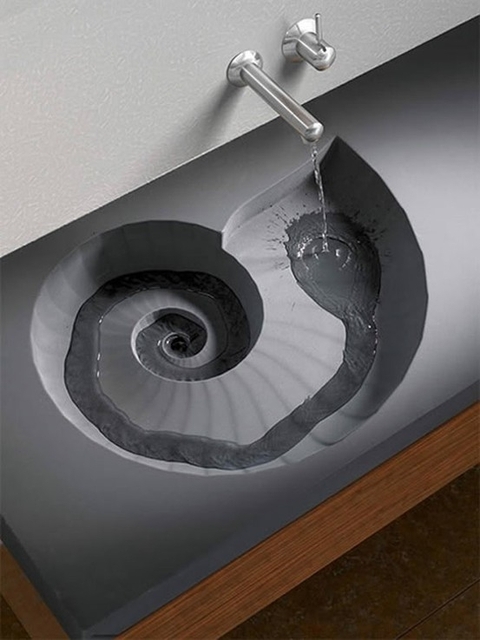

How to model such thing http://cdn.indulgy.com/SJ/XJ/Yu/260153315944332662mnTq48rPc.jpg in SolidEdge / SolidWorks / Inventor?

Any ideas?

Answer

Comments 0

5 Answers

Create a helical sweep of the profile that you want and then go back and add the detail that you need. Hope this helps


Comments 0

You need to model the top part. Rotate it while keeping the original and then scale it around the origin by say 95%. Repeat this process a lot until you reach the bottom. Here is the result:


Comments 0

Sorry, but I don't think that is so simple... try and show me that works :)


Comments 1

Brian is correct you have to start with a helical swept cut to get the initial profile. In SolidWorks, there is no easy way to create a pattern to create those steps. You would have to create them individually after creating the initial cut. I would create a boundary surface for the steps with two splines and then use a thickened cut to cut out each step.

-Rohit
