How to scale a volume at just one side of it in Catia v5

SAM
SAM
5 Oct, 2017 02:53 AM

Suppose a square cube is to be resized from one of its 12 sides...

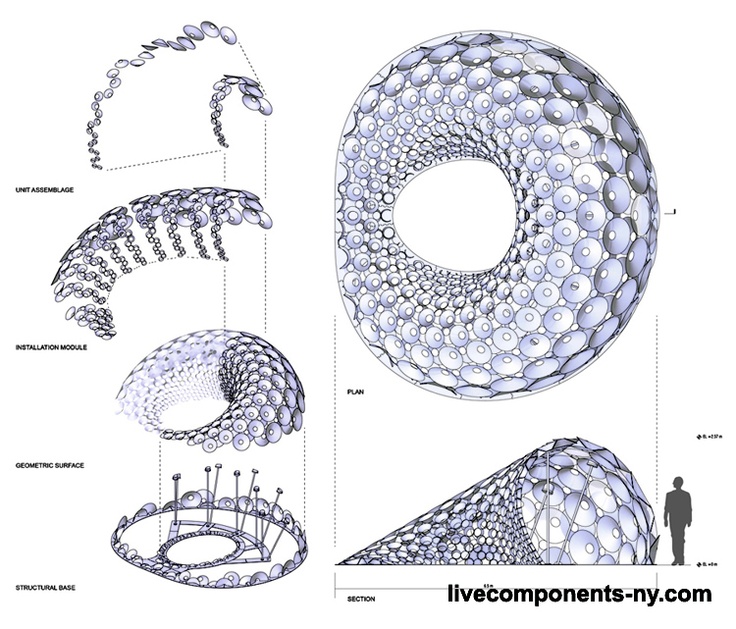

The answer to my question is the only way to design this jewel. And for the time being working with this software, I'm sure there's a simple way to design this

afbf49e03a9af9c950d5b1b44bf823c0--parametric-design-assemblage.jpg afbf49e03a9af9c950d5b1b44bf823c0--parametric-design-assemblage.jpg

2 Answers

Jack K
Jack K
Answered on 5 Oct, 2017 12:59 PM

use an Affinity Transformation

yang jilong
yang jilong
Answered on 7 Oct, 2017 08:04 AM

1 answer is very good
