Is it possible to create a flat pattern of a helical part in sheet metal module of Creo Parametric?

Vladimir

24 May, 2012 12:37 PM

Hello, everyone!

Is it possible to create a flat pattern of a helical part in sheet metal module of Creo Parametric?

Thank you in advance.

Best regards, Vladimir.

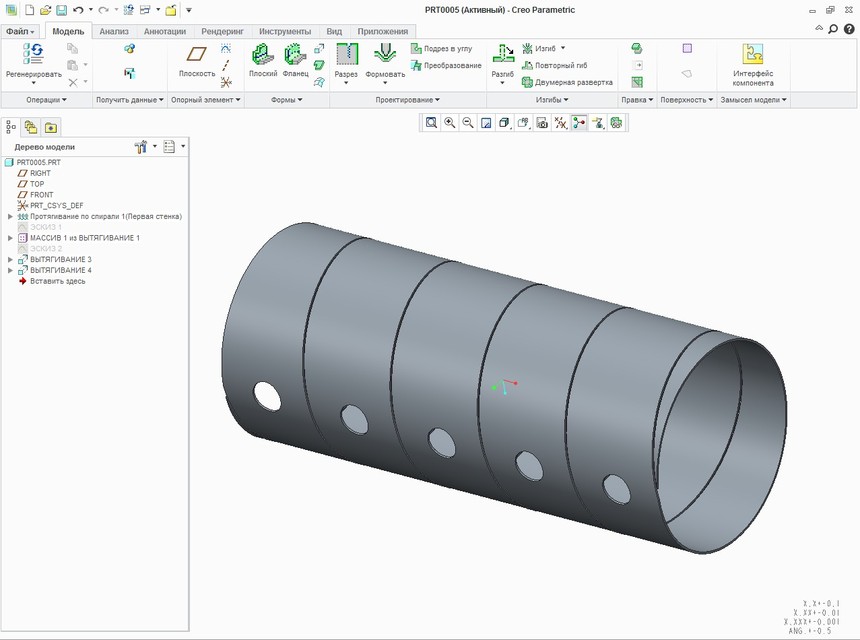

helicalsweep.jpg helical_sweep.prt.1

Answer

1 Answer

peter boult

Answered on 25 May, 2012 07:09 AM

The part you have added cannot be retrived, but Im presuming you have tried the unbend feature?

Pete.

Upvote 0 Upvoted 1

Downvote 0 Downvoted 1
