Lofted cut 3d sketch problem

By Hor Sue Xian on 01 Nov 16:39 1 answer 919 views 5 comments

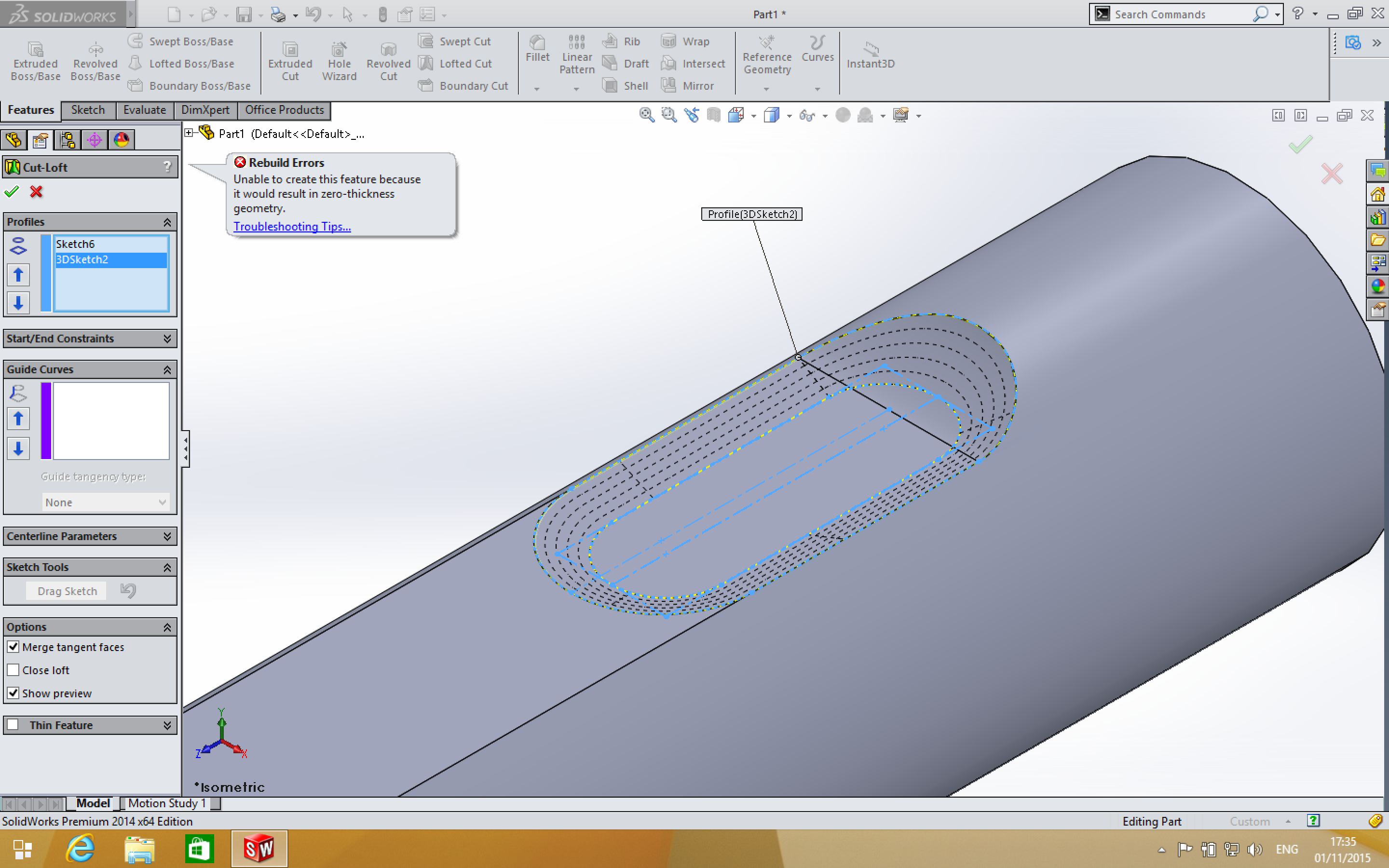

I'm trying to cut loft a 3d sketch and a 2d sketch.
This results in zero geometry thickness.
What can I do?

I'm thinking of offsetting the 3d sketch by 0.1mm so it wouldn't be zero, but I can't manage to do that. Help?

Added images

Square

Attachments

PEN1.SLDPRT, 187 KB
Download

1 answer

  • FredSWUG
    FredSWUG almost 2 years ago

    I made the model is SW2016, so uploading the result will not help you since your model was made in SW2014.
    I would use a sweep for this though.
    I'll attach some photos:

    Answered with a tutorial: https://grabcad.com/tutorials/lofted-cut-3d-sketch-problem
