Need help figuring out suspension on a trailer model in solidworks

Jon Miller
Jon Miller
23 Nov, 2018 06:33 PM

Hi All, I am in need of some assistance to figure out a specialized suspension for a custom trailer I am working on. I need some ideas on the best way to make it work.

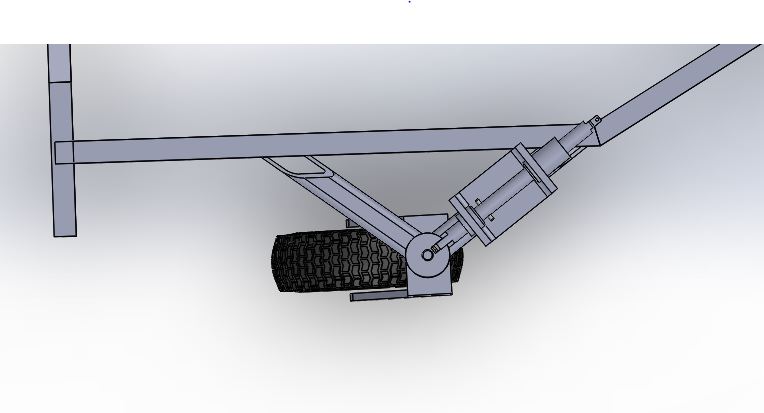

Included a pic to show what im talking about.
if any one has any ideas I would be glad to share more info and pics
Thanks
Jon

suspension possibility.JPG suspension possibility.JPG

2 Answers

Jon Miller
Jon Miller
Answered on 23 Nov, 2018 06:37 PM

side view

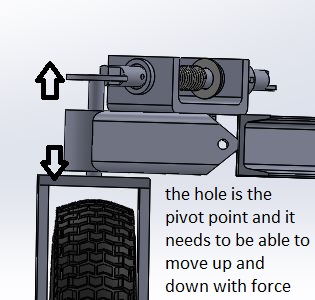

side view of suspension frame.JPG side view of suspension frame.JPG
Jon Miller
Jon Miller
Answered on 23 Nov, 2018 06:37 PM

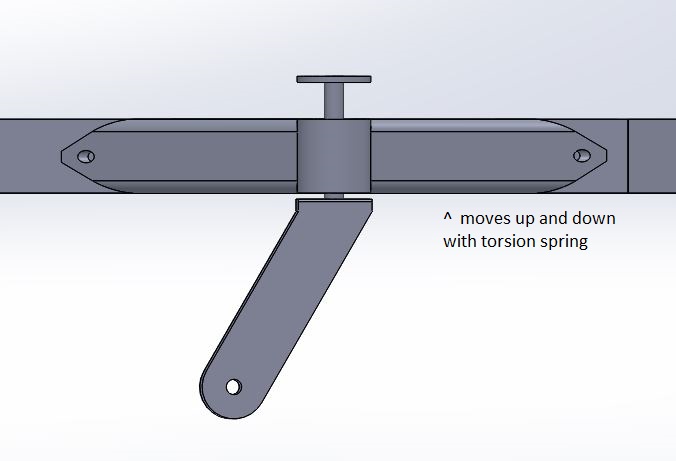

here is a top view to help explain a little more

close up of mechanism top.JPG close up of mechanism top.JPG
