won't extrude cut a surface offset
I am trying to create a block that holds the same shape as an airfoil so it can rest on there. I have done a surface offset of the airfoil. It has uneven edges at the end of the offset so I am trying to cut that section off or find a way to avoid that area all together. I am not able to extrude cut, I don't know if that has to do with it being a 3d sketch but I am not sure what to do.
Accepted answer

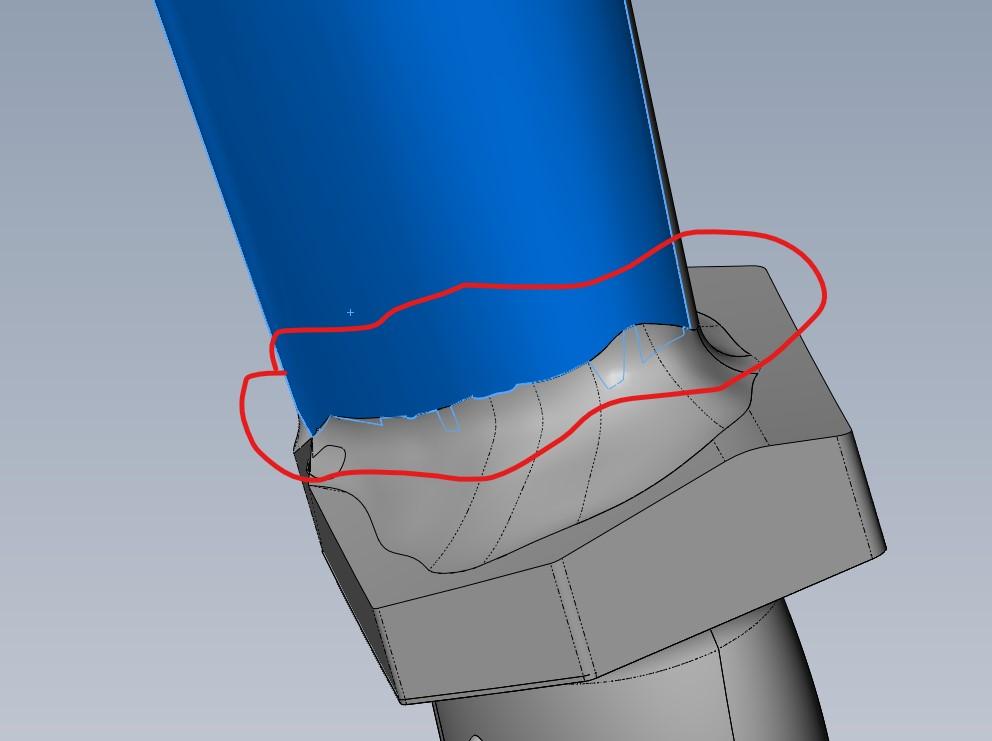

Ok, so the part you're trying to make a nest fixture for is extremely messed up and as such didn't import cleanly. There's a bunch of garbage in the foil area, particularly where I have indicated.
The bad geometry here is what's causing you to have difficulty modeling the nest, and the best course is to clean up that geometry first if possible.

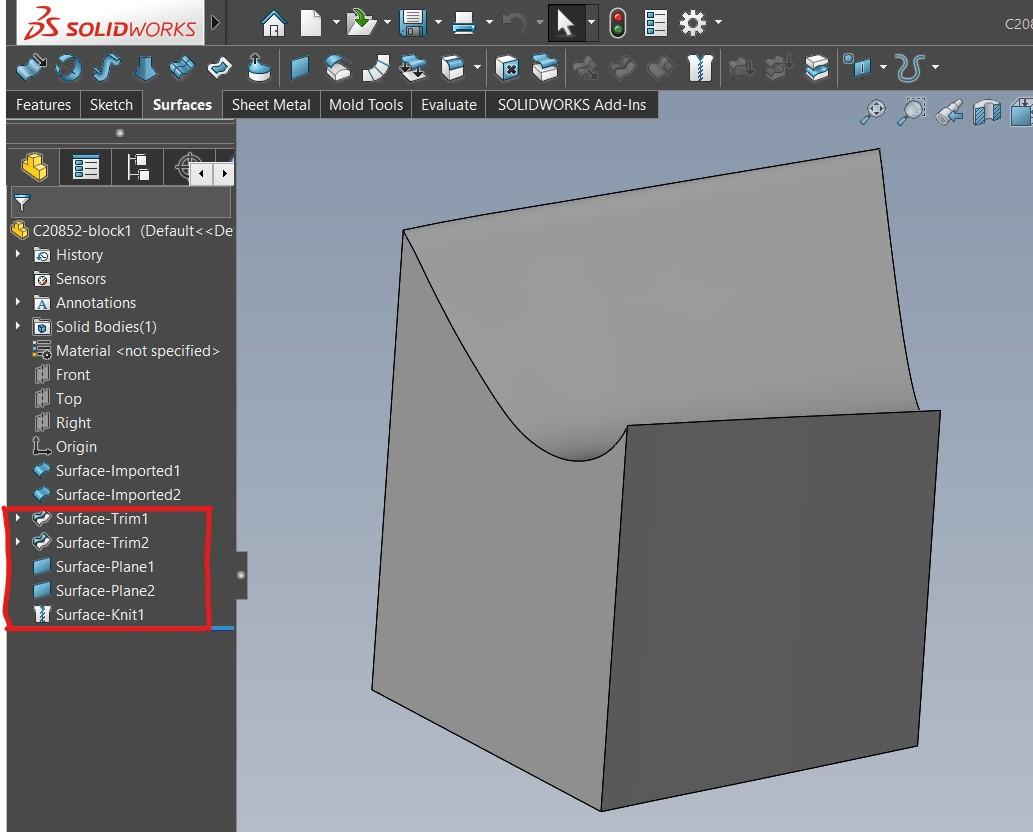

I was able to do some work with it though, and have constructed a block and used the 'replace face' feature to make the top of the block conform exactly to the area of the foil I think you're trying to match.

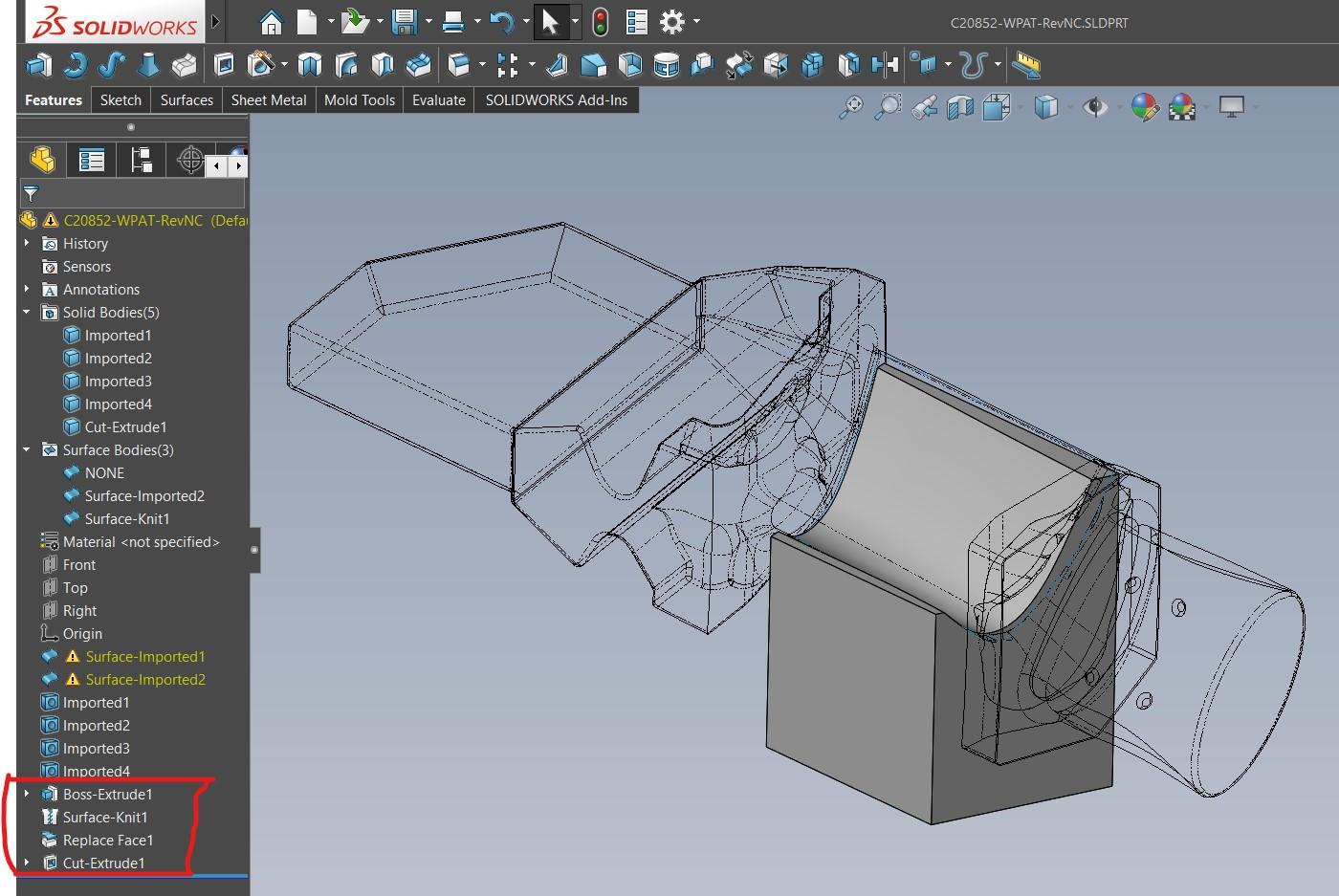

I added 4 features to the 'RevNC' model after importing it to create the nest geometry. Take a look, maybe this will help out.
4 Other answers
extrude-cut is a solids feature, you'll need surface-trim to 'cut' surface features.

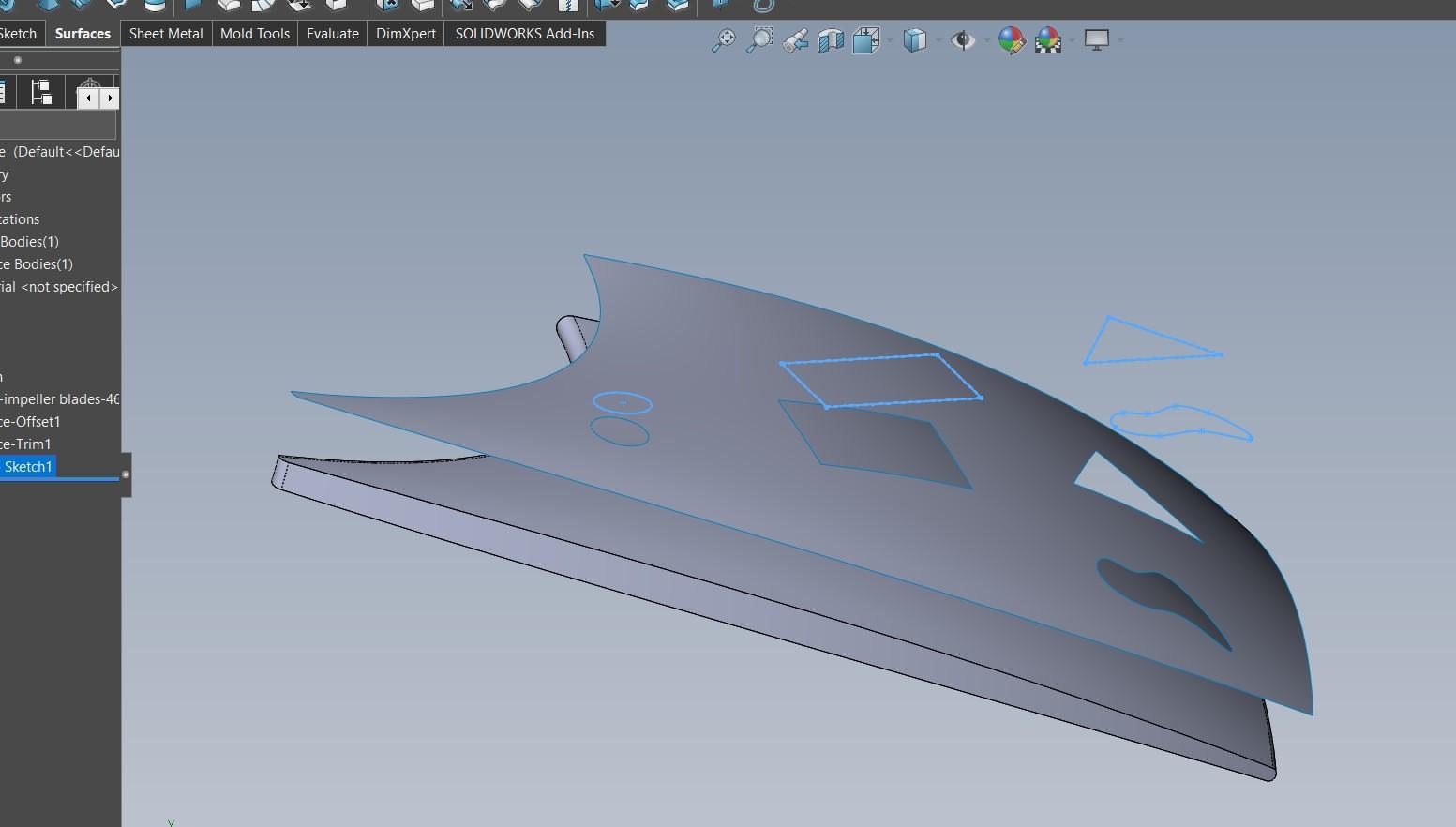

I've attached a model of a foil shape, with a surface offset, and a 2d sketch of various shapes which 'trim surface' the offset surface feature. These 2d shapes could also be used to 'extruded cut' the solid as well.
Hy Adriana,
in case insert a "level as surface" from that you can made a (2D) sketch, than use the fetaure CUT described by Robert H.; take care to look at the geometries outlines.
If you nedd to use the 3D sketch to cut something it´s realy tricky to made a good result with them; than you need to create a "surface" driven by a cut-line ... but im not recomand it.
if you know the shape and the size of the airfoil you can use some "level-surface" and made the sketch on each one, so you can "extrude it" with conneting the two sketches with the apposit featuer...
KR, Otmar M.
attached files.
I'm not sure how to attach in a comment
