How to fold sheet metal one by one twice.

Tutorial by akmar
Small

Hi, everyday i'm working with Sheet Metal, maybe this instruction may help you.

  1. Step 1:

    make a sketch on Front Plane

  2. Step 2:

    Make rail sketch on Right Plane

  3. Step 3:

    select from Insert> Sheet Metal> Swept Flange. Swept Flange features only available in version 2012 onward.

  4. Step 4:

    To setup Swept Flange bending input, please follow below instruction. Please take note that different type on bending option (Bend Deduction, K-Factor, Band Table, Bend Allowance) will result with different unfold size, for this bending, i recommend to use K-Facktor

  5. Step 5:

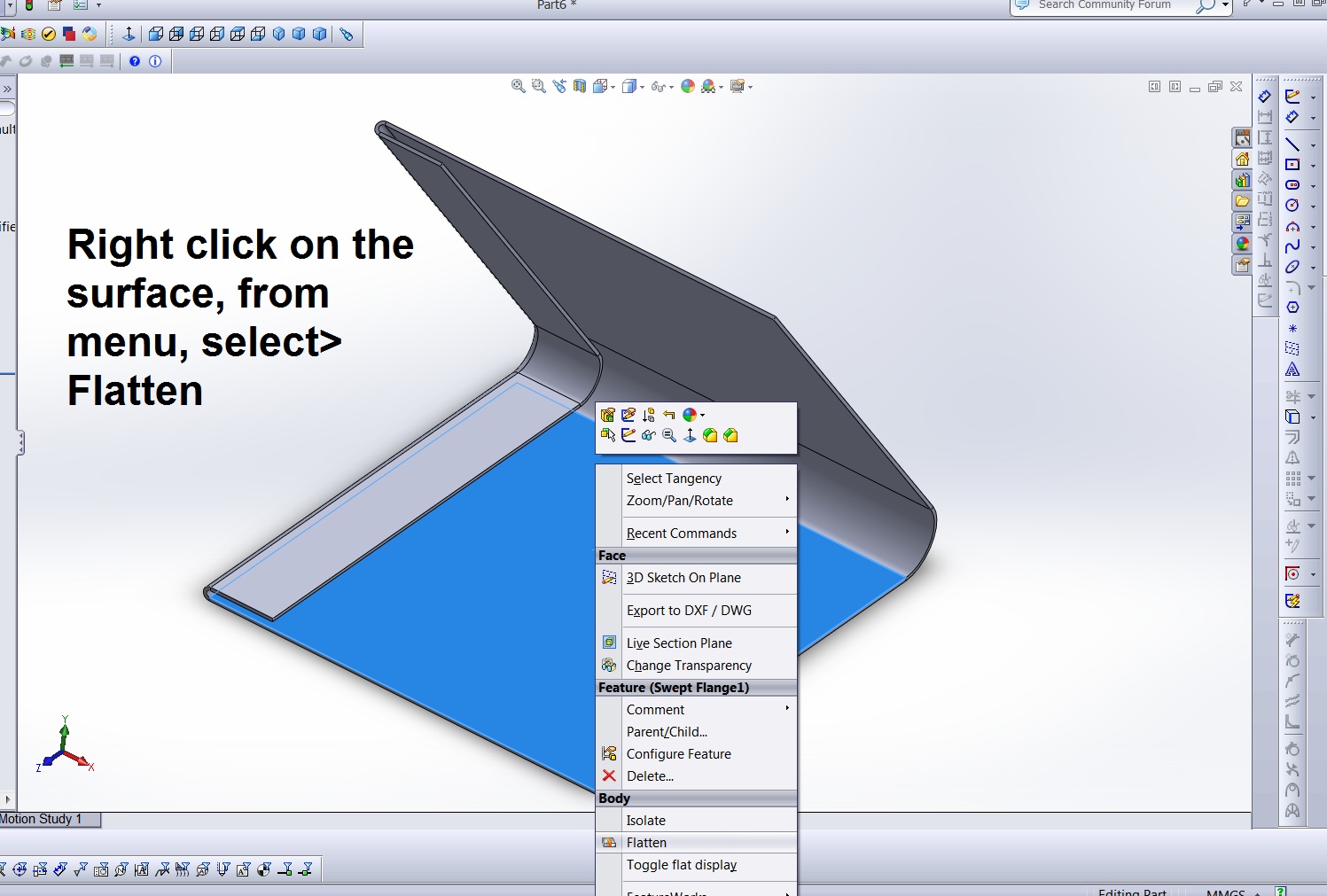

    Done- If you want to view the unfold, follow below instruction. Happy Day
