How to model Letter Balance in Solidwoks - Part 4

Tutorial by Dragan Beljan
Small

Little Scale - finish

  1. Step 1:

    Draw a sketch on front plane

  2. Step 2:

    Boss extrude it 3mm

  3. Step 3:

    Draw a new sketch on front face

  4. Step 4:

    Cut extrude it 0,0001mm

  5. Step 5:

    Use a Circural patern like this on picture

  6. Step 6:

    Draw a new sketch on first line

  7. Step 7:

    Cut extrude it 0,00015 mm, 0,20mm, look at the picture

  8. Step 8:

    Use a Circural patern like this on picture

  9. Step 9:

    Draw a new sketch on sixth line

  10. Step 10:

    Cut extrude it 0,0001 mm, 0,20mm, look at the picture

  11. Step 11:

    Use a Circural patern like this on picture

  12. Step 12:

    Draw a new sketch with Sketch Text like this on picture
    The font is Century Gothic, Regular, 24 points, letter g is bold

  13. Step 13:

    Cut extrude it 0,0001mm

  14. Step 14:

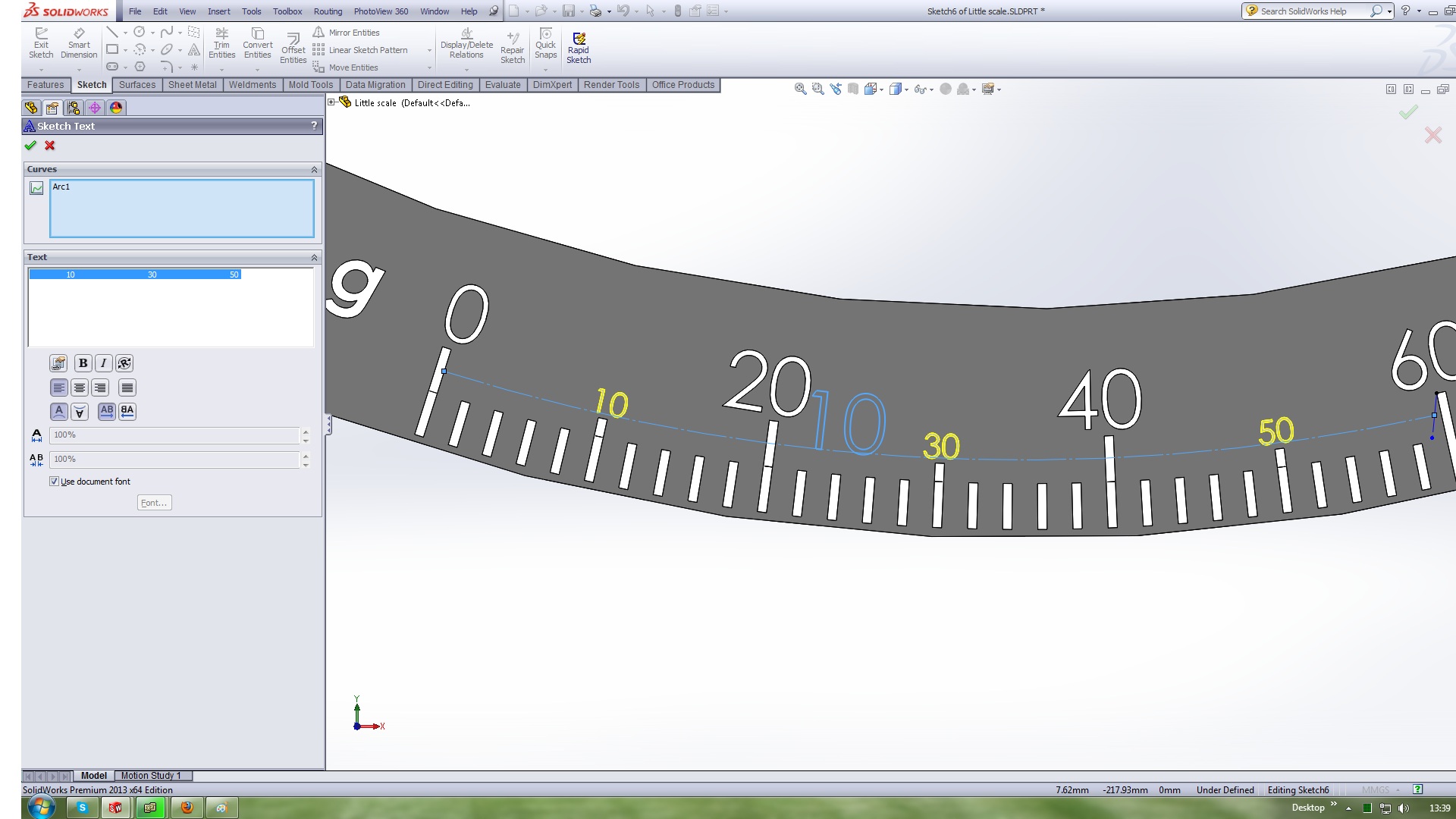

    Draw a new sketch with Sketch Text like this on picture
    The font is default
    And Cut extrude it 0,0001mm

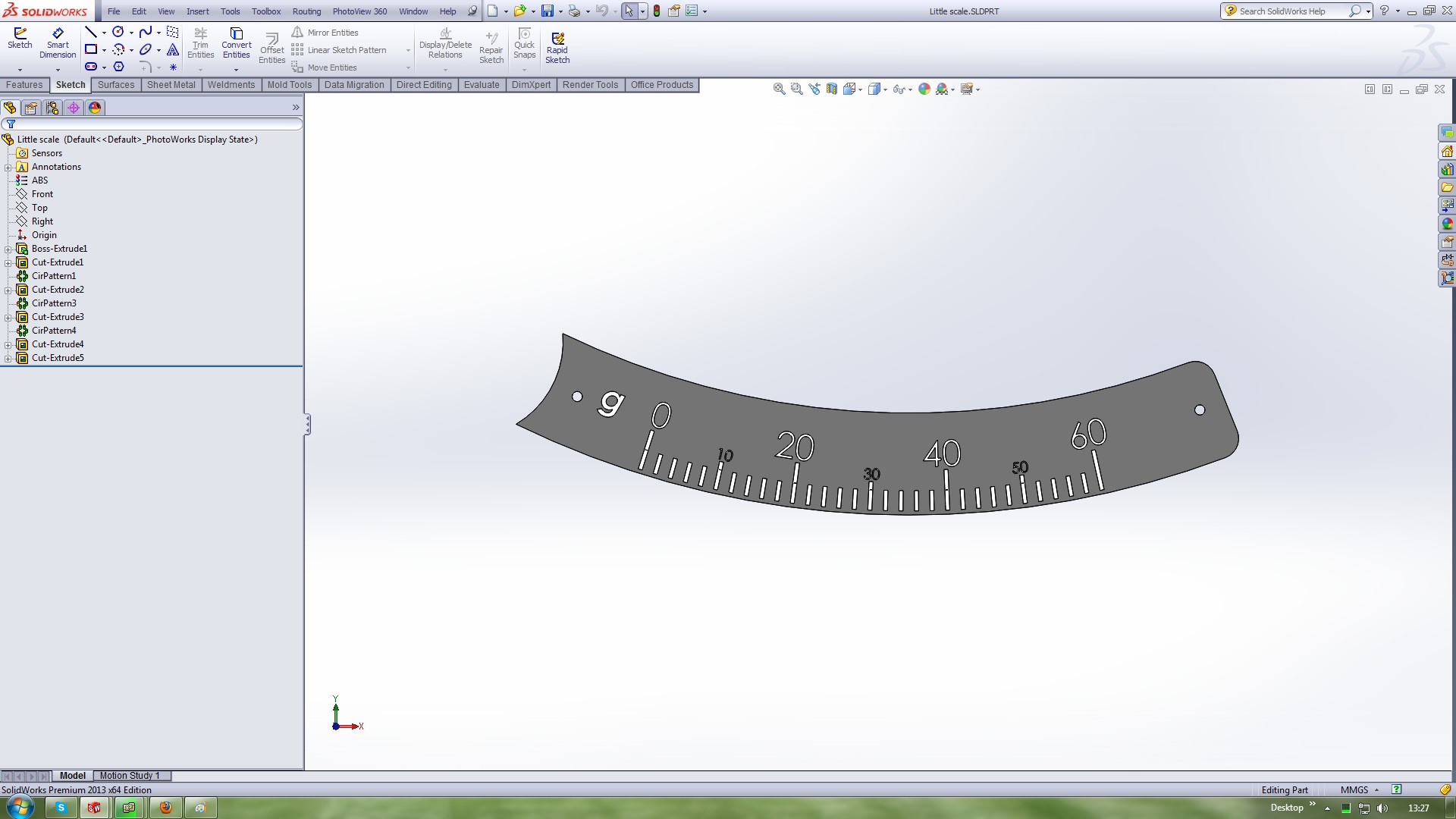

  15. Step 15:

    Little Scale - finish
