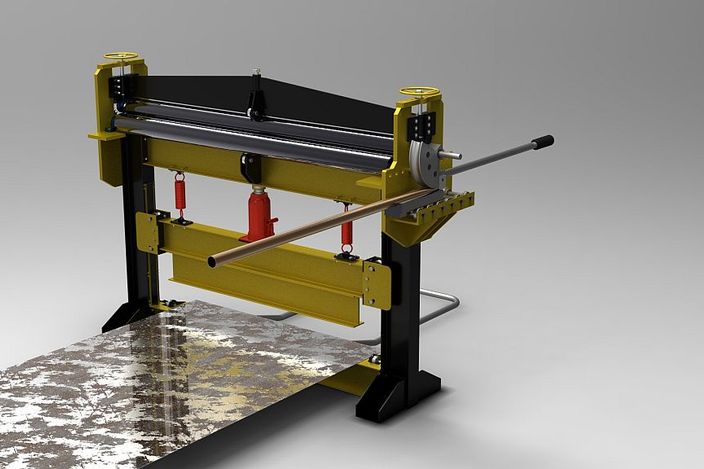

All in one metal sheet and tube machine

I need some sheet metal and tube bending and rolling machines and decided to attempt an all in one machine to save space. Herewith then my beginnings of such a machine to do the following:
1. Sheet bending
2. Sheet rolling
3. Sheet guillotine
4. Tube roller
5. Tube bender
6. Bender and roller for other profiles like angles, flats and channels
7. Hydraulic press
8. Still to add: Tube notcher

I got inspiration from the following Grabcad Engineers' models:
Cliff Behrend
saeid_mir
Vasjo
E Wira Napitupulu
Ivan Stojicic

Step files to follow as soon as I have sorted out some minor details.

All are welcome to add comments and changes to improve this monster.......
