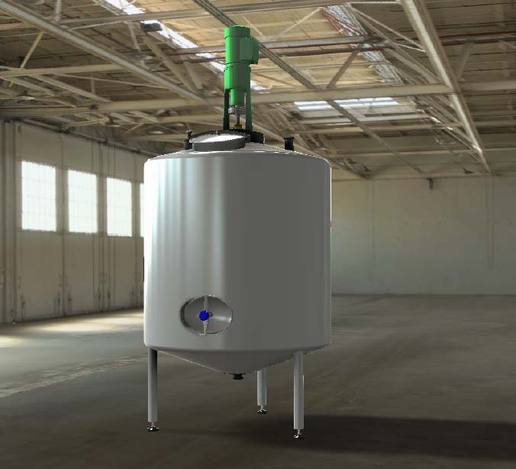

Chocolate mixing tank 2500 litre

Manufactured from 304L stainless steel.
Heating jackets to side wall and base cone
Inlets and outlets to dimple jackets 1 1#2" BSP female
Oval manway, side mounted
Circular manway, top mounted
Bottom mounted contents gauge and temperature probe
3" inlet
Low level and high level probes.
3" outlet
Adjustable feet
Impeller agitator
