SolidWorks 2011 Rendering STEP / IGES SolidWorks Other By Hafiz on 02 May 10:43 in Construction Electrical Machine design

Select file:

Emergency Stop Button - Assy.SLDPRT 3.1 MB V1 by Hafiz about 1 year ago Emergency Stop Button - Assy.IGS 17 MB V1 by Hafiz about 1 year ago Emergency_Stop_Button_-_Assy.SLDPRT 3.9 MB V1 by Tim Anthony Manuel about 1 year ago

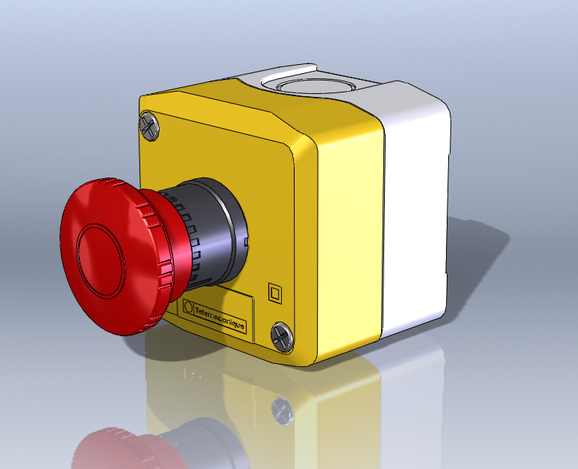

Its shneider, telemechanique component which I copied and share with all you guys.

Emergency Stop Switch - Schneider Electric & Square D - 22mm diameter, Turn to release, XAL-K174
Now available from RS Components, the Schneider Electric emergency stop switch is manufactures with polycarbonate enclosure with an ingress protection of IP65Red.

Emergency shutdown switch features

* Red in colour to enhance safety
* 40mm diameter latching push button head
* Body dimensions: 68 x 68 x51mm
* Knockouts: 2 x 20mm (side); 2 x 19mm (base)
* Body Material: Polycarbonate
* Contact Configuration: 1 N/C
* Depth: 53mm
* Head Diameter: 40mm
* Height: 68mm
* Series: XAL
* Width: 68mm
