LS1 RACE ENGINE
Tiny Tiny Tiny Tiny Tiny Tiny Tiny Tiny Tiny Tiny add

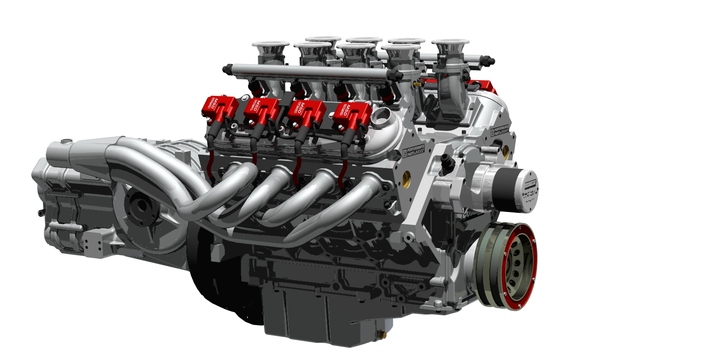

This model it's a race engine application with Hewland NLT6 gearbox.
this engine use:

Kinsler Race EFI

Moroso Race electric water pump

timing chain cover CompCams

Race Custom headers

Race heads GM Performance parts

MSD ignition race coils

Super Dumper race

this model it's a mock up , no internal parts.

this model it use for design space on bay engine.

i can share only demo model, thanks
