Feed Mini-itx motherboard By Scott Bruins on 26 Jan 19:33

Mini-ITX Motherboard

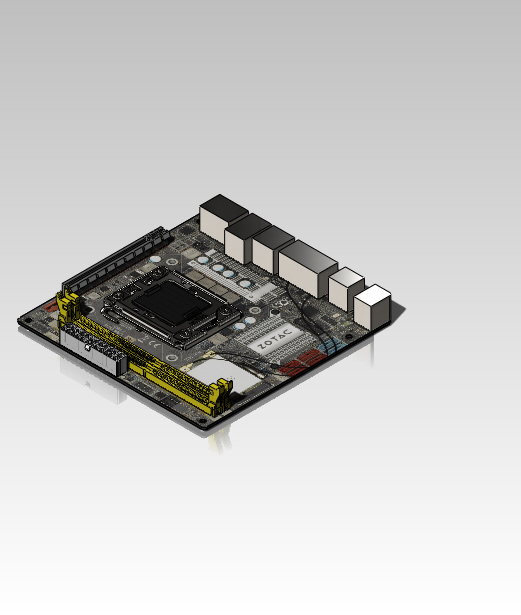

Mini-ITX motherboard representation. Hole spacing, PCI slot location and overall size are correct to mini-itx standard.

  • Download

    Original: Mini-ITX Mob...
    25.8 MB
    January 26, 2011 by Scott Bruins

  • Categories

    Miscellaneous

  • Tags

    pc mini motherboard itx
  • Scott Bruins

    Scott Bruins uploaded "Mini-ITX Motherboard" over 1 year ago

    25.8 MB
    • schmidt20241
      schmidt20241

      Scott: is this motherboard modeled in SolidWorks? Did you use any special/unique tools for electronics modeling

      4 months ago
    • Andre Laforest
      Andre Laforest

      Nice model! I have use it to validate dimension in a Thin client's case design. The case will be 3d printer compatible. Instead of screwing the mobo, you just insert it. Your model permits me to validate that functionnality. Thanks!

      4 months ago
    • bob
      bob

      Fine, useful and complete

      3 months ago
  • Scott Bruins
