Mould manipulator

Rendering SolidWorks 2012 Other By Patrikurn on 02 Jul 08:06 in Machine design

Select file:

Assem1.x_t 14 MB V1 by Patrikurn 12 months ago

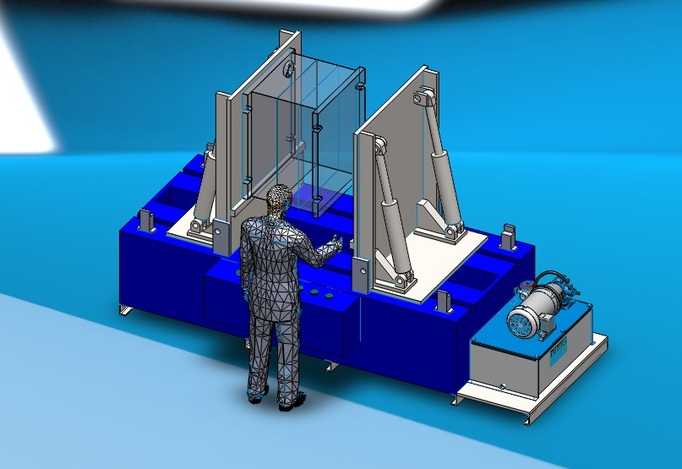

Mould Manipulator
Tiny add

The model just concept. Detail in progress.
Mould turning or mould manipulators to turn your
expensive moulds 90 degrees for transport or storage in a different way.
Away from the press the mould halves can be separated
over a distance of 600 mm and each platen can be turned
90 degrees for maintenance.
