Prog die to produce mfgclip

Rendering SolidWorks 2011 STEP / IGES STL Other By Dan Novak on 04 Sep 20:41 in Machine design Miscellaneous Tools

Select file:

MfgClip ASM.STEP 8 MB V1 by Dan Novak over 1 year ago MfgClip ASM.stl V1 by Grabby The Bot 12 months ago
Prog die to produce mfgclip
Tiny Tiny Tiny Tiny Tiny Tiny add

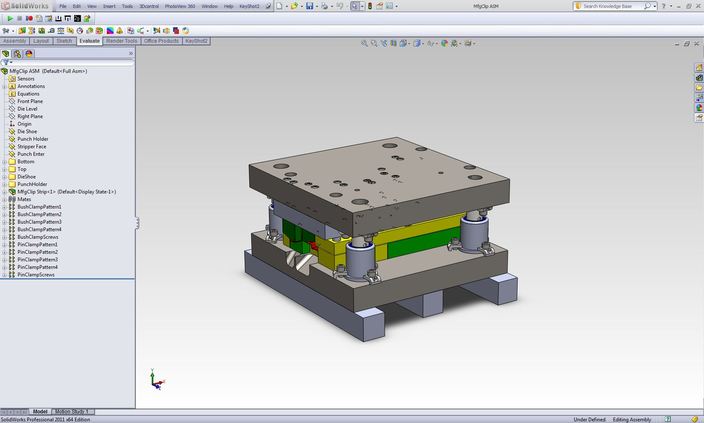

I designed this for fun. It is a progressive die designed to produce Mfg Clip by Brad Gordon

The die features a shear form to control strip wander, TR Jones subliners and TR Jones guide lifters.

There is an assembly drawing included in the package with a complete BOM.
