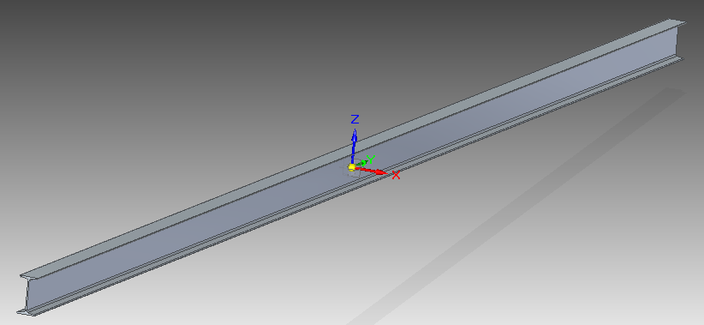

Structural Beam 240x36. Tutorial is http://grabcad.com/questions/tutorial-on-modeling-structural-beam-240x36-in-solid-edge here.

Structural Steel Properties
Standard : ISO
Type : SB Beam
Designation : SB 240 x 36
Mass : 36.4
Area : 46.3
Depth : 240
Web thickness : 7.8
Flange width : 120
Flange thickness : 12
Fillet radius : 12
Toe fillet radius : 6
Moment of inertia : 4450
Section modulus : 371
Radius of gyration : 9.81
Moment of inertia : 286
Section modulus : 47.7
