Simulation of differential mechanism in catia v5r21

CATIA Older Rendering STL Other By smmoosavian on 17 Nov 22:05 in Automotive

Select file:

differential.stl V1 by Grabby The Bot 12 months ago

simulation of differential mechanism in CATIA V5R21

Kinematic simulation. CATIA V5R21.

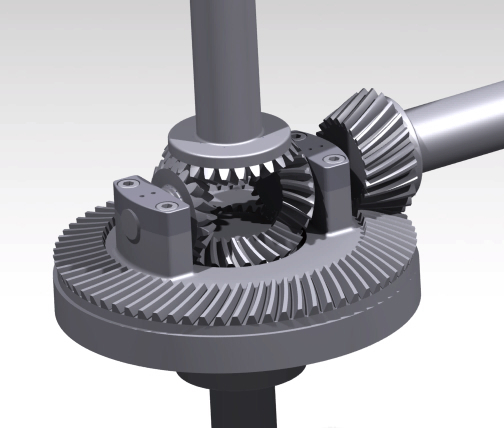

An advanced kinematic simulation of a differential mechanism in CATIA V5
You can use this model to have a better understanding of differential mechanism. On the specification tree double click on the "Rule.1" and change the time or in the "simulation with laws" dialog box change the steps. download and Enjoy !

Thanks to user "RF_Design"
link to original file :
Differential
