4 answers

•
  KFZ-Schule 8 months ago

  small tutorial
  (first of all, normally it is better to put solids in the body and surfaces in geom. sets. In lots of industry hybrid design is forbidden)

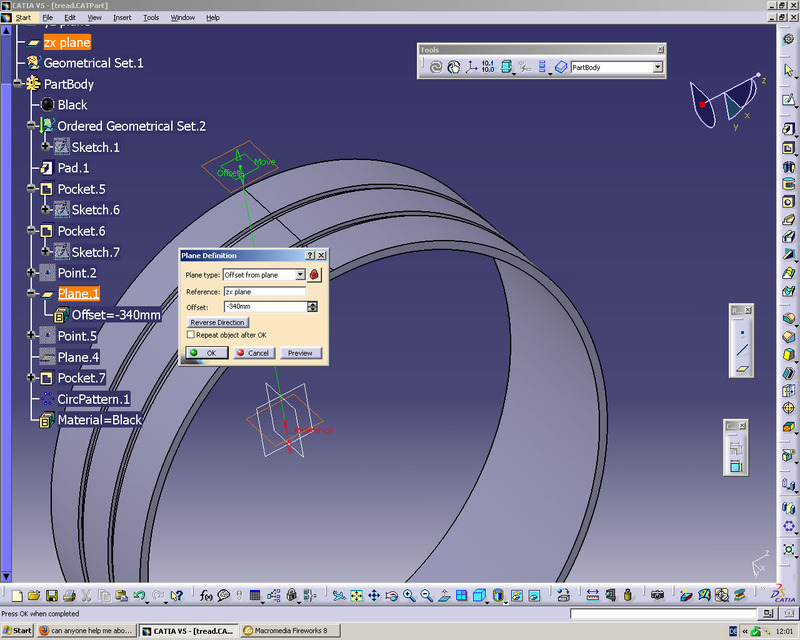

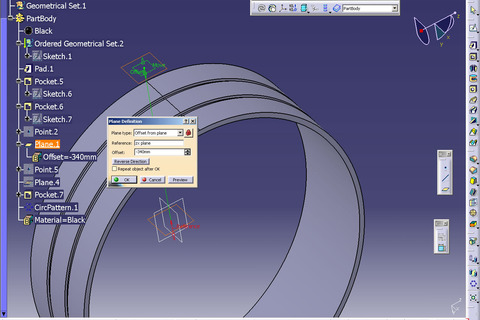

  1. Step 1

     edit the plane for the sketch



  2. Step 2

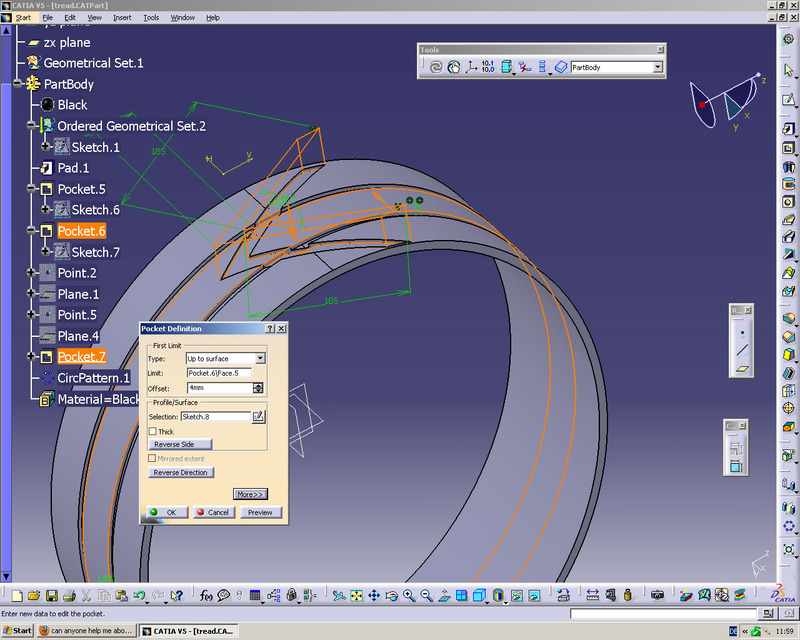

     use pocket: with up to surface and offset

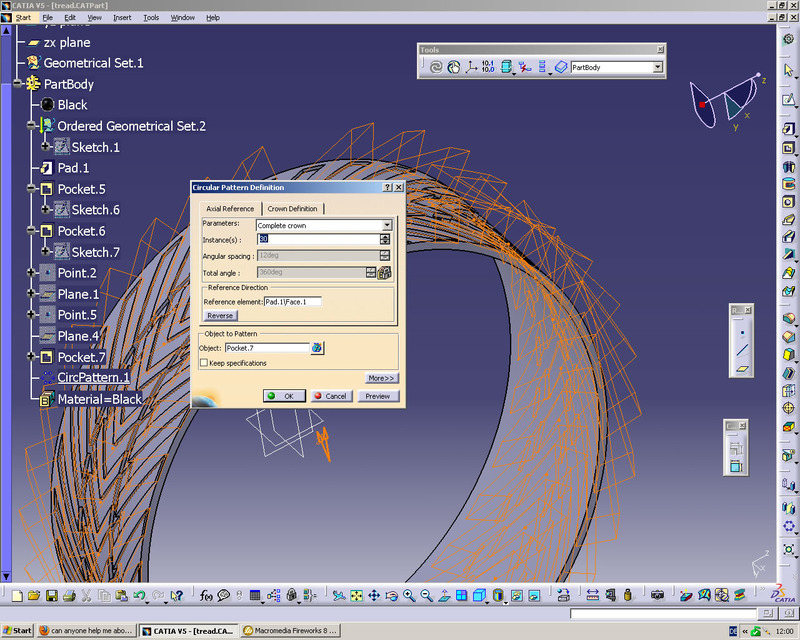

  3. Step 3

     use pattern: complete crown, object is the pocket (!), reference is the inner surface of the solid



  1.
     El_keypad 8 months ago

     thank u very much..
     i'll try it now..

•
  KFZ-Schule 8 months ago

  here is the file

  Attachments

  tread.CATPart, 1.71 MB
  Download

•
  KFZ-Schule 8 months ago

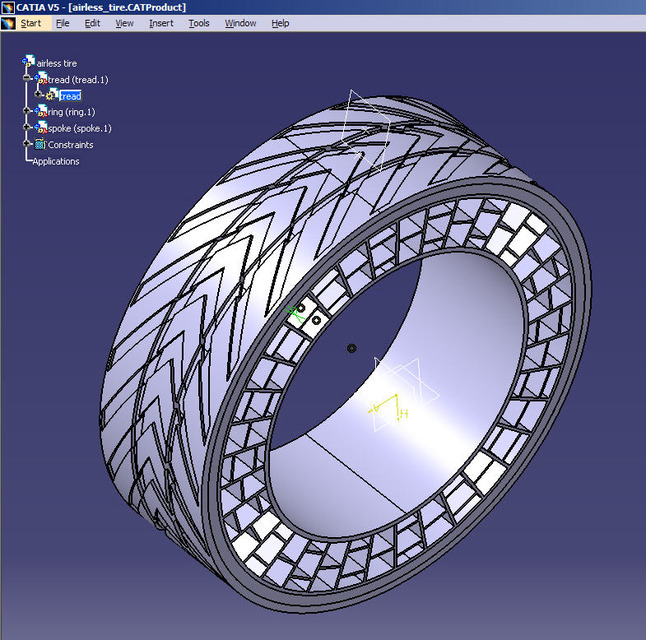

  could this be a solution?

  Added images



  1.
     El_keypad 8 months ago

     that's right..
     thank u very much..

     can you give me that file or teaching me how to make it..
     i'm really confused about that.. :D

  2.
     KFZ-Schule 8 months ago

     I will do this tomorrow, today I have no time.
     Greetings

  3.
     El_keypad 8 months ago

     okay,, no problem..
     thanks alot before..

•
  sasanHP 6 months ago

  maybe it's late but i want to help u if you didn't that yet .

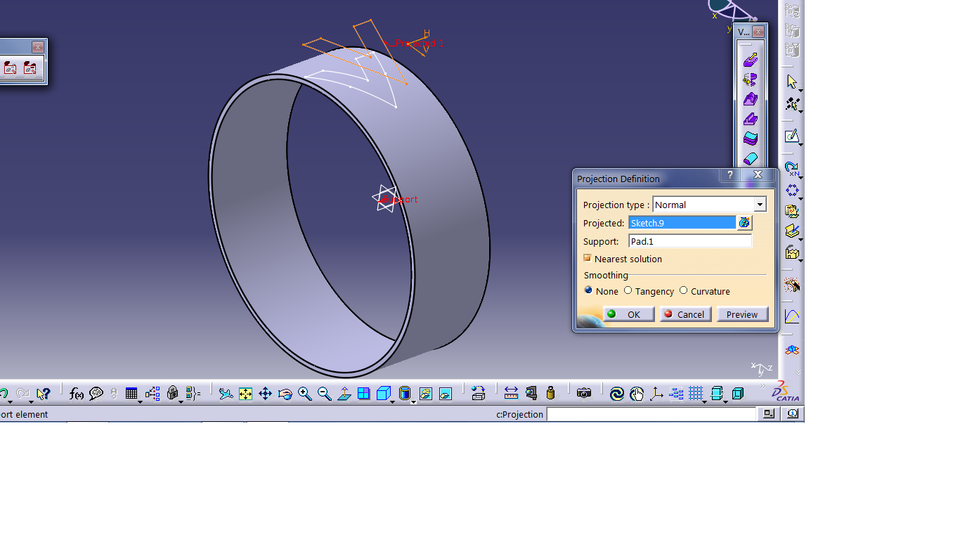

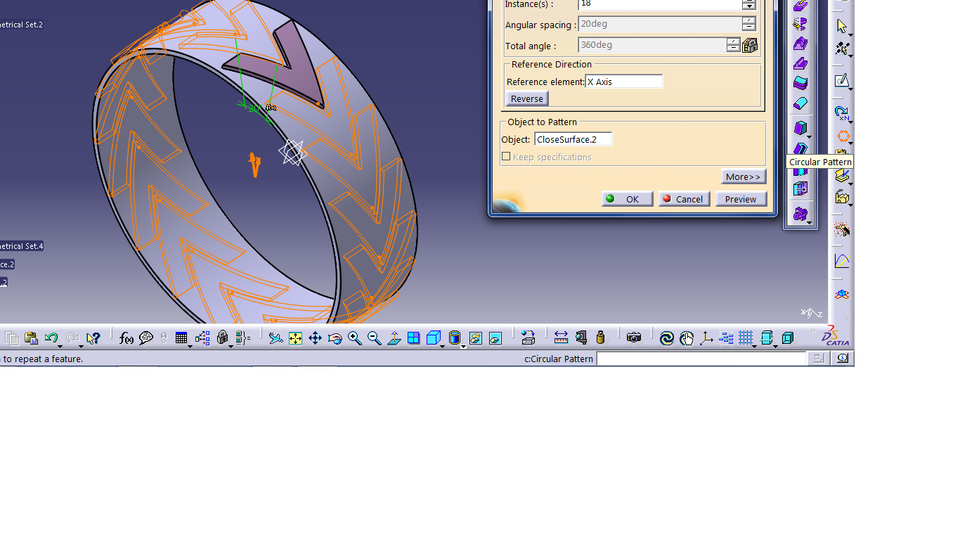

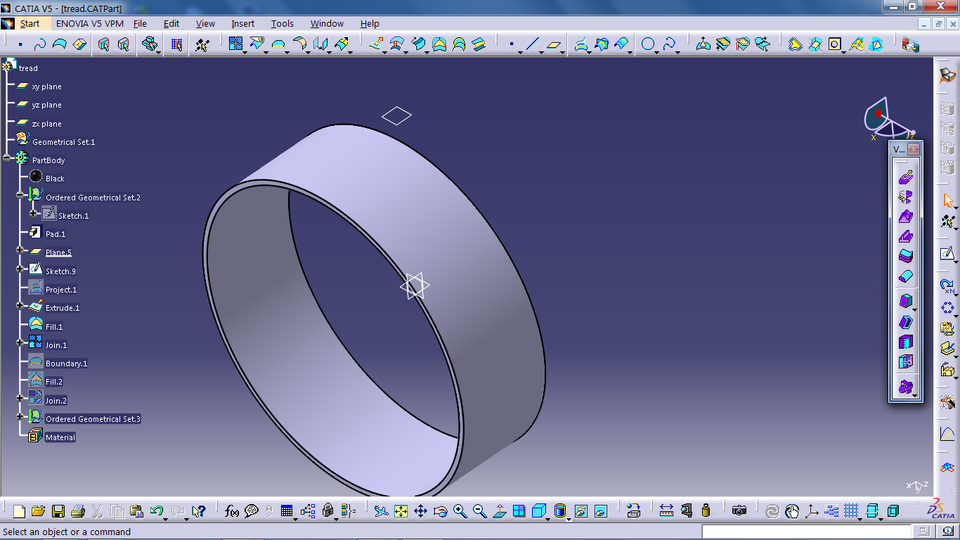

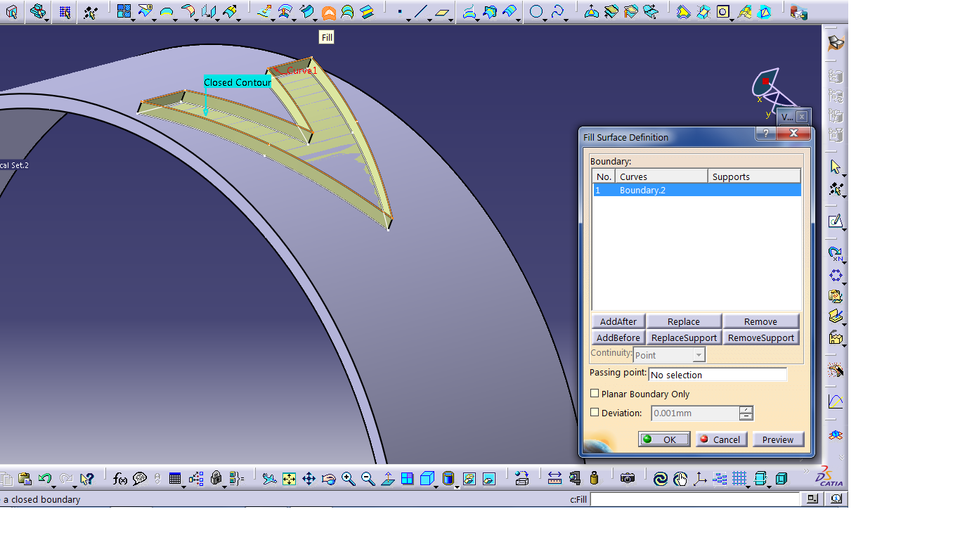

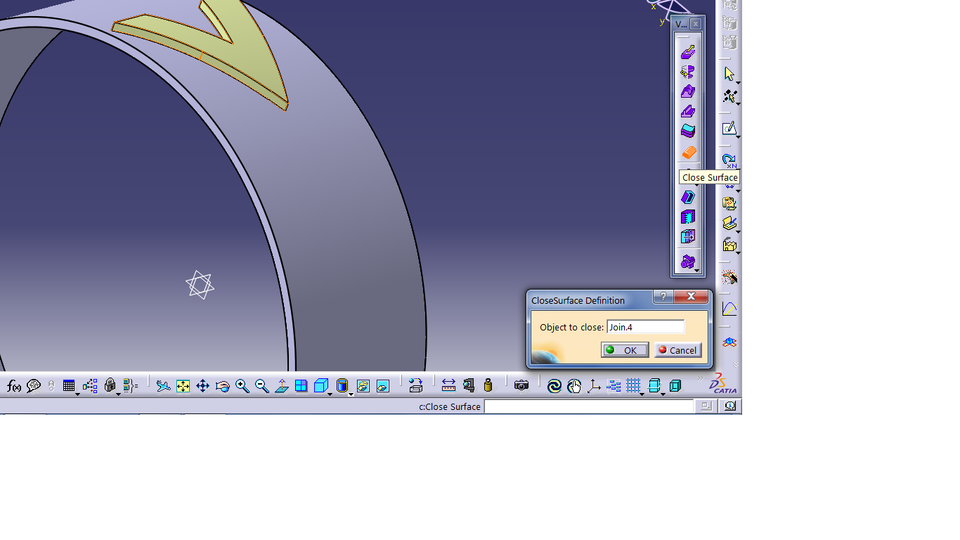

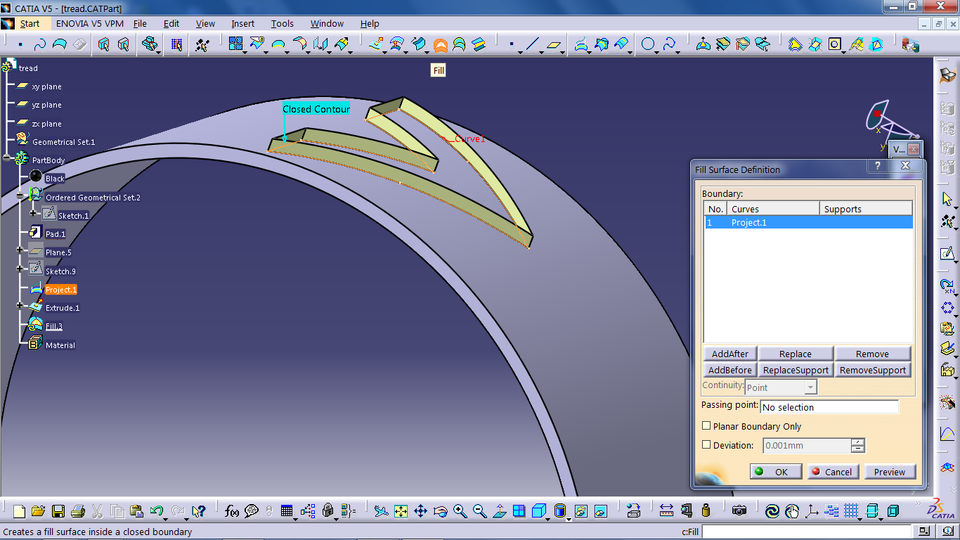

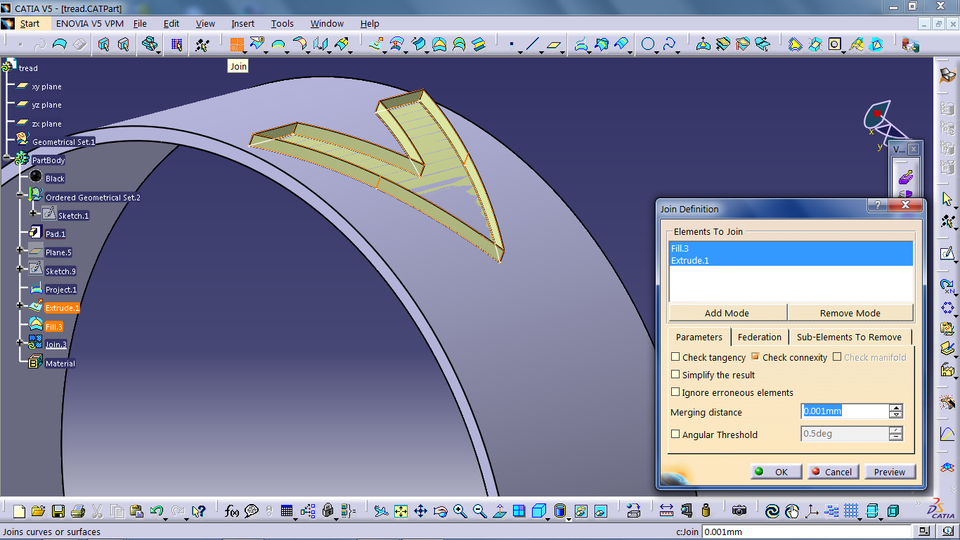

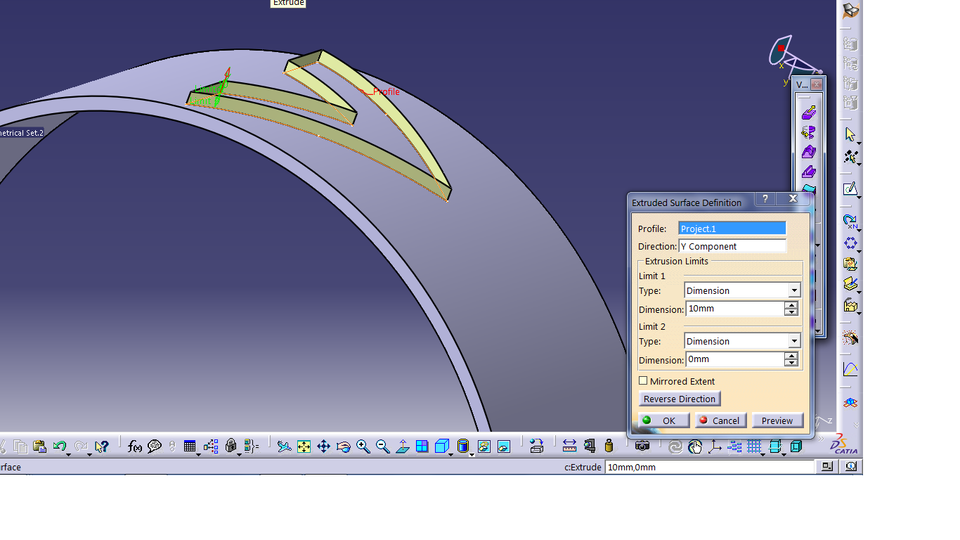

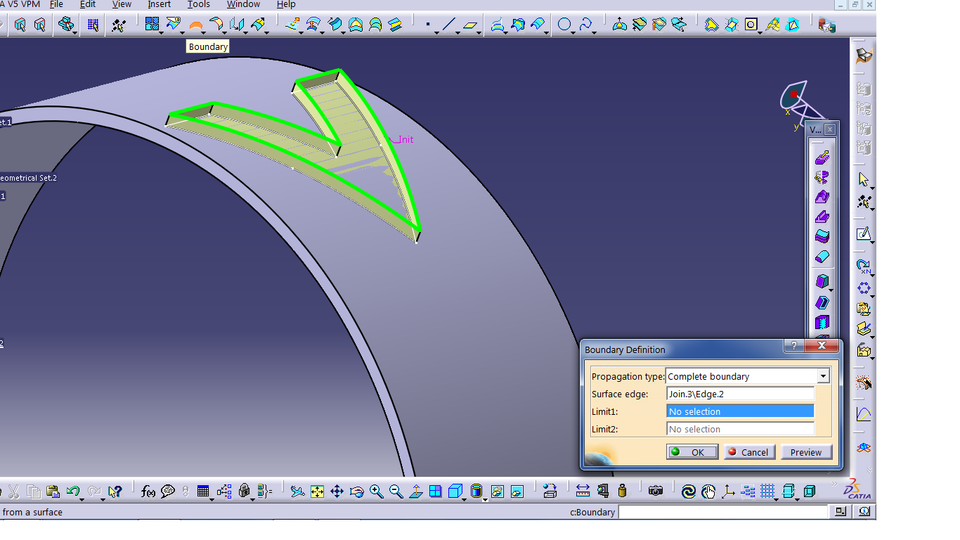

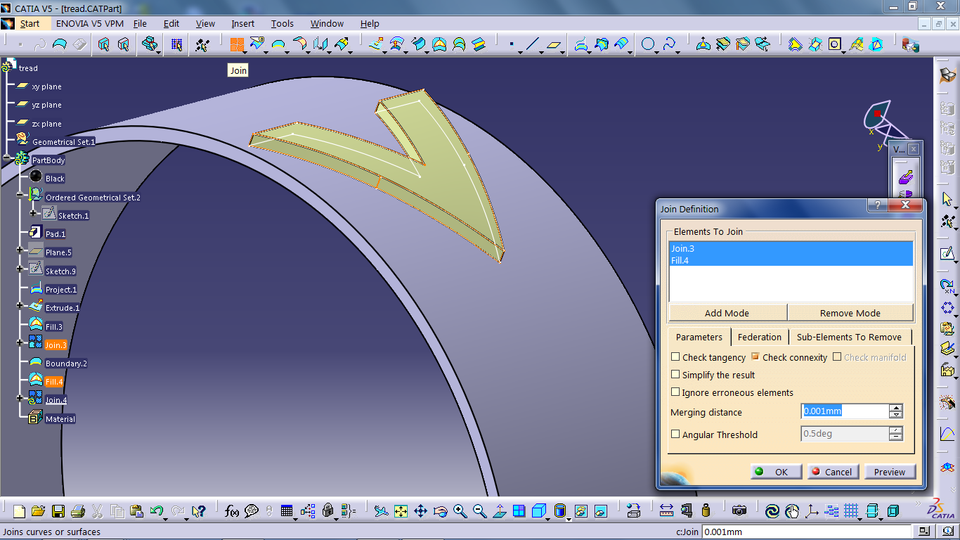

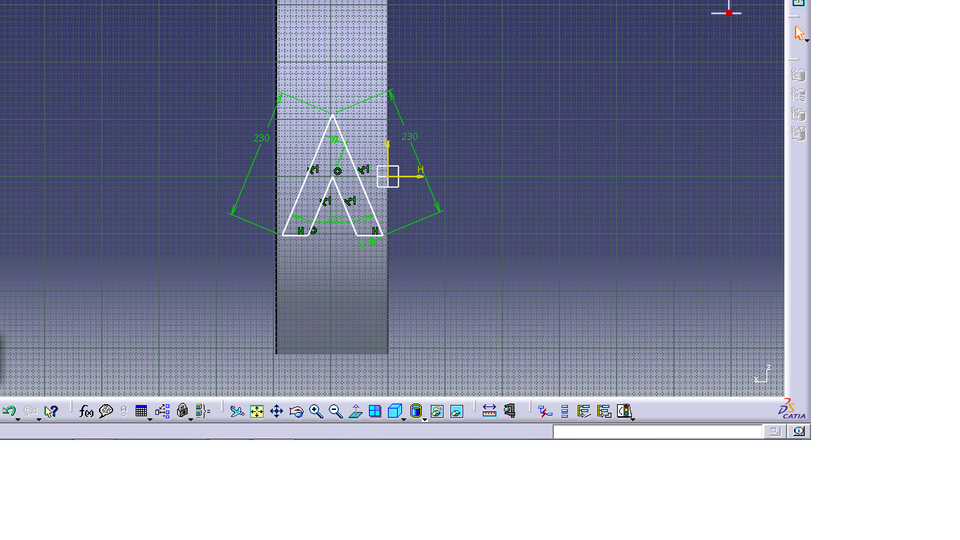

  go step by step with that pictures in below
  always in your designs pay attention to the designTree.
  after these pic u can use" pocket "or "slot" to create the groove.
  have good work.

  Added images
