Creating a knuckle thread in Autodesk Inventor 2023
following DIN EN 148-1, I'm trying to model female threads on a component; Inventor's inbuilt thread library wants to model the threads in a conventional manner, which is a problem for me since I intend on 3D printing this model, and need the threads to be accurate when printed.
Can anyone point me to the steps I'd need to follow to accomplish this task?
2 Answers
you can use the sweeping function with the use of a coil as path.
there has been a program for real thread modeling in inventor, but as far as I know this program is not longer available. Basically it was just working as described above

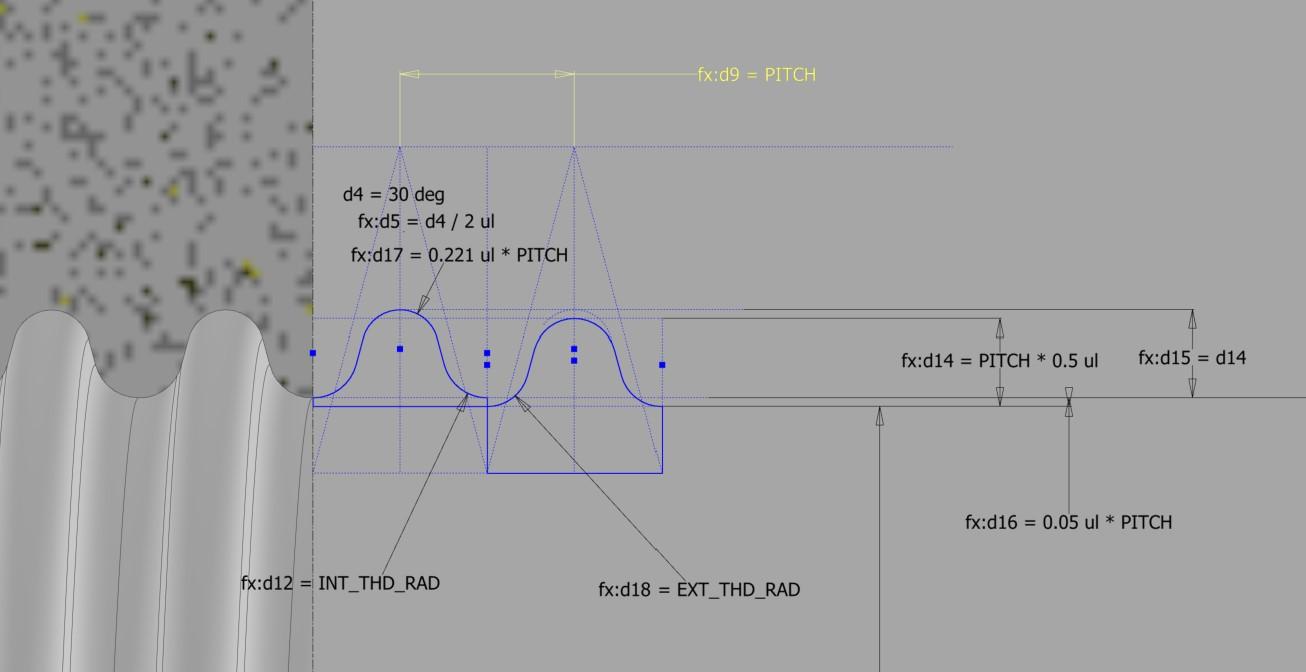

This is one of the Inventor models I had laying around that I used to use when teaching thread forms. It is a single part but includes both internal and external thread solids.
It should be 3D printable with some editing of the parameters for the proper thread size. I attached the Inventor part file as well as a STP export.
