  go to start in windows

  1. Step 1

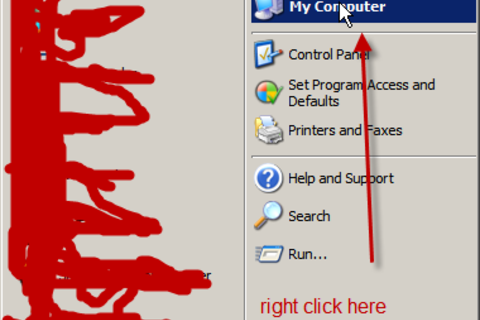

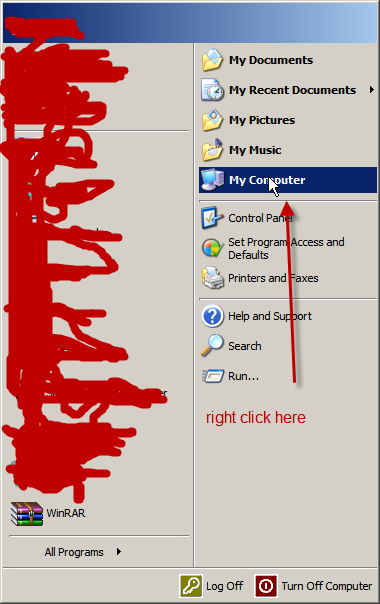

     right click on my computer



  2. Step 2

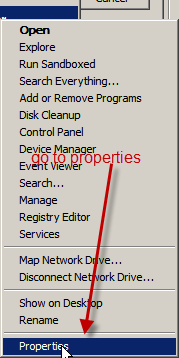

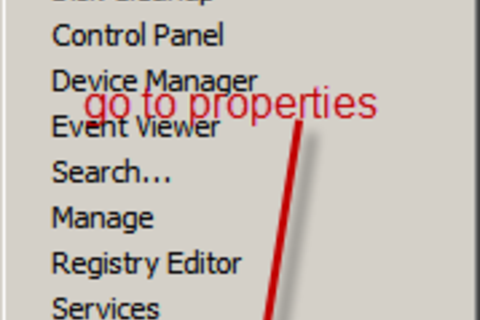

     click on pro properties in right click menu



  3. Step 3

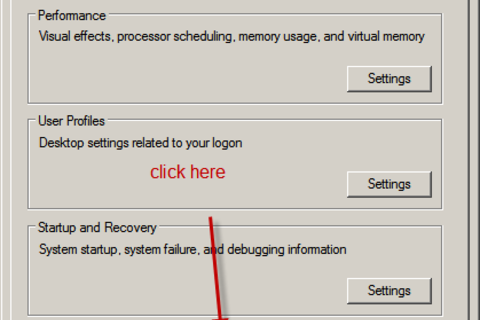

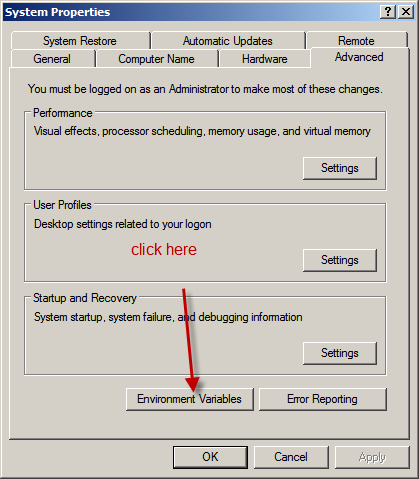

     under system properties advanced tab click on "environment variable"



  4. Step 4

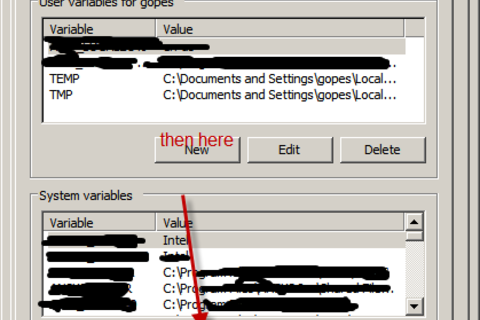

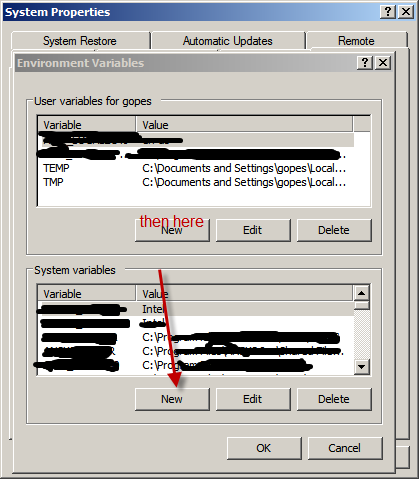

     click on new



  5. Step 5

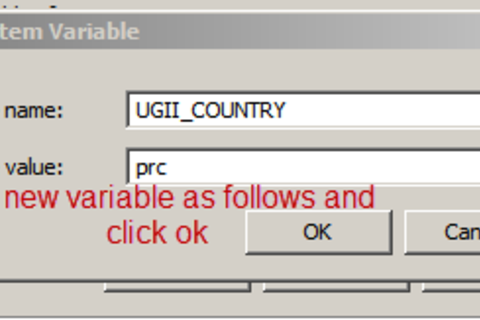

     add new variable as UGII_COUNTRY = prc as shown in figure then click ok and again ok



  6. Step 6

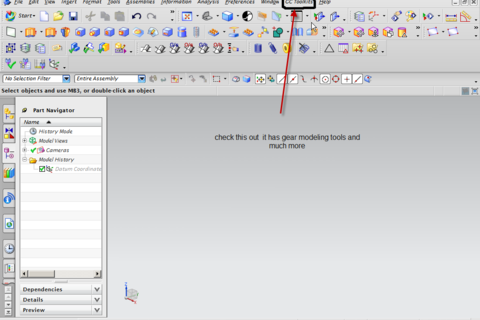

     when you open nx you get this GC toolkit in your menu bar.



  7. Step 7

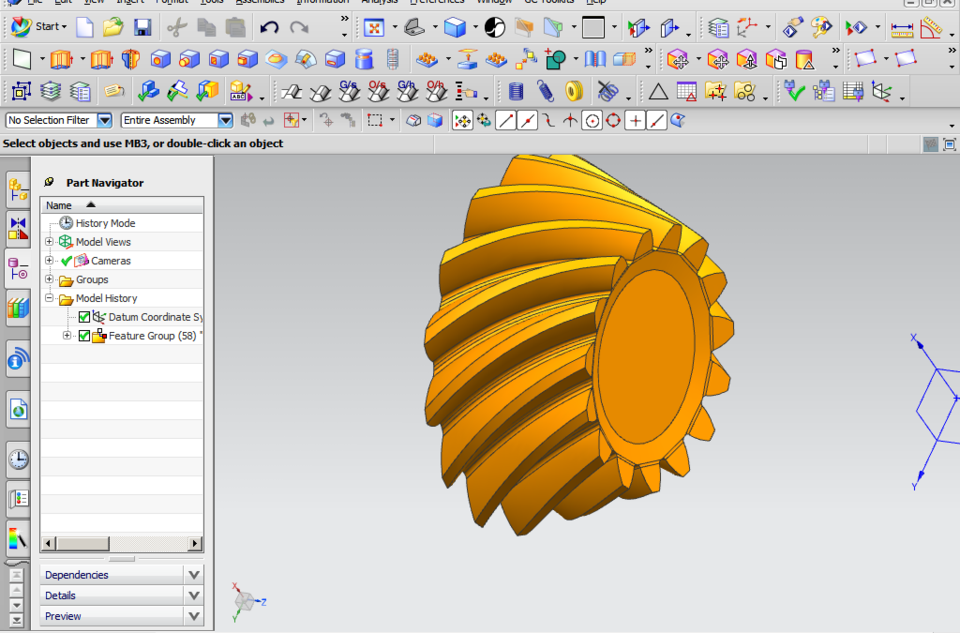

     this is what it does



  1.
     Davin 11 months ago

     WTH! That really work....I should have ask you a year earlier while I was doing my assignment for power transmission system. Thanks once again......now i have to learn how to use it..hahaha (won't be a problem)....

  2.
     skan 9 months ago

     Some people could also need to add these lines :
     $UGII_BASE_DIR/localization/$UGII_COUNTRY/GearModeling
     $UGII_BASE_DIR/localization/$UGII_COUNTRY/gc_tools
     $UGII_BASE_DIR/localization/$UGII_COUNTRY/Checker
     $UGII_BASE_DIR/localization/$UGII_COUNTRY
     to the file %UGII_ROOT_DIR%\menus\ug_custom.dirs.dat

  3.
     Jon Phillips 3 months ago

     How do I get to the UGII_ROOT_DIR file to add the lines?

  4.
     mohit 25 days ago

     How to Deactivate this tool box Pls Help me

•
  e19 11 months ago

  extract this,there are two folders "gear GRIP" containing grip file with .grx extention

  other folder is "gear user function" containing nx open files

  you can use either to make spur gears

  in new model. File menu>execute>grip or nx open (navigate to extracted folder) and ok

  input the values of gear you want and its done

  i think your gear's pressure angle is 10,then use .grx file

  for helical gear try using .exp file

  Attachments

  Gears.zip, 39.7 KB
  Download

  helical_gear.exp, 532 Bytes
  Download

•
  e19 11 months ago

  there is gear modeling application in nx itself,it requires changing custom_dirs.dat file to appear under tools menu (which i am not able to set) setting environment variables of windows

  you can make any gear with it, internal,external,spur,helical,bevel.

  1.
     Davin 11 months ago

     Is this what you mean?

     http://paracax.byu.edu/content/nx-customization

  2.
     e19 11 months ago

     no

•
  rupesh dewangan 11 months ago

  You can also use the reuse feature, some profiles & feature are thre & u can also create your own reusable part.

  Attachments

  1.bmp, 535 KB
  Download

  1.
     Davin 11 months ago

     Thanks but that didn't really work :-)

•
  Miguel 9 months ago

  very good... but is only for china licence :(

•
  Imran Manik 8 months ago

  many many thanks
  and thanka again Bro.....................
  Bro more help me please..
  add me in skype id "nximran"
  o sent me your skype id
  by

•
  skan 6 months ago

  That script is really old and slow and creates a part much more complex than needed. NX should add a modern version of it.
  They should also add a equation surfer plotter button.

•
  skan 1 day ago

  There are some addons such as Kisssoft
