How to add draft on part with respect to curved face?

VISHAL SAINI
VISHAL SAINI
21 Jan, 2016 07:17 AM

I have to add draft on a face with reference to the curved object. It is needed for injection molding.
In catia it can be easily done but I'm having problem with solidworks.
Please refer to the attached file,
faces to be drafted are in PINK colour
face needed to selected for 'neutral face' is in GREEN colour.

ref.SLDPRT

1 Answer

FredSWUG
FredSWUG
Answered on 21 Jan, 2016 01:18 PM

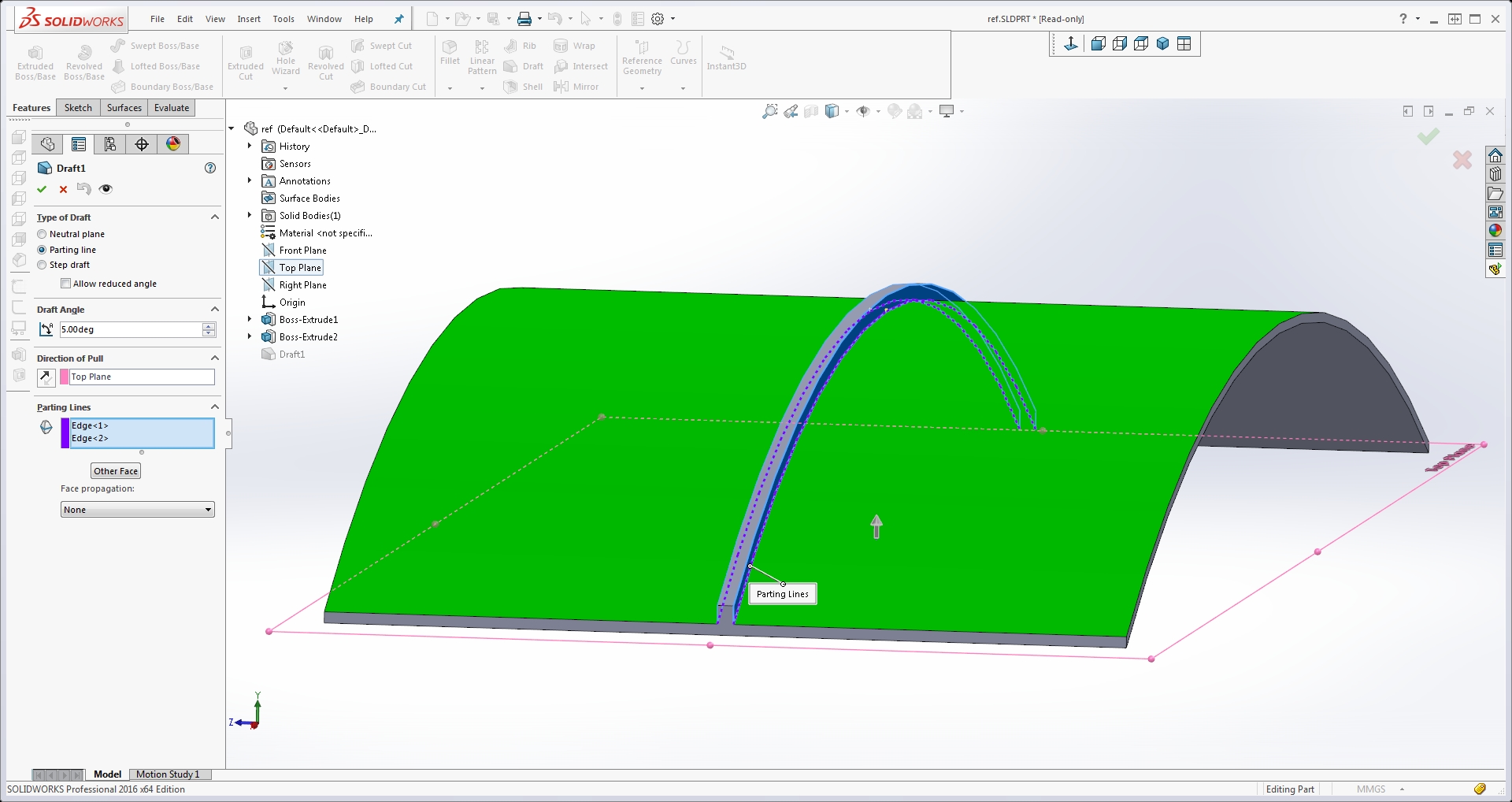

Try the Parting Line option. Image attached:
I just realized I have SW2015 installed, so I saved a sample model too.

Parting Line Draft.jpg Parting Line Draft.jpg Parting - ref-1.SLDPRT
