     i am having problem in step 9, when i write the equation, it doesnt execute i mean the window blinks and nothing changes , can you explain ??

  5.
     anhquoc38 3 months ago

     you need use sd#= is the angle of the leading edge in step 9. Sorry my english is not well.

  6.
     Satyaranjan Dash 3 months ago

     the relation is not working. after entering several times it doesn't work. window always blink and nothing happened.. plz resolve it..

•
  Venkatasubramanian 11 months ago

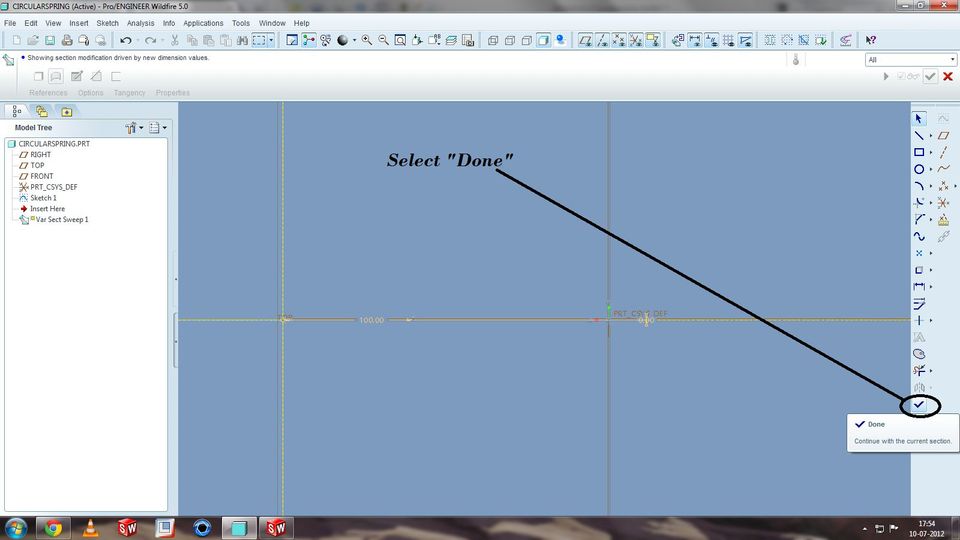

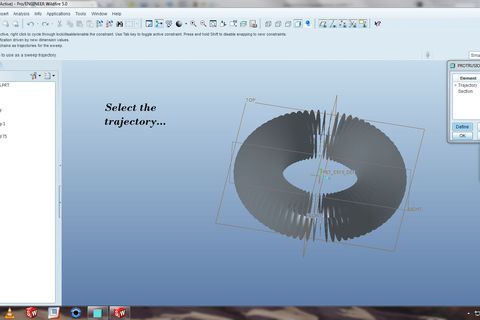

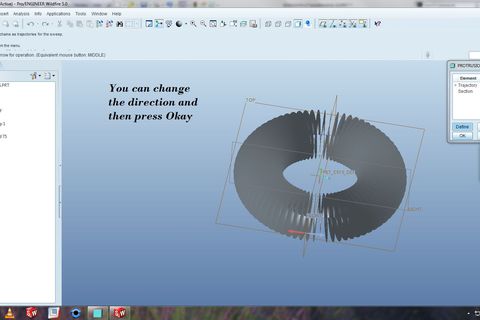

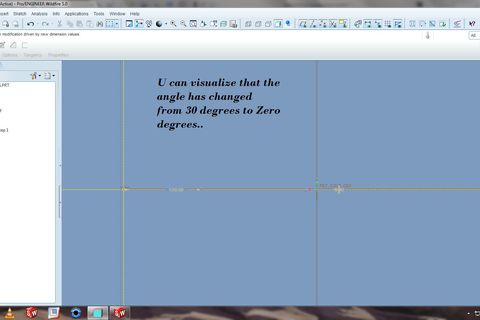

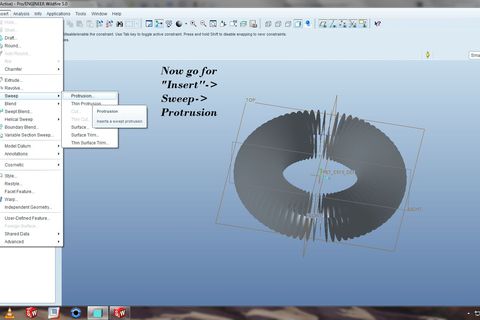

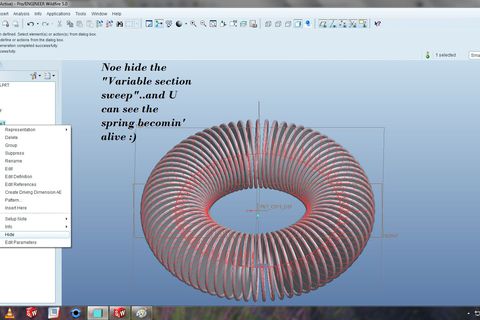

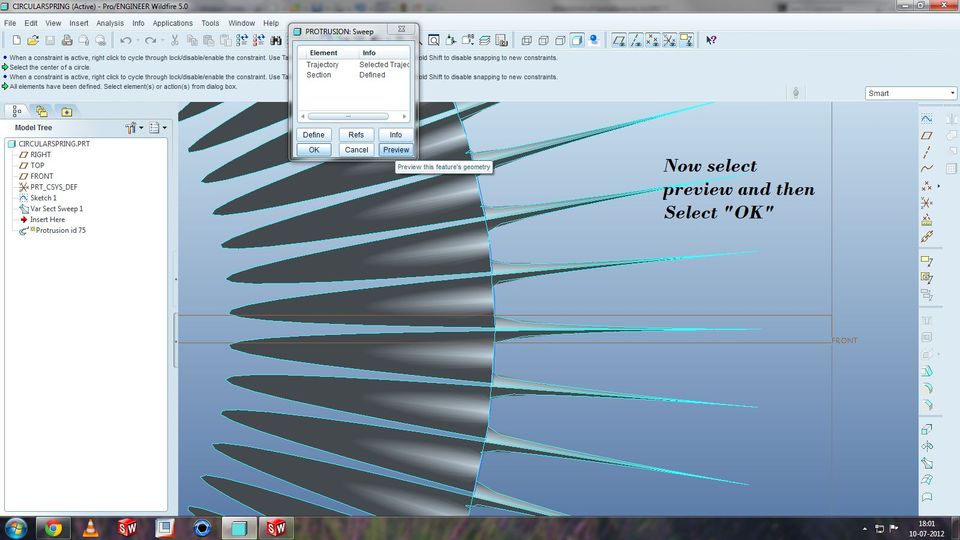

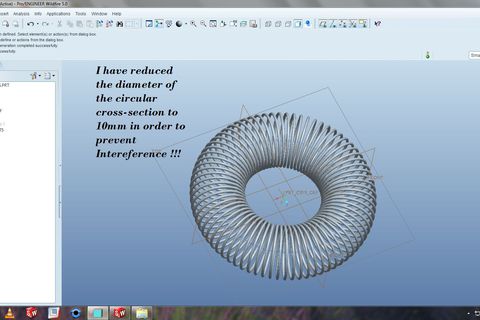

  Here's the answer

  Attachments

  New_folder_(2).rar, 5.88 MB
  Download

  1.
     anhquoc38 11 months ago

     you can save the file with the *.jpeg
     it will show up better here

  2.
     anhquoc38 11 months ago

     it worked...\
     good luck to you.
     ^_^

  3.
     Venkatasubramanian 11 months ago

     Yea mate I tried to show..Bt. It ain't working

  4.
     ajinkya sande 11 months ago

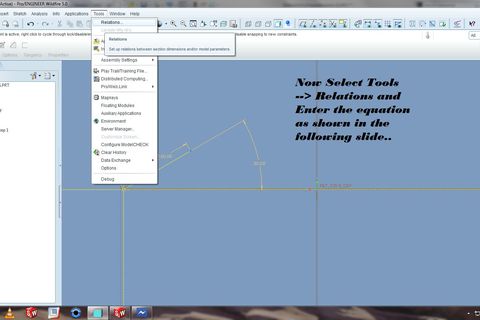

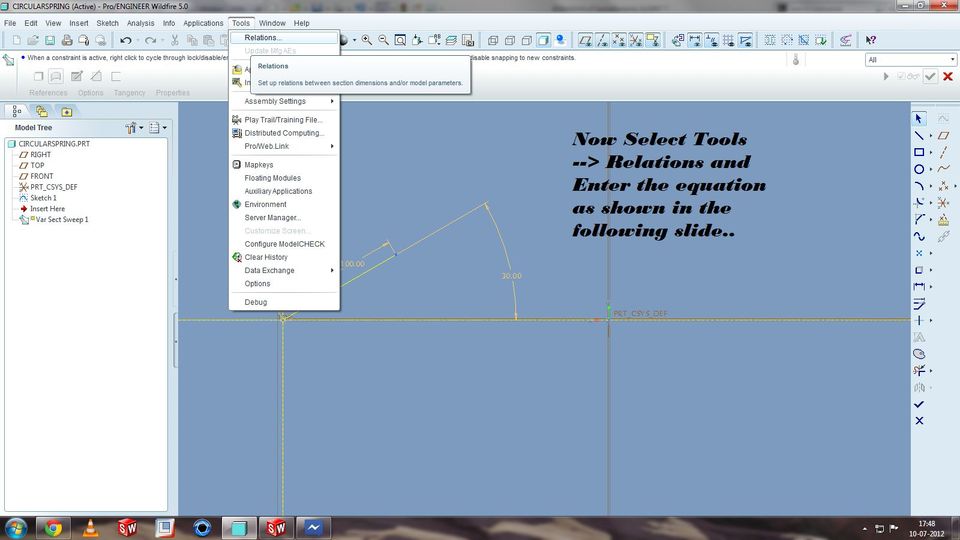

     can u just explain me tht relation

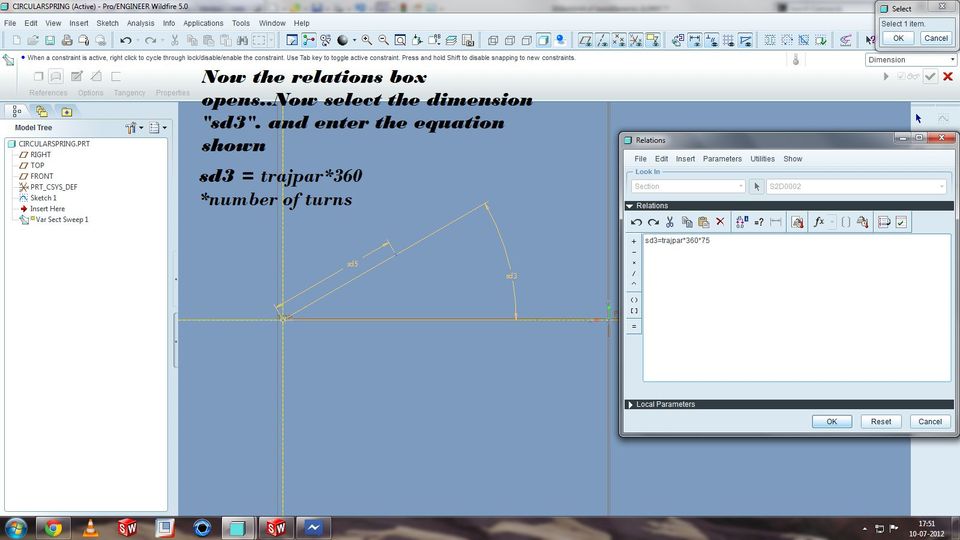

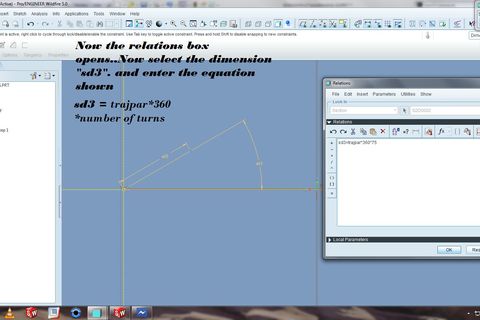

     sd3 = trajpar*360*no. of turns

     plzzz

  5.
     ajinkya sande 11 months ago

     good work

  6.
     manish 11 months ago

     awesome.....

•
  anhquoc38 11 months ago

  l try help you

  Added images

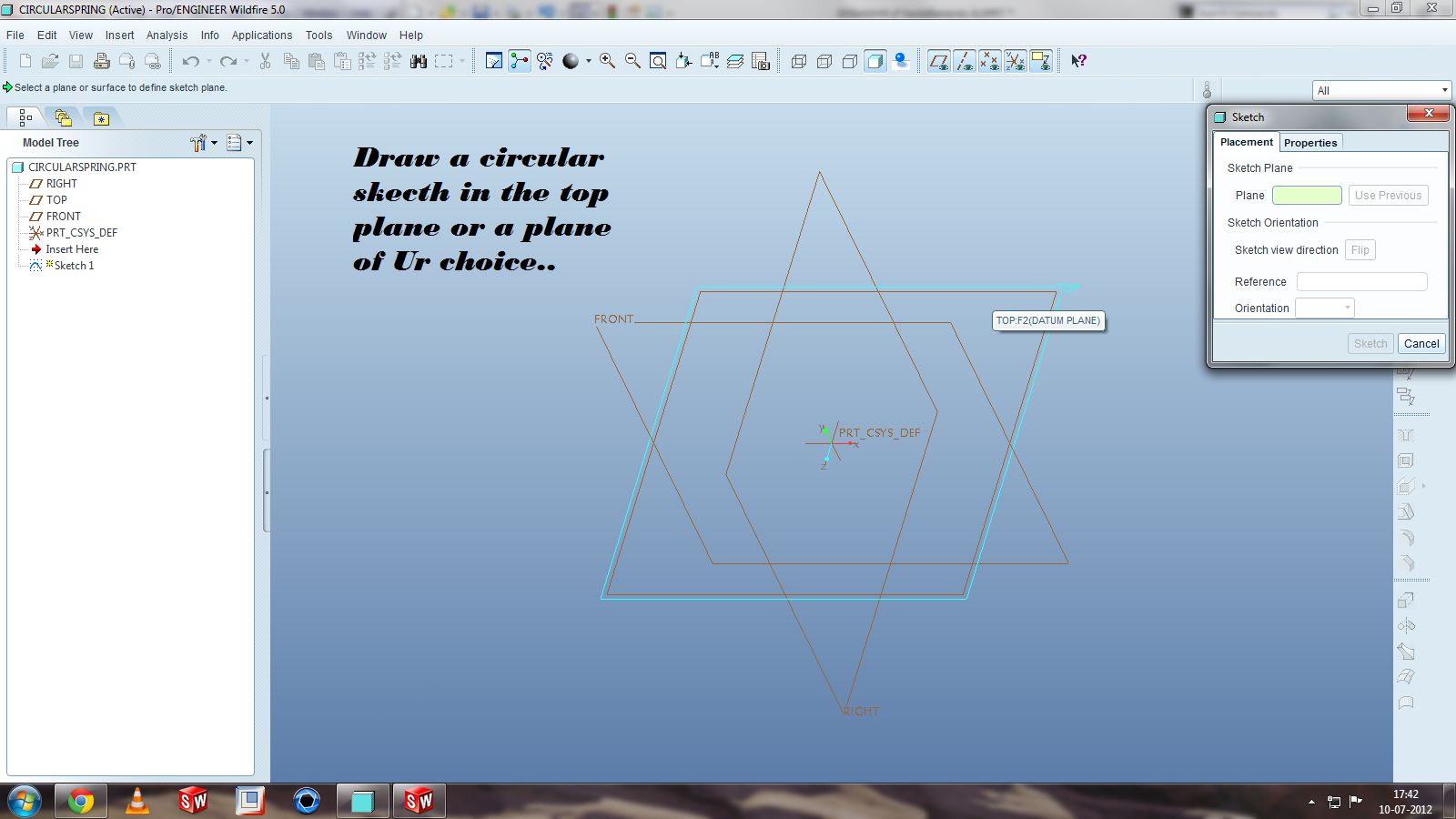

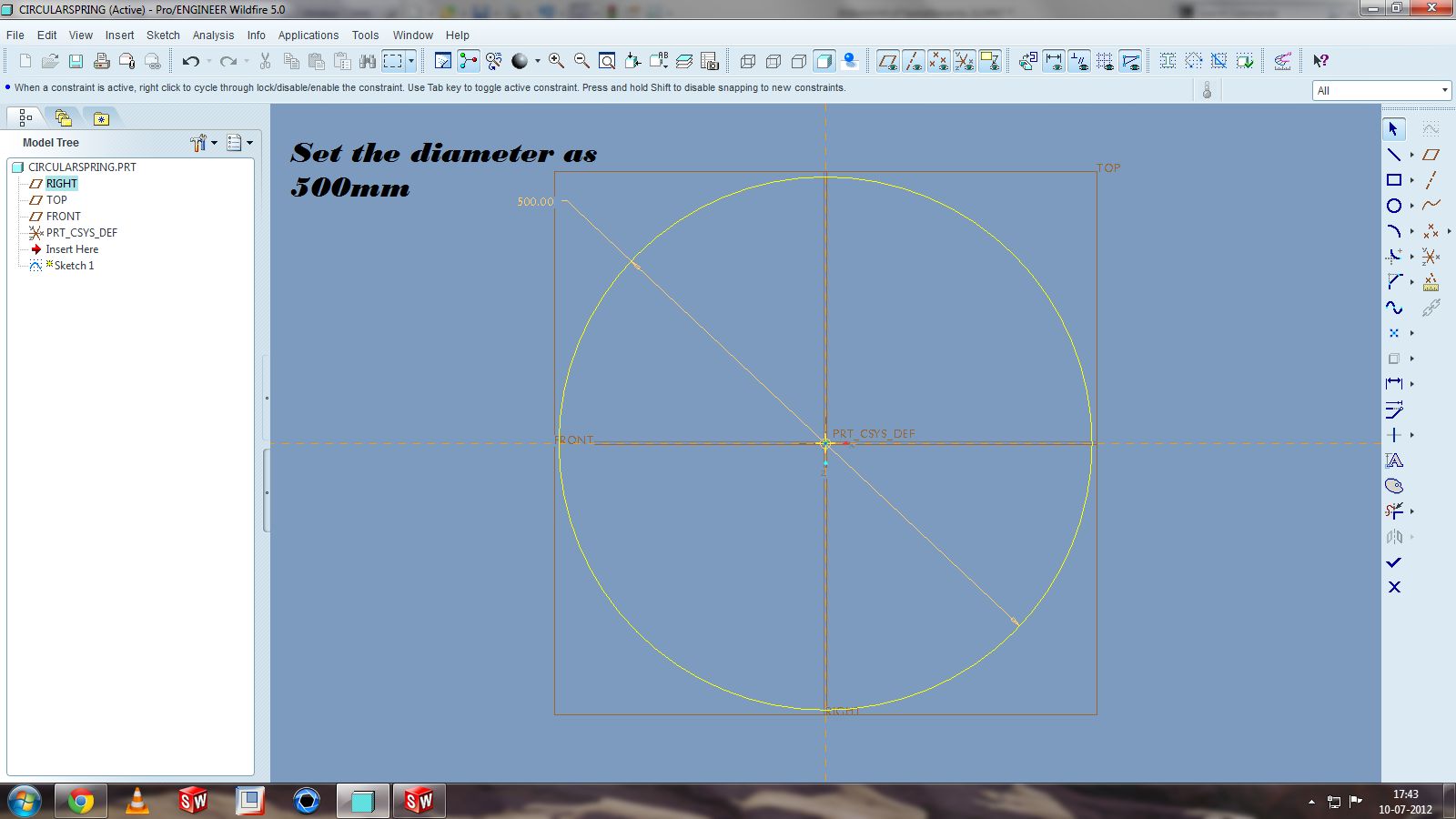

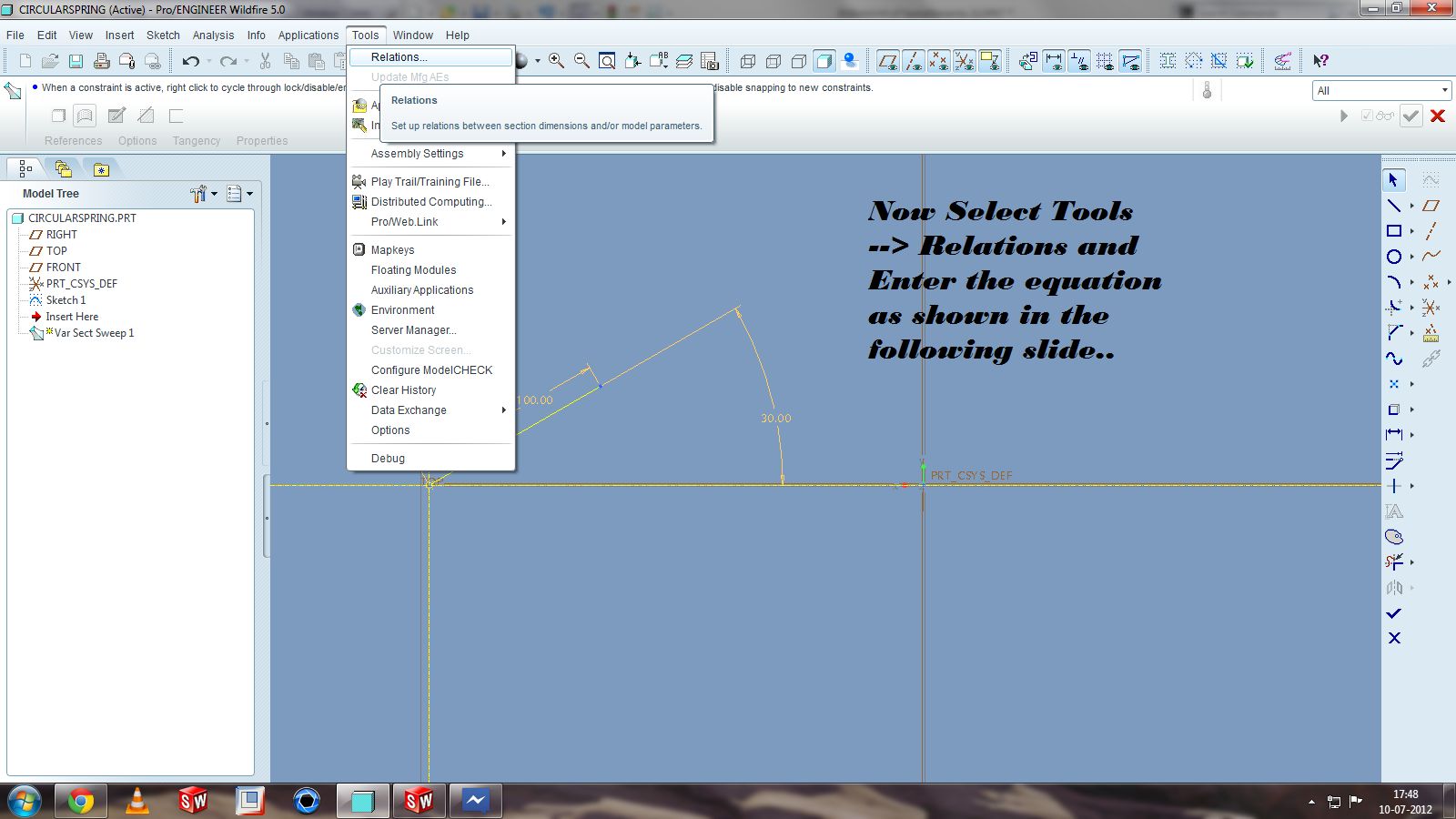

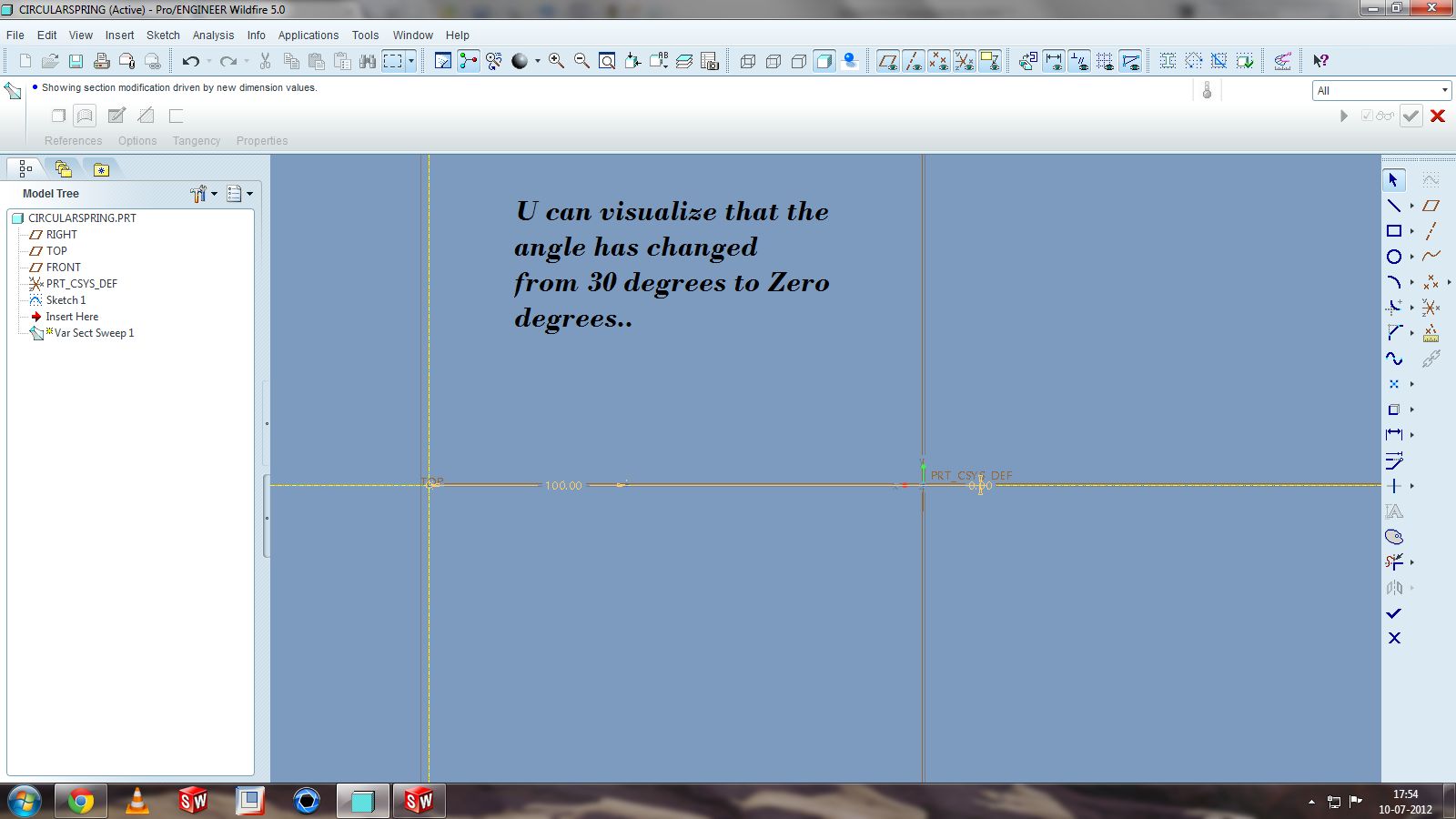

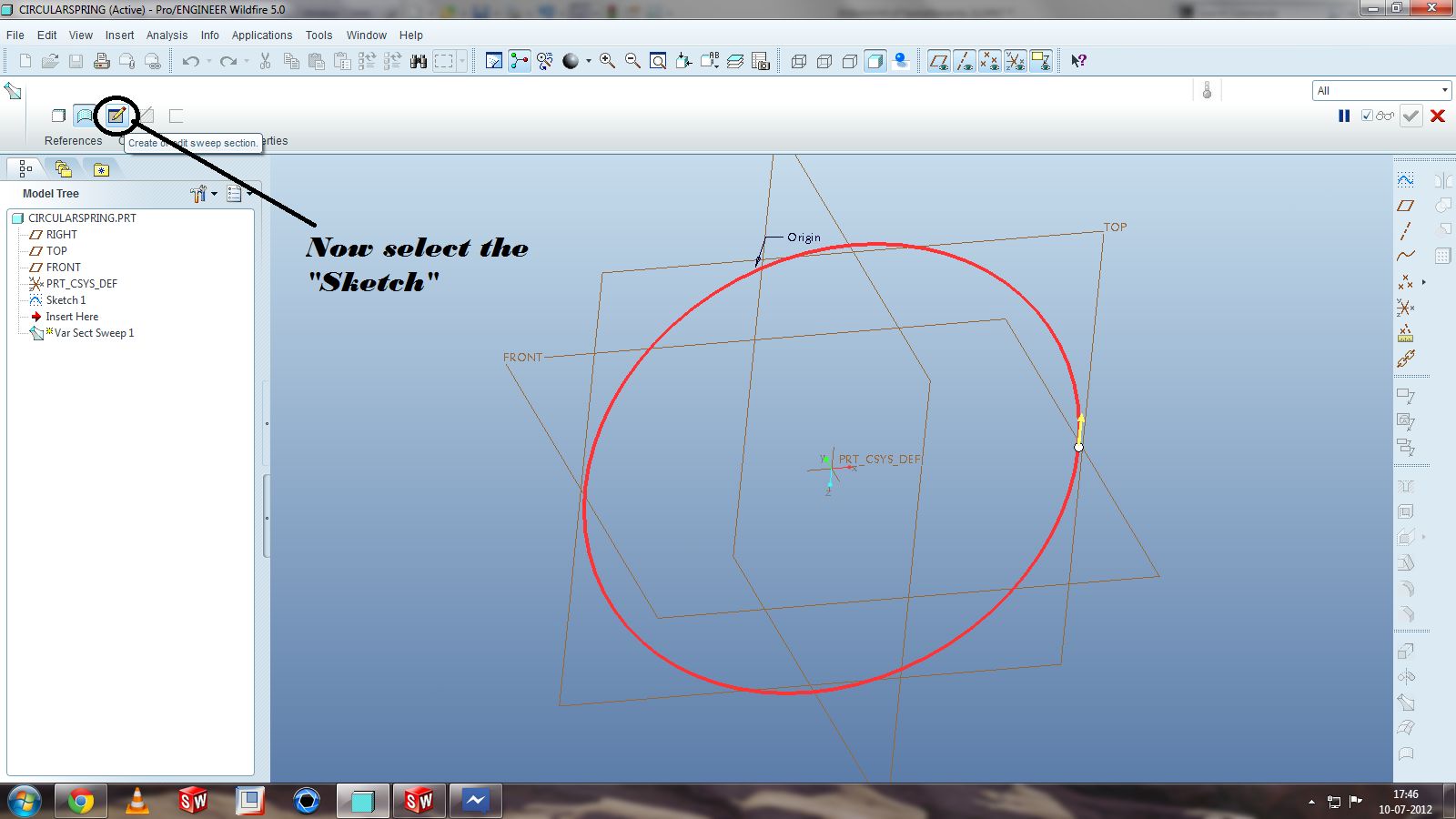

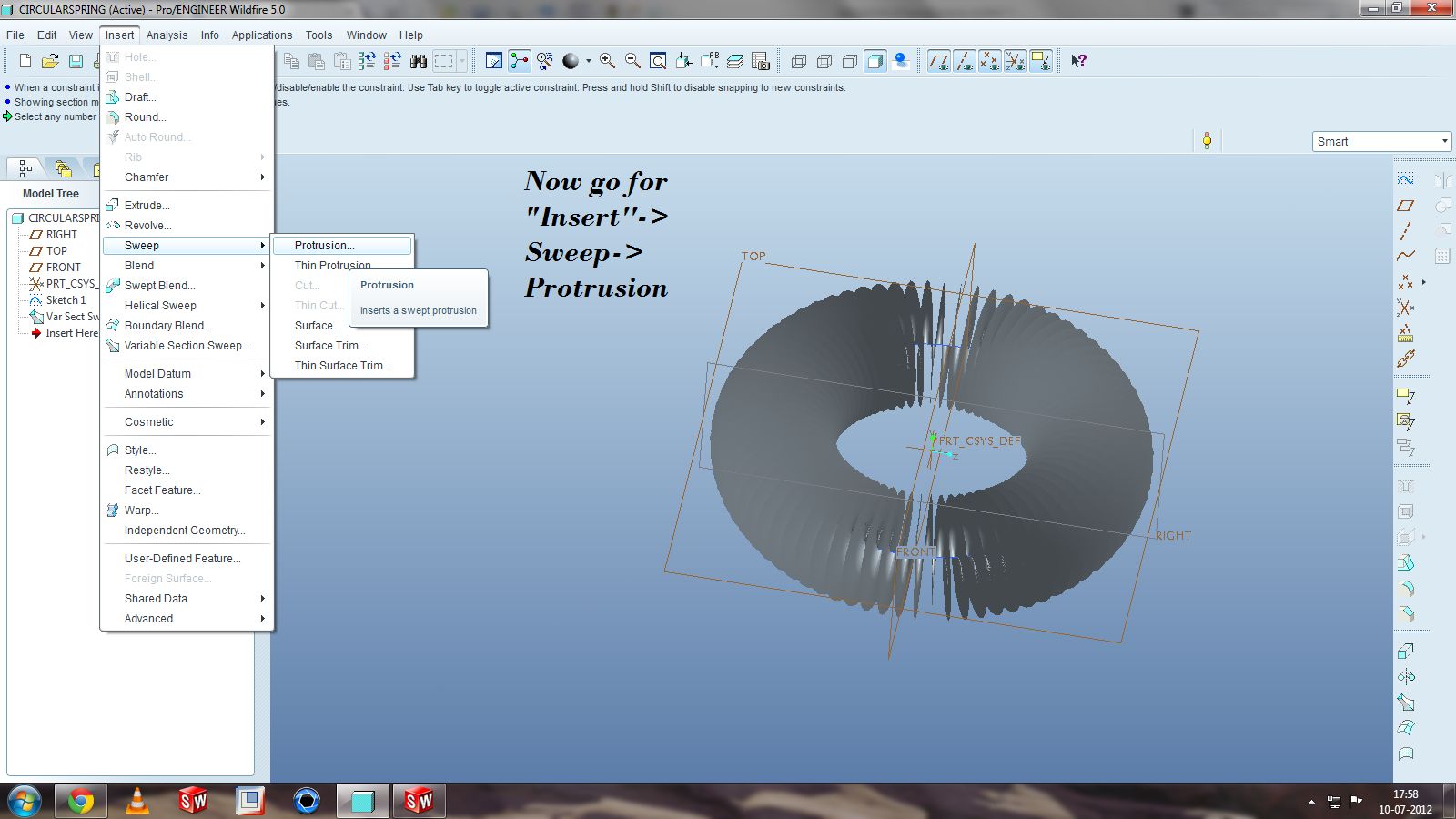

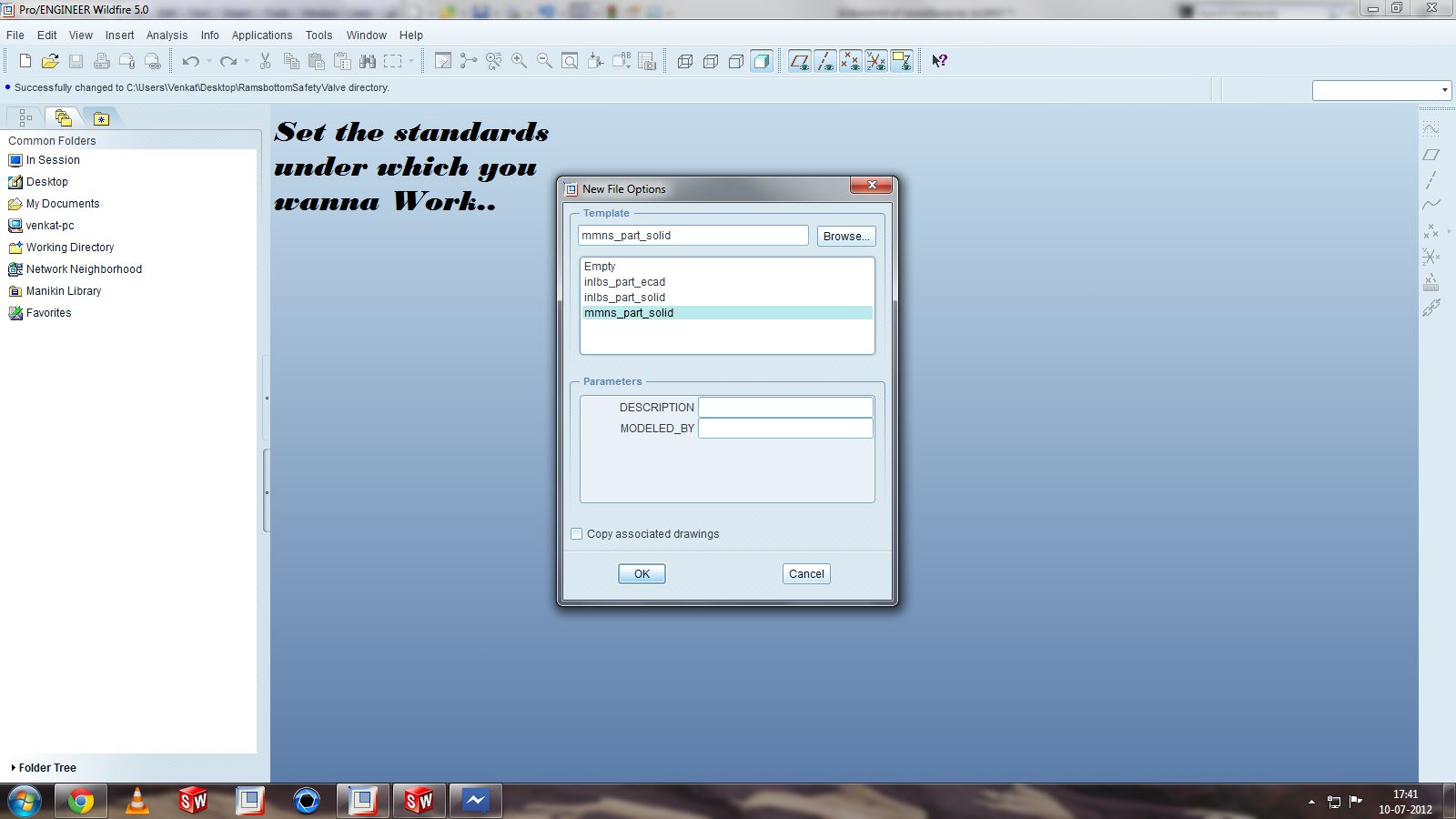

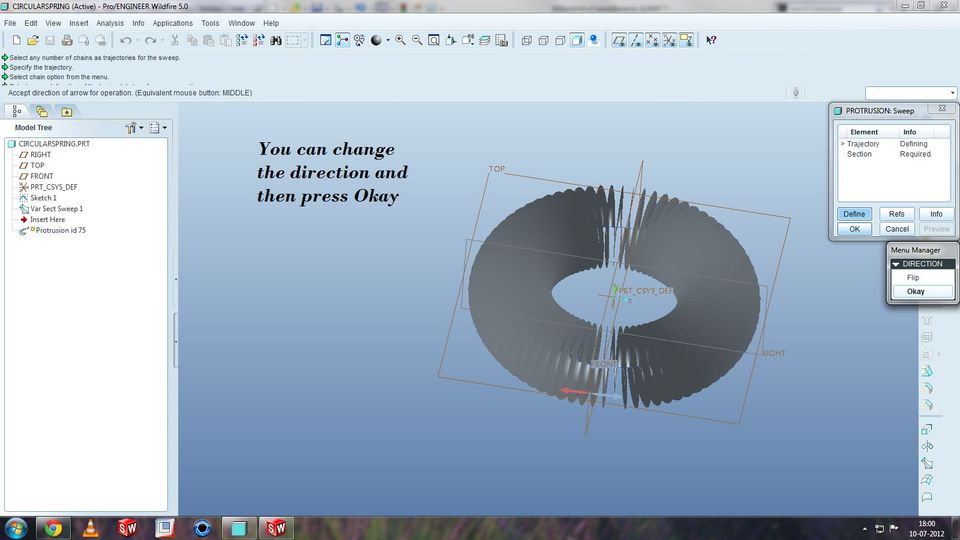

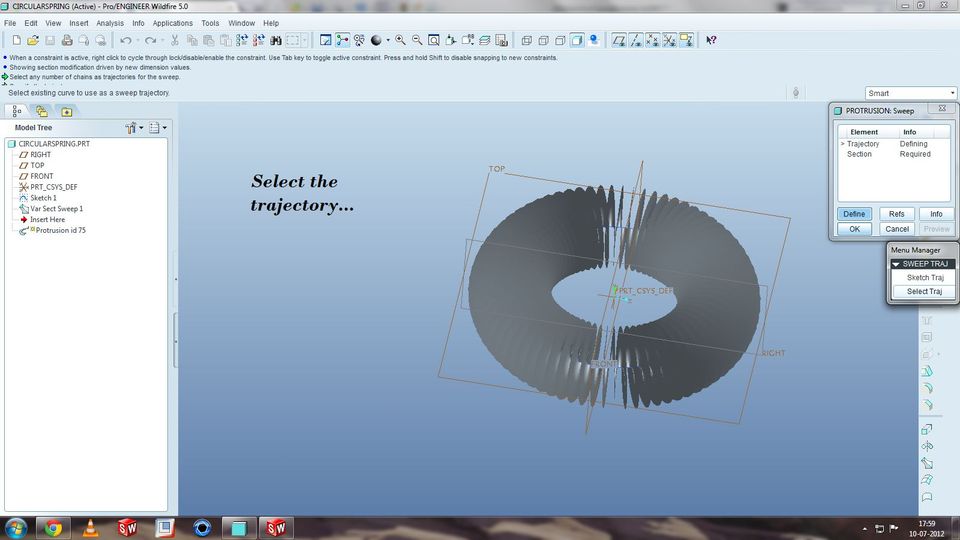

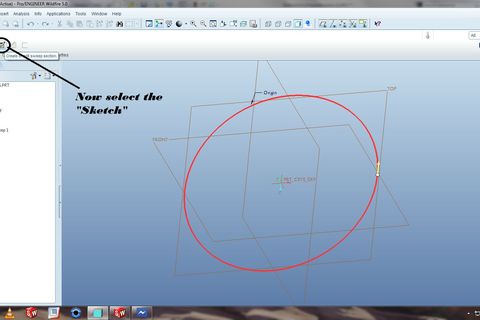

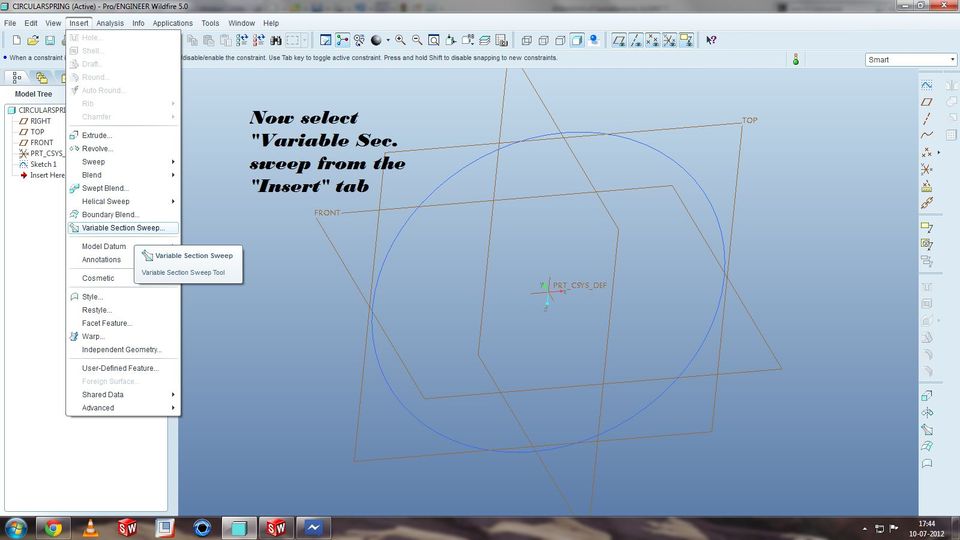

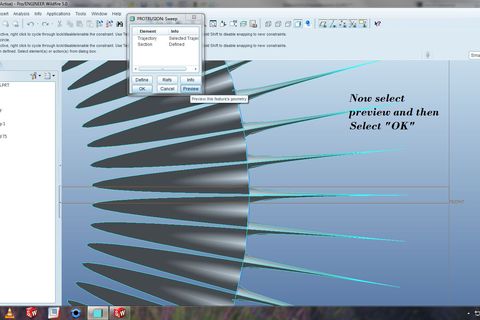

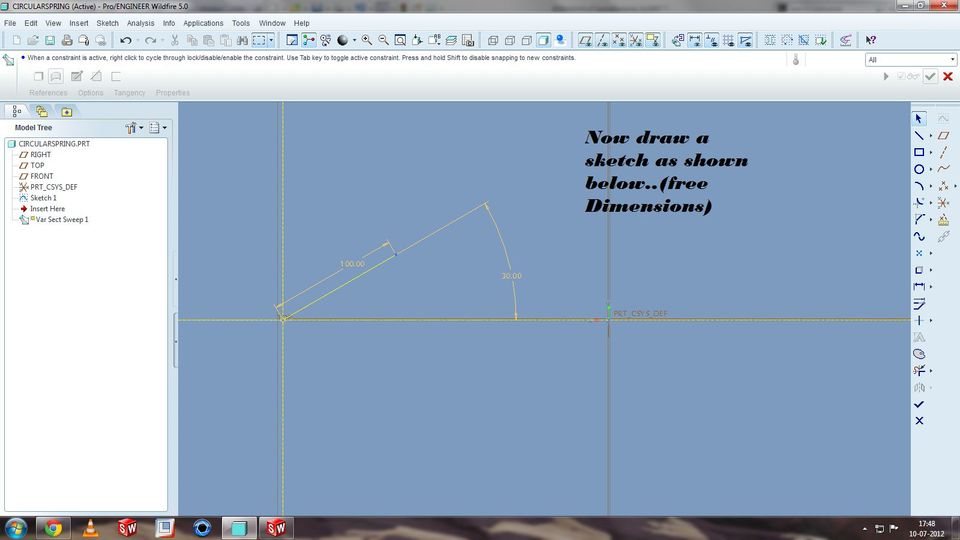

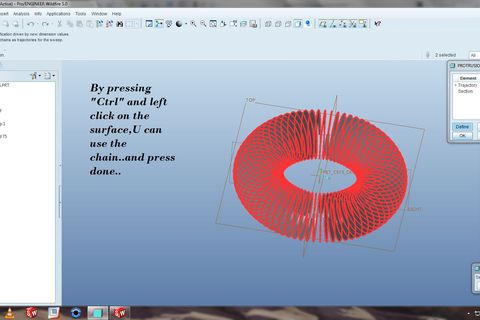

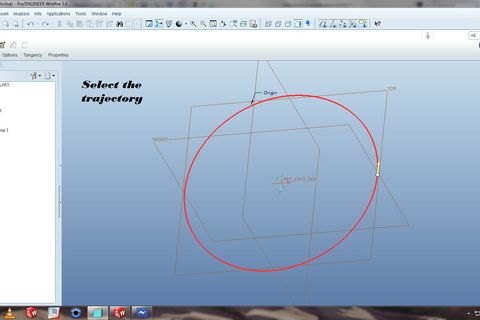

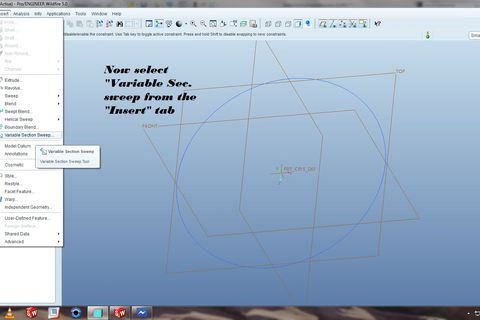

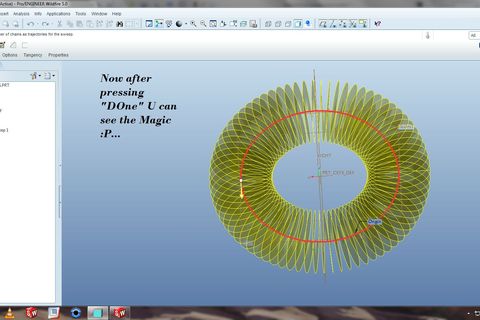

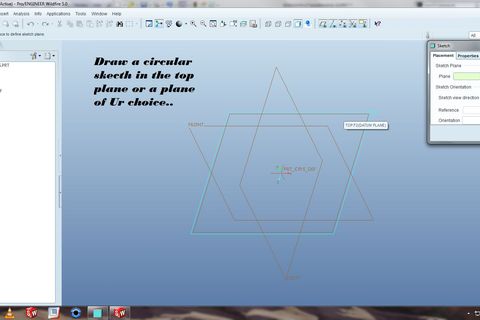

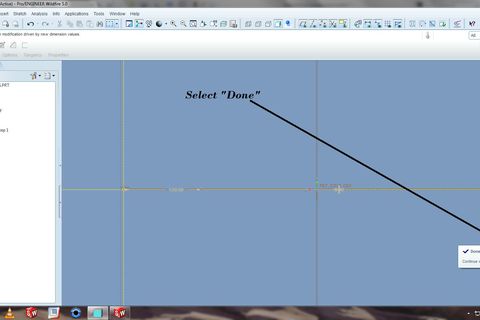

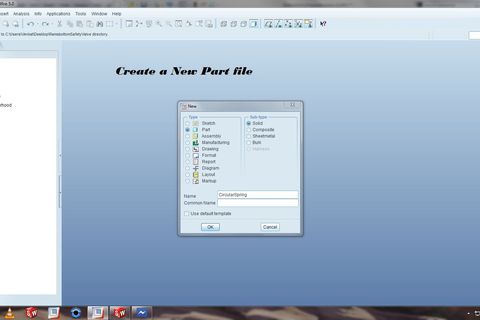

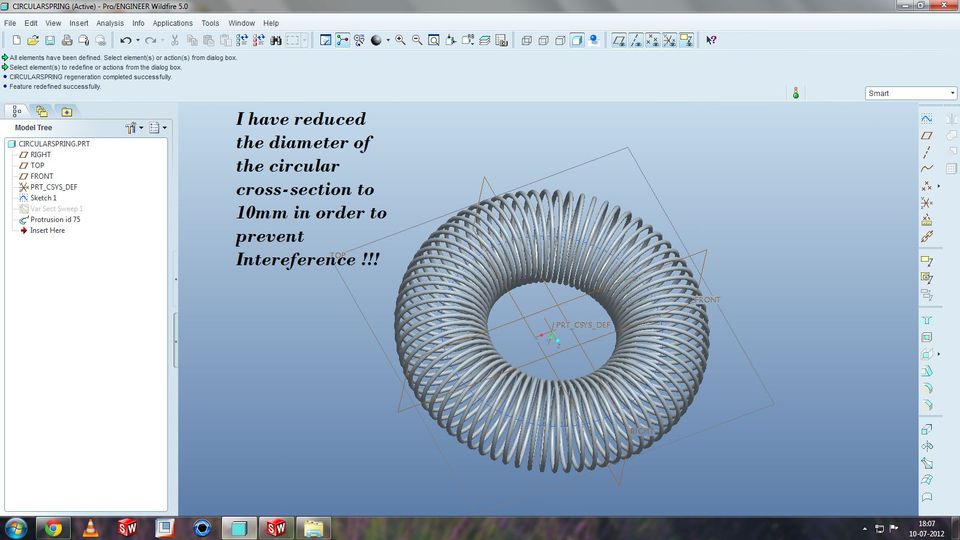

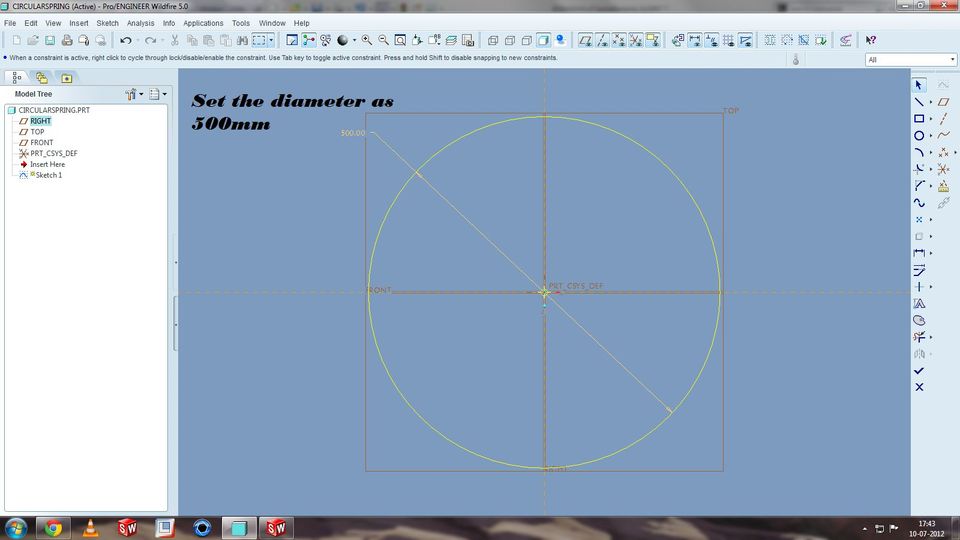

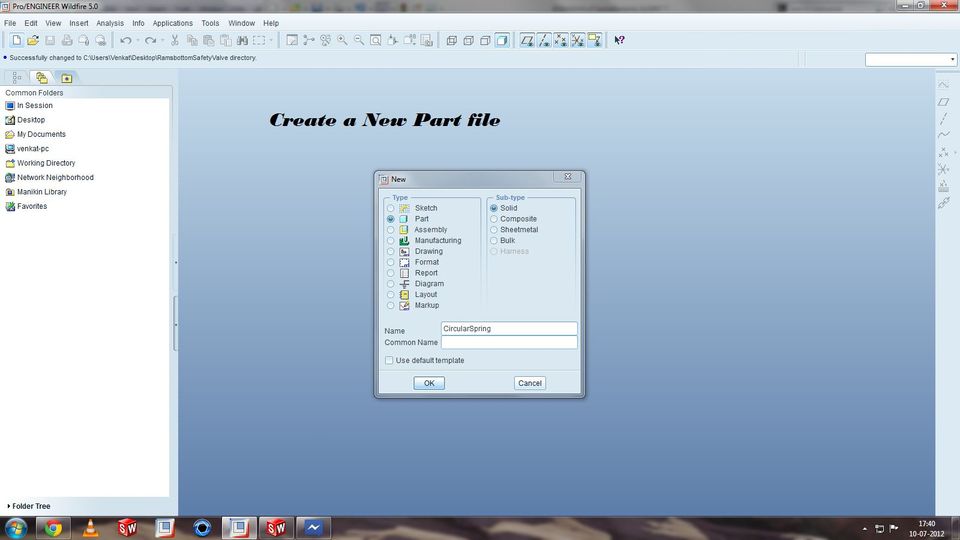

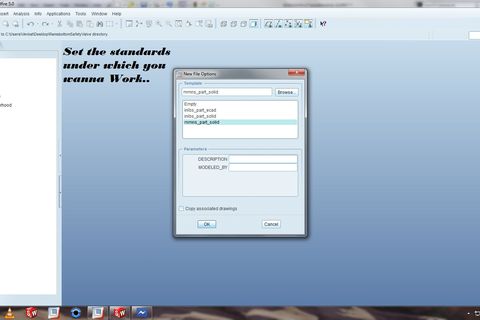

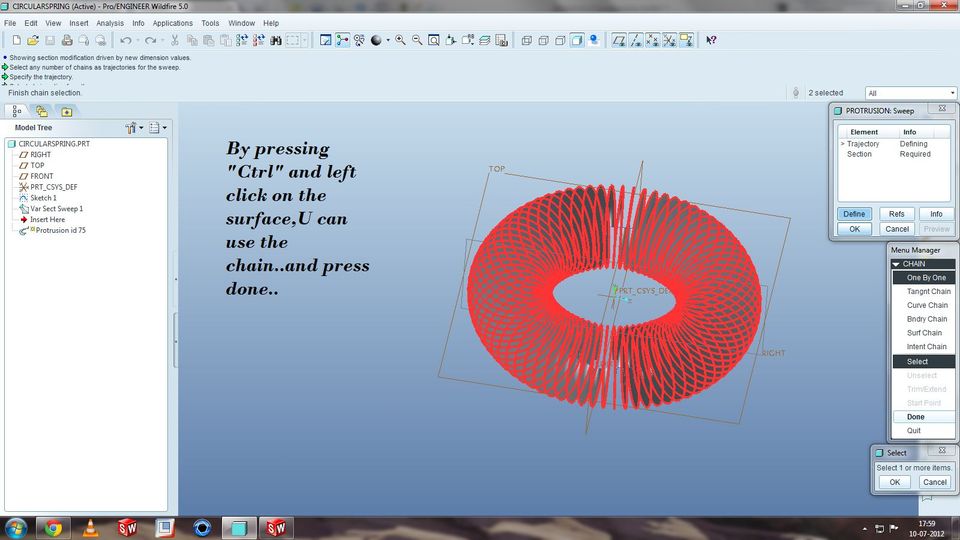

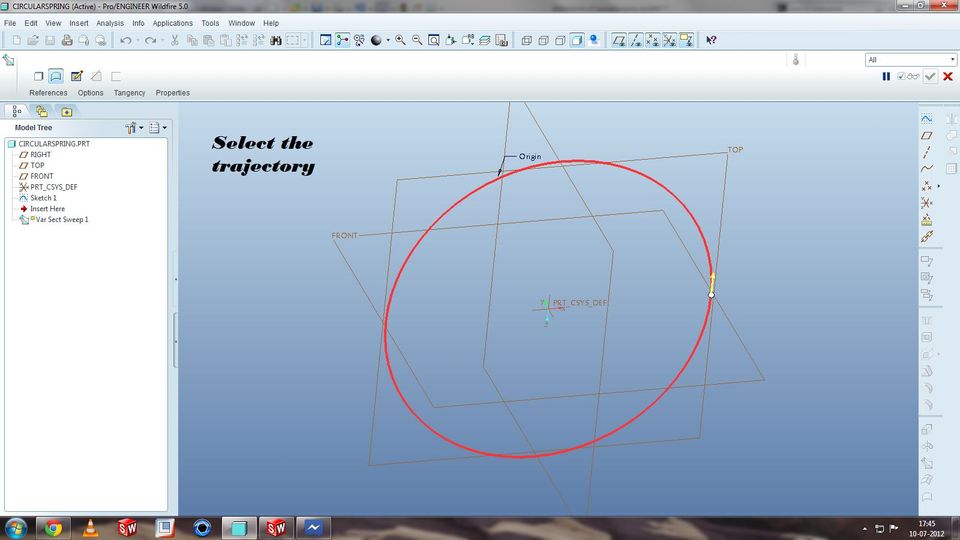

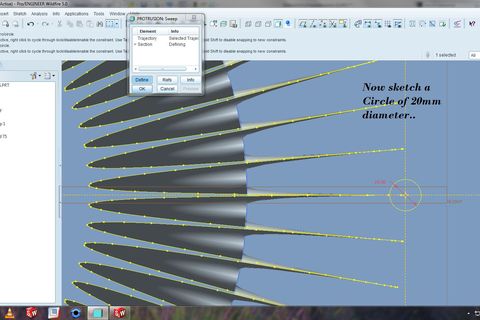

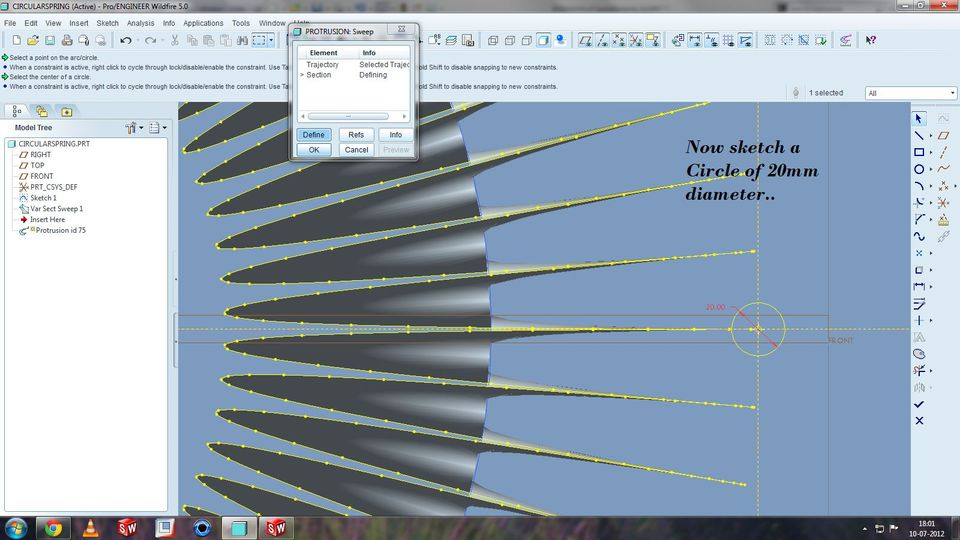

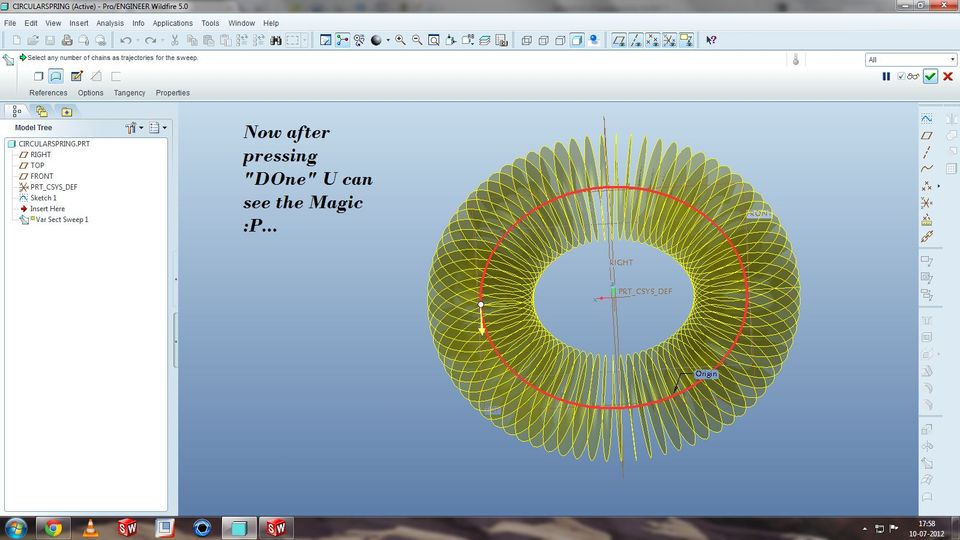

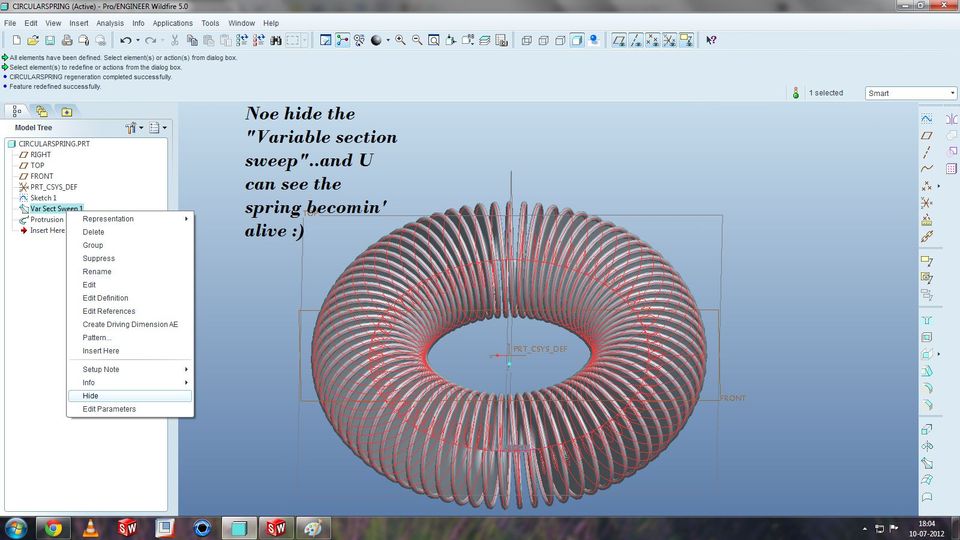

  1. Step 1

     thử chút coi



  1.
     yogeshkumar 11 months ago

     i need its ok vertical means how can i do?

•
  rakesh 3 months ago

  Try this!!!!!!!! ((((using equation))))

  1. Insert curve using equation.
  2. Select Co-ordinate.
  3. Use cylindrical option.
  4. Insert following equation for mean radius = 200, coil radius=25 & number of turns = 50

  N=50
  Rmean=200
  Rspr=25

  theta=360*t
  R=Rmean+Rspr*sin(360*t*N)
  Z=Rspr*cos(360*t*N)

  6. Click OK. & there u are.
  7. Use sweep command to make the spring.

•
  Muhammad Saeed 10 months ago

  plz define the trajpar plz

•
  Vaibhav Bhujbal 10 months ago

  You can do it with the help of helical section sweep which is in the insert menu...Its more easier in that way

  1.
     Vaibhav Bhujbal 9 months ago

     I'll explain you ...first go in helical sweep...a menu will open asking for trajectory and section.....just draw a line defining the distance of spring and for the same traj draw a parallel center line. Then click ok..after that it will ask you to define a section then all you have to do is draw a circle and then ok...your spring is ready...

  2.
     Vaibhav Bhujbal 9 months ago

     Let me know if any problems..

  3.
     anhquoc38 10 months ago

     Can you tutorial?

  4.
     Muhammad Saeed 9 months ago

     yes done it but plz what trajpar
     trajpar is ............

•
  Anurag 22 days ago

  Try videos on youtube with name CADDBITE and find videos related to Pro/ENGINEER
