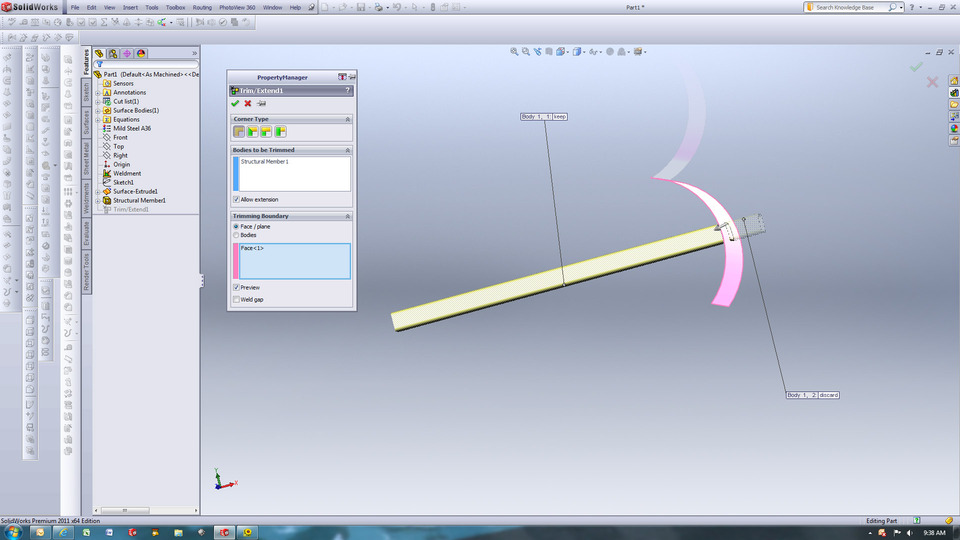

How to cut or trim the end of a weldment I beam to a curved surface in Solidworks? Abhijeet 23 Jan, 2012 04:38 AM How to cut or trim the end of a weldment I beam to a curved surface in Solidworks? 1 Answer C Bd Answered on 23 Jan, 2012 05:43 PM Select Trim/Extend Select End Trim Select weldment pc to trim Select Face/Plane Select keep or discard for bodies you do or don't want Add weld gap if desired Check OK Surface has to be large enough to fully trim shape Trim.jpg
