Tutorial: How to make bevel gear in Catia V5?

By Abhijeet on 18 Feb 11:02 3 answers 10591 views 3 comments

Tutorial to make bevel gear in Catia V5

3 answers

  • Abhijeet
    Abhijeet almost 3 years ago

    Tutorial to make bevel gear in Catia V5

    1. Step 1

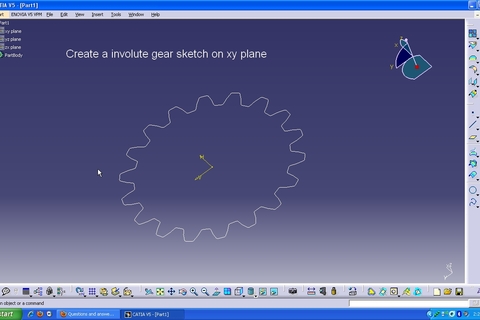

      Sketch an involute gear on xy plane

      Medium

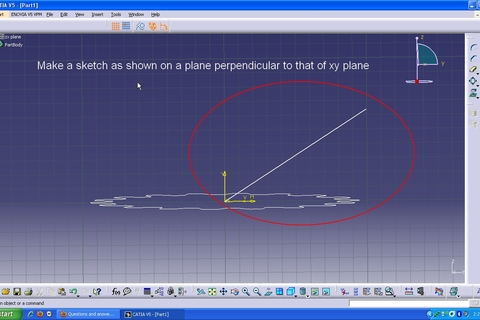

    2. Step 2

      Sketch an inclined line on a plane perpendicular to xy plane

      Medium

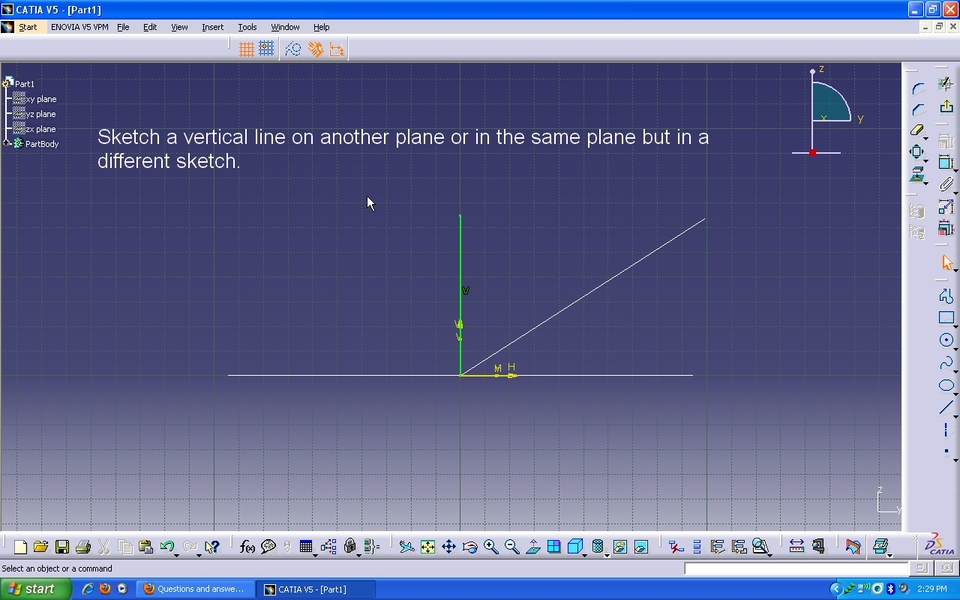

    3. Step 3

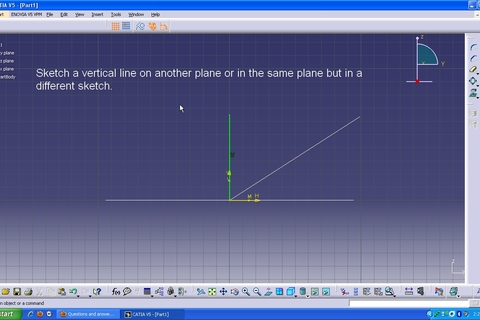

      Sketch a vertical line may be in the same plane but in a different sketch

      Medium

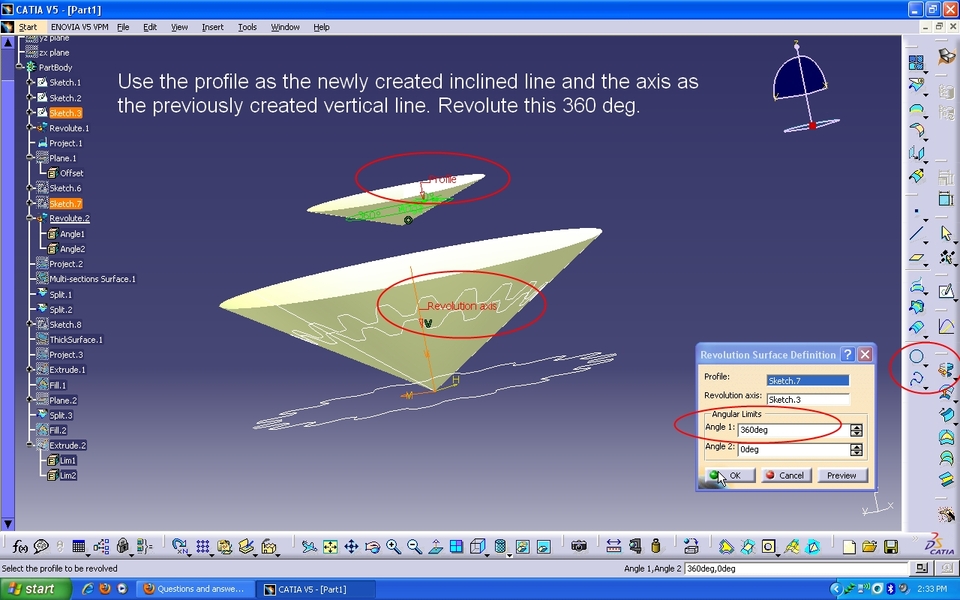

    4. Step 4

      Revolute the line drawn earlier using the vertical line as axis.

      Medium

    5. Step 5

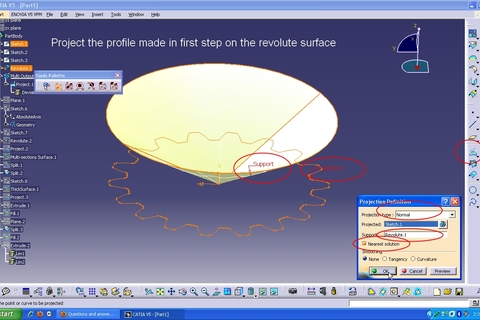

      Project the profile made in first step on the revolute surface.

      Medium

    6. Step 6

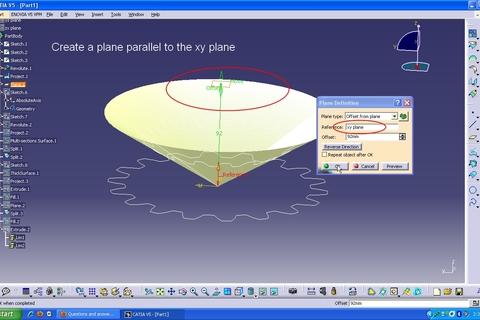

      Create a plane parallel to the xy plane

      Medium

    7. Step 7

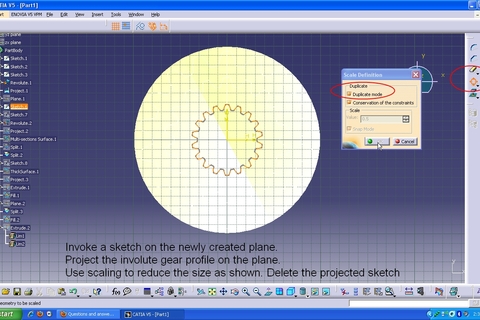

      Invoke a sketch on the newly created plane

      Medium

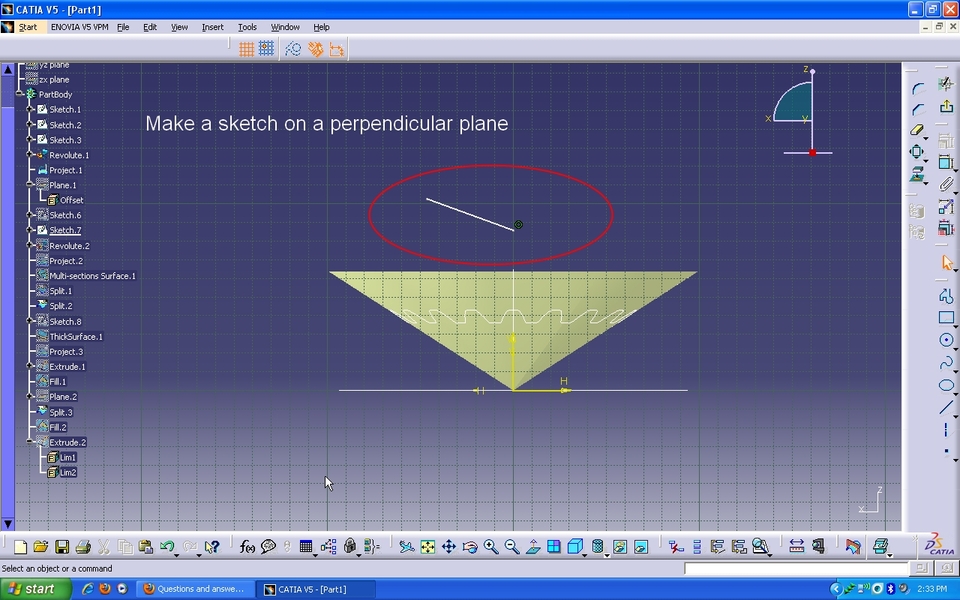

    8. Step 8

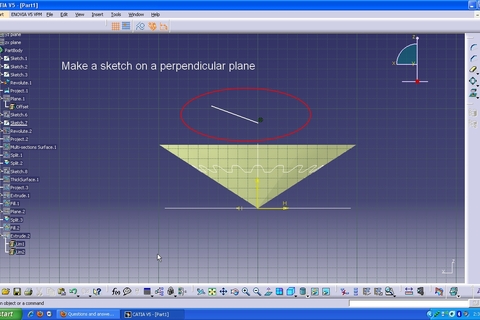

      Make a sketch on a perpendicular plane

      Medium

    9. Step 9

      Create another revolute surface

      Medium

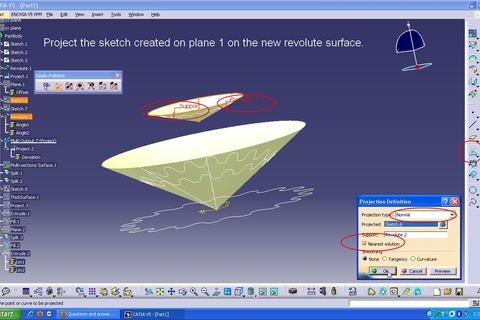

    10. Step 10

      Project the sketch made on plane1 on to the revolute surface.

      Medium

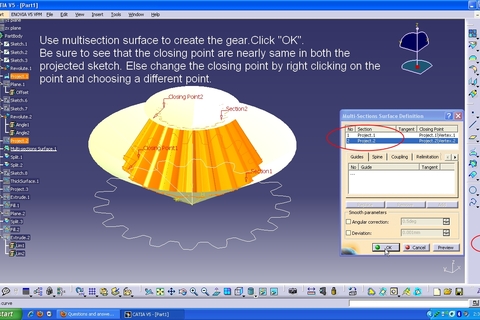

    11. Step 11

      Use multisection surface

      Medium

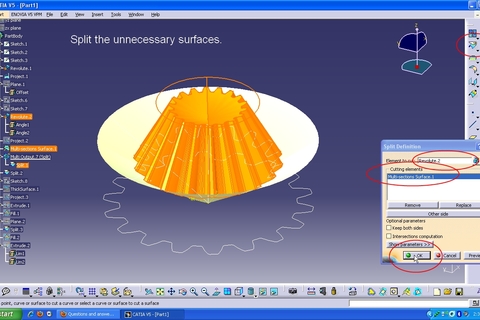

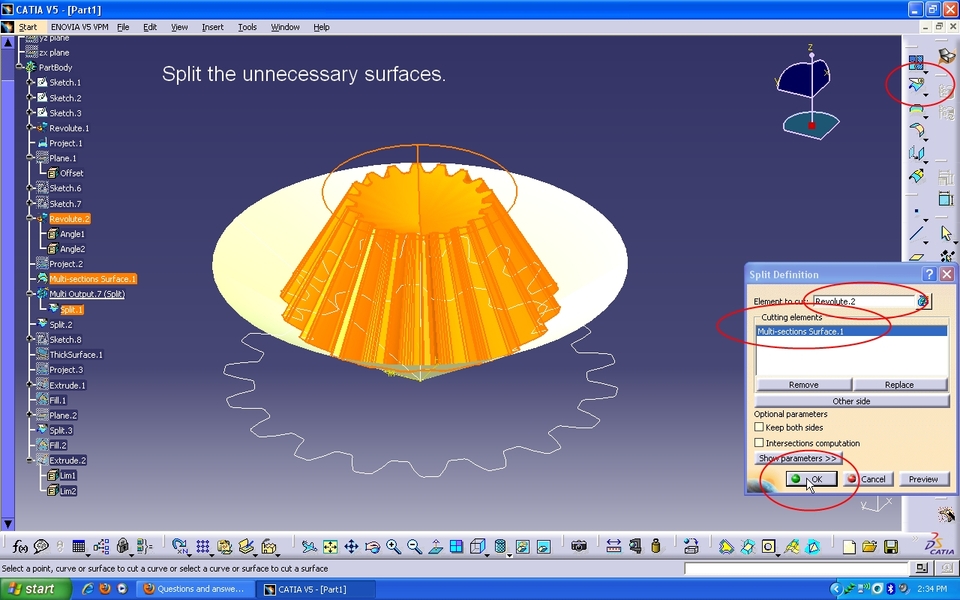

    12. Step 12

      Split out the unnecessary parts.

      Medium
