  Here is the Tutorial.

  1. Step 1

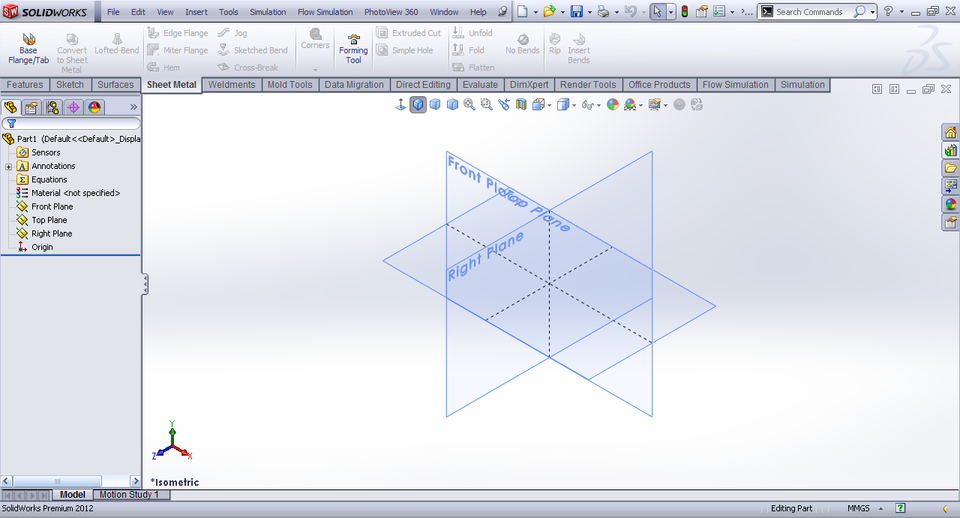

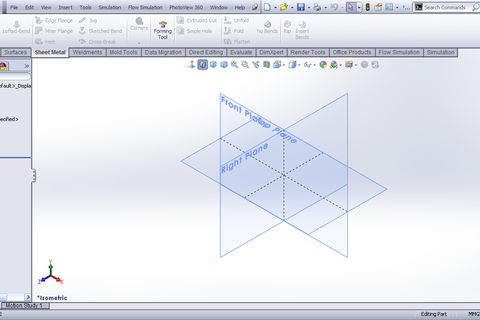

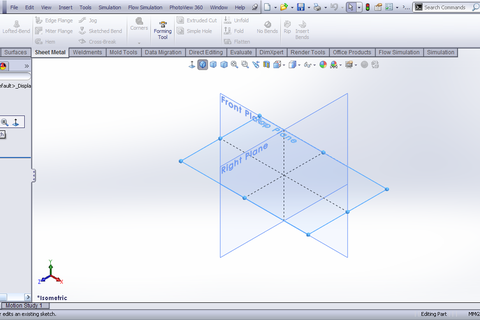

     Start SolidWorks in part mode.



  2. Step 2

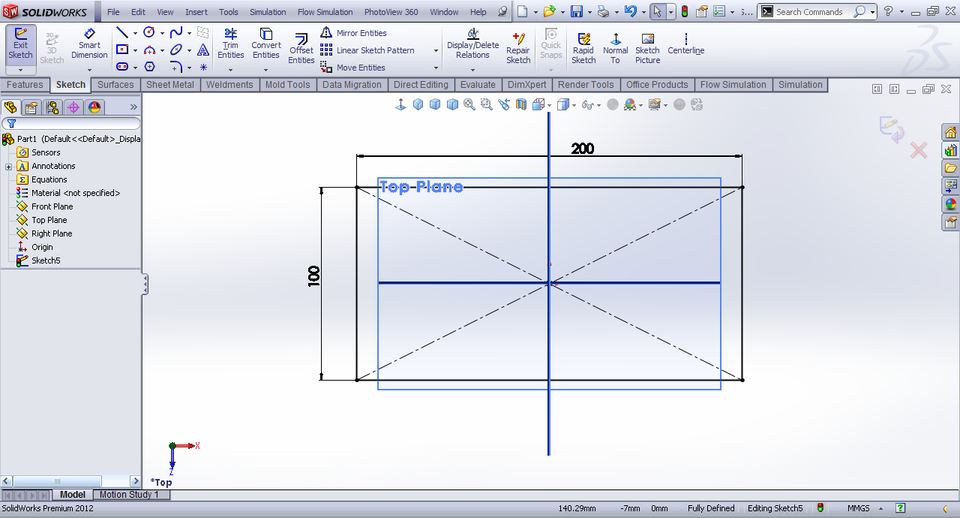

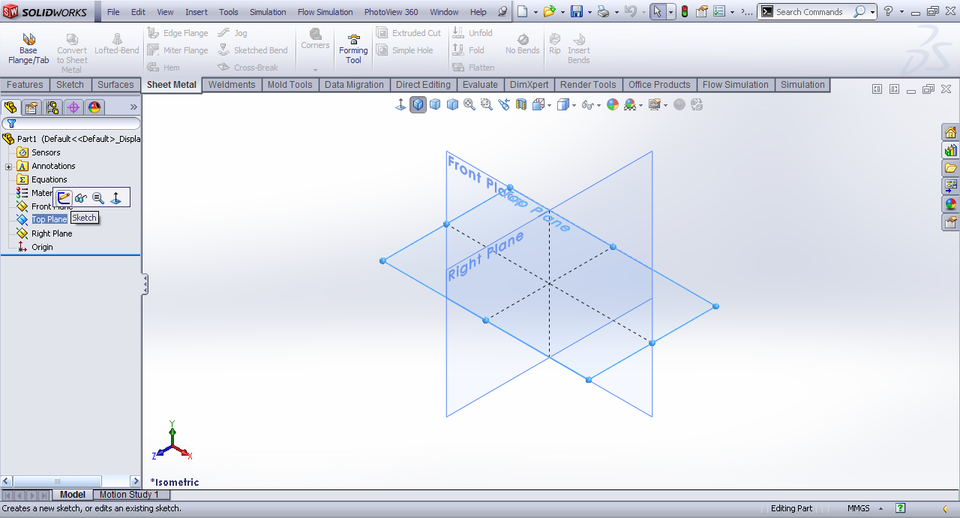

     Top plane>>Sketch.



  3. Step 3

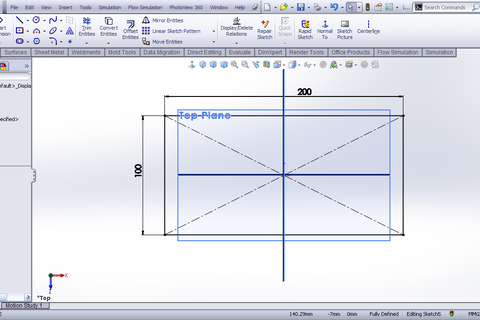

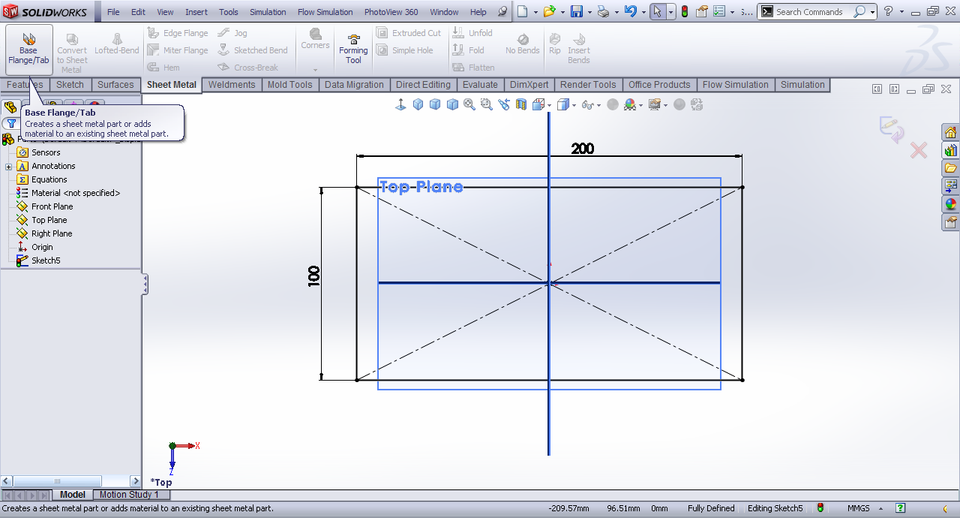

     Draw a rectangle.



  4. Step 4

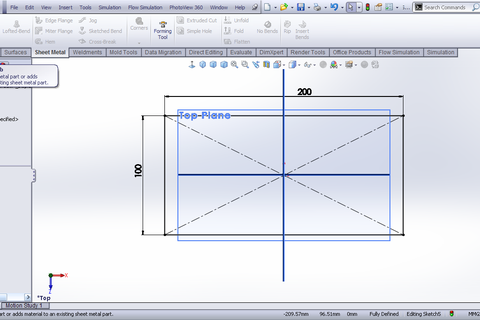

     Under Sheet metal tab click Base flange/Tab.



  5. Step 5

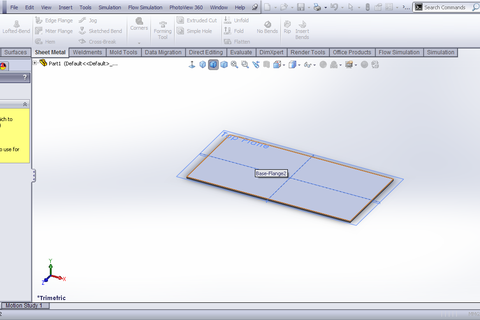

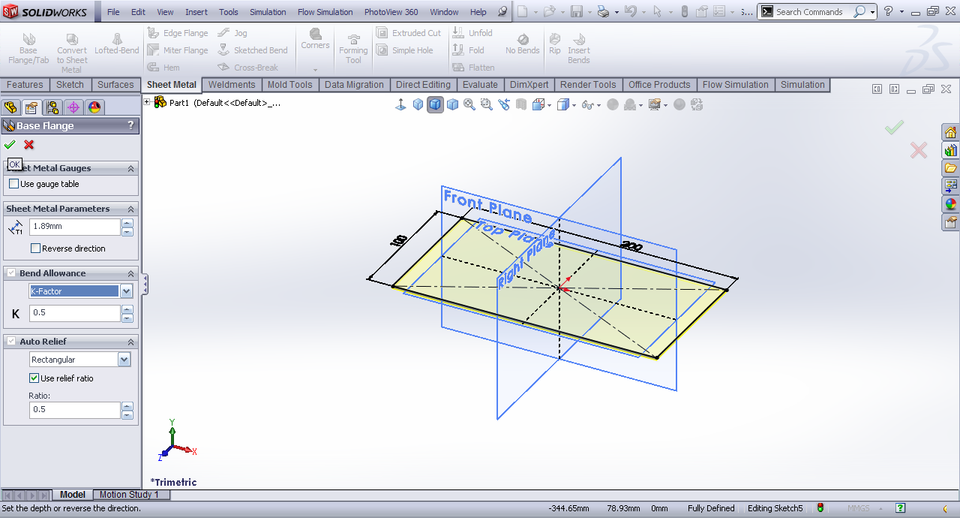

     Keep the default settings and click OK.



  6. Step 6

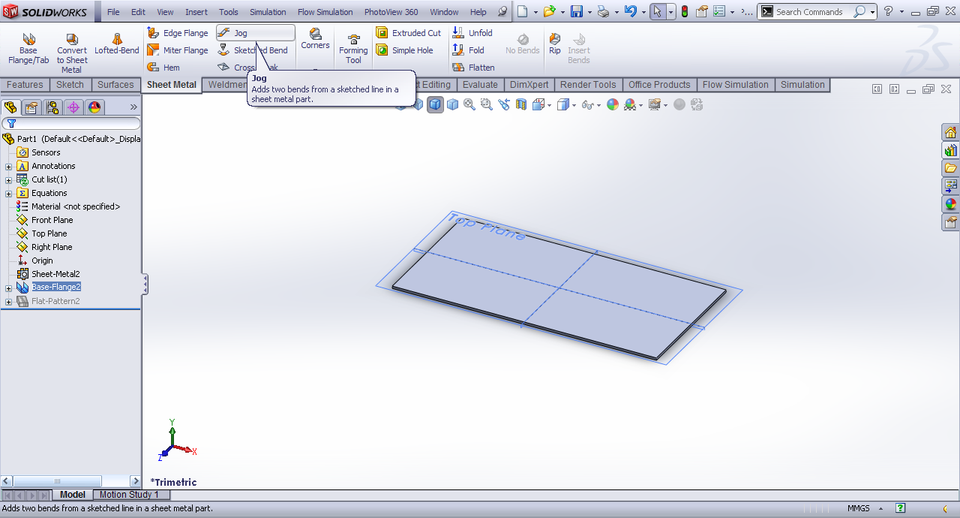

     Under Sheet metal tab click Jog.



  7. Step 7

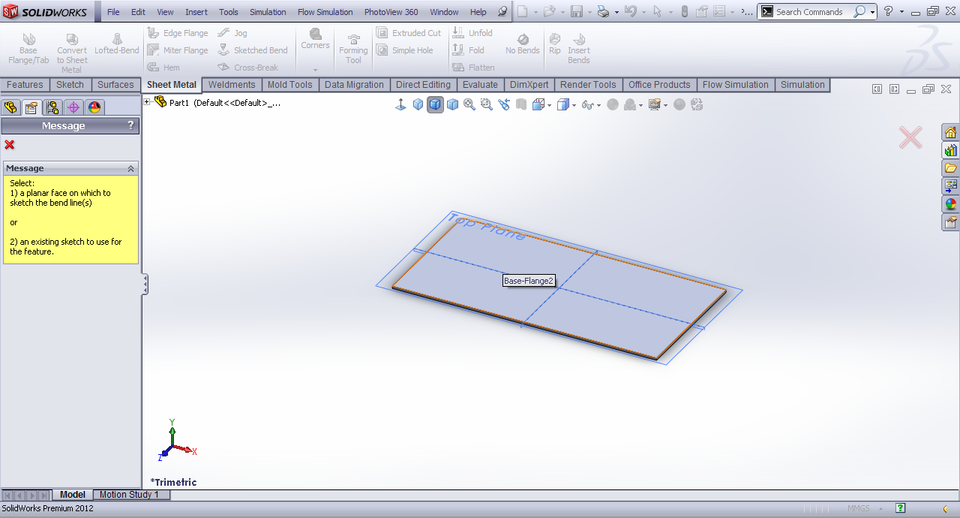

     Select the top face of the base flange.



  8. Step 8

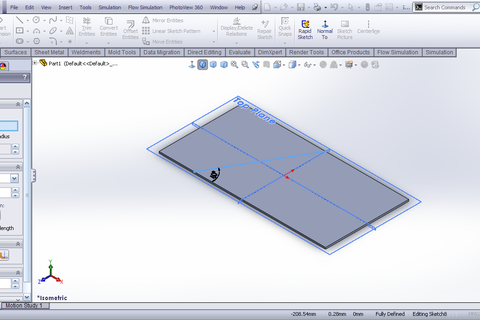

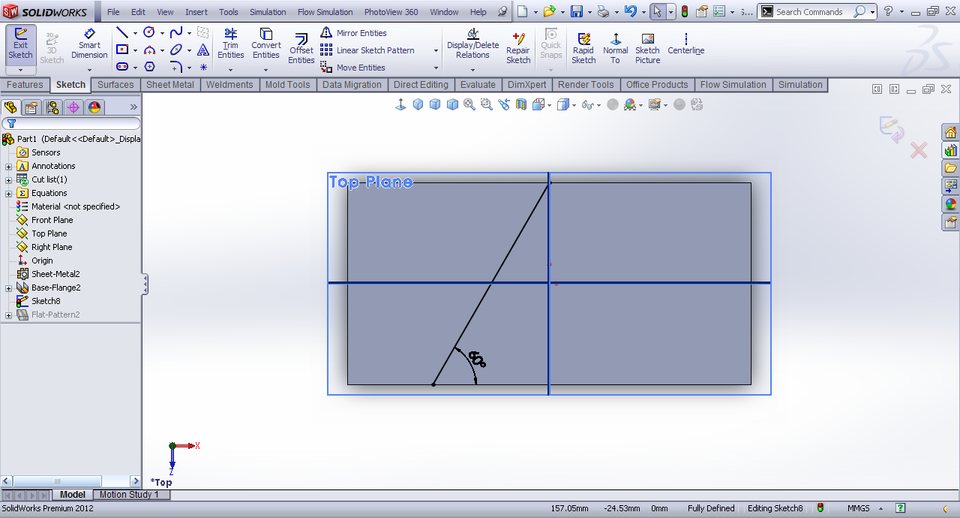

     Create a line at 60º angle.



  9. Step 9

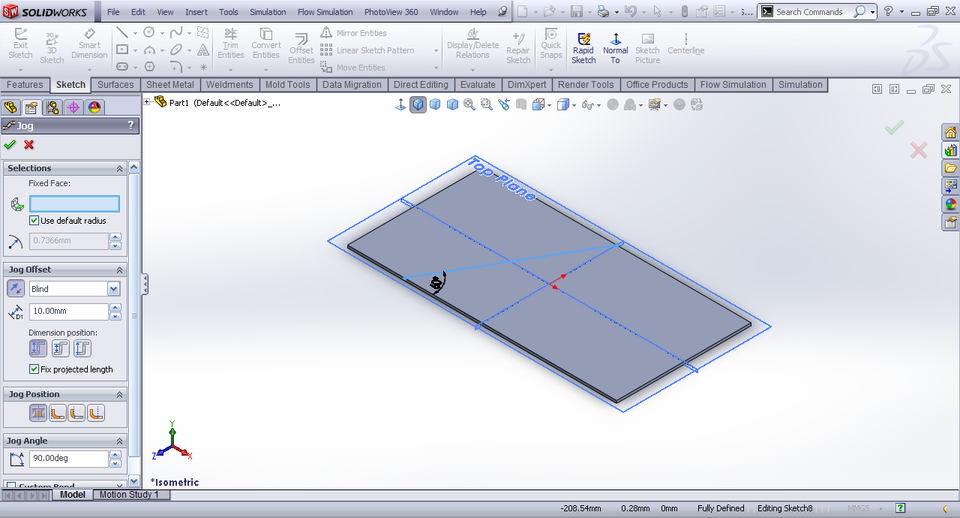

     Exit the sketch. Now the Jog property manager will show.



  10. Step 10

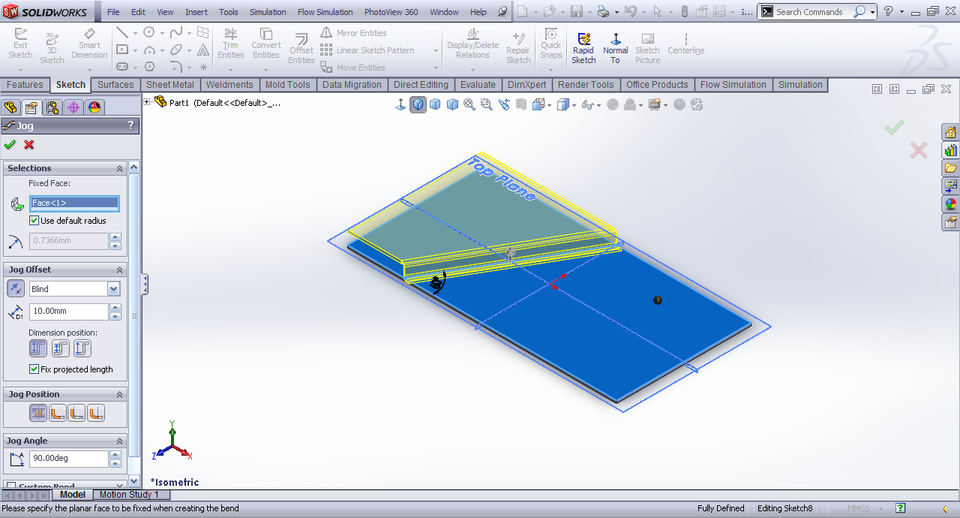

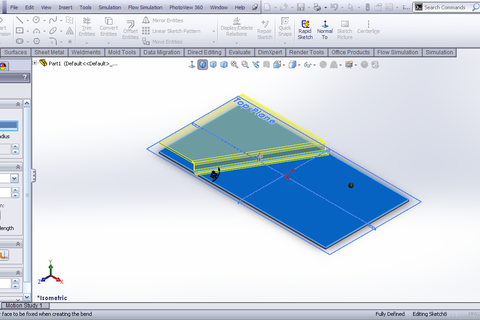

      Select the fixed area. The black dot represent the fixed area.



  11. Step 11

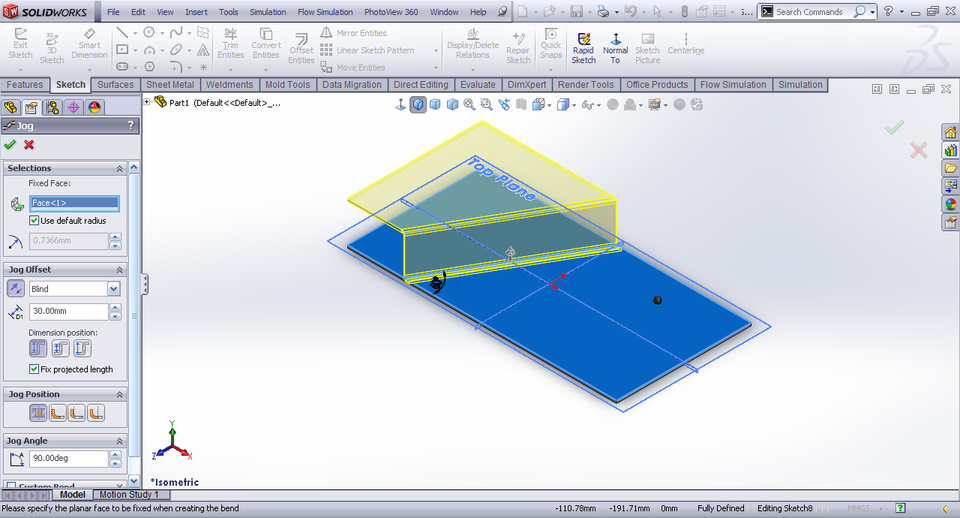

      Change the Jog offset distance to 30mm and click OK.



  12. Step 12

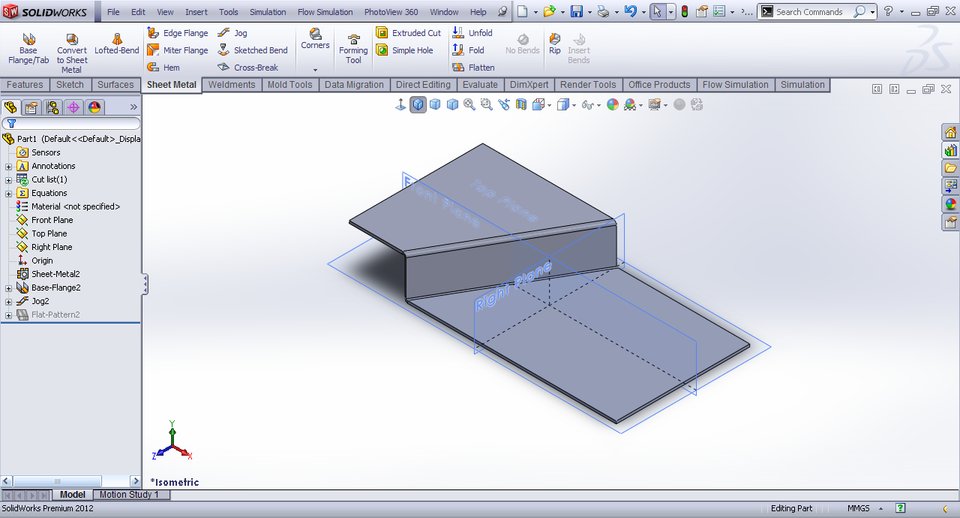

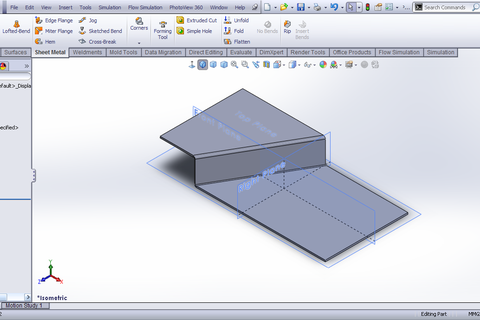

      Now we have the Jog feature obtained.
