  Here is the tutorial.

  1. Step 1

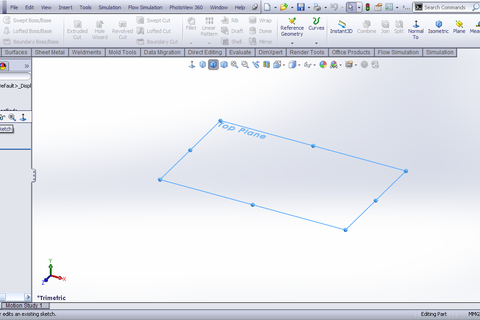

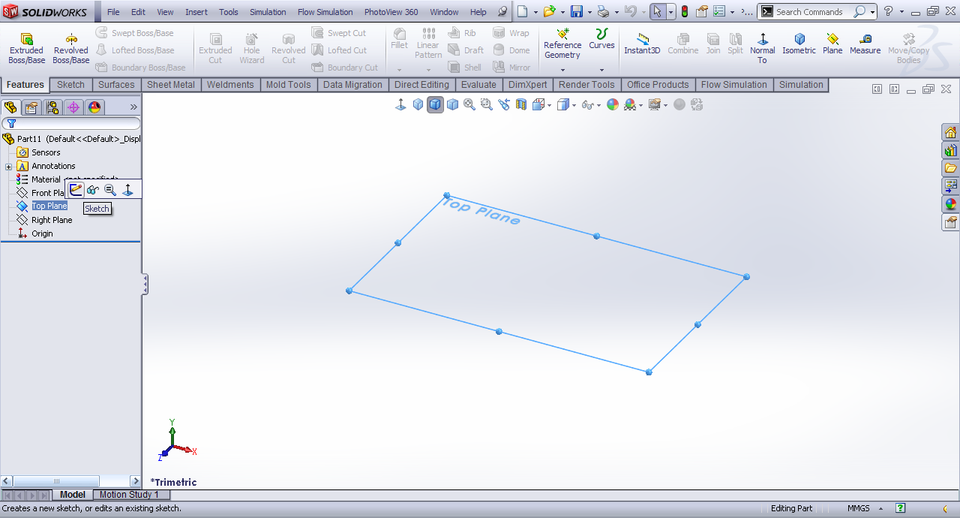

     Top plane>>Sketch.



  2. Step 2

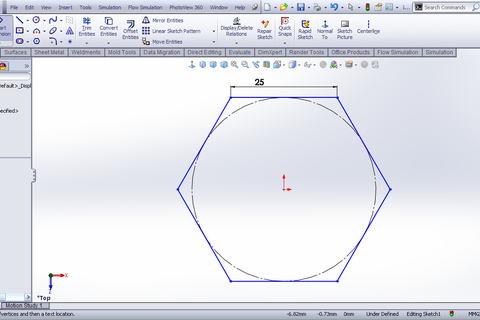

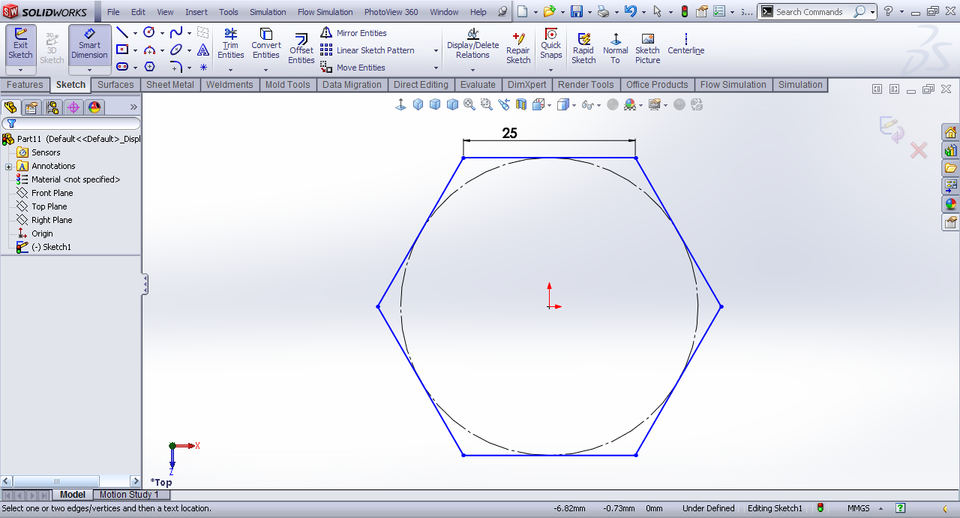

     Draw a polygon with 25mm side.



  3. Step 3

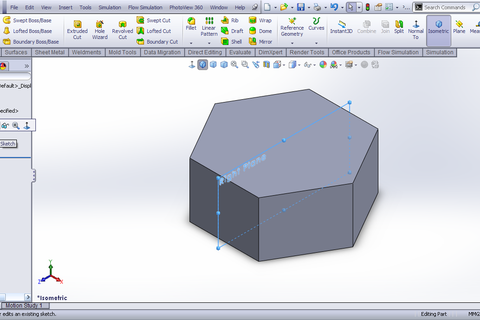

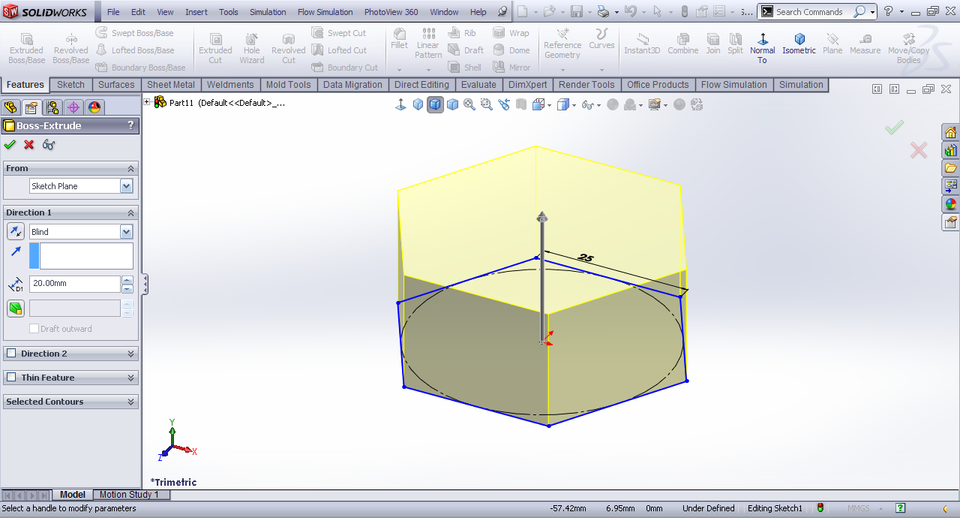

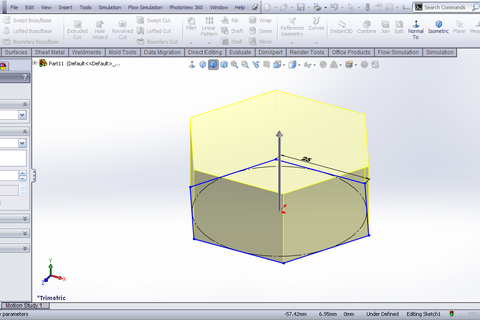

     Extrude it by 20mm.



  4. Step 4

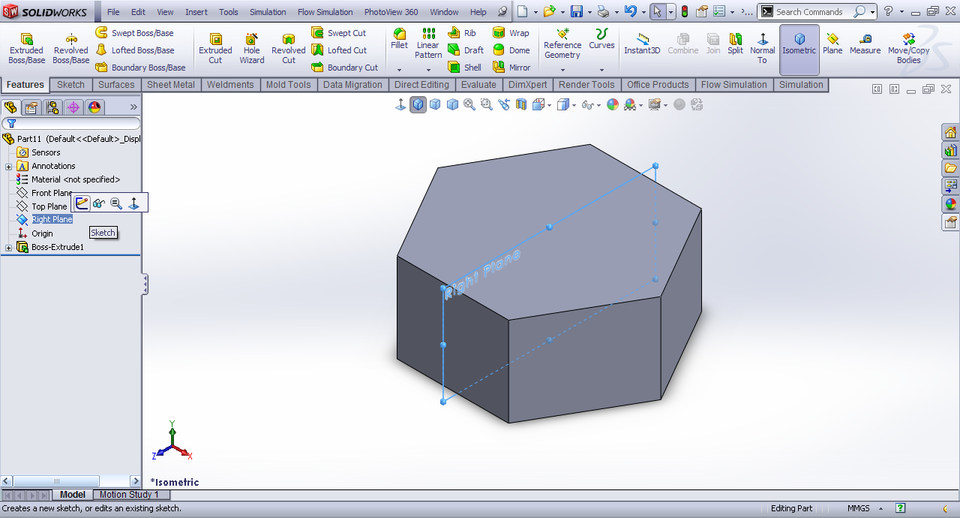

     Right plane>>Sketch.



  5. Step 5

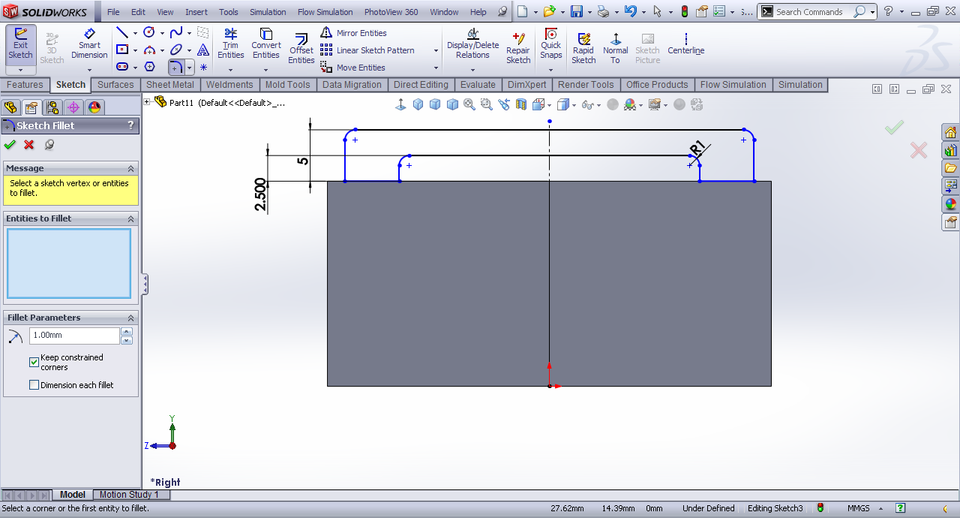

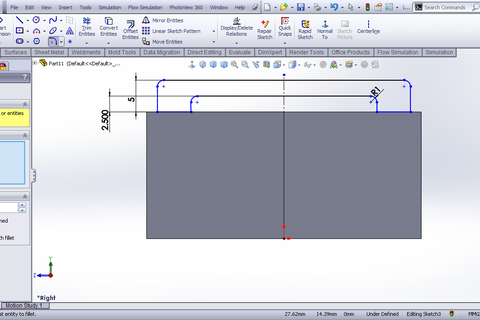

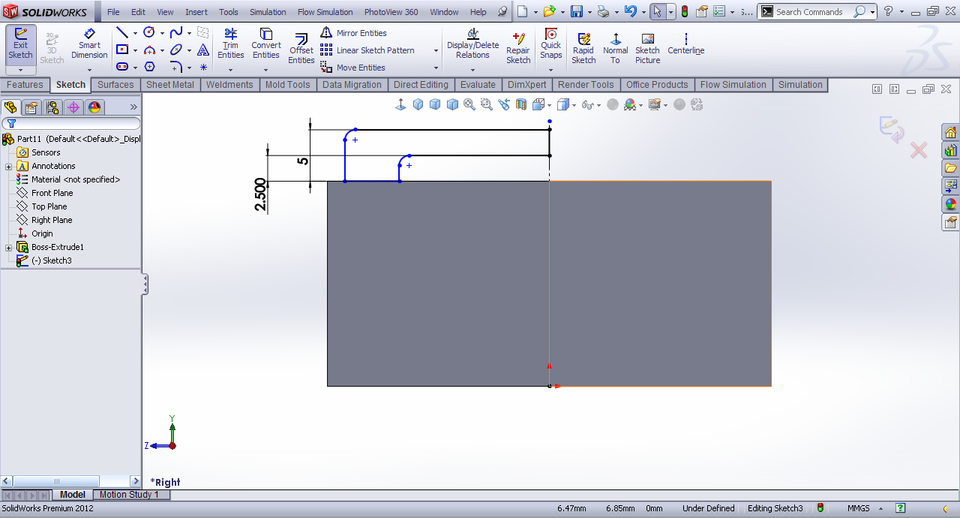

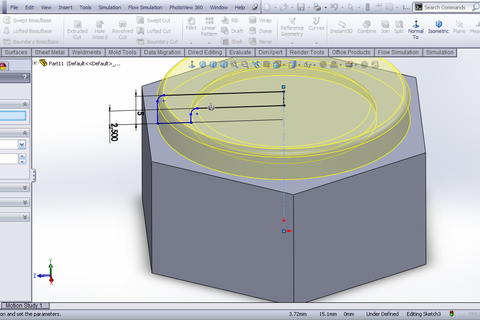

     Draw this profile.



  6. Step 6

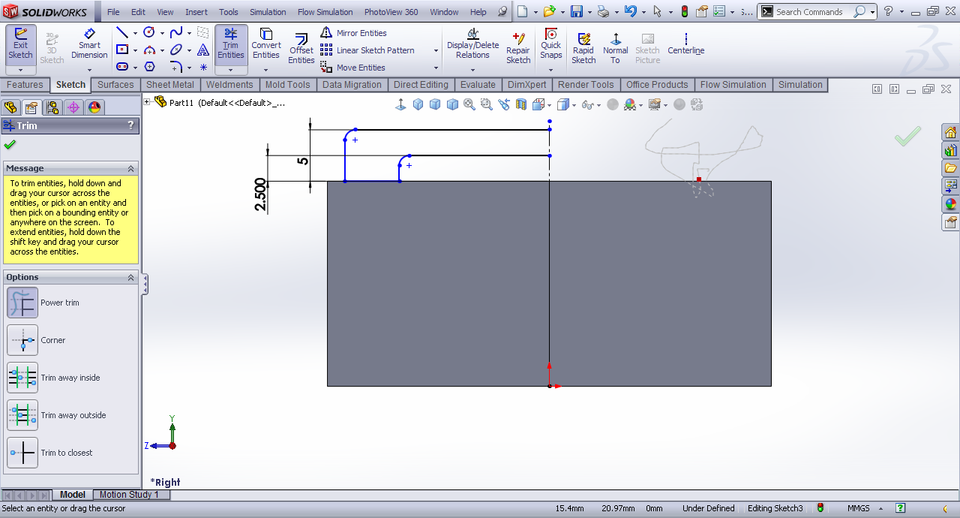

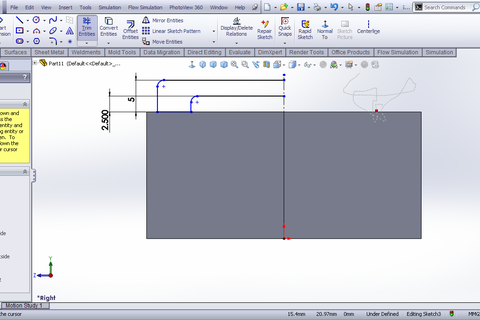

     Trim it.



  7. Step 7

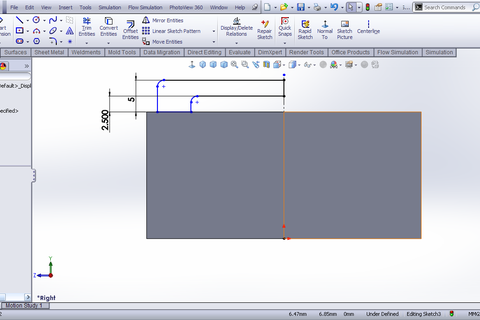

     Close it.



  8. Step 8

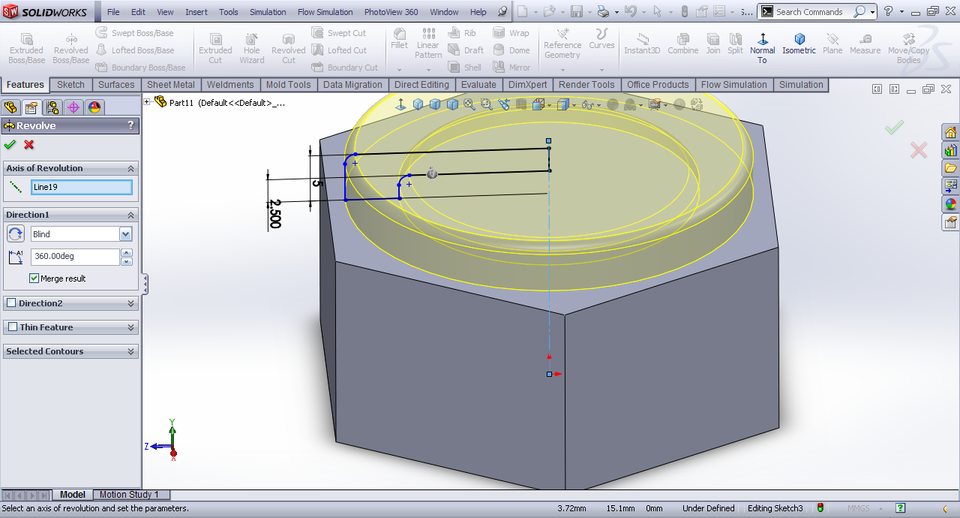

     Now revolve it.



  9. Step 9

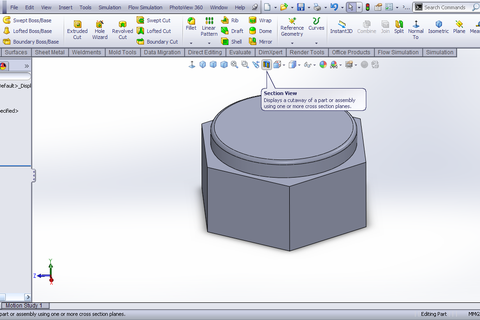

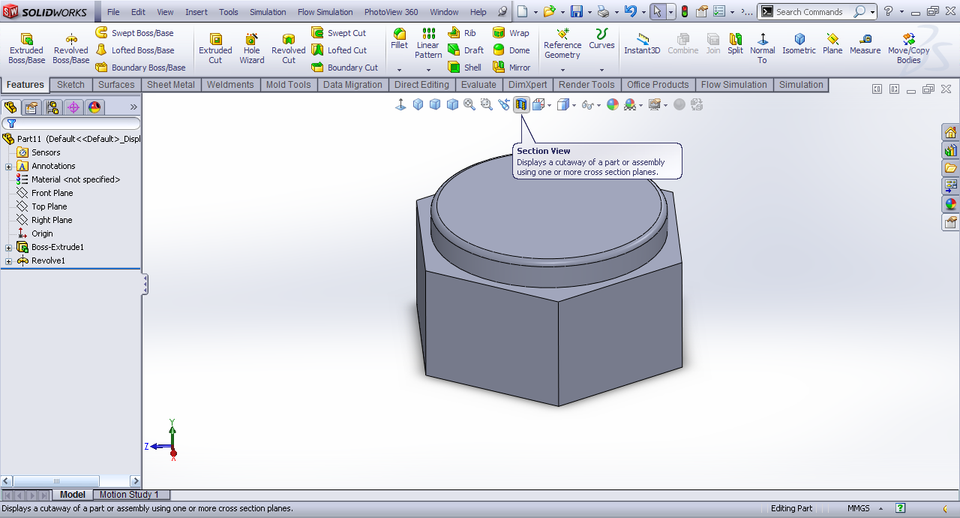

     Section view.



  10. Step 10

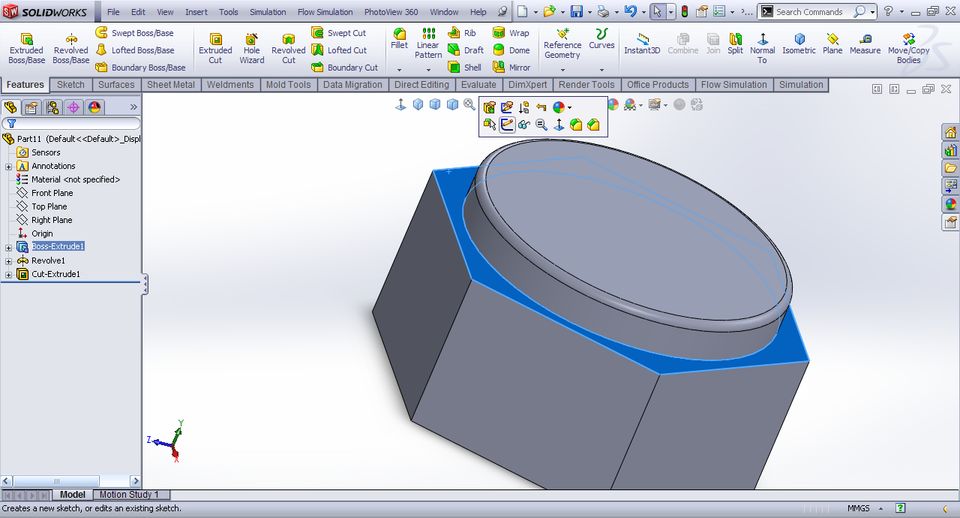

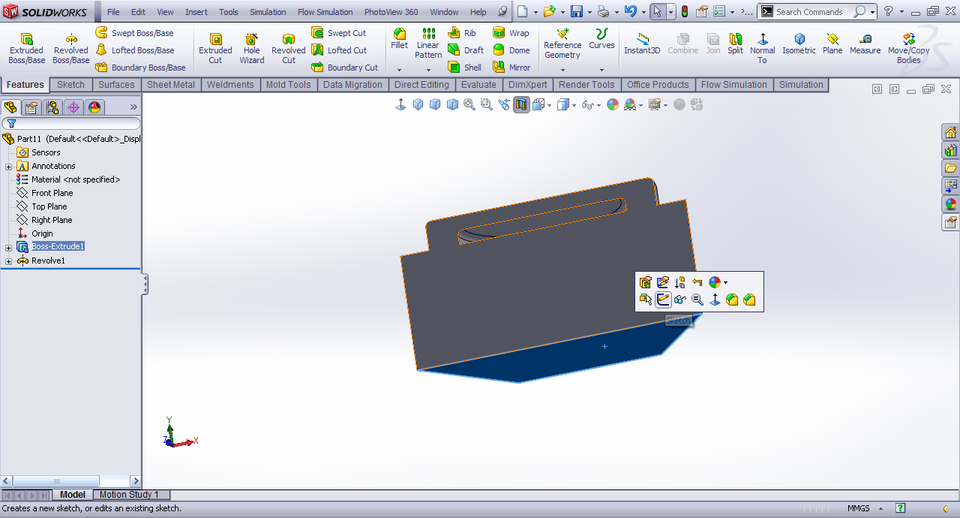

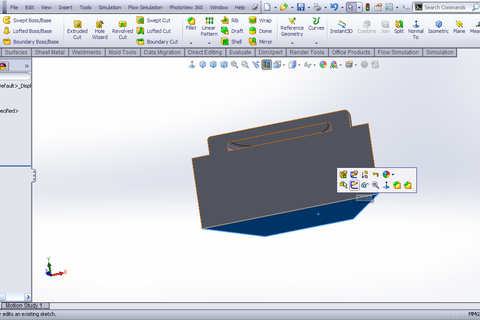

      Bottom face>>Sketch.



  11. Step 11

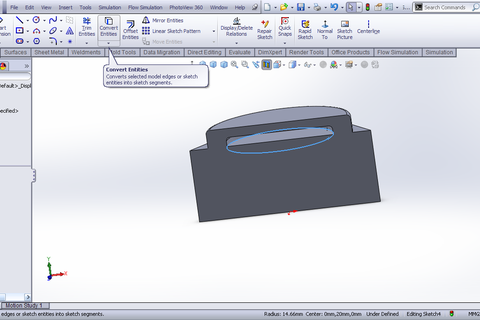

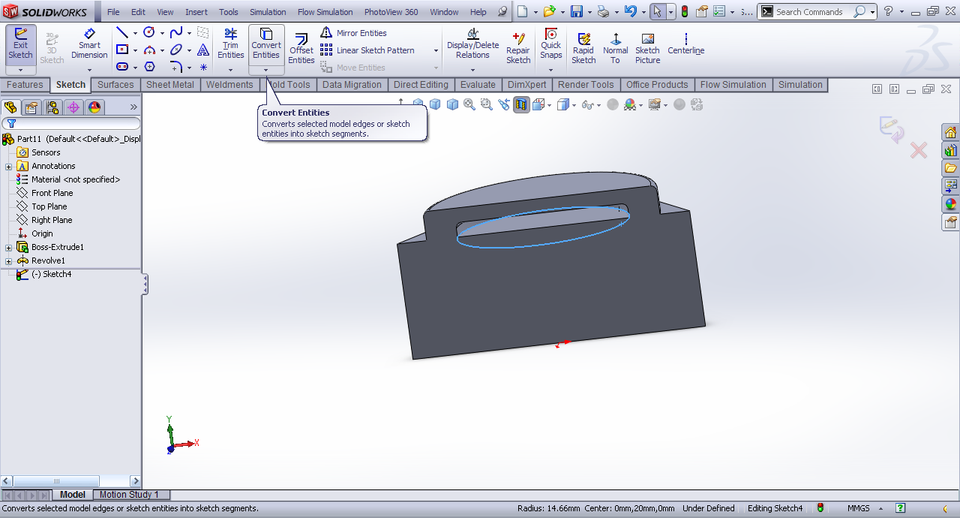

      Convert the circular edge.



  12. Step 12

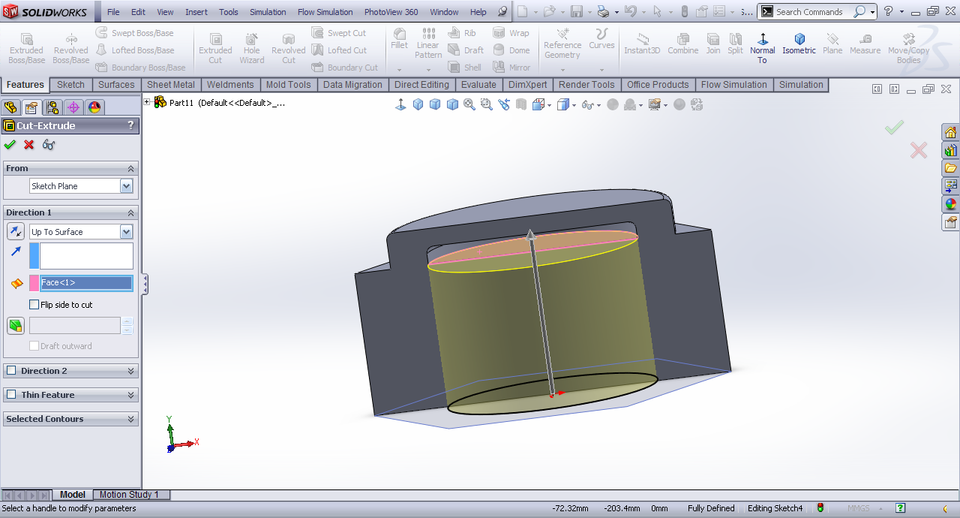

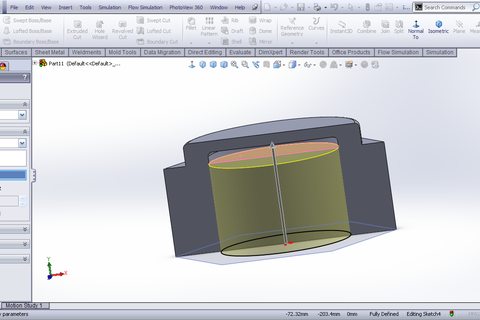

      Extrude cut it.



  13. Step 13

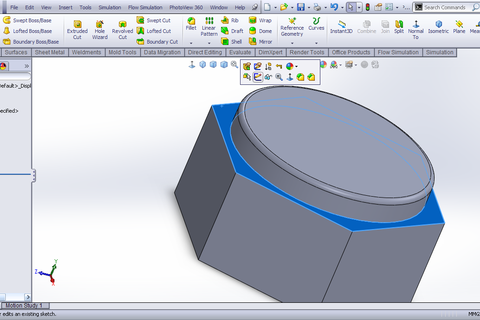

      Polygon face>>Sketch.



  14. Step 14

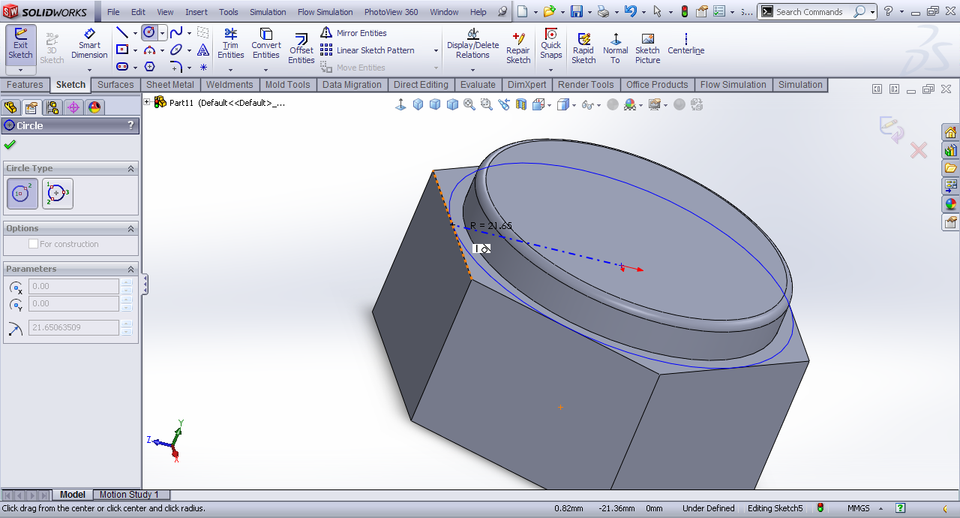

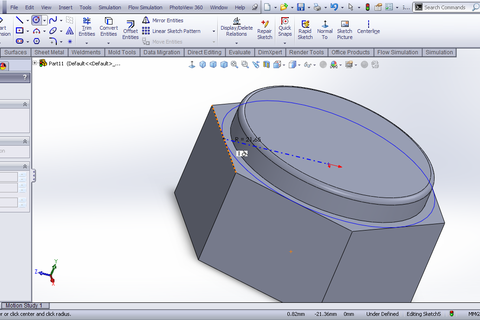

      Draw a circle tangent to the polygon edge.



  15. Step 15

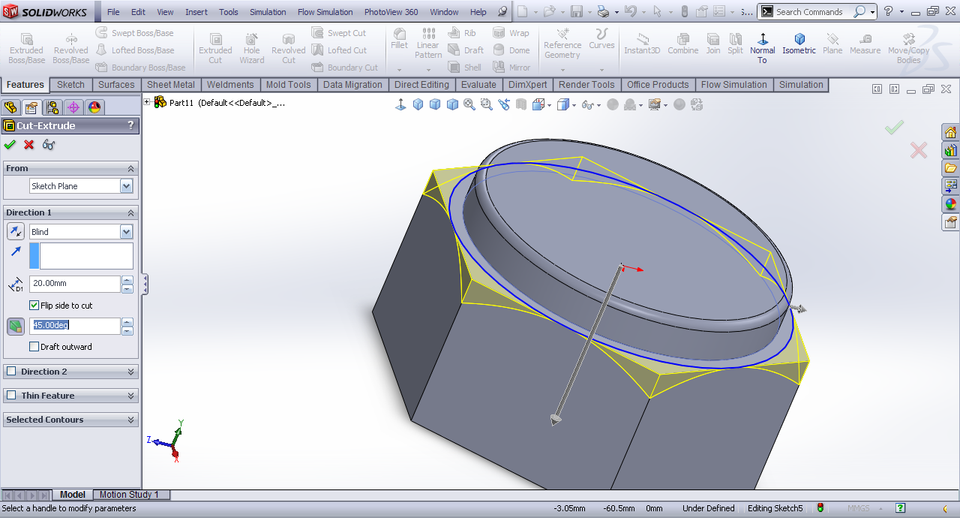

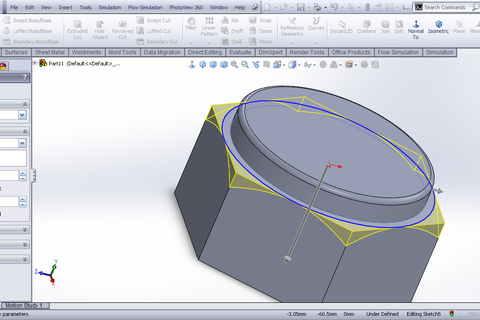

      Extrude cut it at 45º draft with flip side to cut checked.



  16. Step 16

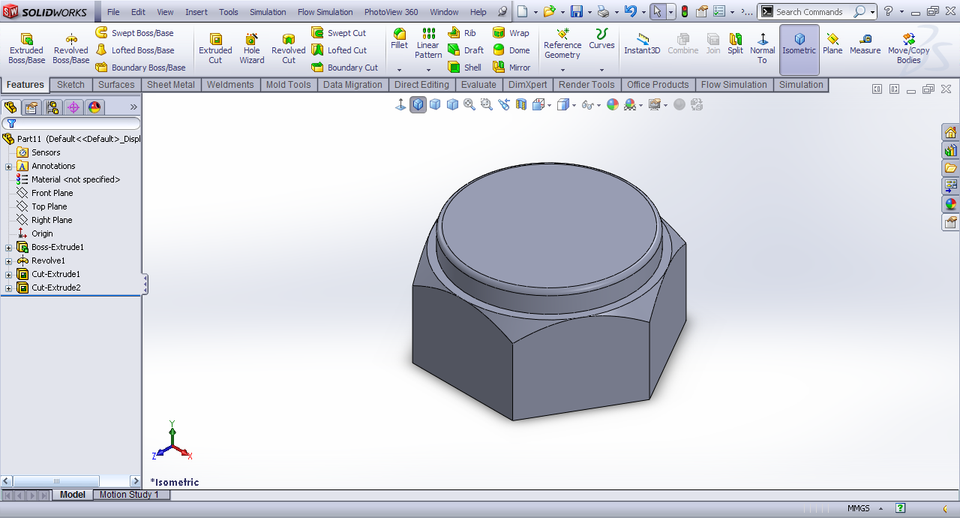

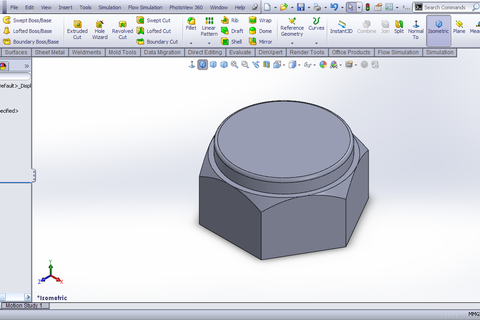

      We have the part.
