Tutorial - Modeling a Torsion spring in SolidWorks 2012?

By Sudhir Gill on 20 Feb 08:40 3 answers 1520 views 5 comments

Tutorial on modeling a spring in solidworks 2012.

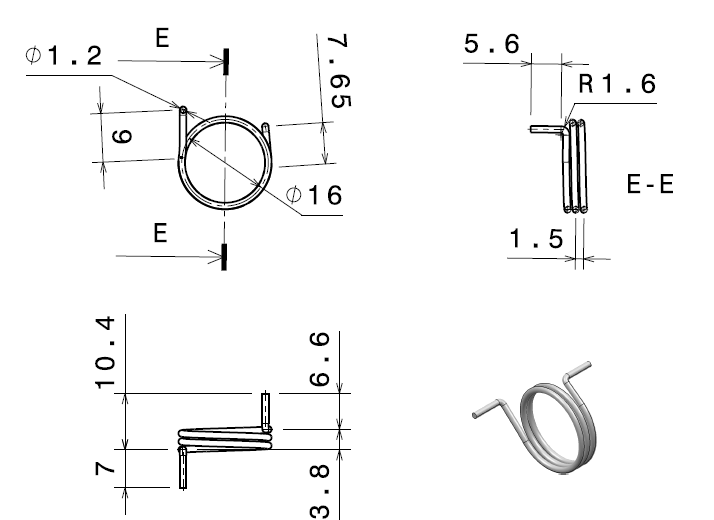

Added images

Square

3 answers

  • Sudhir Gill
    Sudhir Gill about 1 year ago

    Here is the tutorial.

    Aquí está el tutorial.

    Un agradecimiento especial a jairo luis para el español.

    1. Step 1

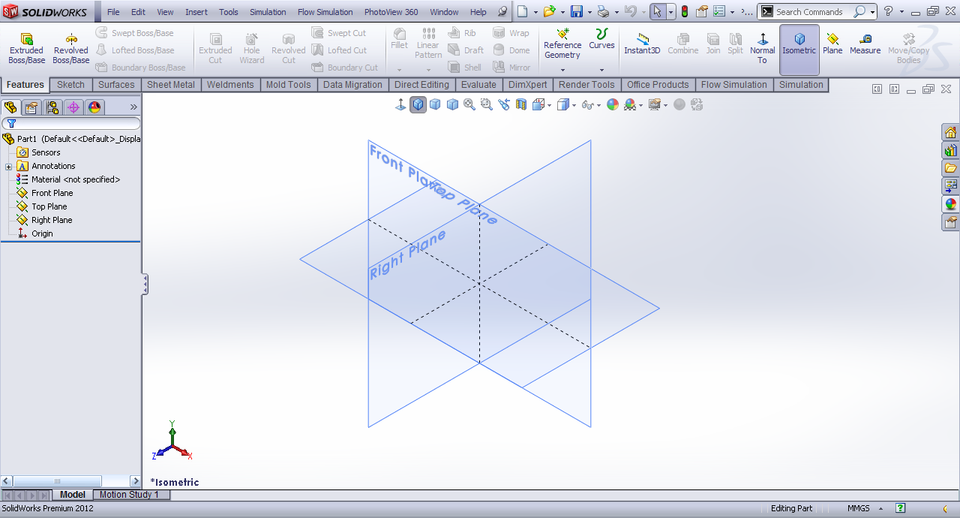

      Start SolidWorks in part mode.

      Inicio de SolidWorks en el modo de participar.

      Medium

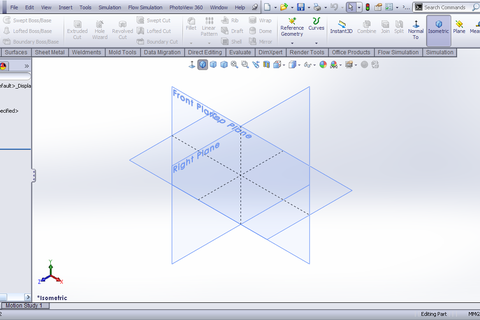

    2. Step 2

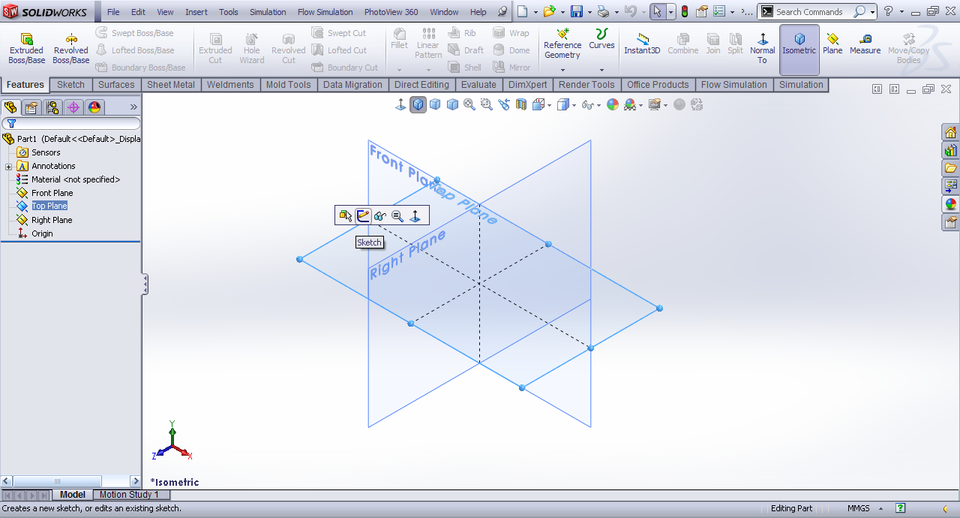

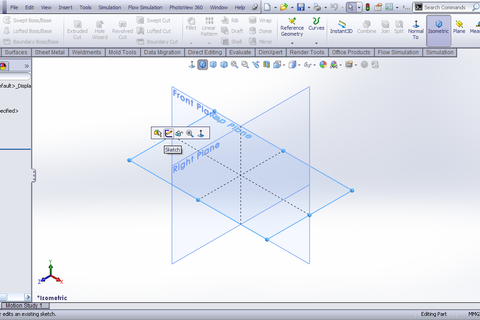

      Top plane>>sketch.

      Plano superior boceto. >>

      Medium

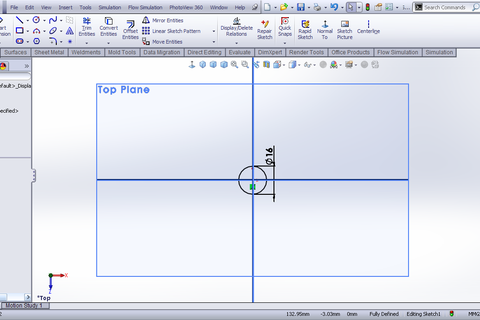

    3. Step 3

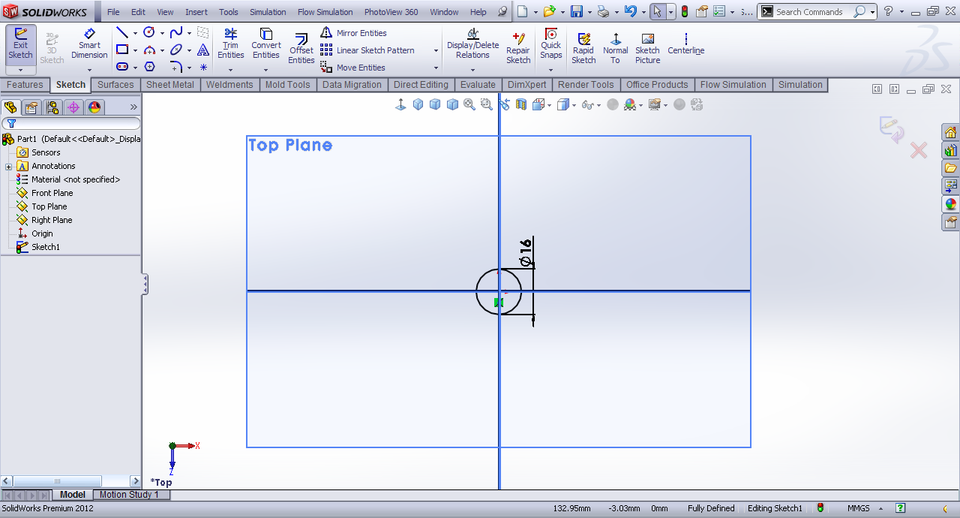

      Draw a circle of 16mm dia.

      Dibuje un círculo de diámetro 16 mm.

      Medium

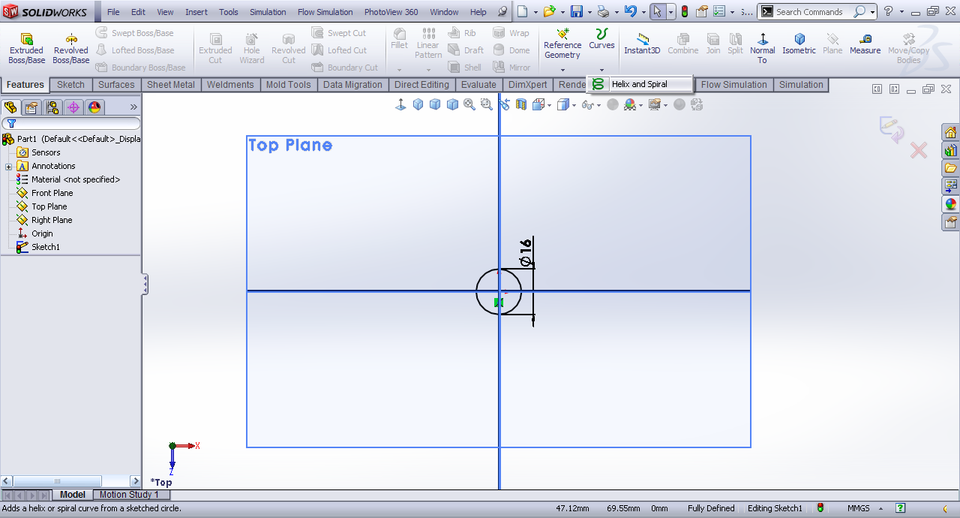

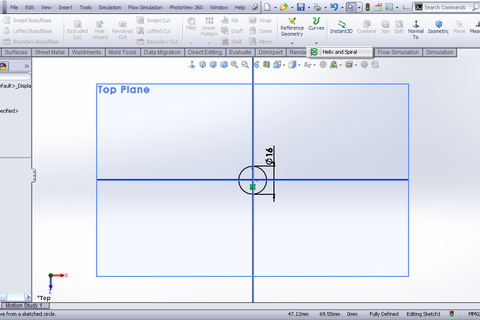

    4. Step 4

      Under feature tab select curves>>helix and spiral.

      En la pestaña función, seleccione la hélice y la espiral de curvas

      Medium

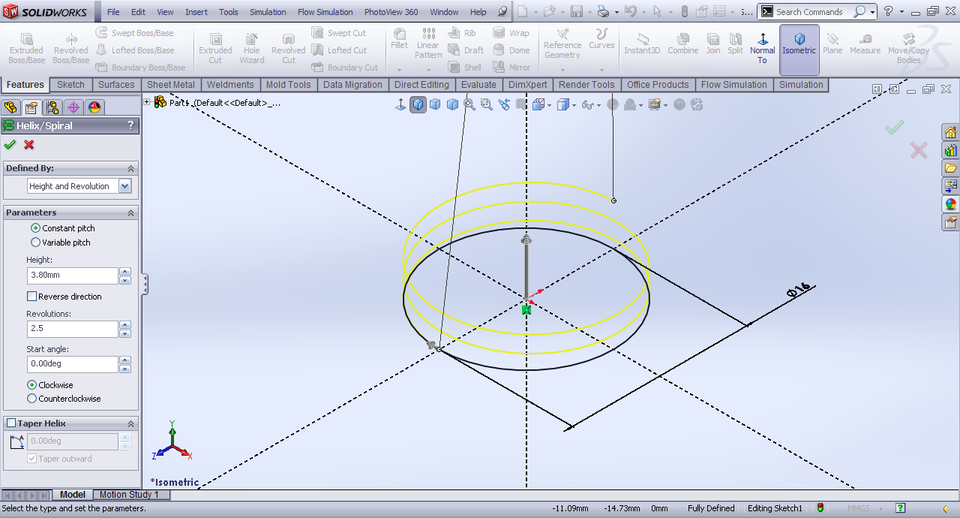

    5. Step 5

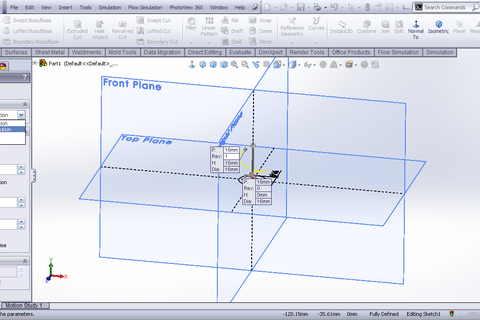

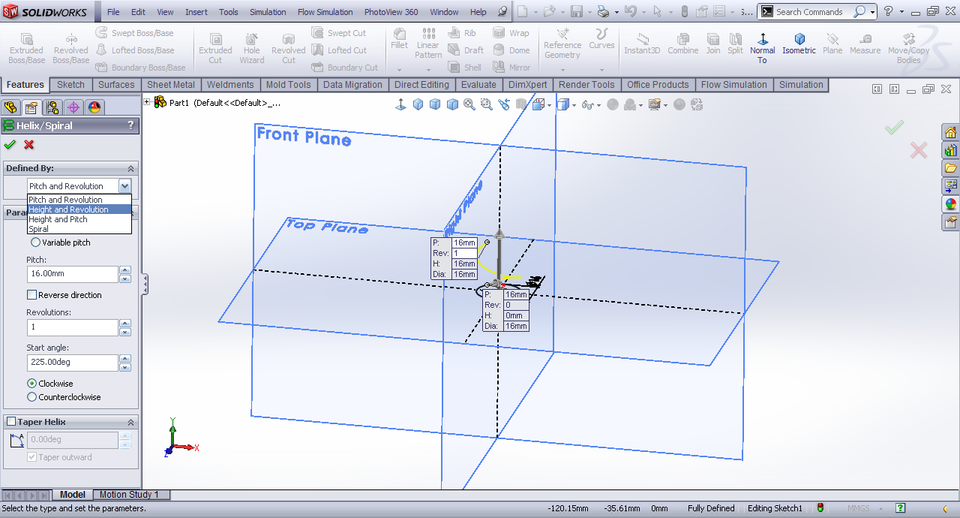

      Change defined by to height and revolution.

      Cambiar definido por la altura y la revolución.

      Medium

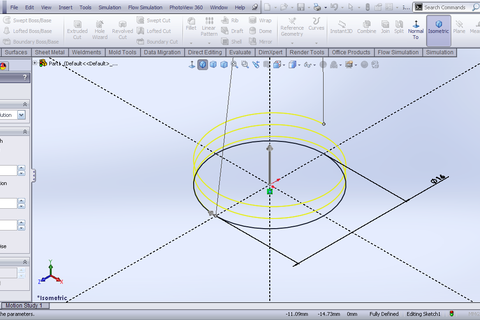

    6. Step 6

      Enter height 3.80mm and revolution 2.5, keep the start angle 0º.

      Introduzca la altura de 3.80mm y la revolución 2.5, mantenga el ángulo inicial de 0 º.

      Medium

    7. Step 7

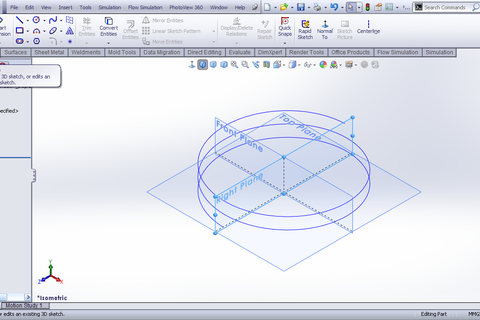

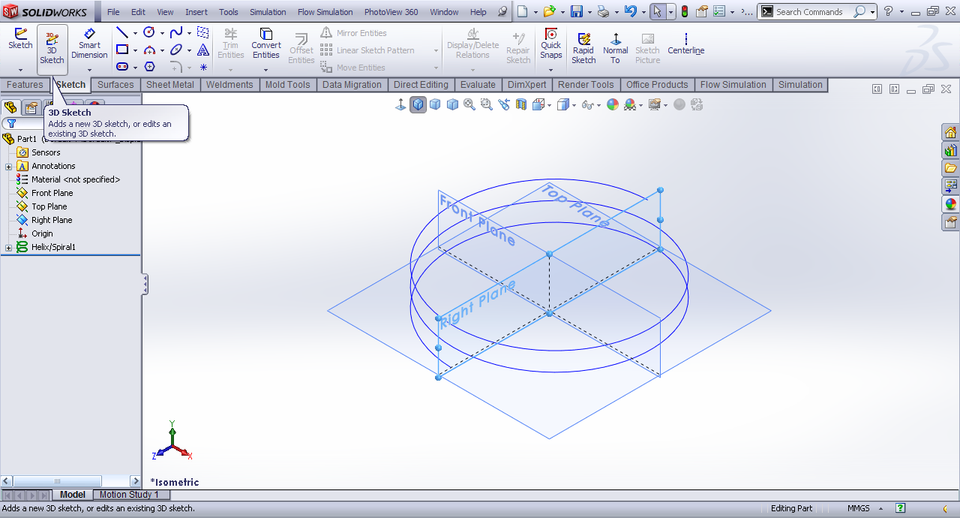

      Now select 3D sketch under sketch tab.

      Ahora seleccione la pestaña boceto 3D boceto.

      Medium

    8. Step 8

      Select line tool.

      Seleccione la herramienta de línea.

      Medium

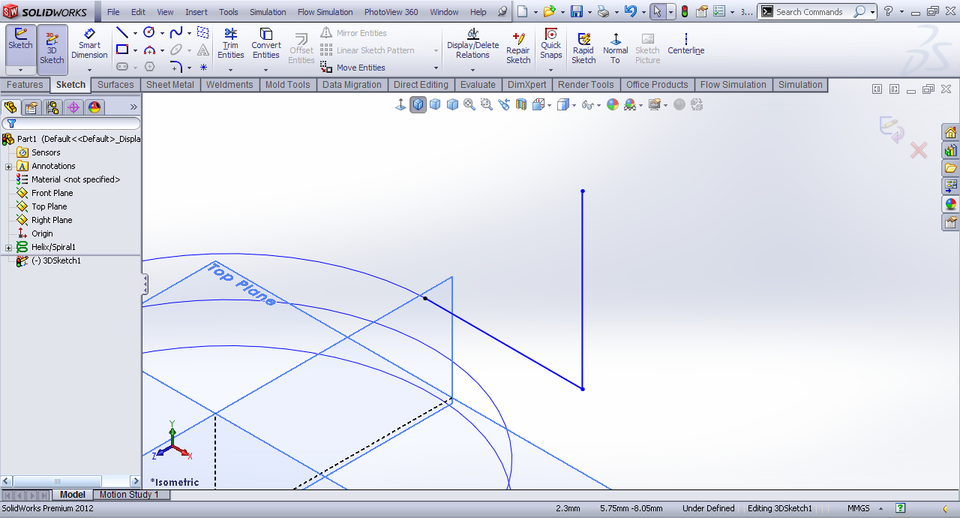

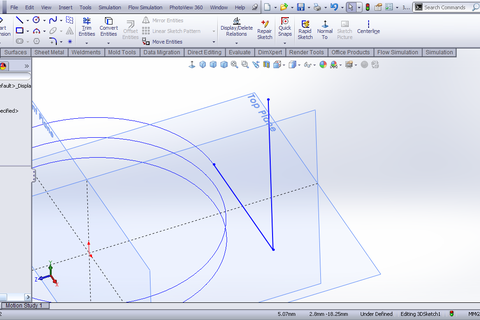

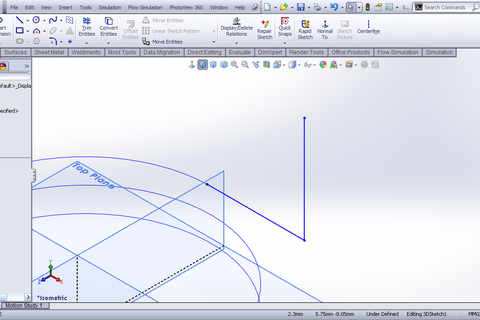

    9. Step 9

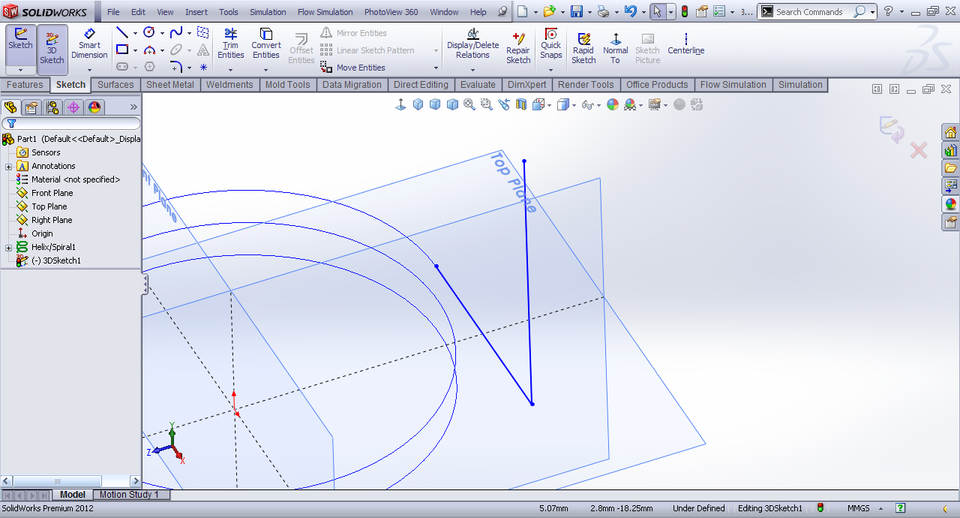

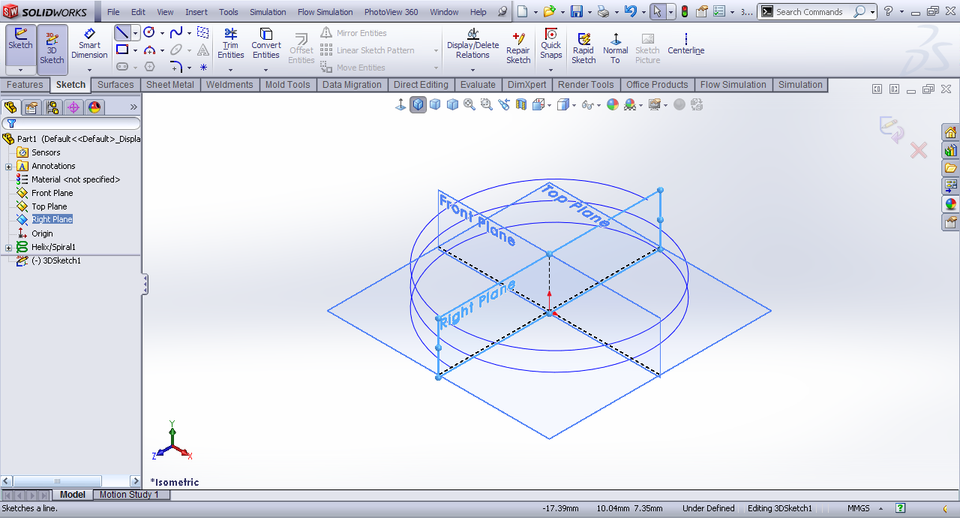

      Along XY plane draw two lines like this.

      A lo largo plano XY dibujar dos líneas como esta.

      Medium

    10. Step 10

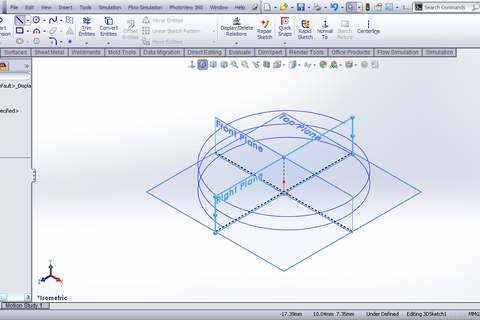

      These should tangent to the helix.

      Estos deben tangente a la hélice ..

      Medium

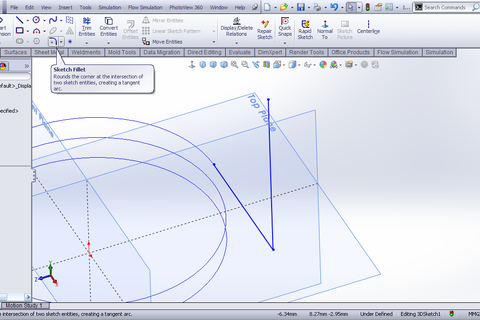

    11. Step 11

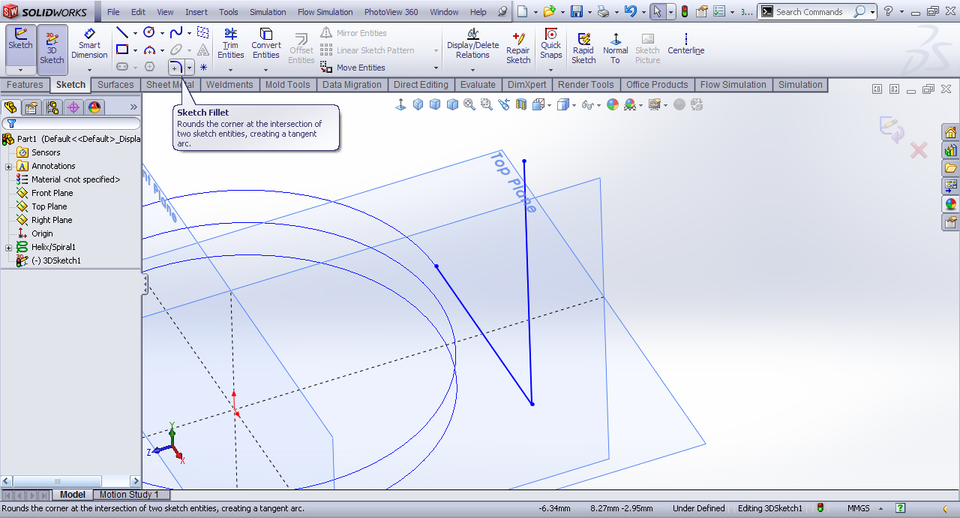

      Choose sketch fillet tool under sketch tab.

      Elija herramienta de dibujo de filete en la ficha esquema.

      Medium

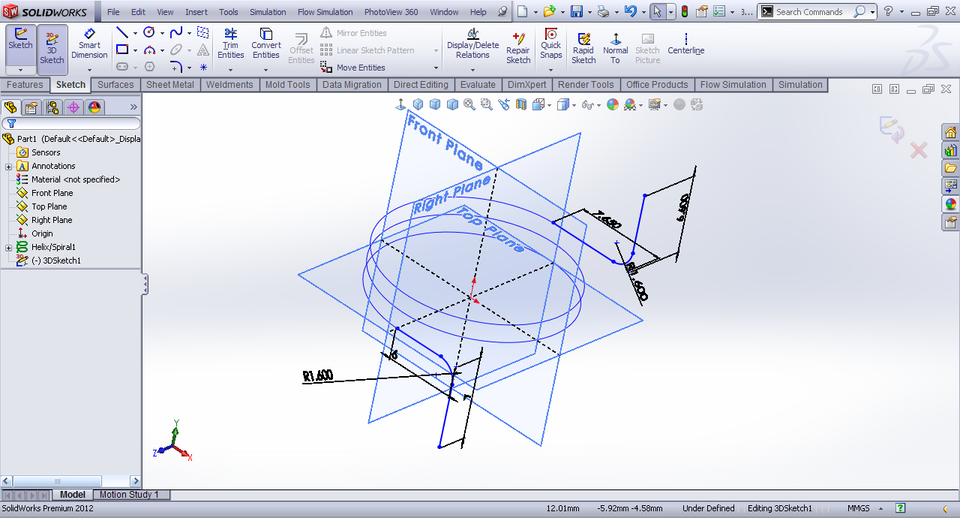

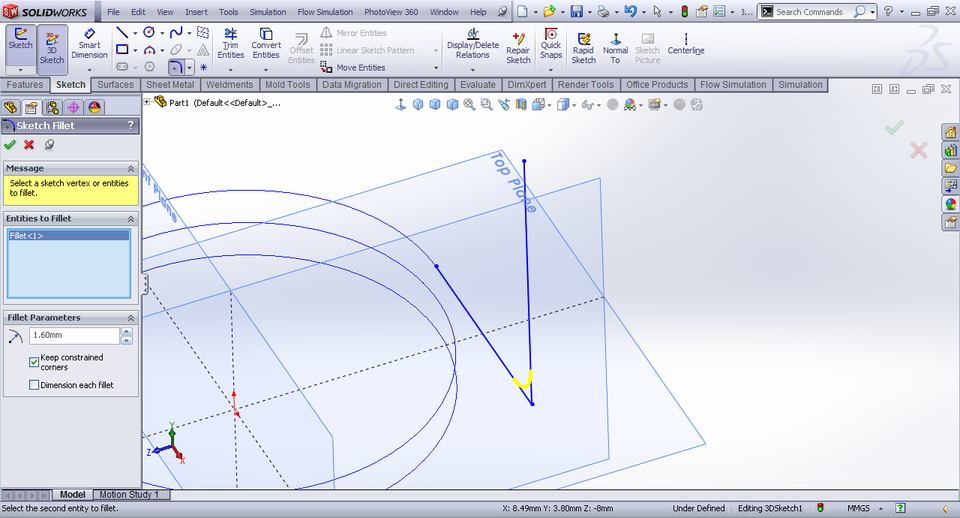

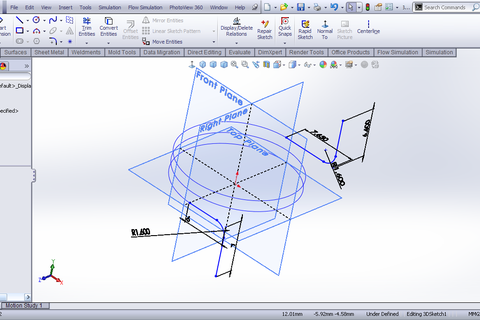

    12. Step 12

      Fillet the lines by 1.6mm and dimension them using smart dimension tool.

      Filete de las líneas de 1.6 mm y la dimensión de ellas usando la herramienta de dimensión inteligente.

      Medium

    13. Step 13

      Repeat the same step for the other end point also but change the dimension of line.

      Repita el mismo paso para el otro punto extremo, pero también cambiar la dimensión de la línea.

      Medium

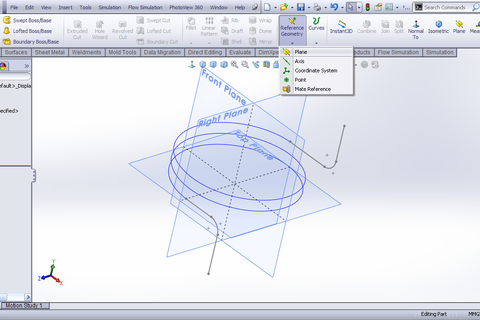

    14. Step 14

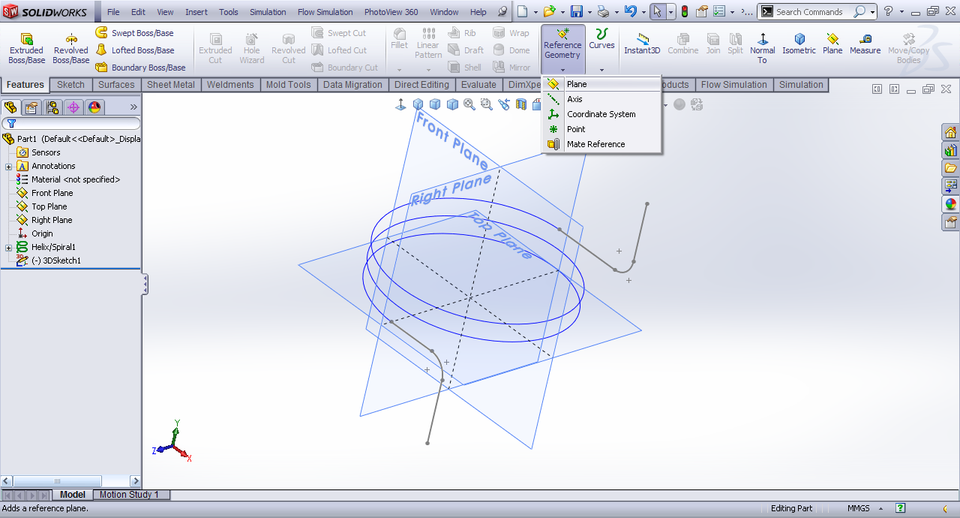

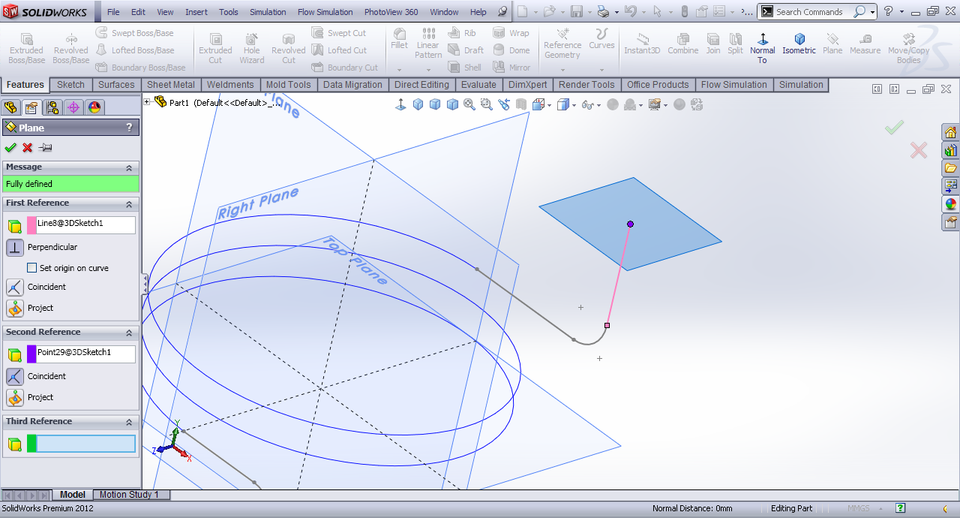

      Under reference geometry choose plane.

      En virtud de geometría de referencia elija avión.

      Medium

    15. Step 15

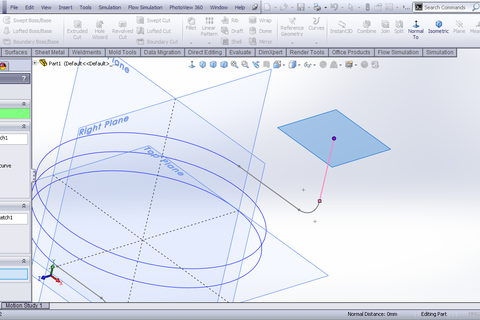

      Select the line and the end point.

      Seleccione la línea y el punto final.

      Medium

    16. Step 16

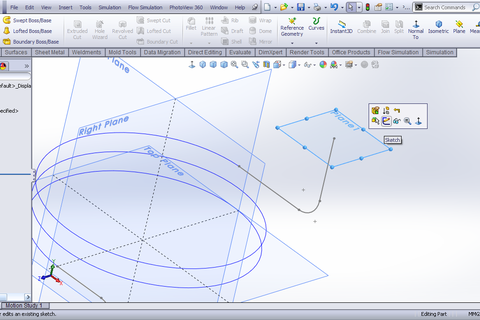

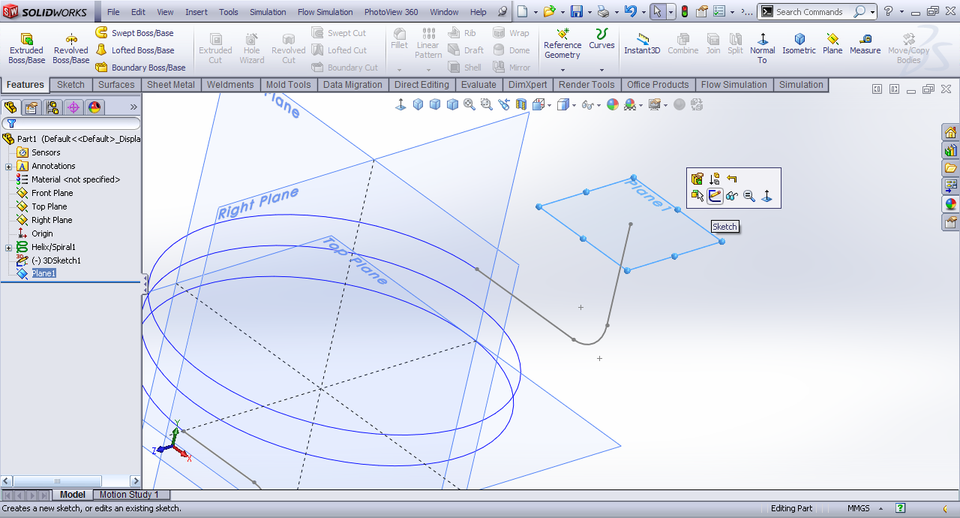

      Plane1>>sketch.

      Plano1 >> dibujo.

      Medium

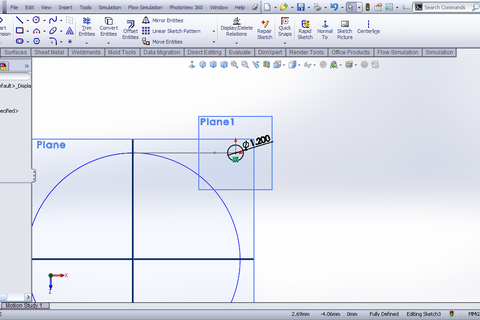

    17. Step 17

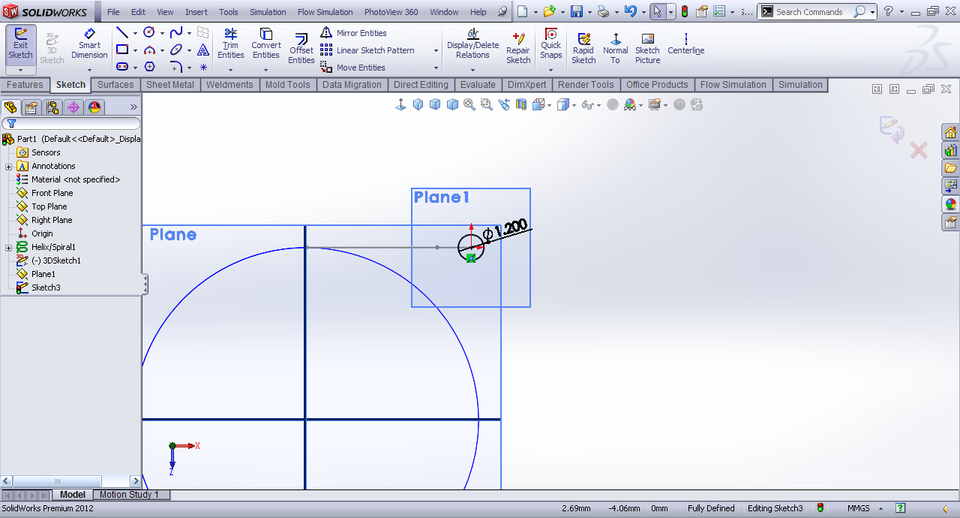

      Draw a circle of 1.2mm dia.

      Dibuje un círculo de diámetro 1.2 mm.

      Medium

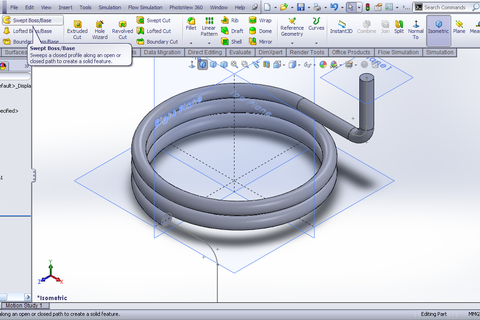

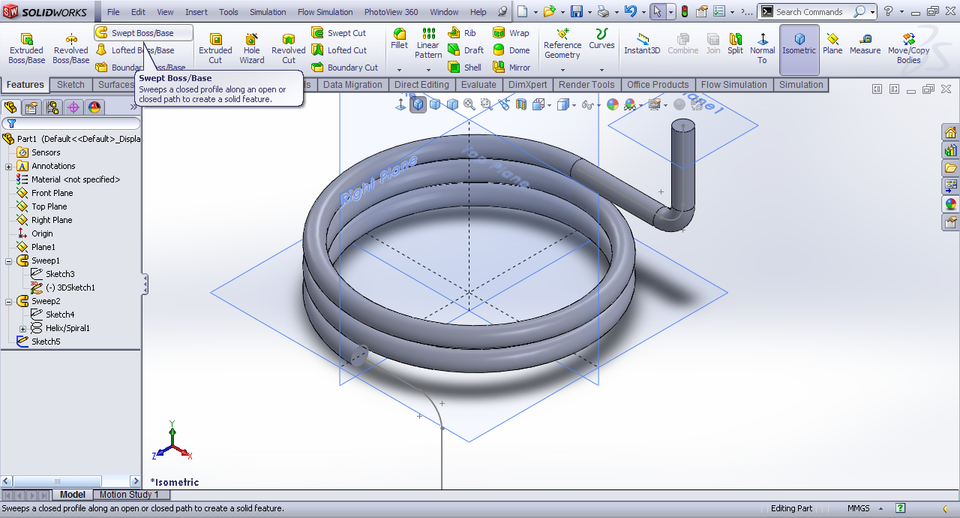

    18. Step 18

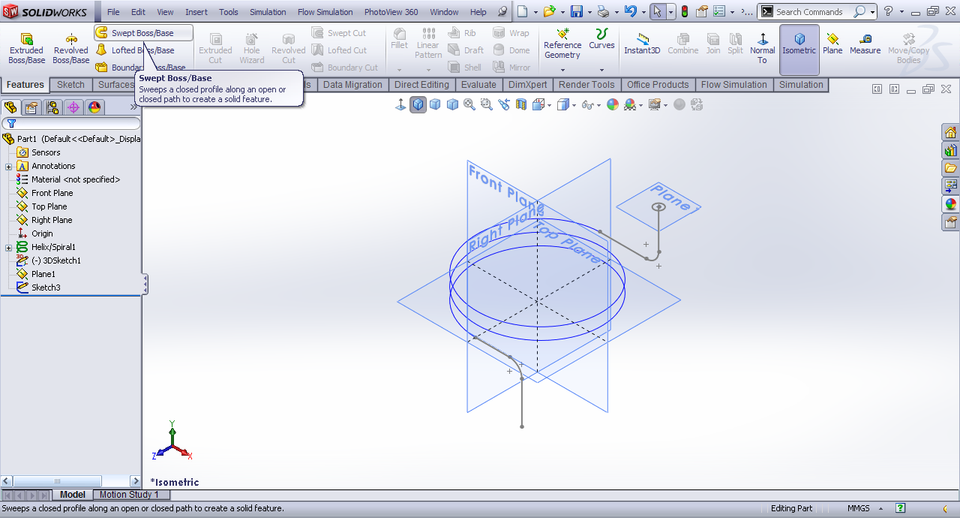

      Under features tab select swept boss.

      En la pestaña características seleccione jefe de barrido.

      Medium

    19. Step 19

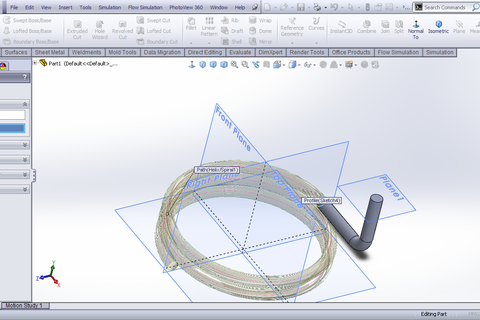

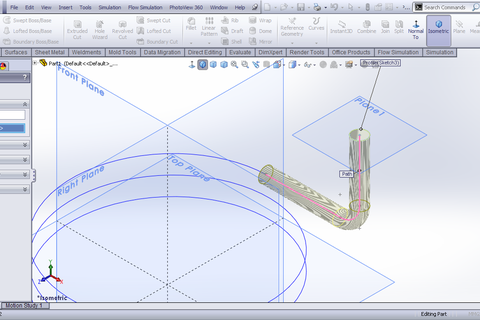

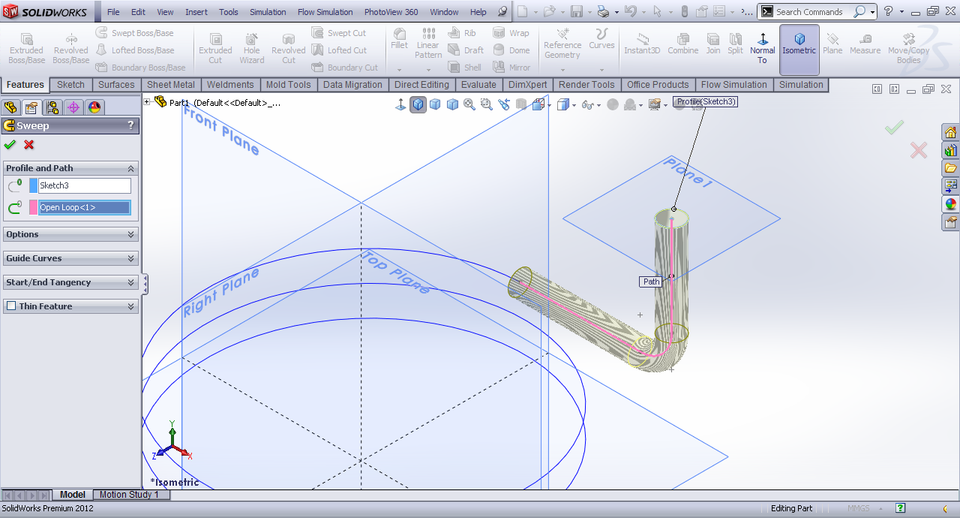

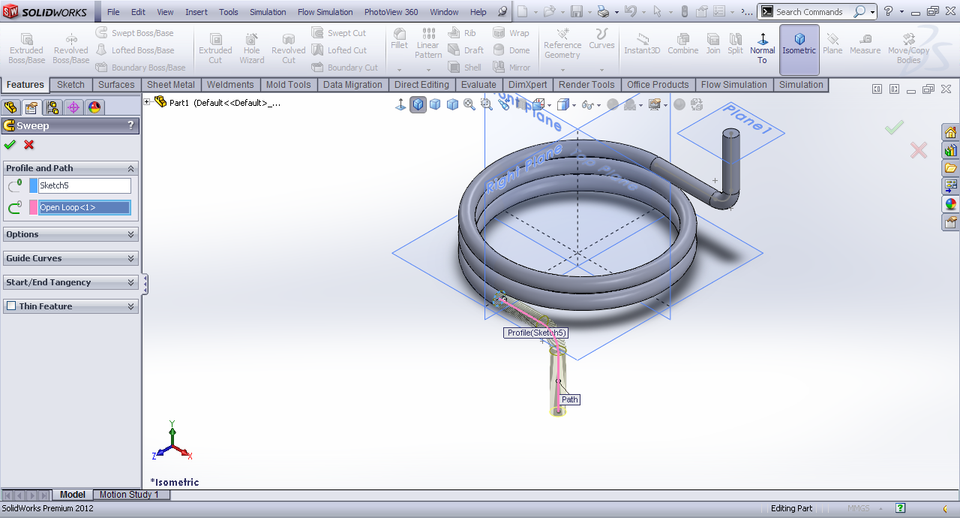

      Select the 3D sketch as path and circle as profile.

      Seleccione el dibujo en 3D como la ruta y el círculo como el perfil.

      Medium

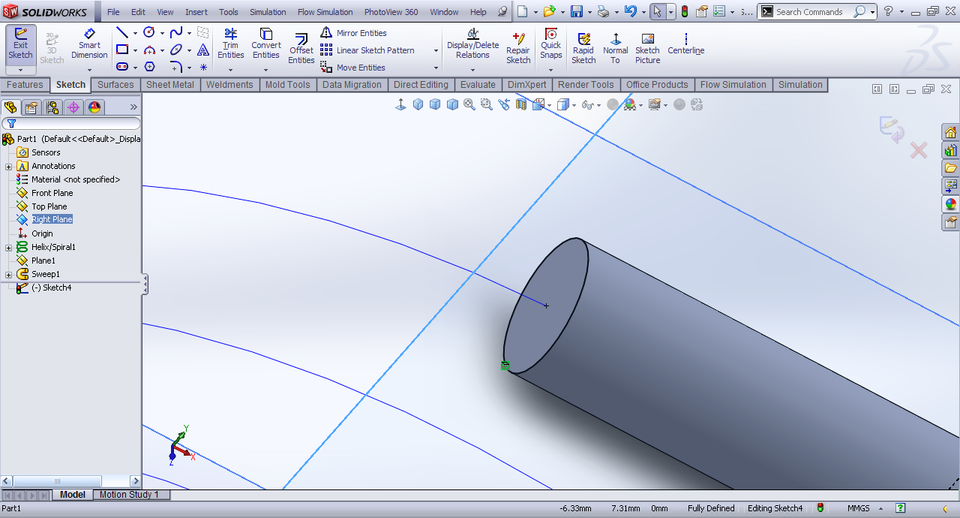

    20. Step 20

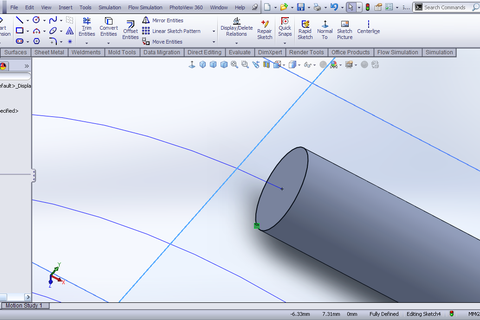

      Select the end face of the sweep and then sketch. Select that face and then convert entities.

      Seleccione la cara final del barrido y luego dibujo. Seleccione esa cara y luego convertir ENTIDADES.

      Medium

    21. Step 21

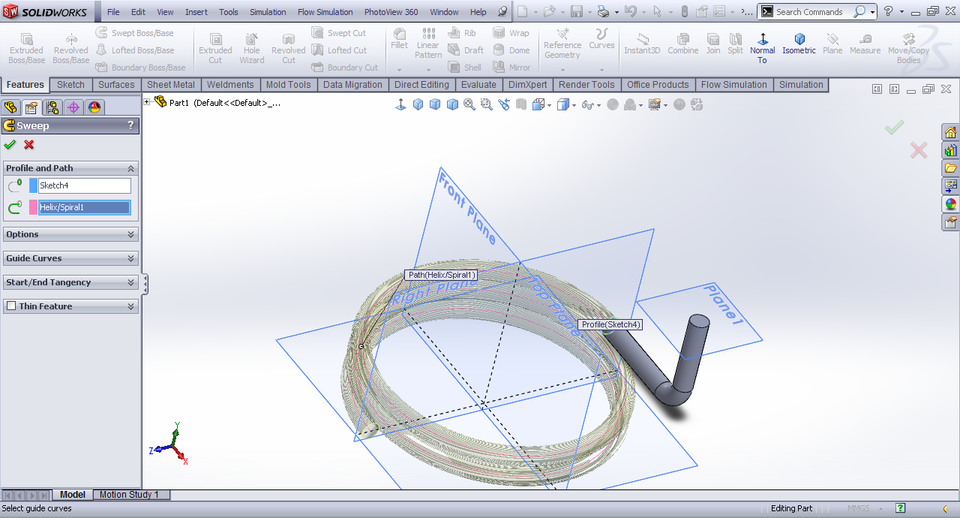

      Sweep that circle along the helix.

      Barrer ese círculo a lo largo de la hélice.

      Medium

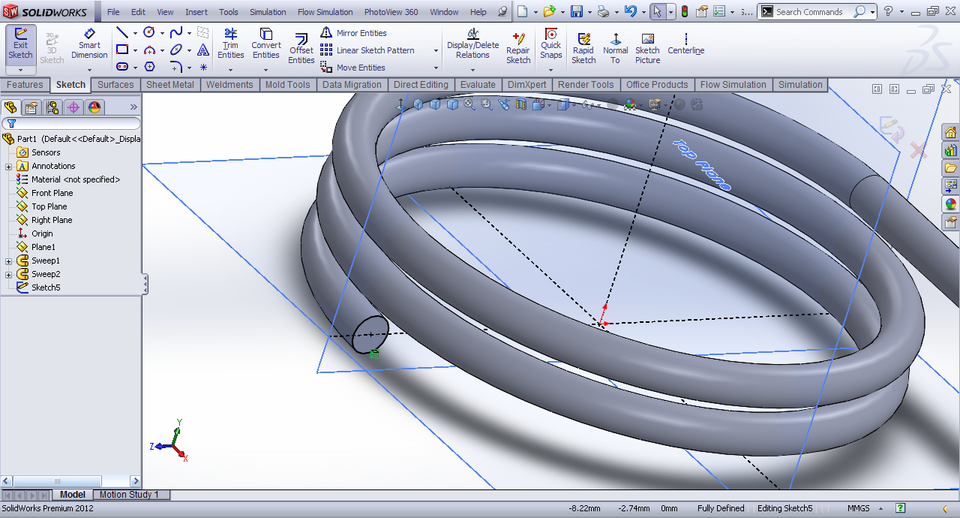

    22. Step 22

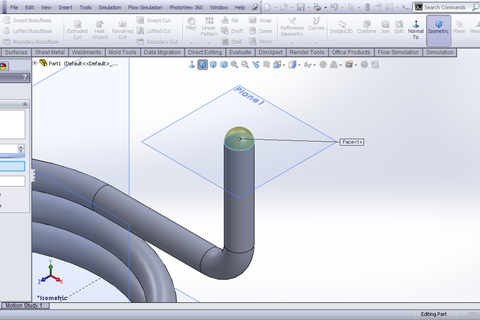

      Select the end face of the helix and then sketch.

      Seleccione la cara del extremo de la hélice y, a continuación boceto.

      Medium

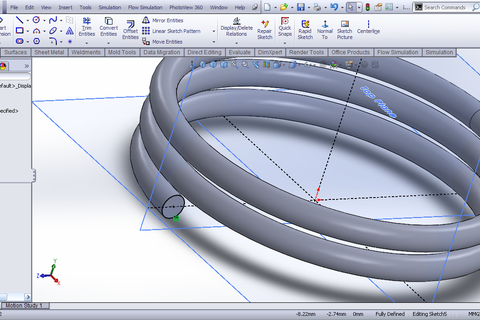

    23. Step 23

      Visible the 3D sketch.

      Visible el dibujo en 3D.

      Medium

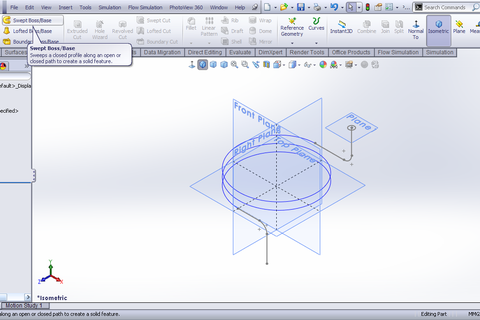

    24. Step 24

      Select swept boss in features tab.

      Seleccione el jefe de barrido en la ficha de características

      Medium

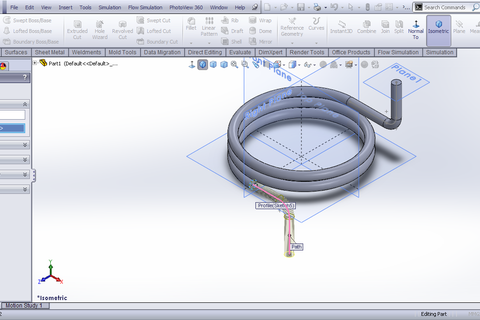

    25. Step 25

      Select circle as profile and 3D sketch as path.

      Seleccione círculo como perfil y croquis en 3D, como camino.

      Medium

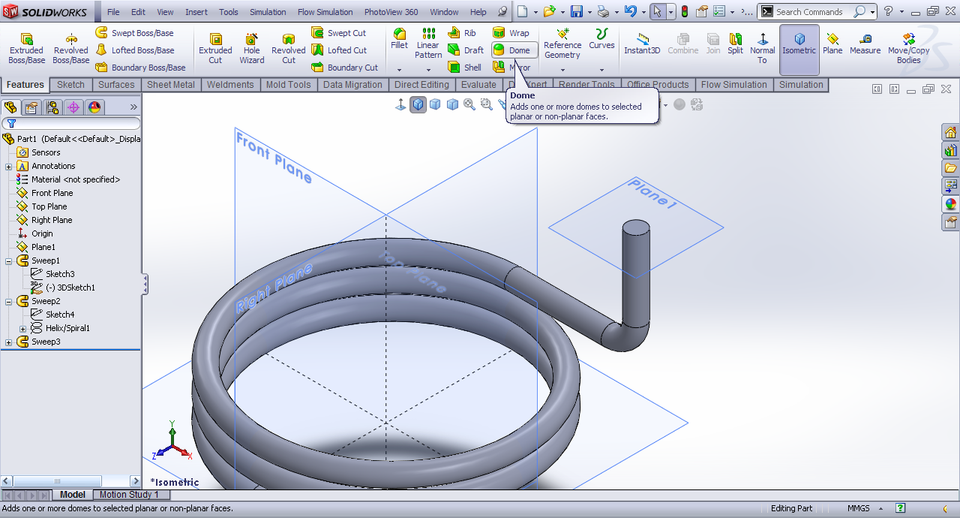

    26. Step 26

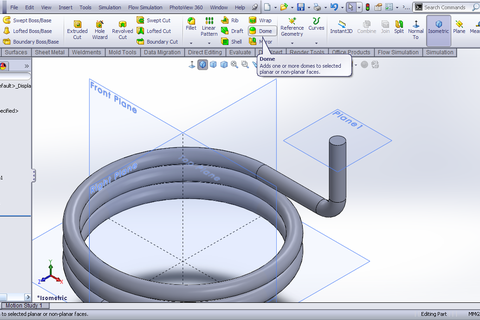

      Select dome under features tab.

      Seleccione la cúpula en la pestaña características.

      Medium

    27. Step 27

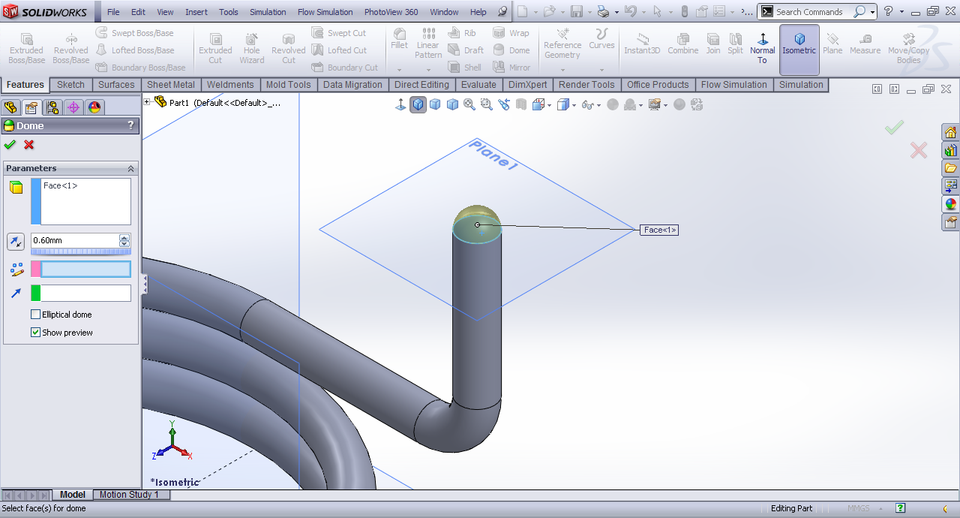

      Select the end face and enter the parameter be 0.60mm & click OK. Repeat the same step for the other face.

      Seleccione la cara frontal y entrar en el parámetro es 0,60 mm y haga clic en Aceptar.Repetir el mismo paso para la otra cara.

      Medium

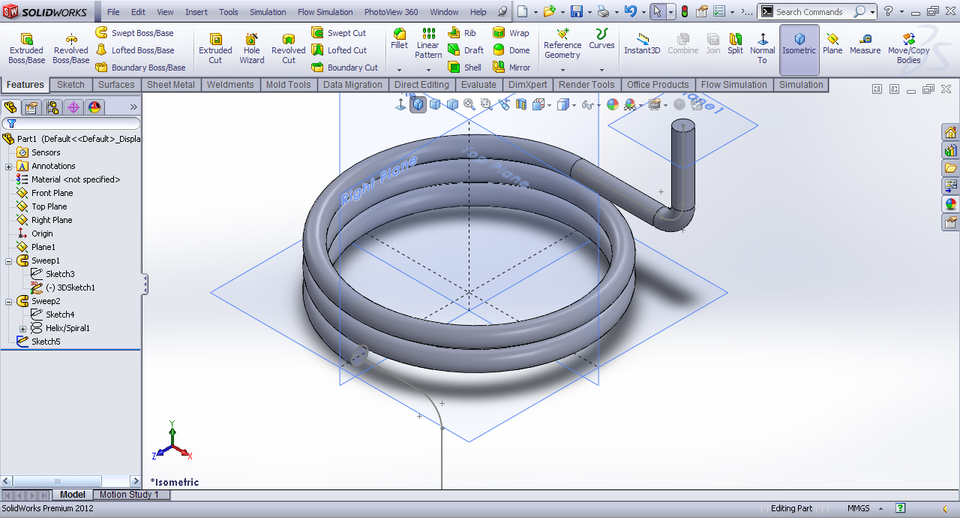

    28. Step 28

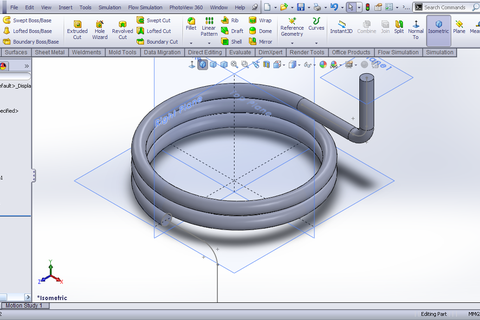

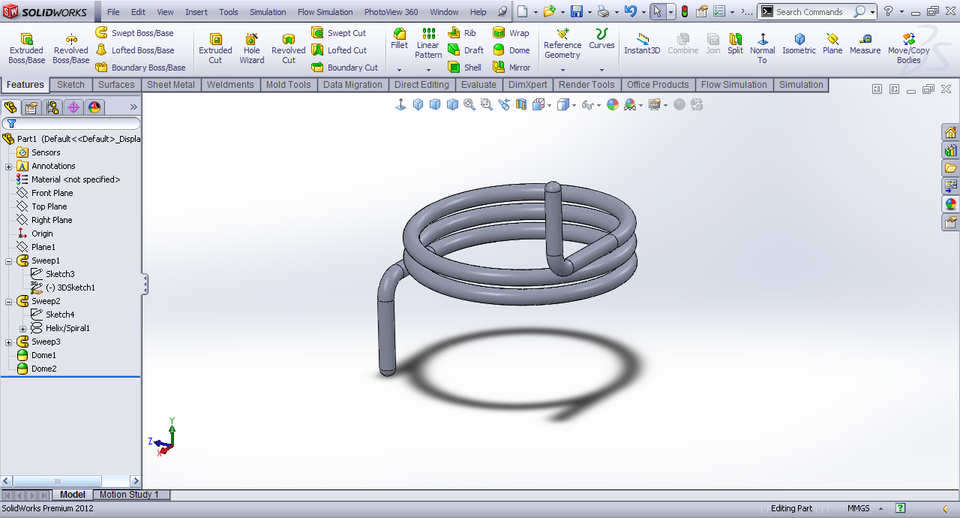

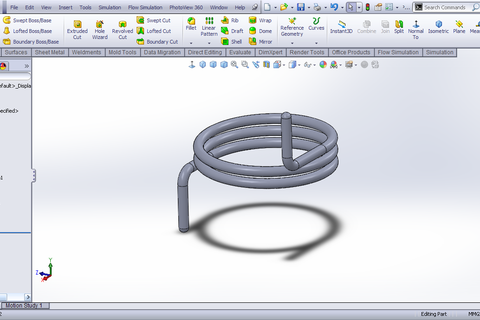

      And we have the part obtained.

      Y tenemos la pieza obtenida.

      Medium

  • Surajmal
    Surajmal about 1 year ago

    good tutorial ! providing new technique . Like

  • anwar
    anwar about 1 year ago

    i can't continue until step 25..the sketch won't swept due to the rebuild error..how come this happen? -sorry for my bad english-
