What is wrong in the SW Simulation settings?

Arnold Palko
Arnold Palko
29 Jul, 2015 11:58 AM

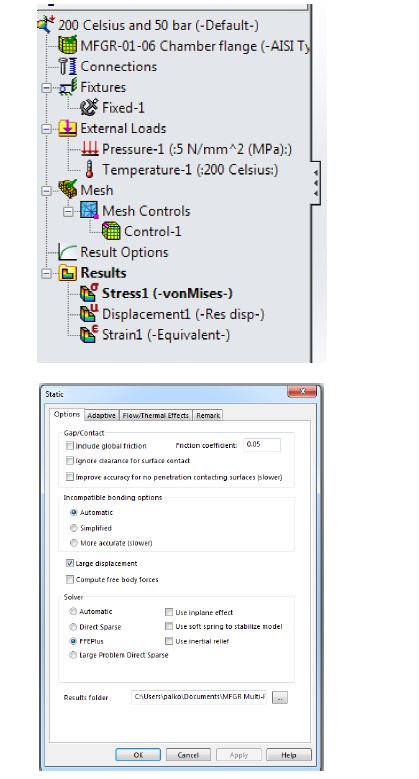

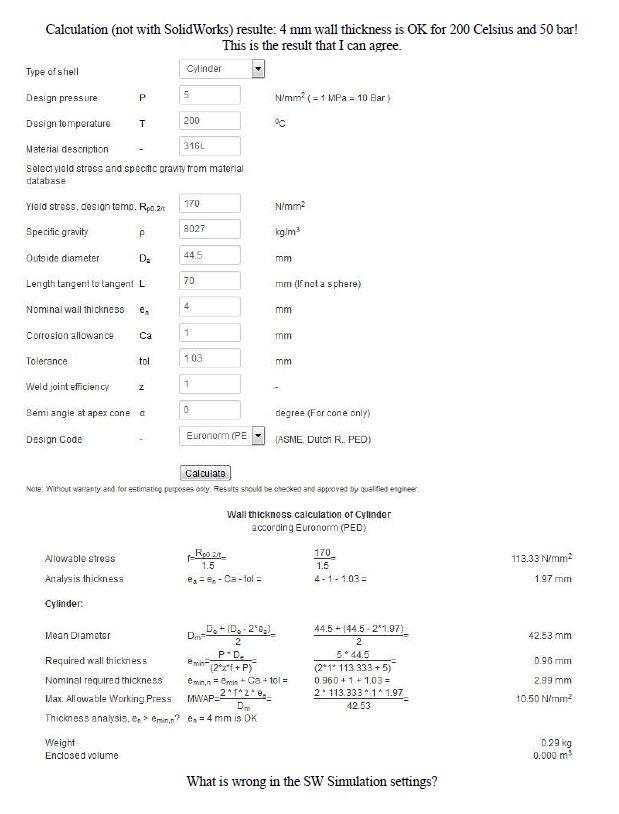

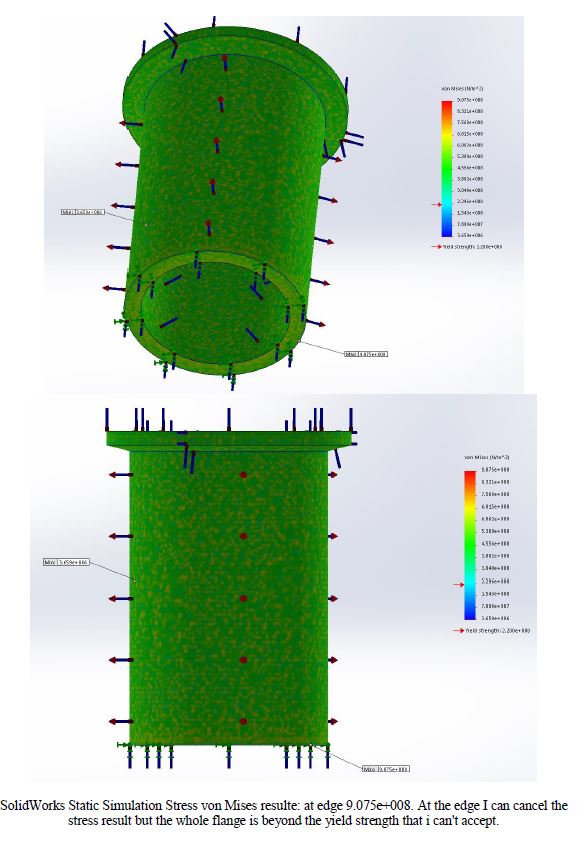

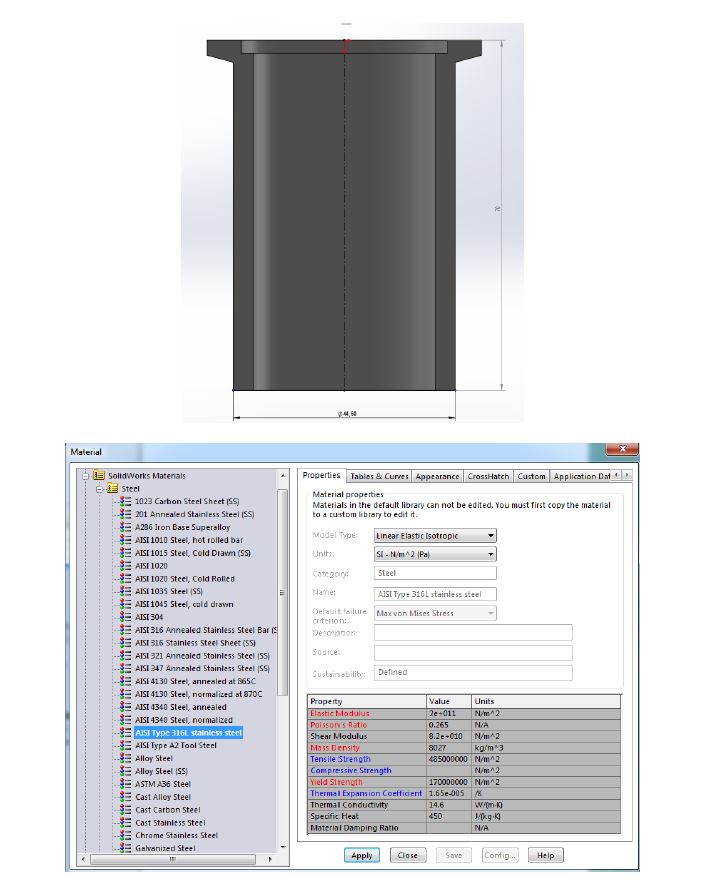

200 Celsius and 50 bar (5 MPa) pressure. The material is 316L. According to the 2014 SolidWorks static simulation (even 2015 SW) the 4 mm wall thickness is not enough. That is not correct. According to the classic calculation is enough. The simulation setting was Large displacement, but other settings had the same result. I am helpless what did i wrong that i can't get result in harmony with the calculation. Do you have any idea?

4.JPG 4.JPG 3.JPG 3.JPG 2.JPG 2.JPG 1.JPG 1.JPG

3 Answers

Arnold Palko
Arnold Palko
Answered on 29 Jul, 2015 12:06 PM

Maybe the *.pdf is more readable than the pictures.

SW2014 Static simulation question.pdf
Ricardo Herrera
Ricardo Herrera
Answered on 29 Jul, 2015 12:36 PM

Try with a small meshing configuration.

Arnold Palko
Arnold Palko
Answered on 29 Jul, 2015 01:12 PM

I changed it 0.5 mm size, and 8 is the number of elements in a circle. Abit better the result but beyond the yield strength.
