GrabCAD Office Mobile Meeting Room

GrabCAD team is about to move into our new office and is looking for ideas how to build a small mobile meeting room for 4-5 people. We prefer something cool and inventive instead of plain walls. The winning designer will be awarded and the meeting room called by the author's name.

We do not want to set any limitations for the shape or looks of the meeting room. The approach you should take is that the meeting room should be made in a way that it could be assembled, moved around if necessary (e.g. if we decided to move office, we'd like to take the mobile meeting room with us).

The more simple it is, the better, preferably made of easily available materials and profiles like glass, wood, plywood, mdf etc. Anything that needs expensive treatment or handling should be avoided as our budget is limited.

The mobile meeting room should have the following features:
- accommodate 4 people sitting, benches could be integrated but it is not mandatory
- the side where to step into the room should be facing south in order to have natural light coming in (we have big doors and windows for the south wall)
- sound blocking design, the meeting room can have its own roof
- one side/part of the meeting room box should have integrated bookshelf on the outer side (we have a lot of books in our office)
- four walls is not a requirement as the corner location can be used, your design can have 2-3 movable walls instead

Nice to have features:
- it would be great to be able to flap the table inside into used/not used position
- a wall or two could be left open to allow more open working space, it does not have to be strictly closed box by design
- some elements can be installed on to the walls, but we prefer to have a standalone design

All artistic design elements like match of colors, pictures, graffitis, etc are more than welcome. The color scheme of our other furniture is blackish grey, white, black, GrabCAD red. The walls surrounding the meeting room can be repainted for effect (currently stone blocks). See the floor plan drawing to get an idea where the meeting room will be situated. Our boring option is to install seams and a thick curtain to separate the table and chairs.

The attached pictures should give a general idea of the interior.

Requirements

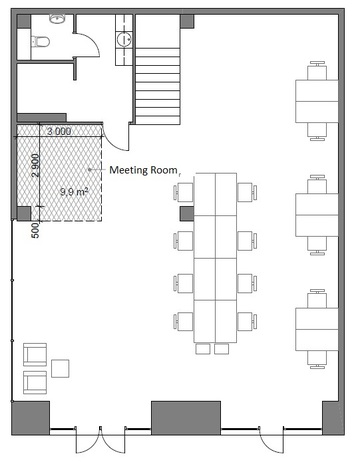

  • Floor area dimensions where the meeting room should fit are 3000x3400mm. See also the floor plan drawing

  • Accommodate 4-5 people sitting around table

  • Book shelves on the outside of one wall

  • Walls need to be sound proof

  • Should have natural light inside

Download specification

Rules

  • Winning design will be chosen based on the design and functionality

  • The competition is open to everyone

  • Team entries are welcome

  • You can submit several designs

  • Only models uploaded to GrabCAD library will participate in the competition

  • Only models uploaded through this challenge page will participate in the competition

  • Tag your model with “gcoffice” to make it easier to find

  • Privately uploaded models will be made public after the competition deadline

  • Models can be done in any CAD software as long as a STEP or IGES files are also uploaded

  • Photo realistic image of the concept is required

  • Competition winner will be announced in GrabCAD’s blog

Prizes

1st prize

First place will be rewarded with nice surprise from the GrabCAD Team

About the jury?

The winning design will be chosen by GrabCAD staff.

About GrabCAD

GrabCAD is a community founded by mechanical engineers. It is also a place for engineers to share their talent, expand knowledge, find a dream project and work with tools and features that make life better.
