Once again we need your help to make our new office look nice and modern. We are looking forward to your designs for our custom made phone booth. The winning designer will be awarded and the phone booth will be called by author's name.

We do not want to set any limitations for the shape or looks of the phone booth. The approach you should take is that the phone booth should be made in a way that it could be easily assembled.

The more simple it is, the better, preferably made of easily available materials and profiles like glass, wood, plywood, mdf etc. Anything that needs expensive treatment or handling should be avoided as our budget is limited.

The phone booth should accommodate one person and be soundproof.

All artistic design elements like match of colors, pictures, graffitis, etc are more than welcome. The color scheme of our other furniture is blackish grey, white, black, GrabCAD red.

The attached pictures should give a general idea of the interior.

Also it would be nice if the phone booth will have similar features to our meeting room but it is definitely not mandatory.

Requirements

Dimensions where the meeting room should fit are 1200x1600x1800mm. See also the picture with the dimensions
Accommodate 1 person
Fit a small table and chair inside
Walls need to be sound proof
Phone Booth could have similar features to gcoffice but it is not mandatory

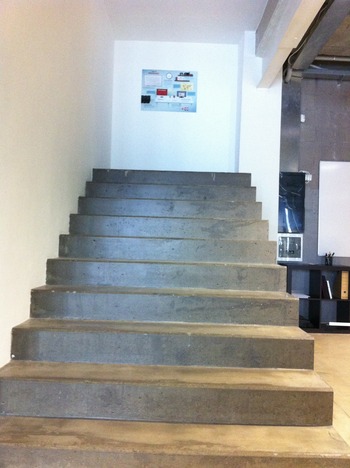

Phone Booth will go at the top of the stairs
Should have something to minimize echo inside

Download specification

Rules

Winning design will be chosen based on the design and functionality
The competition is open to everyone
Team entries are welcome
You can submit several designs
Only models uploaded to GrabCAD library will participate in the competition
Only models uploaded through this challenge page will participate in the competition
Tag your model with “gcphonebooth” to make it easier to find
Privately uploaded models will be made public after the competition deadline
Models can be done in any CAD software as long as a STEP or IGES files are also uploaded
Photo realistic image of the concept is required
Competition winner will be announced in GrabCAD’s blog

Prizes

1st prize: First place will be rewarded with nice surprise from the GrabCAD Team
2nd prize: GrabCAD T-Shirt
3rd prize: GrabCAD T-Shirt
4th prize: GrabCAD T-Shirt
5th prize: GrabCAD T-Shirt
6th prize: GrabCAD T-Shirt

About the jury?

The winning design will be chosen by GrabCAD staff.

About GrabCAD

GrabCAD is a community founded by mechanical engineers. It is also a place for engineers to share their talent, expand knowledge, find a dream project and work with tools and features that make life better.
