How to make an animation for a compression spring in Solidworks 2011?

By Abhijeet on 16 Jan 02:56 5 answers 6268 views 3 comments

How to make an animation for a compression spring in Solidworks 2011?

5 answers

  • Abhijeet
    Abhijeet almost 3 years ago

    Tutorial to make animation for a compression spring in solidworks.

    1. Step 1

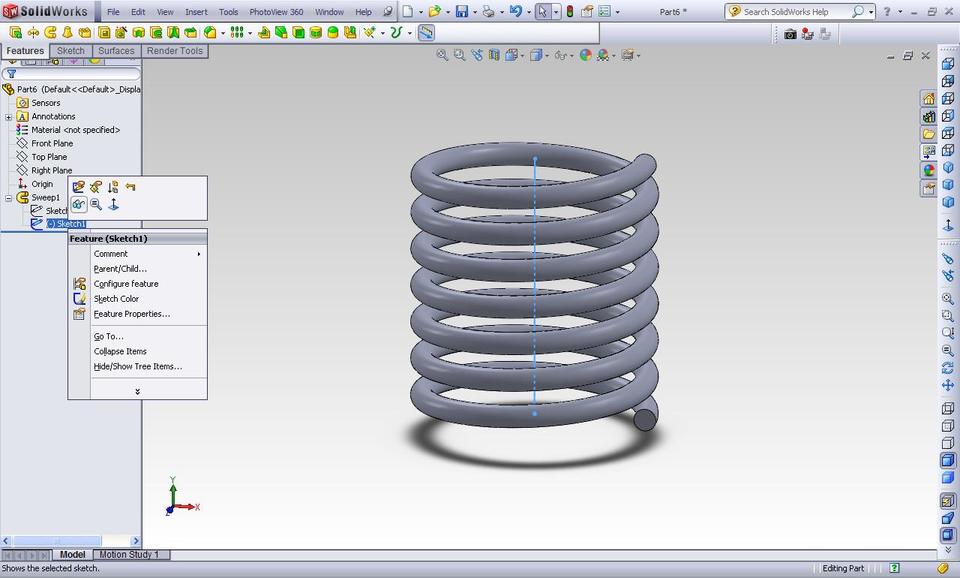

      1. Model a spring and make the centre line always visible as shown in the figure.

      Medium

    2. Step 2

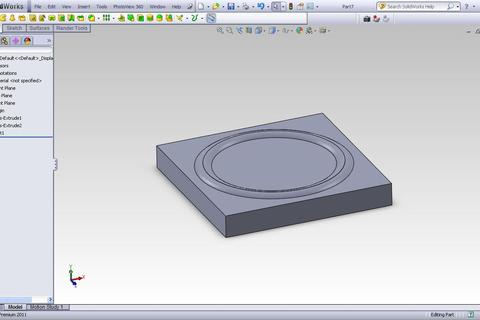

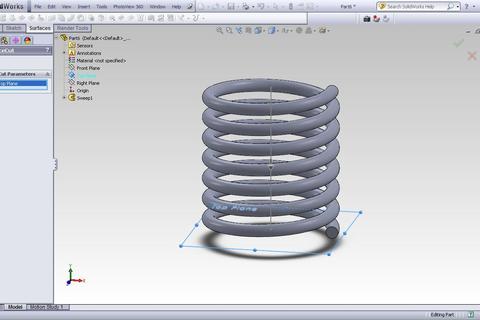

      2. Make the bottom part of the spring surface flat with the process shown below. Use “surface cut” tool for this purpose.

      Medium

    3. Step 3

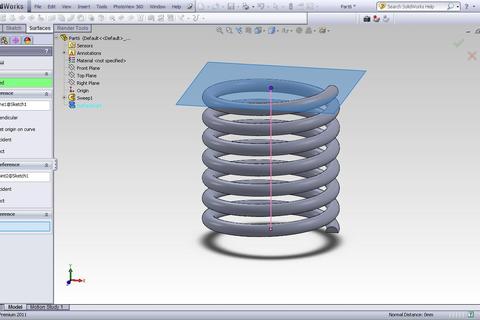

      3. Repeat the same process for the top portion.

      Medium

    4. Step 4

      4. Make a part similar to the figure shown below or of a simple shock absorber.

      Medium

    5. Step 5

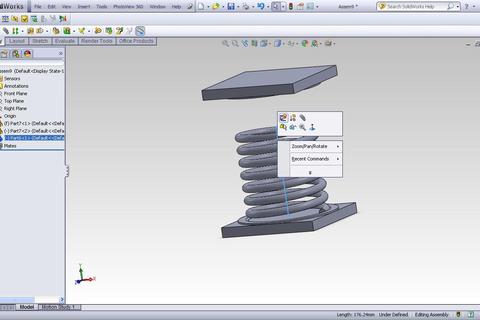

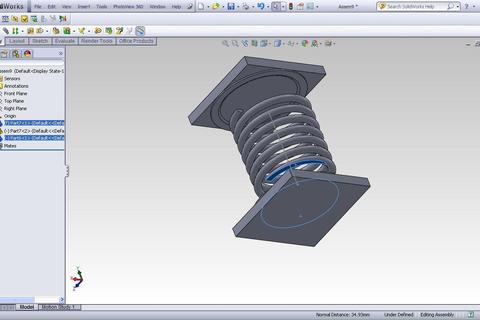

      5. Make the bottom part of the spring coincident to the part created in the above step as shown.

      Medium

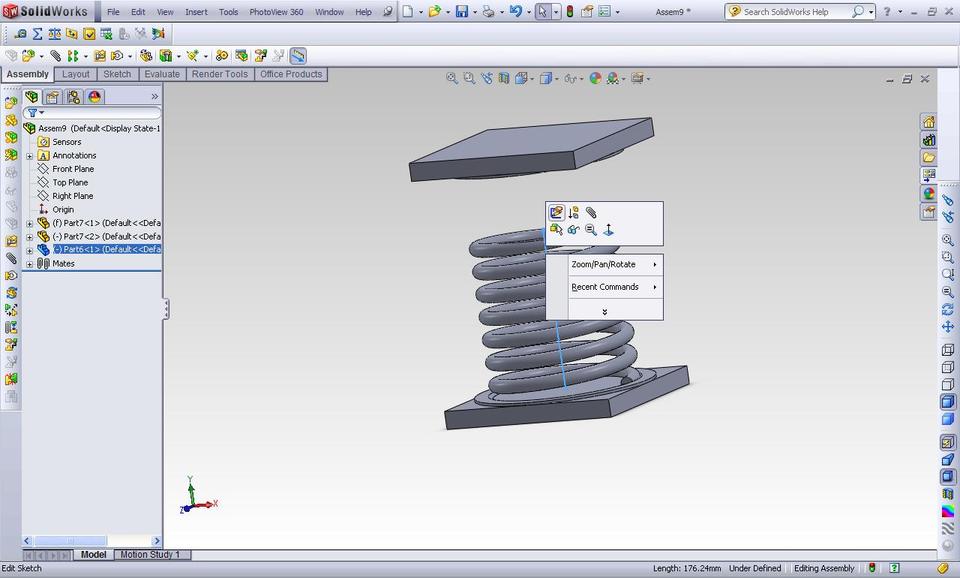

    6. Step 6

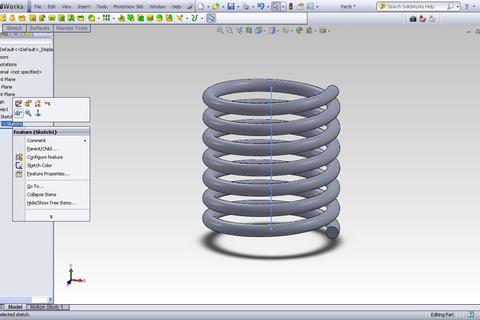

      6. Right click on the sketch shown in blue colour and edit it. Before editing the part you must save your assembly file.

      Medium

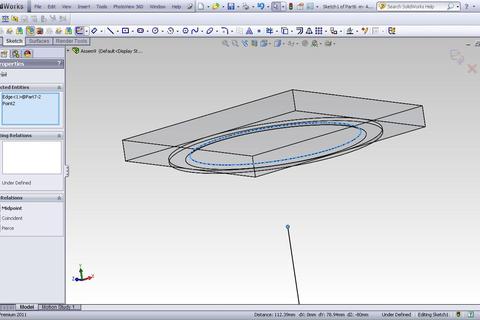

    7. Step 7

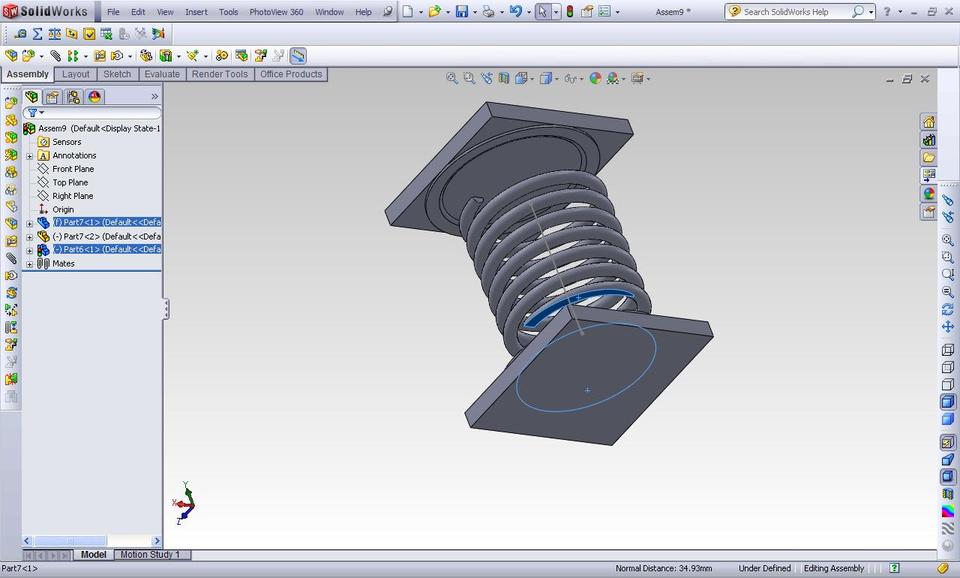

      7. Make the line and the part co-incident as shown in the figure.

      Medium

    8. Step 8

      8. Click on “motion study” at the bottom of the solidworks window.

      Medium

    9. Step 9

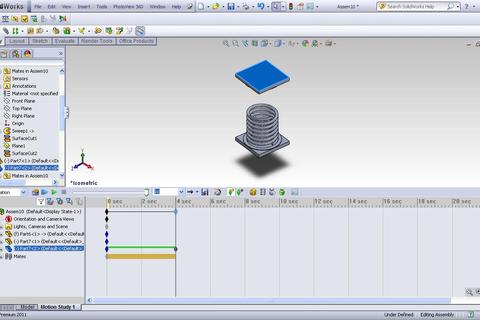

      9. Place the model as shown in the figure and drag the bar in the timeline represented by orange color to a certain time as per your requirement.

      Medium

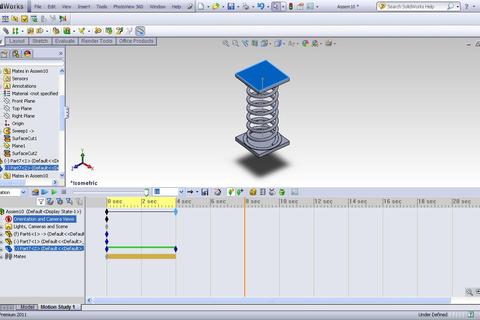

    10. Step 10

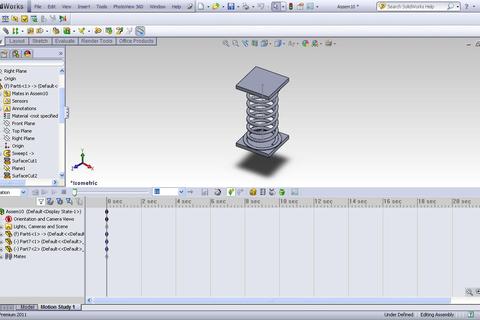

      10. Drag the part out as shown in the figure. The bars in the timeline will automatically get generated.

      Medium

    11. Step 11

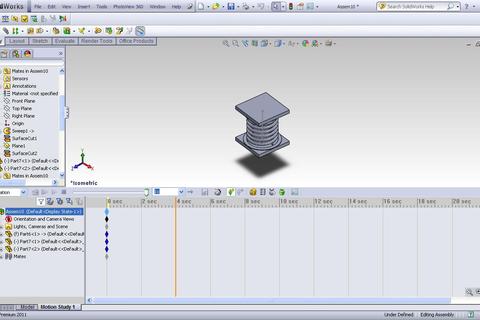

      11. Now drag the orange colored bar to a greater length on the timeline.

      Medium

    12. Step 12

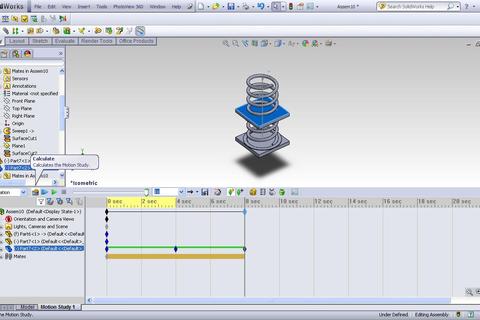

      12. Click on “calculate” button as shown.

      Medium

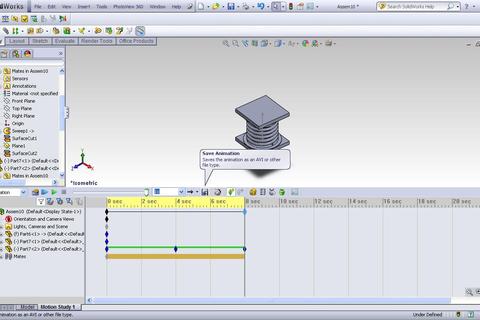

    13. Step 13

      13. Save the animation.

      Medium

  • Steen Winther
    Steen Winther over 2 years ago

    I think a very basic piece of information is missing from the steps above:
    The spring needs to be modelled as a revolved sweep, the animation won't work if you use a helix.

  • Teruteru
    Teruteru over 1 year ago

    Additionally to what Steen Winther said, there's another important detail that is not highlighted enough (although it is said in the tutorial) for this method to work: the coil sketch MUST be in EDIT mode before connecting the upper point of the coil axis ant the center of the upper plate.
