Tutorial - Adding gravity to motion study in SolidWorks?

By Sudhir Gill on 15 Feb 10:32 2 answers 3363 views 1 comment

Tutorial on adding gravity to motion study in SolidWorks.

Attachments

Assembly.zip, 343 KB
Download

2 answers

  • Sudhir Gill
    Sudhir Gill about 2 years ago

    Here is the tutorial.

    1. Step 1

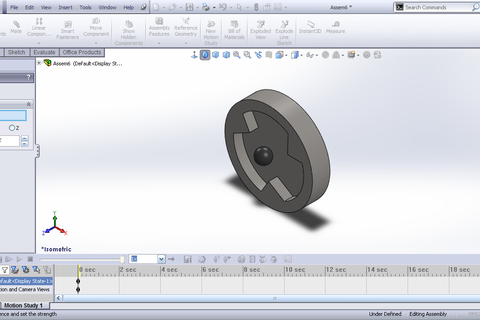

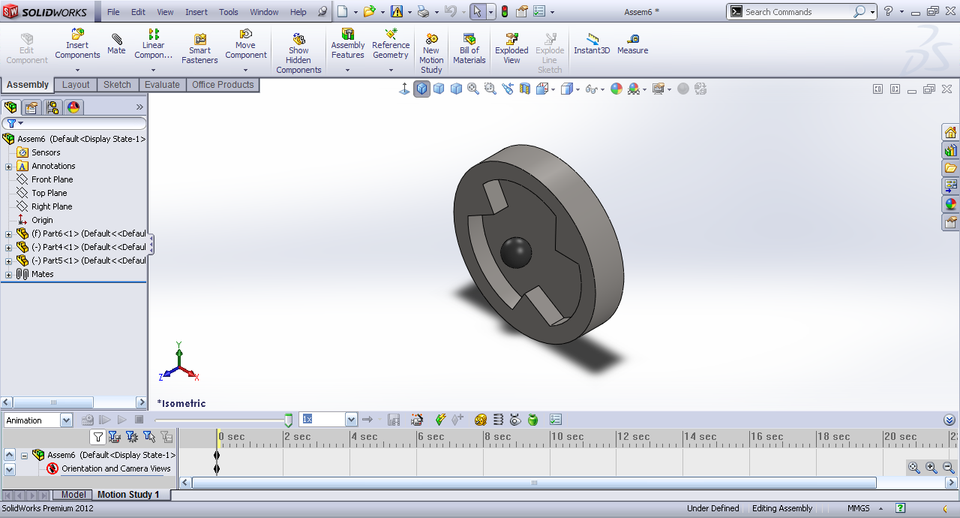

      Start SolidWorks and open the file attached.

      Medium

    2. Step 2

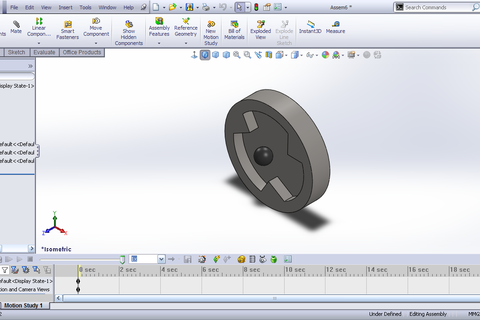

      Click the Motion Study 1.

      Medium

    3. Step 3

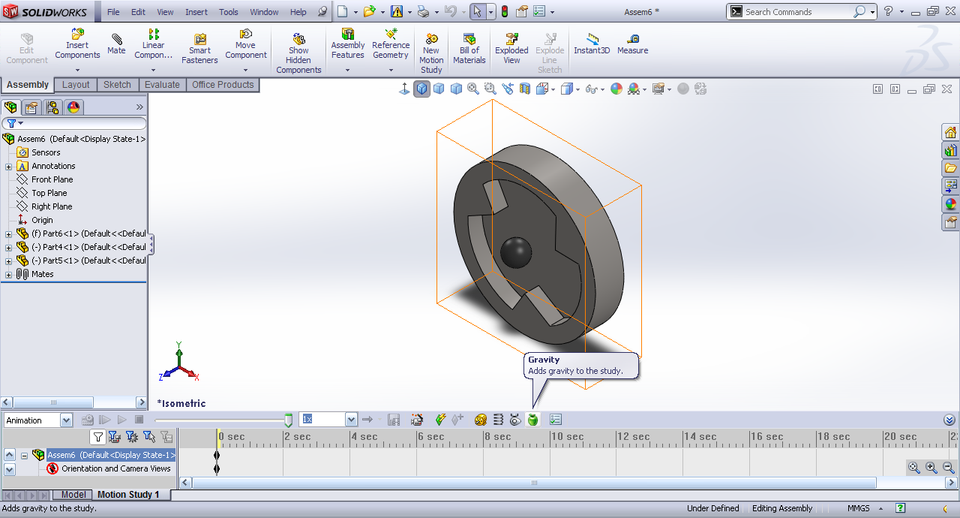

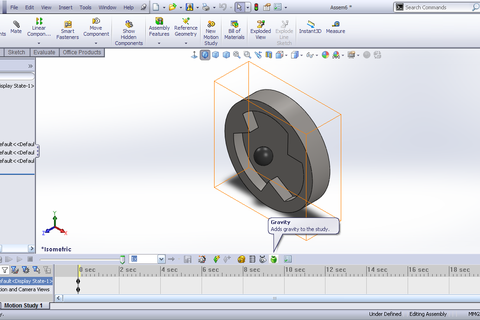

      Click the gravity icon.

      Medium

    4. Step 4

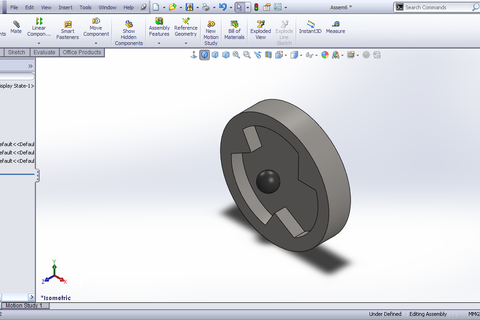

      Select Y and change the direction. The arrow in lower right corner indicates the direction of gravity.

      Medium

    5. Step 5

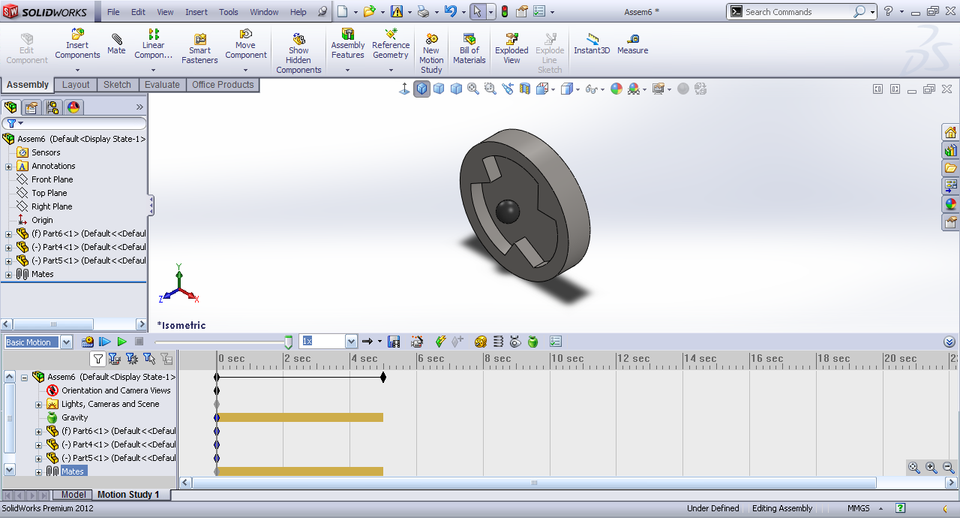

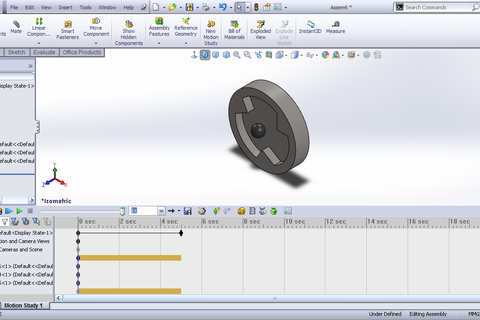

      Click OK and we can see that gravity is added in the motion study.

      Medium

  • blacken
    blacken about 1 year ago

    when i fall gravity the two bodies, both the ball and the container as you avoid this
