  Crank oil canal

  1. Step 1

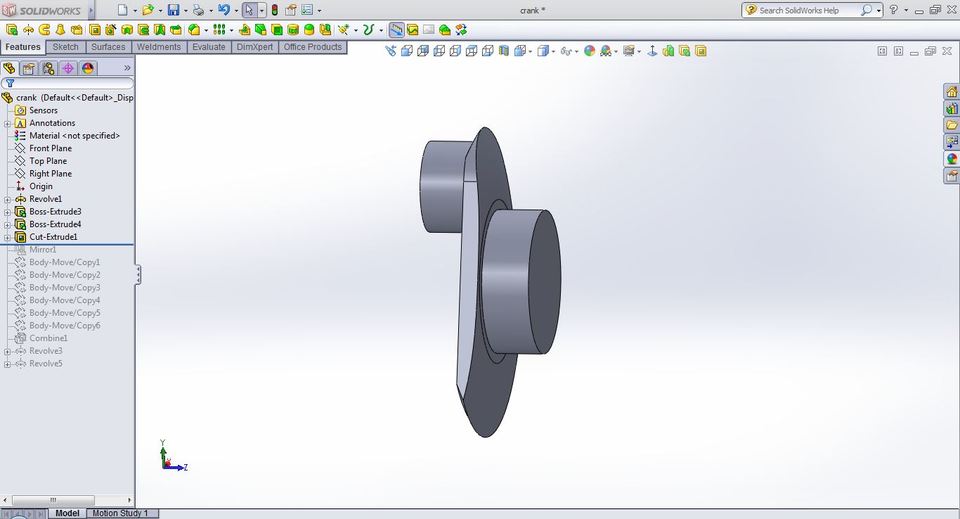

     rollback the feature tree up to mirror1



  2. Step 2

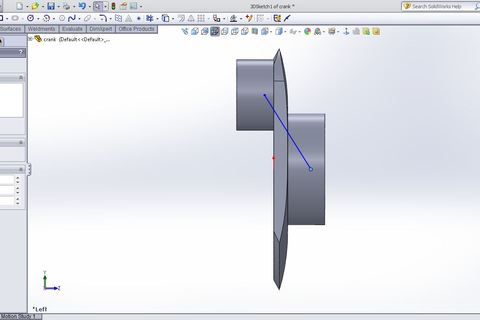

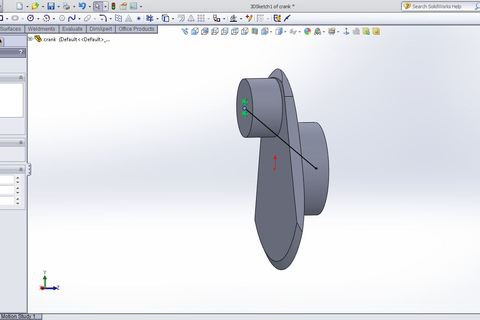

     use 3D sketch and draw a line. starting point and endpoint have to be center of the circles



  3. Step 3

     delete the relations



  4. Step 4

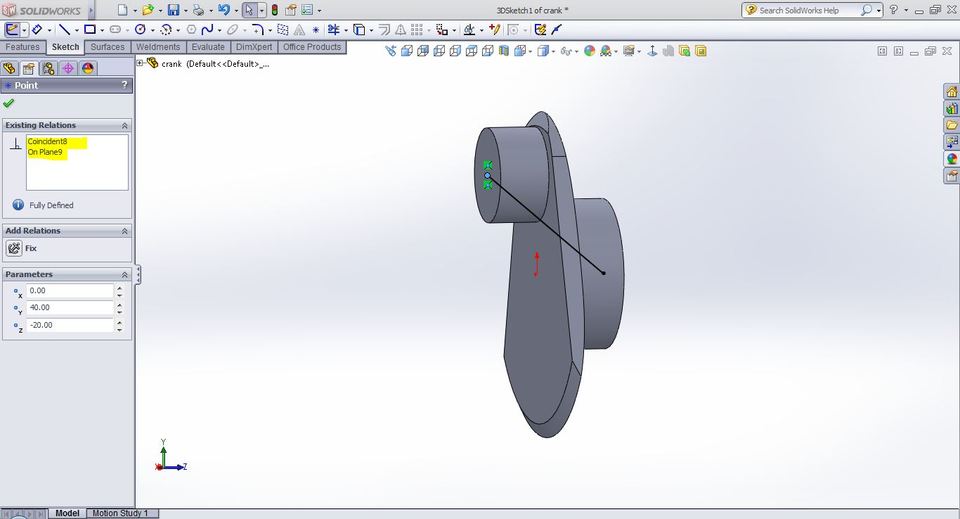

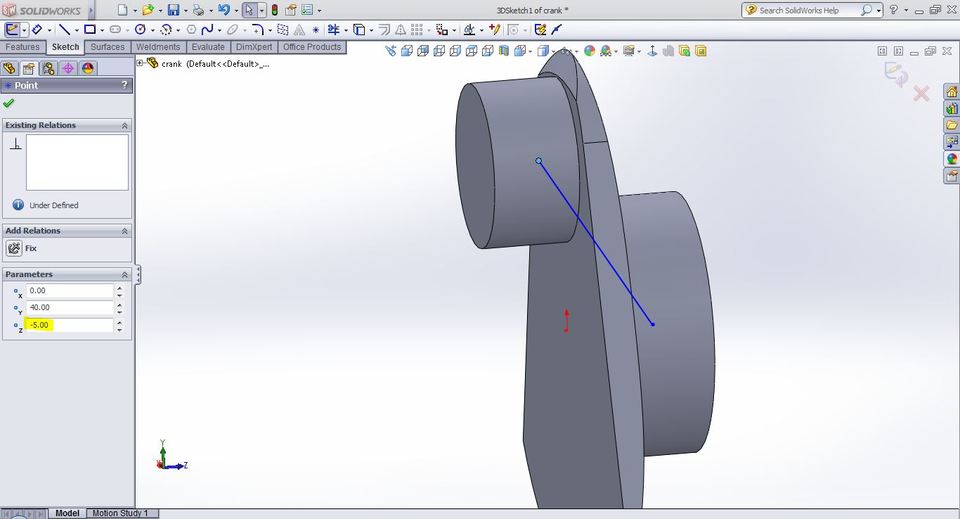

     enter z coordinate -5



  5. Step 5

     enter z coordinate 20 for this point



  6. Step 6

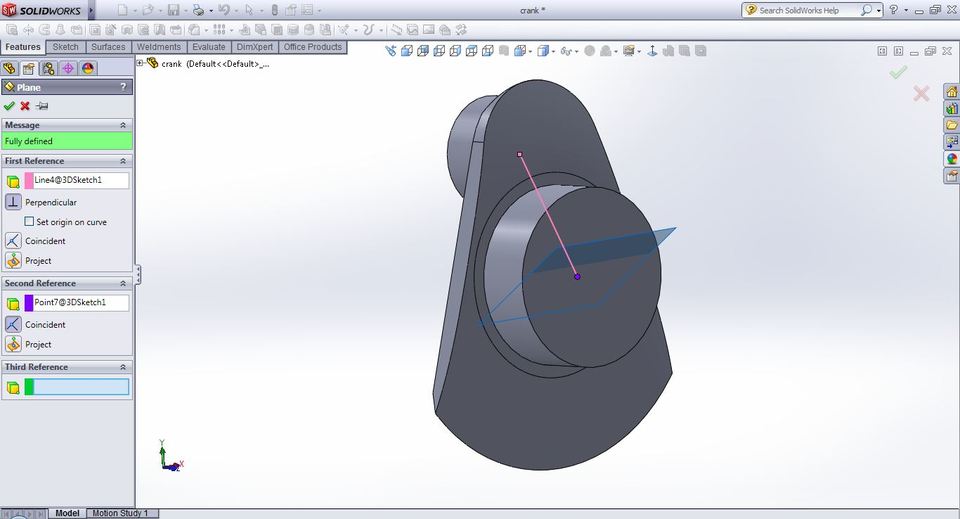

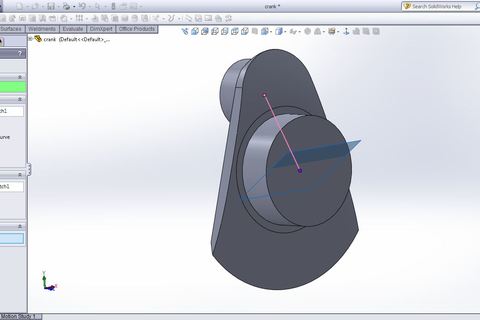

     add a plane ( referance geometry>plane then select line and endpoint)



  7. Step 7

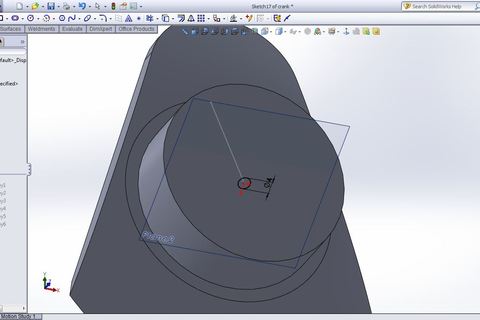

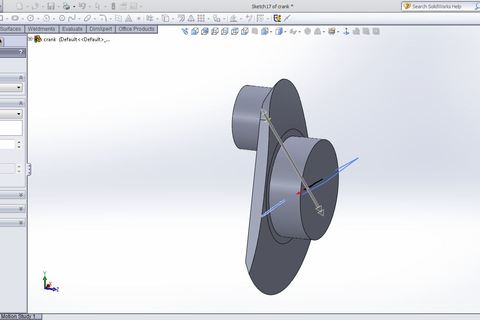

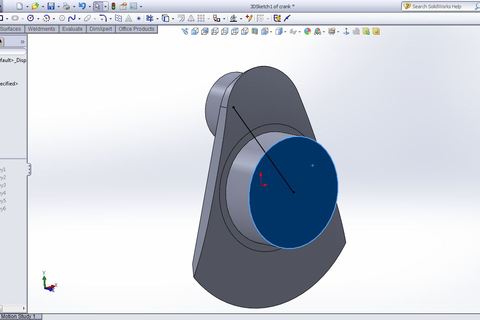

     draw shown circle on this plane



  8. Step 8

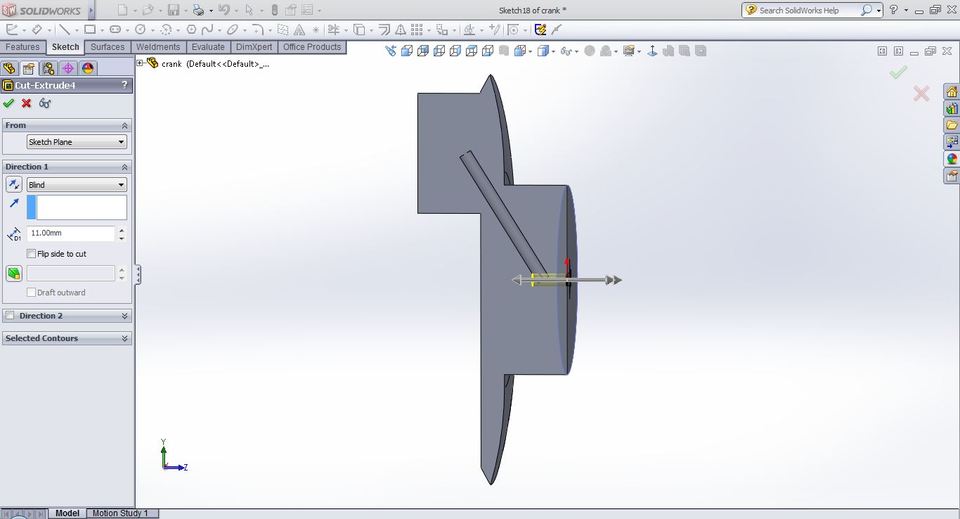

     use cut extrude command



  9. Step 9

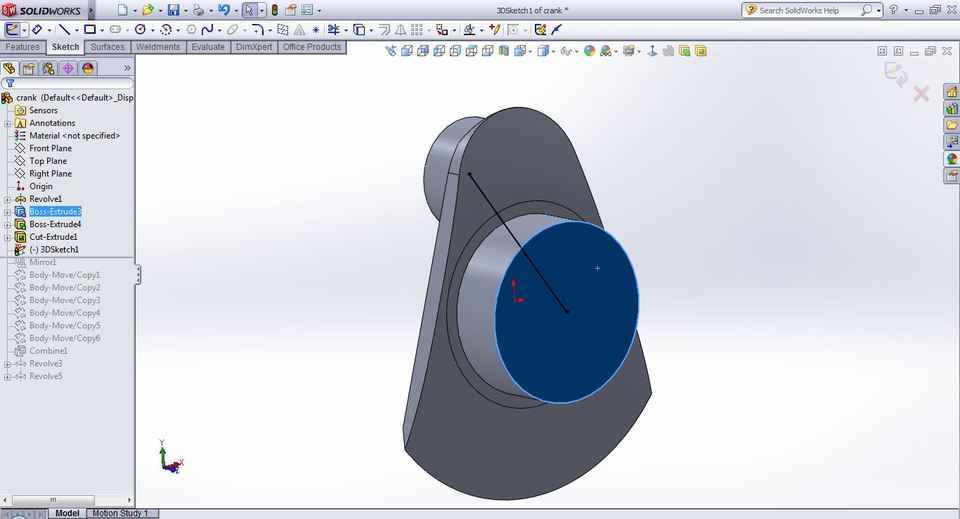

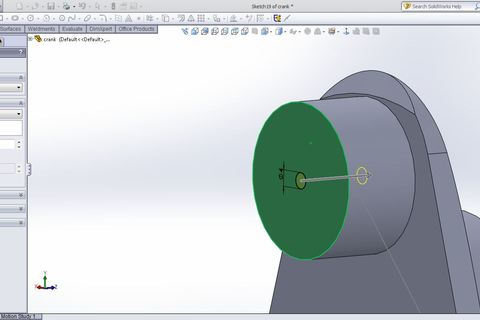

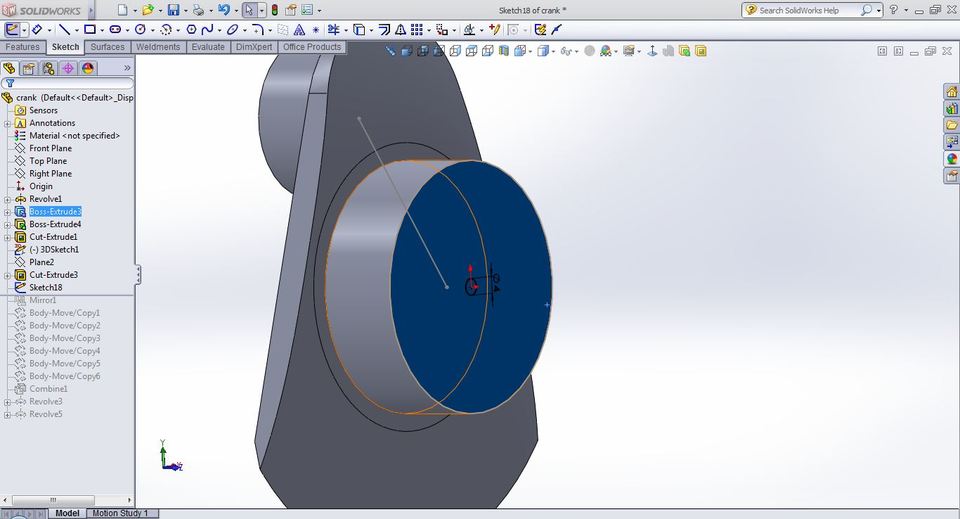

     open a sketch on shown surface and draw a circle



  10. Step 10

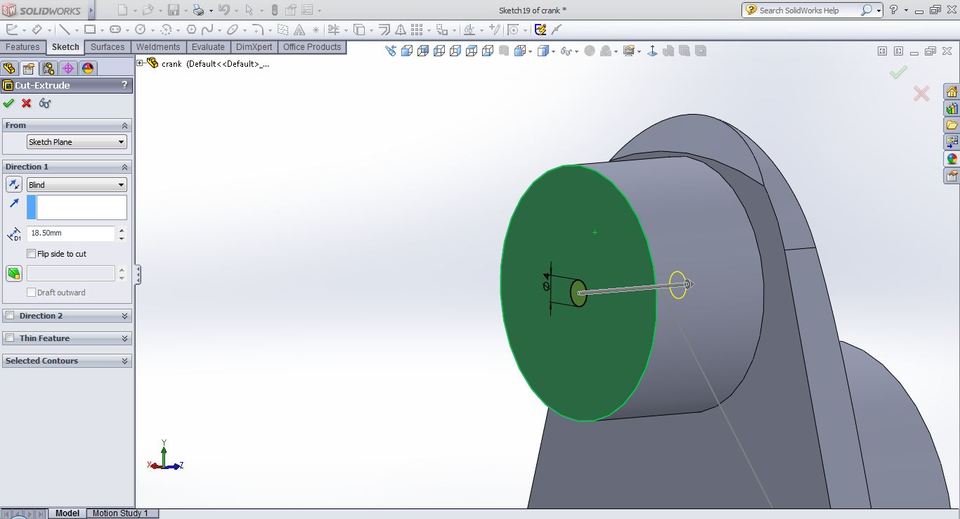

      use cut exturde command



  11. Step 11

      now open a sketch on the green surface, draw a circle and use cut extrude command



  12. Step 12

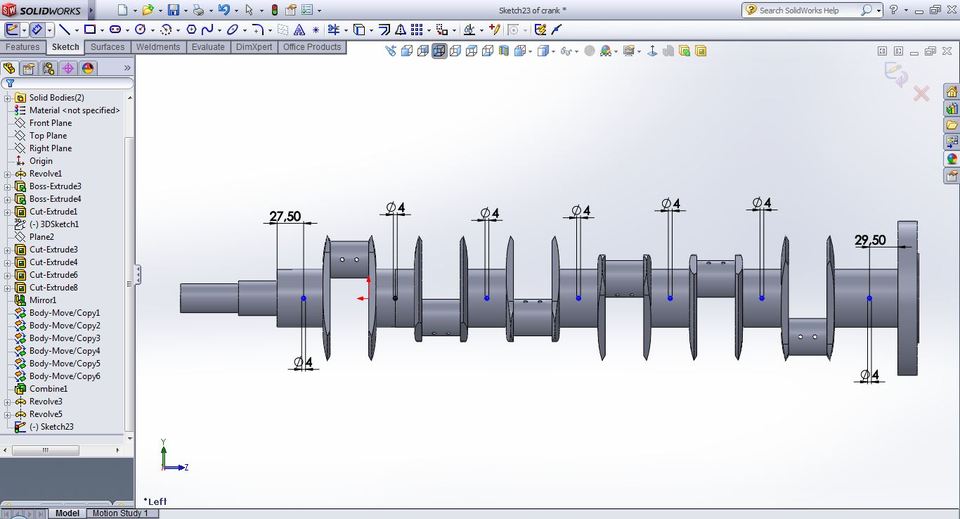

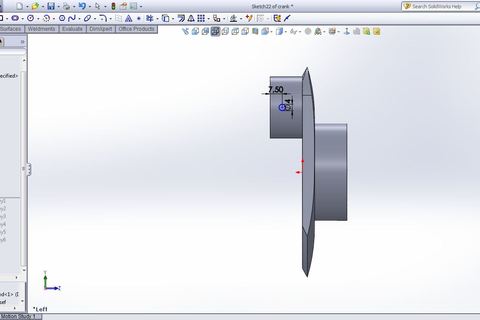

      open a sketch on the right plane and draw shown sketch. then use cut extrude command and cut the body



  13. Step 13

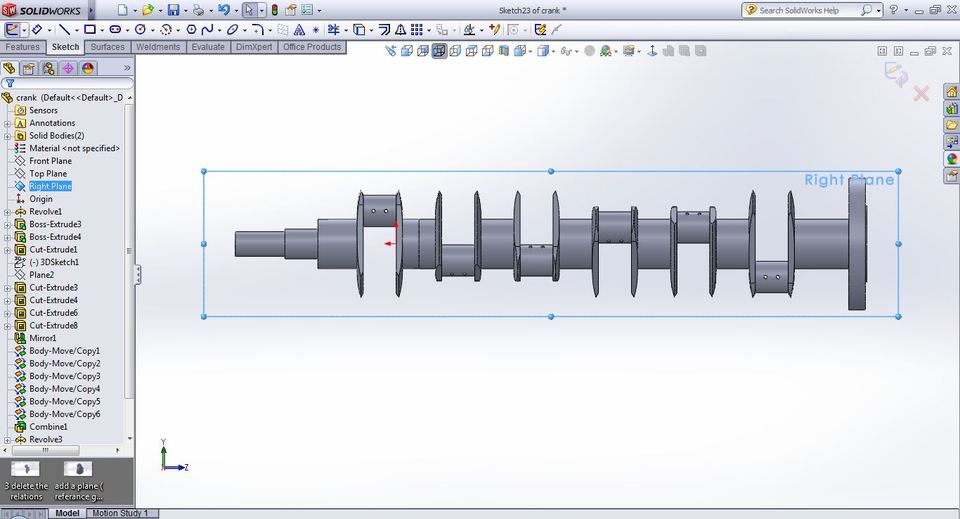

      roll forward the feature tree and open a sketch on the right plane



  14. Step 14

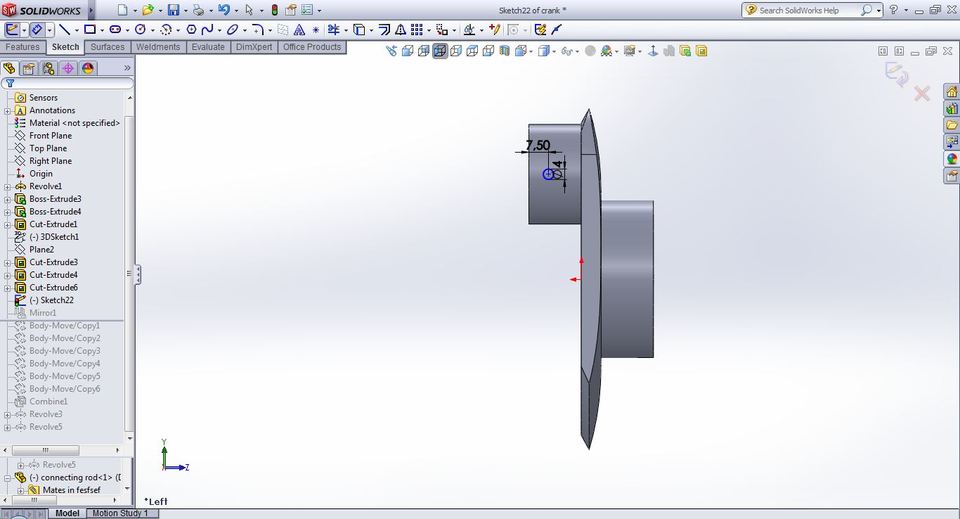

      draw shown sketch then use cut extrude command



  15. Step 15

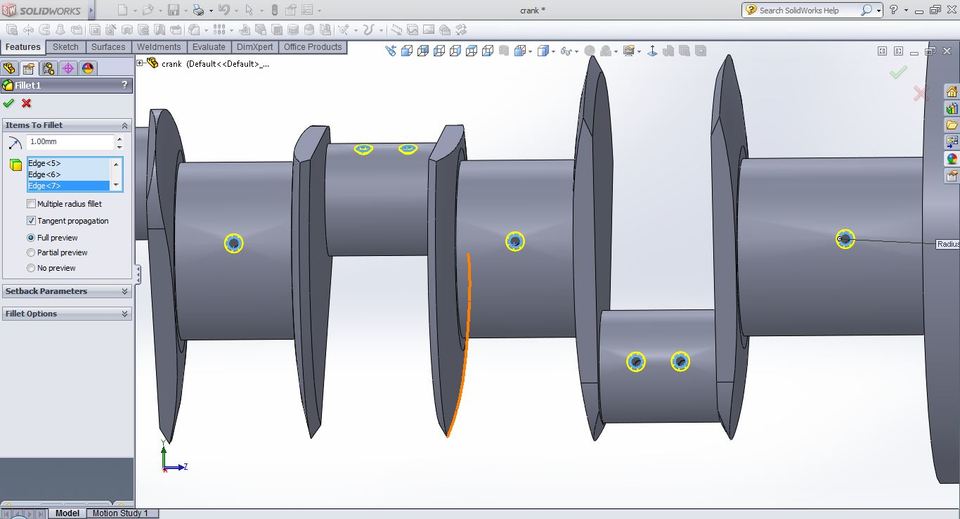

      use fillet command



  16. Step 16

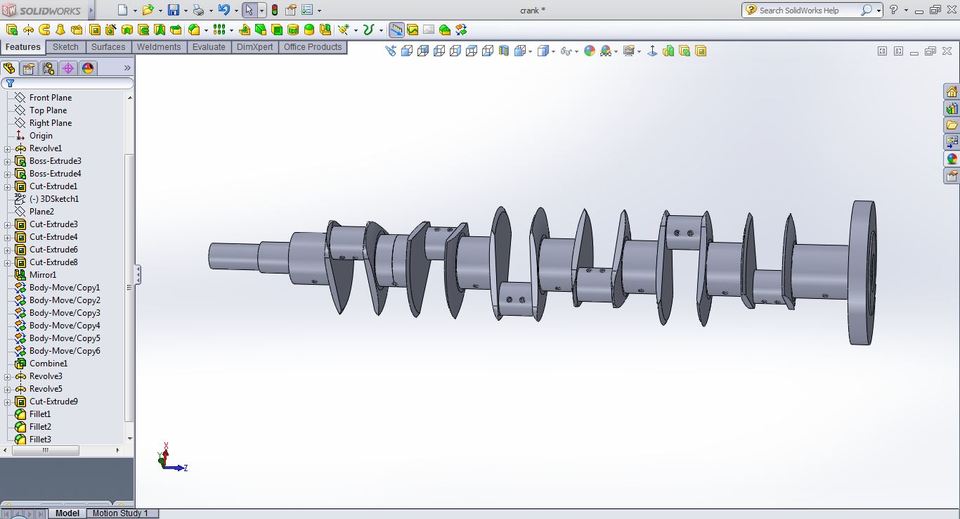

      crank is ready now
