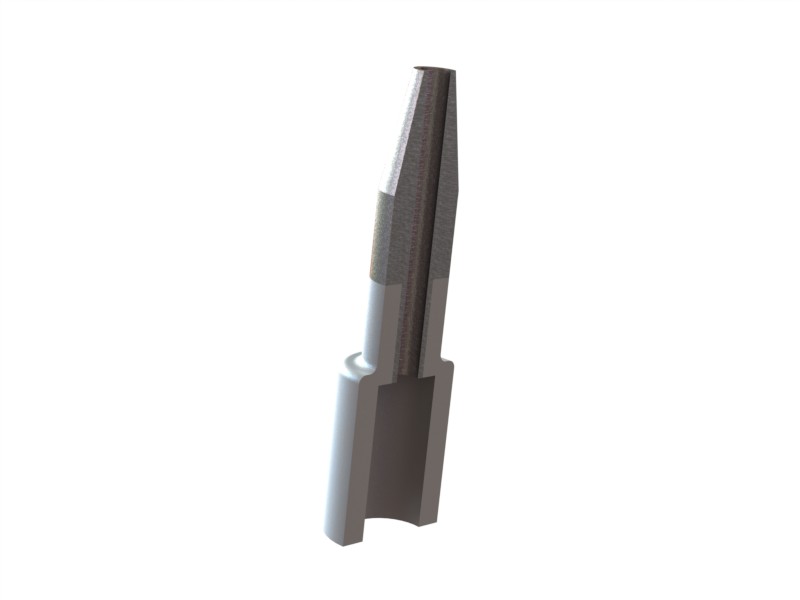

  part 1

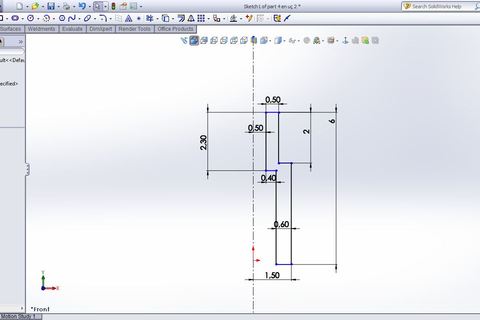

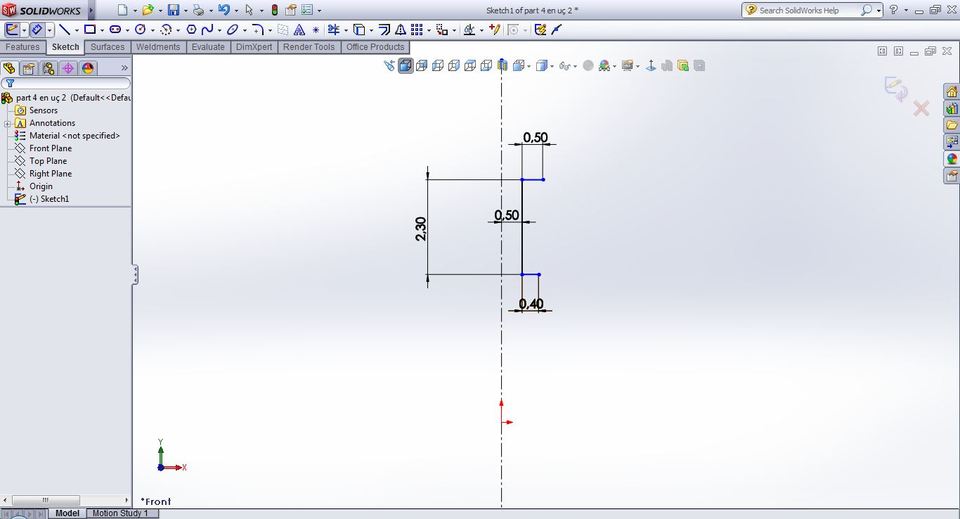

  1. Step 1

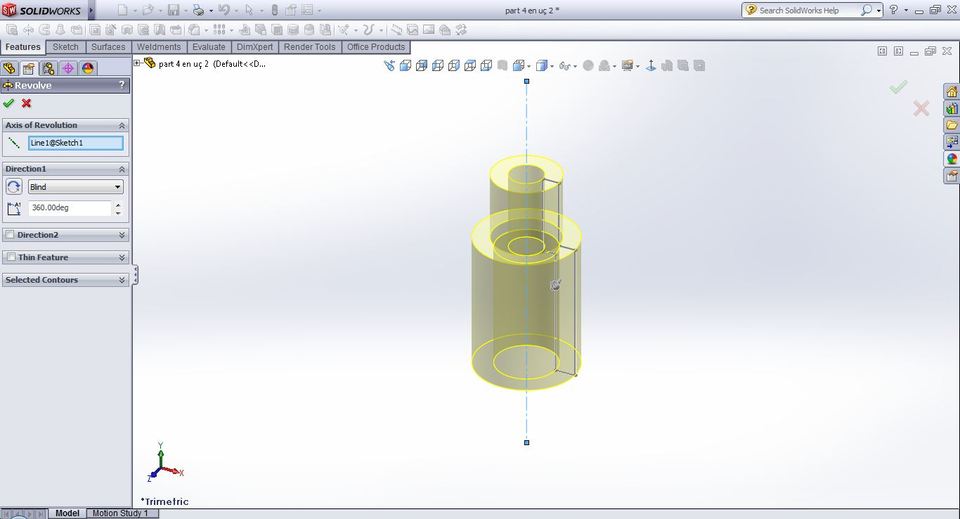

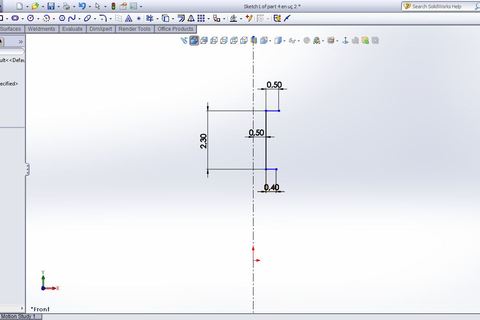

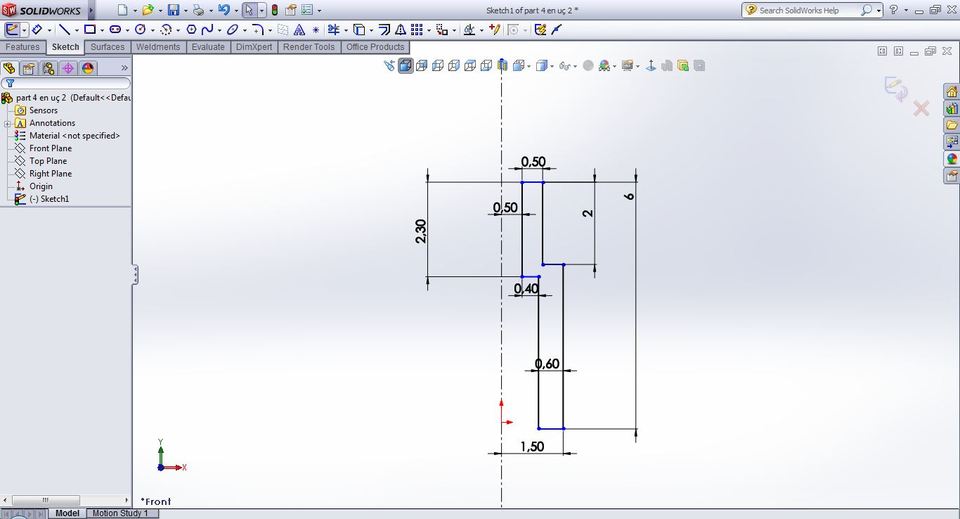

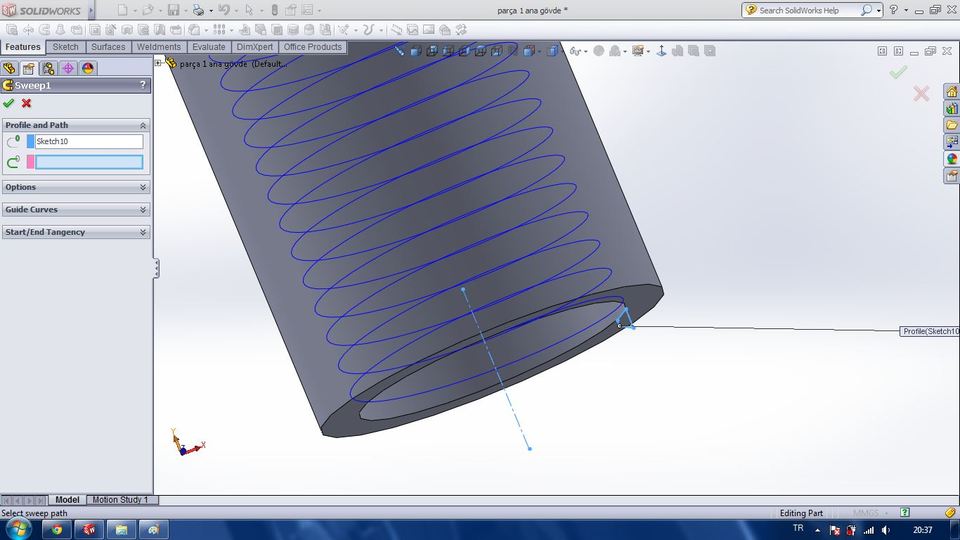

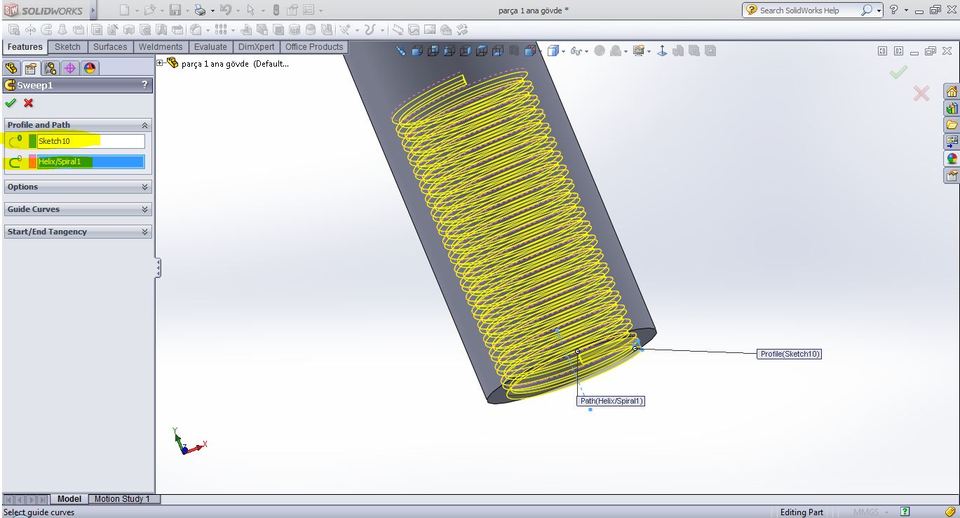

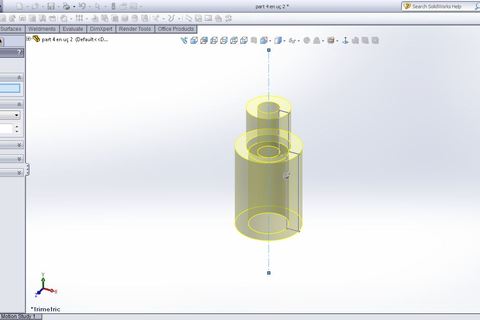

     use sweept command. select the sketch that we drew for the tooht profile before.



  2. Step 2

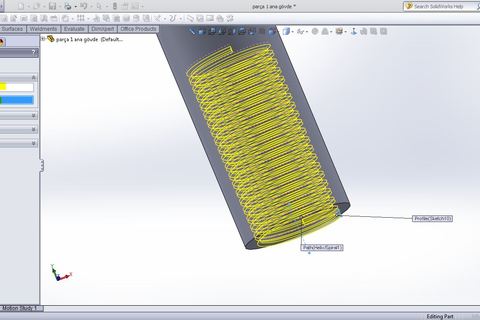

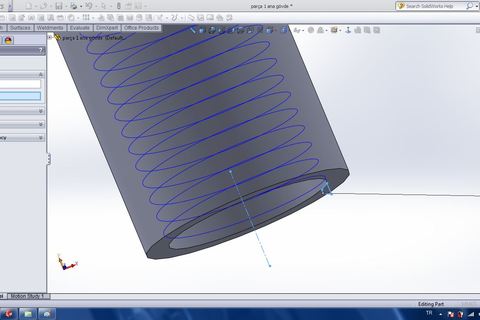

     select the helix for path



  3. Step 3

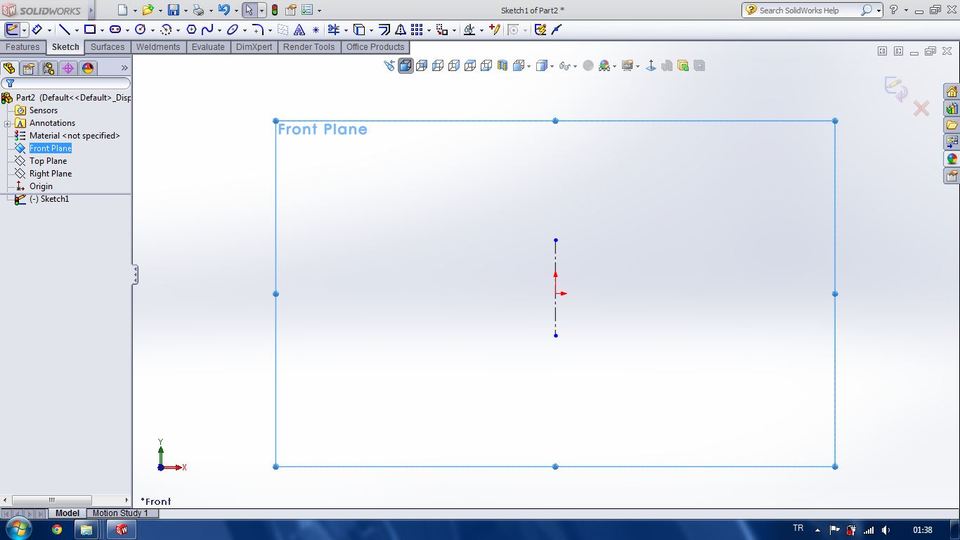

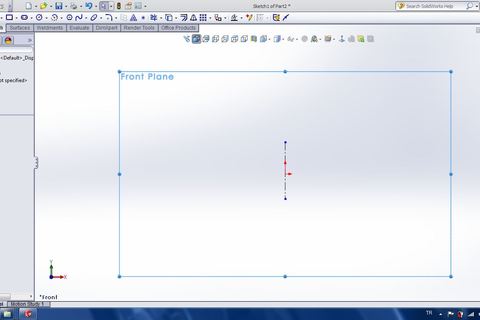

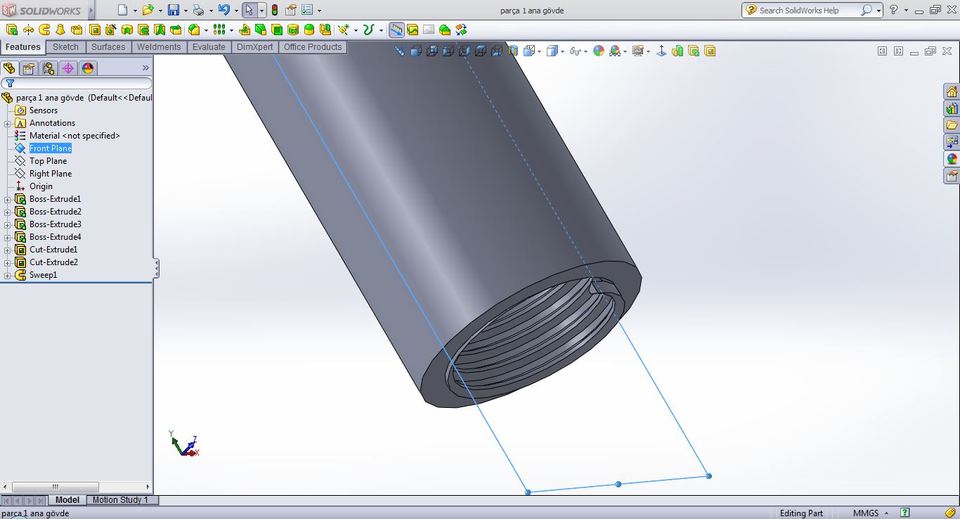

     we will cut the excess. open a sketc on the front plane



  4. Step 4

     we will cut the excess. open a sketc on the front plane



  5. Step 5

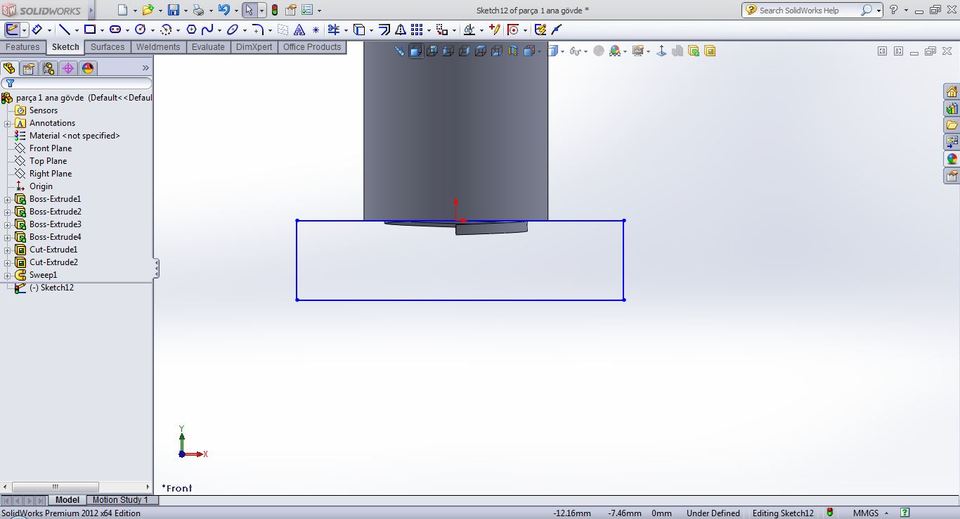

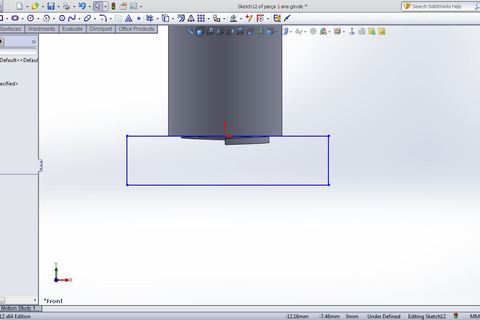

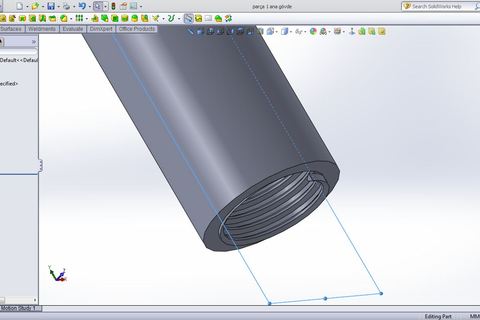

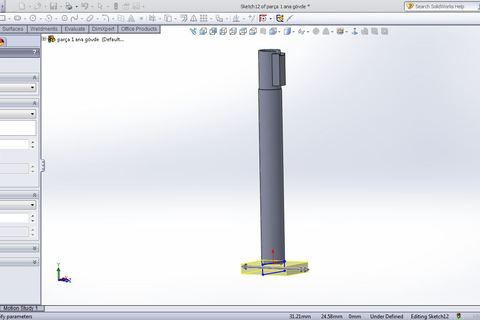

     draw a rectnagle



  6. Step 6

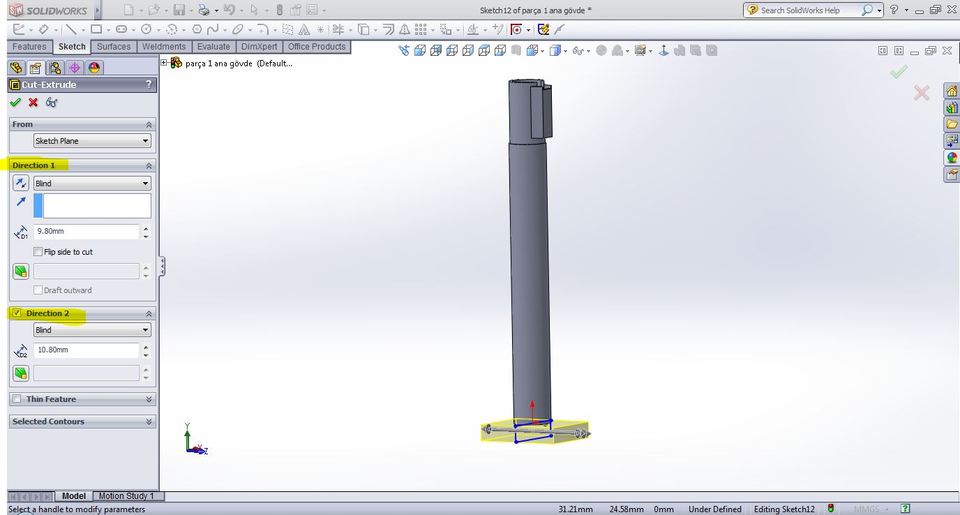

     use cut-extrude command at two directions



  7. Step 7

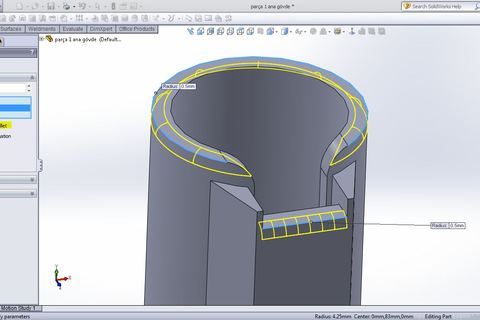

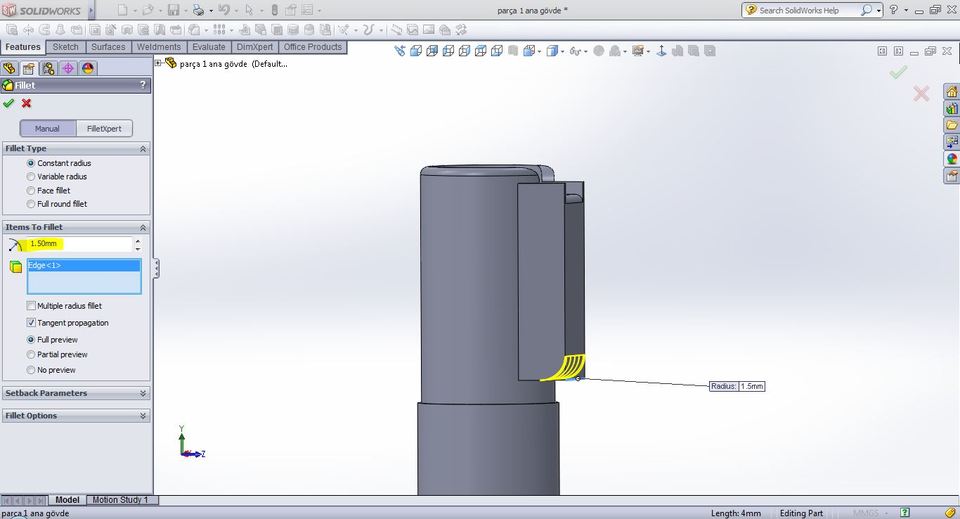

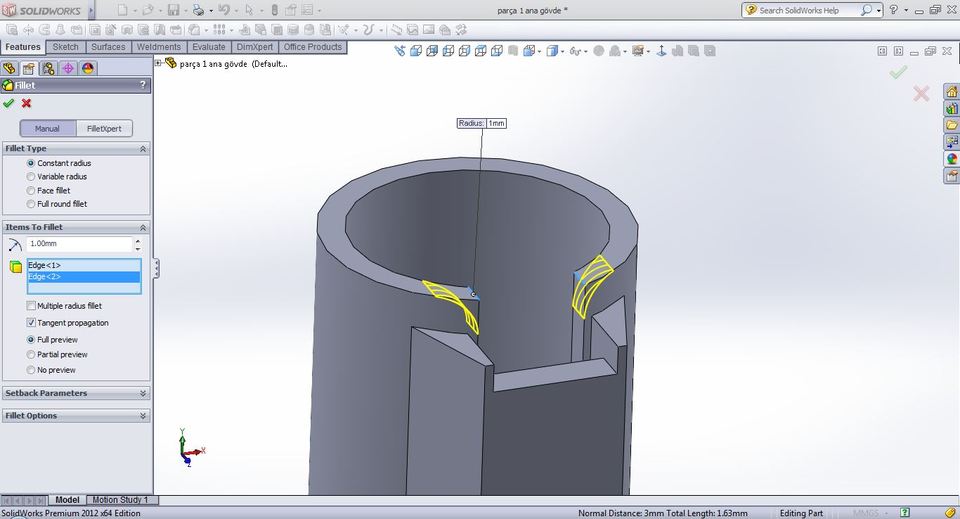

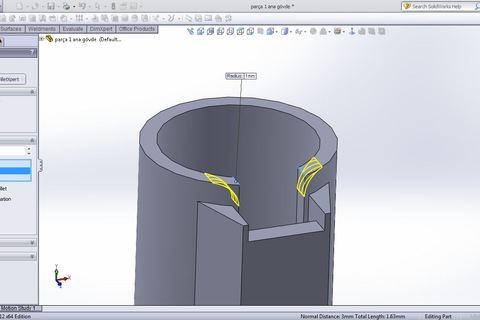

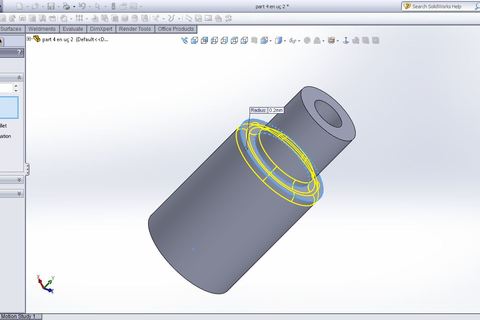

     now we will use fillet commands. select the shown edges and enter the values



  8. Step 8

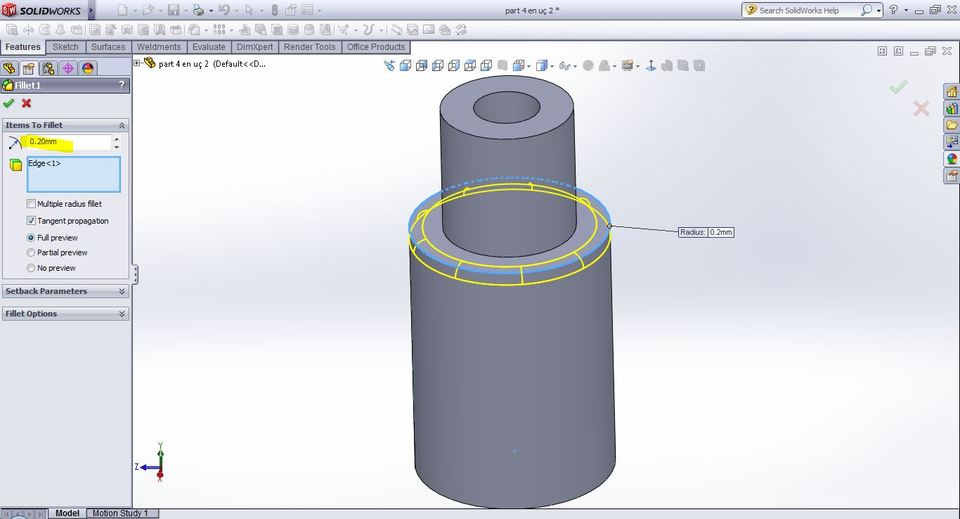

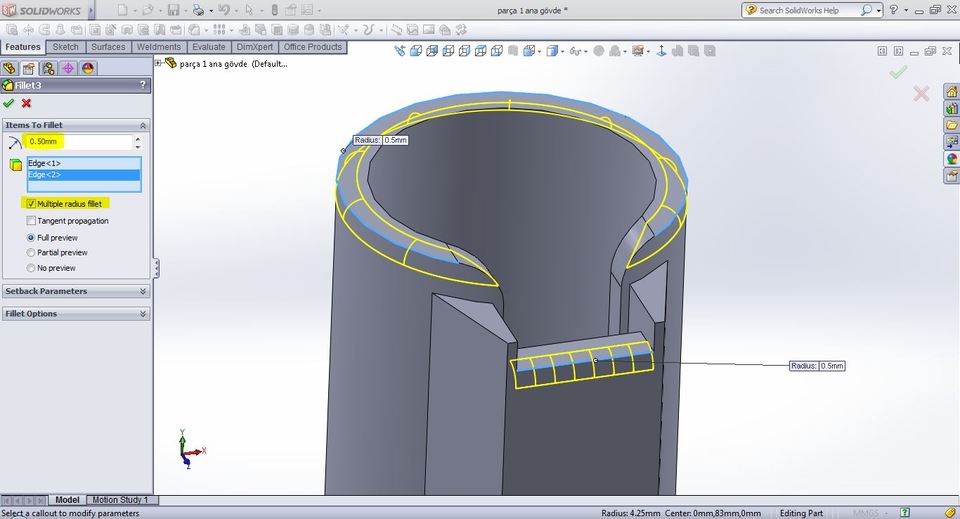

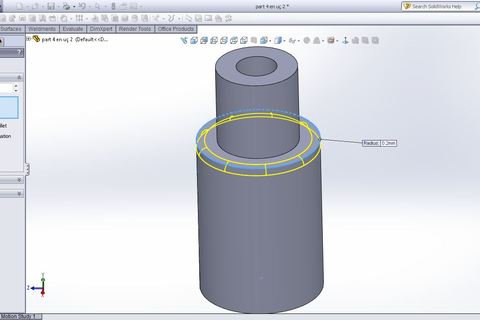

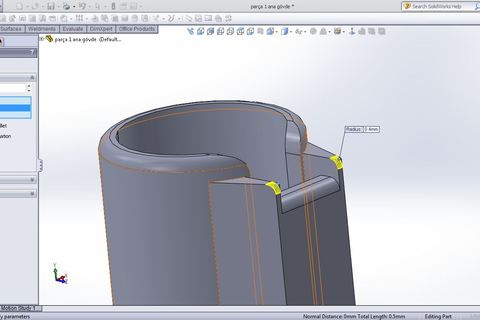

     fillet shown edge. tick the multiple radius option



  9. Step 9

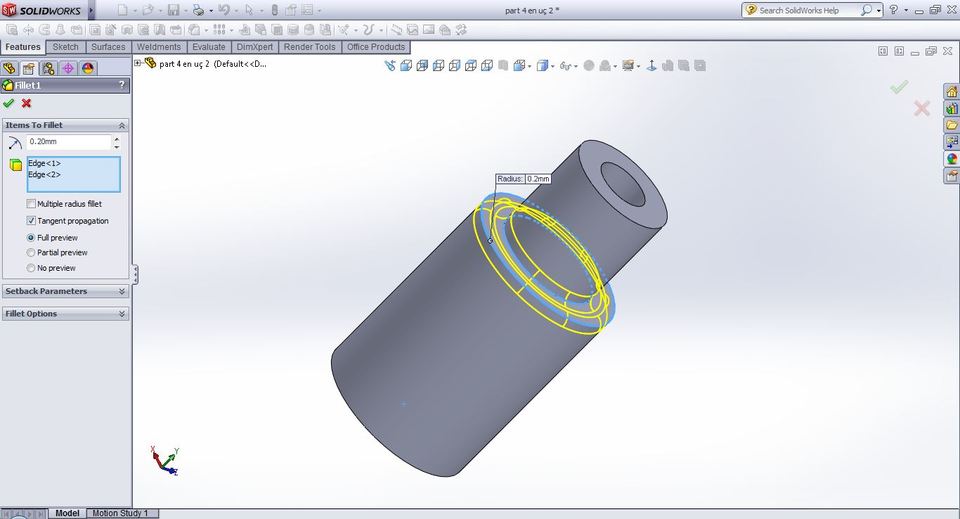

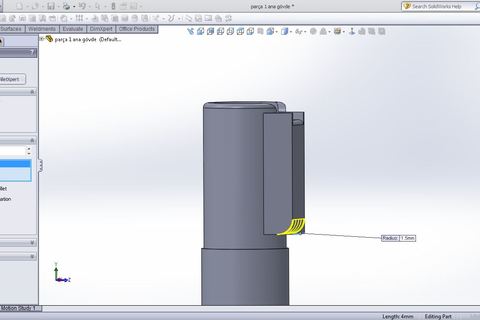

     fillet this edge

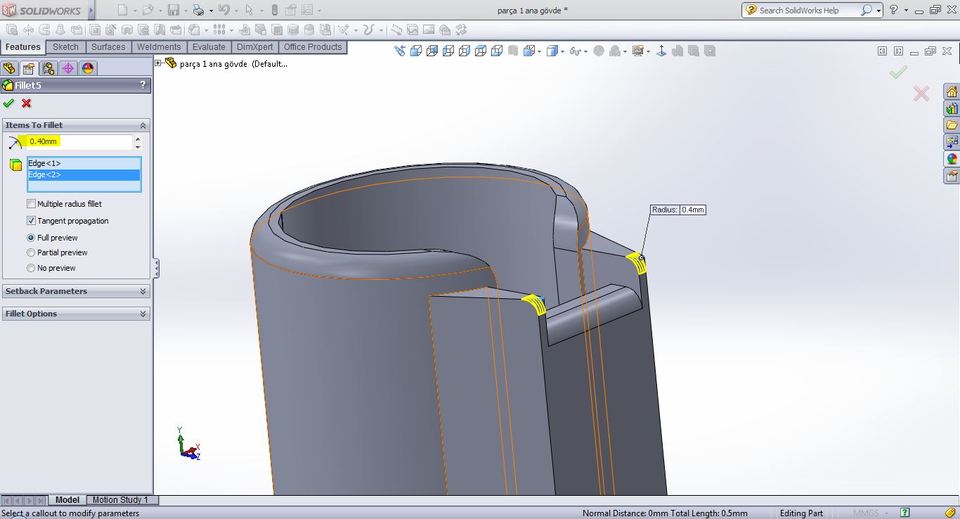

  10. Step 10

      now fillet this edges. it is over.



  11. Step 11

      save the part 1
