1 answer

•
  Sudhir Gill over 1 year ago

  Here is the tutorial.

  1. Step 1

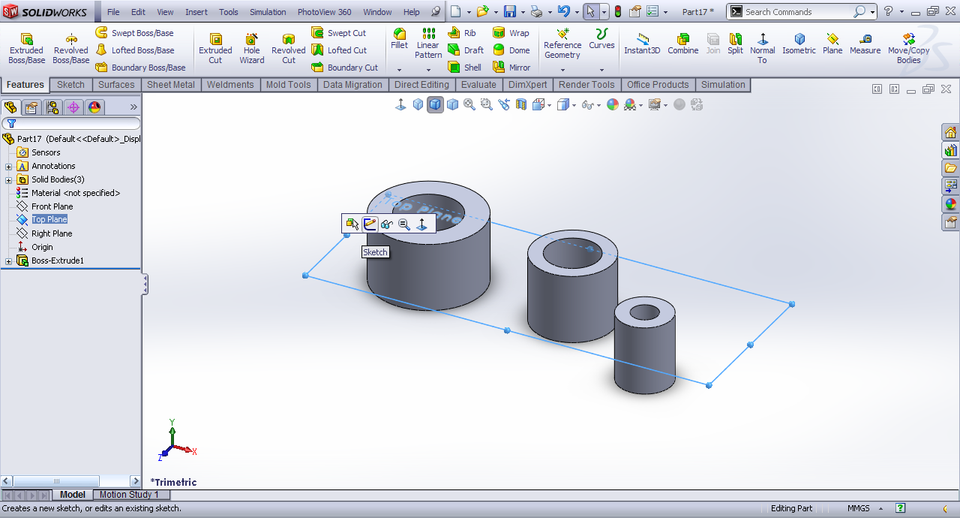

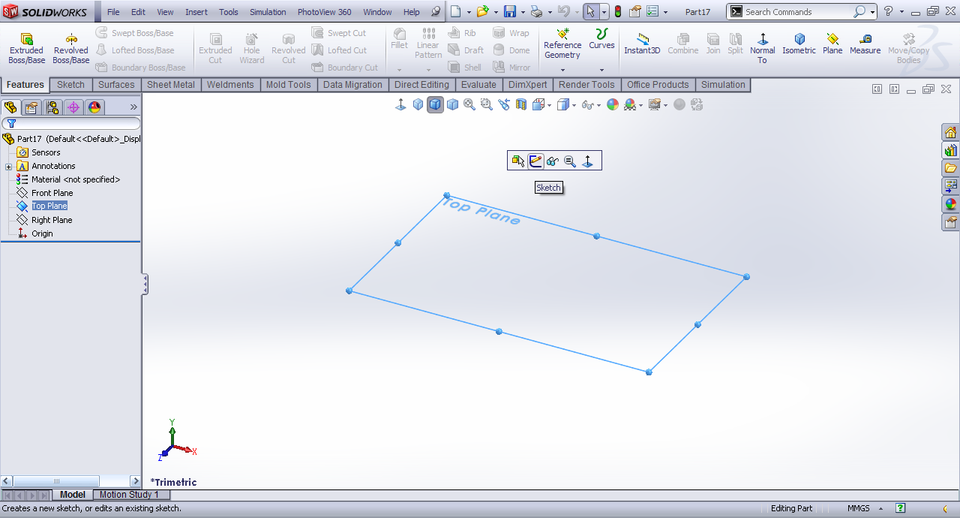

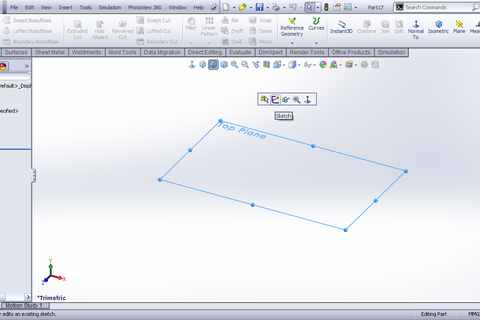

     Top plane>>Sketch.



  2. Step 2

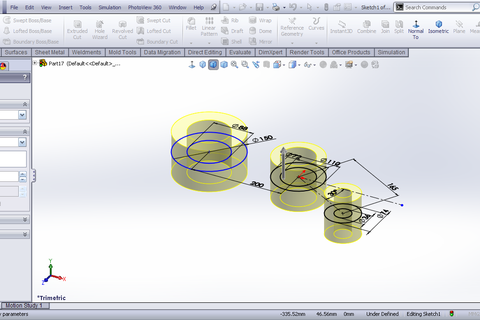

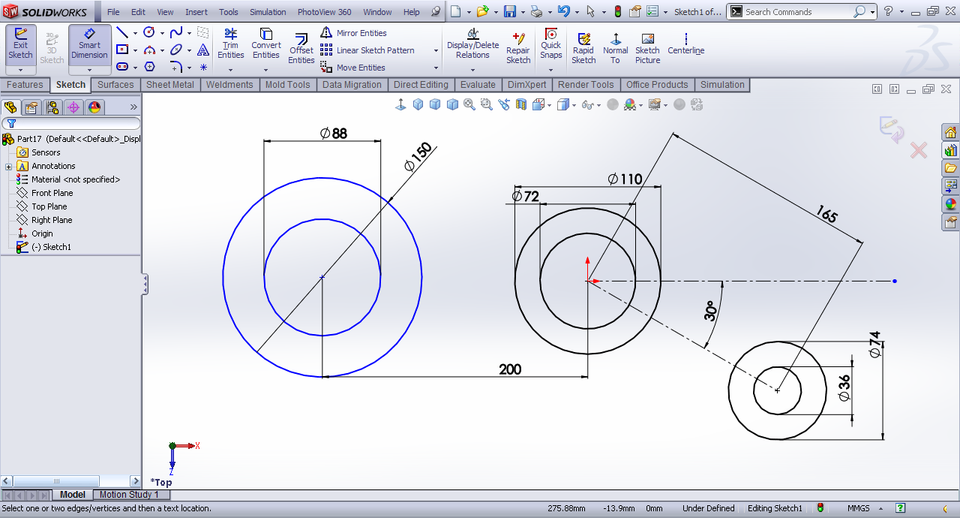

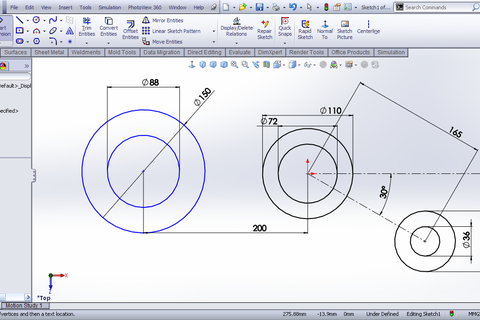

     Draw this sketch.



  3. Step 3

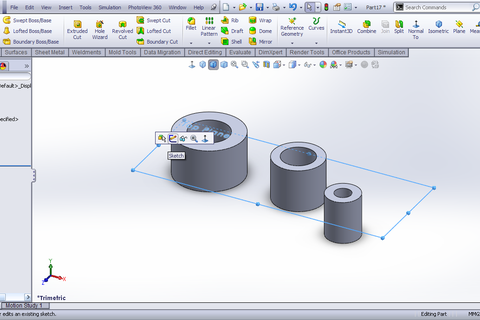

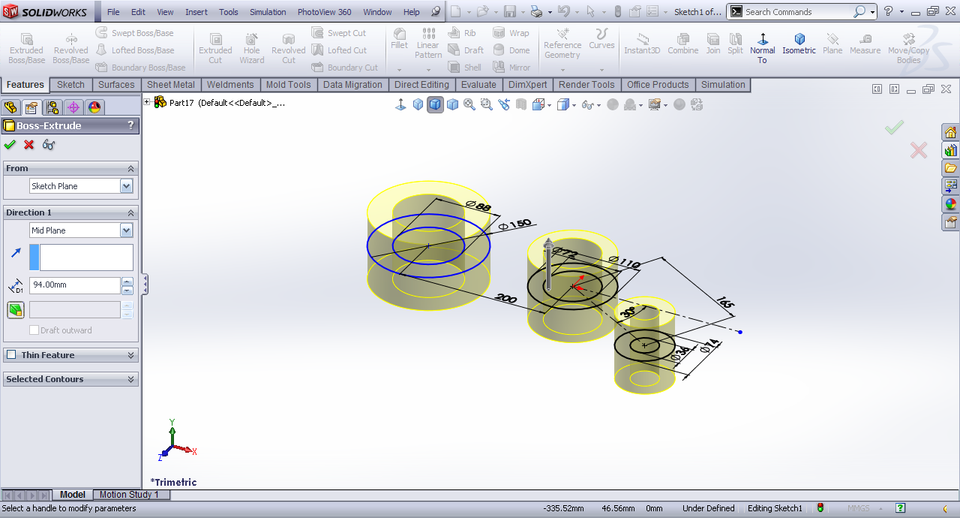

     Extrude it at mid-plane by 94mm.



  4. Step 4

     Top plane>>sketch.



  5. Step 5

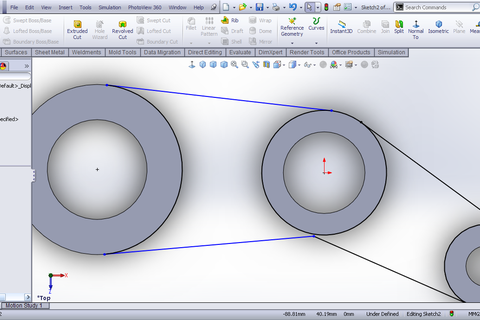

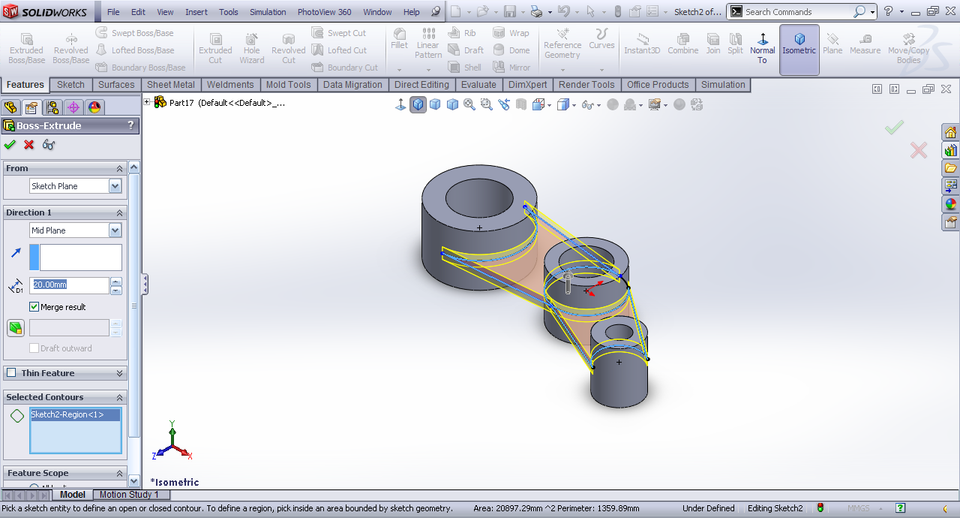

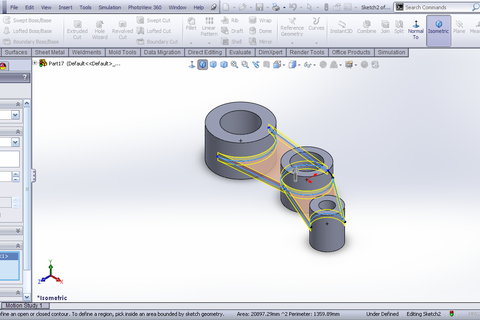

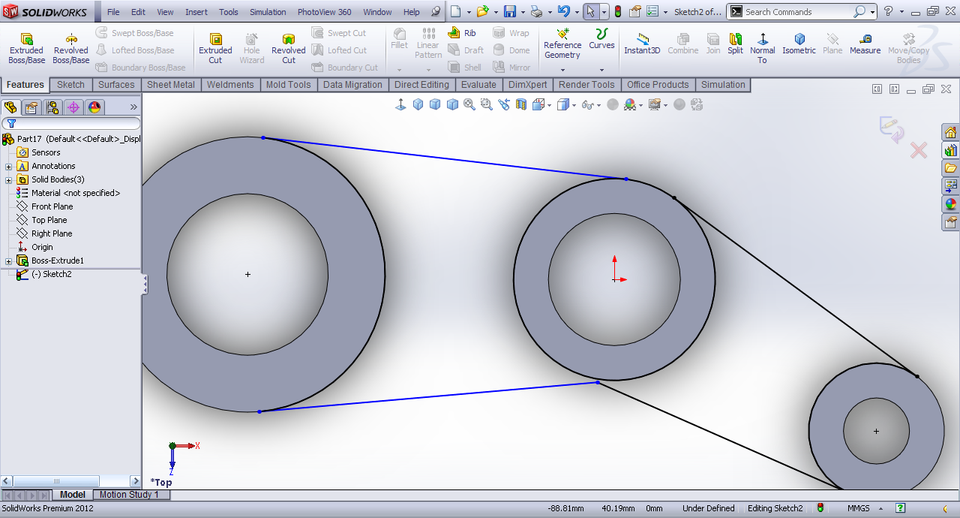

     Use line tool and make this sketch. These lines are tangent.



  6. Step 6

     Mid-Plane by 20mm.



  7. Step 7

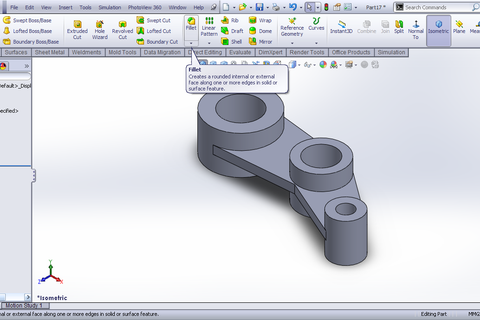

     Fillet.



  8. Step 8

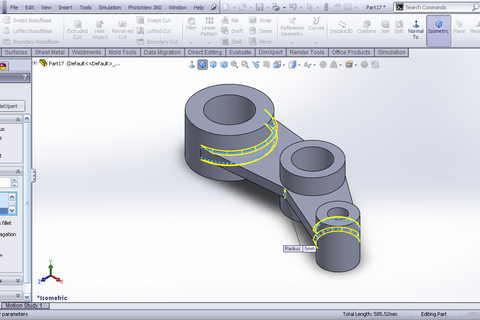

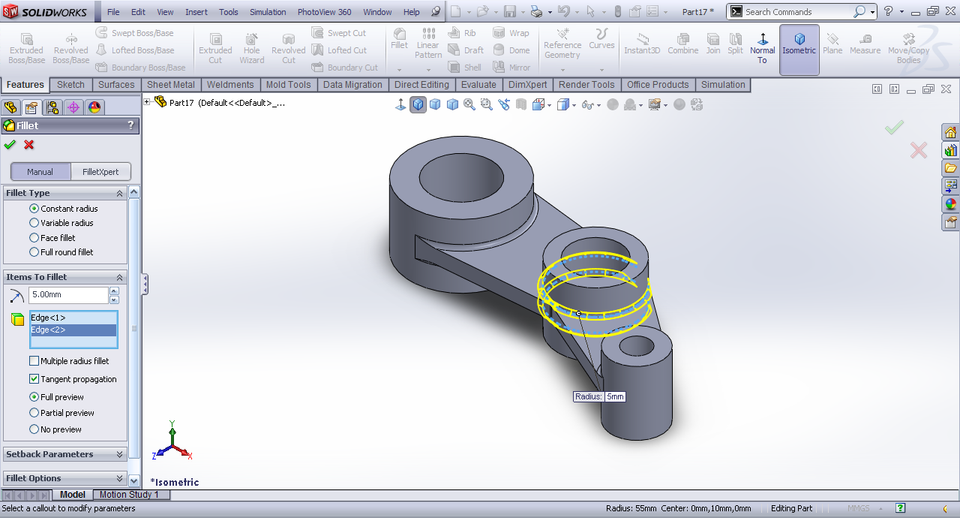

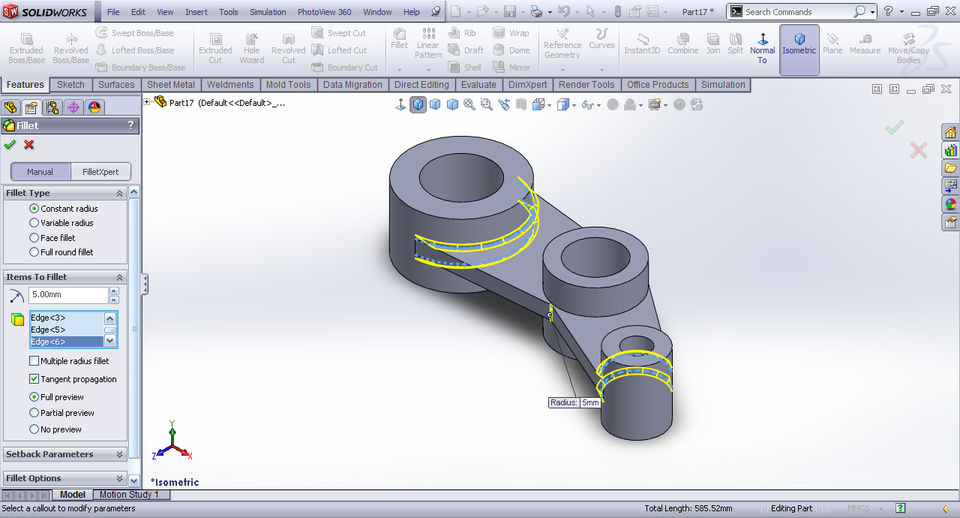

     Select these edges at 5mm.



  9. Step 9

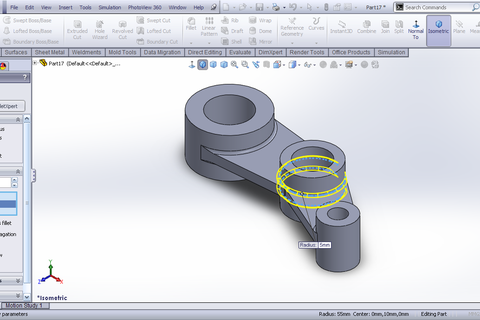

     Again fillet and select this edge.

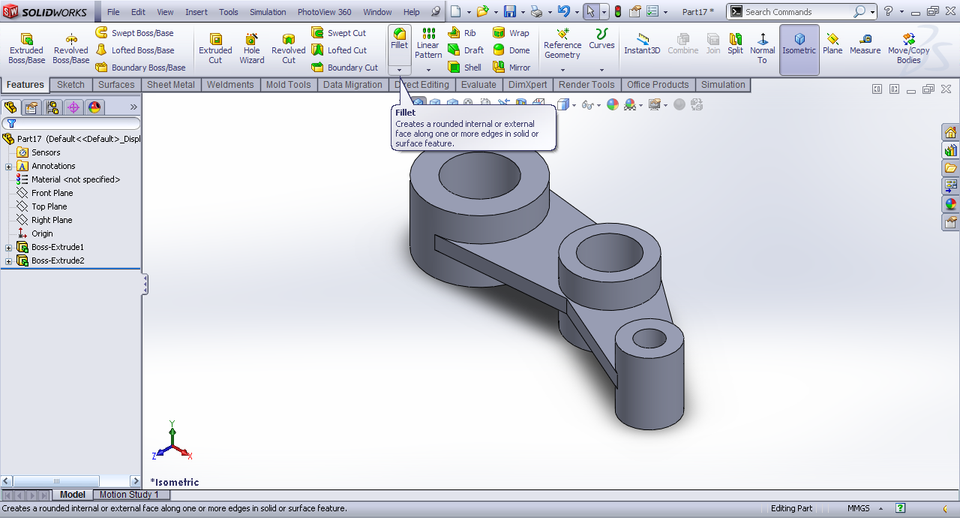

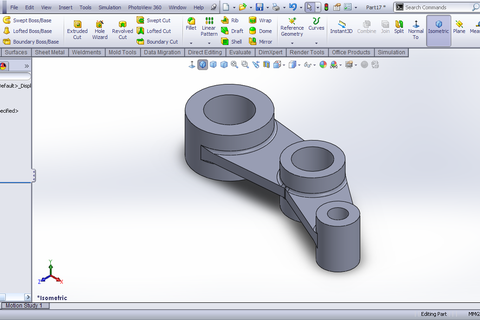

  10. Step 10

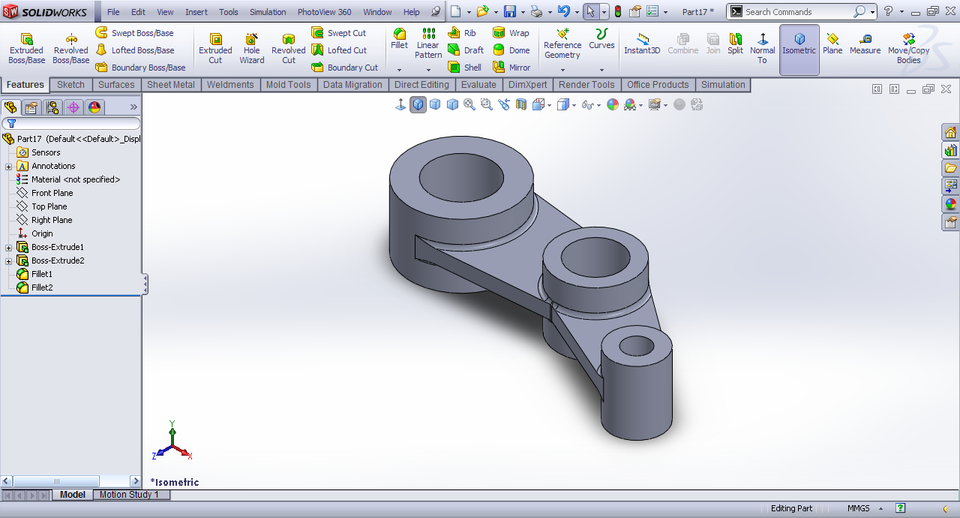

      We have the crank arm.
