Modelling

MADHU KUMAR BYAGARI

29 Jun, 2018 12:48 PM

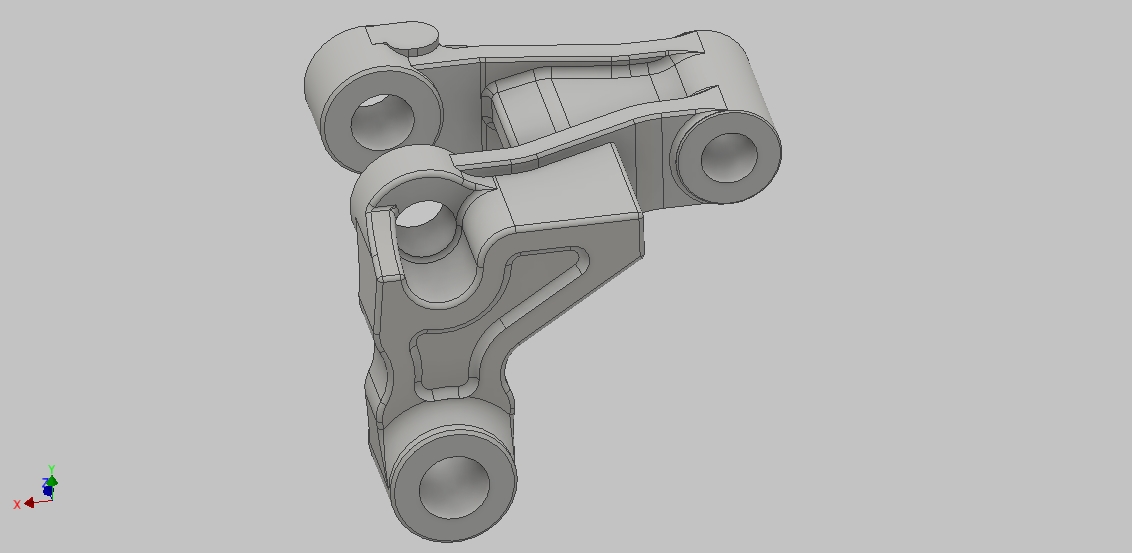

Gd evng everyone.. myself madhu.. I am unable to model the following part can anyone help me with this

Sadanand Bhagat

Jun 29, 2018

which software....??.

MADHU KUMAR BYAGARI

Jun 29, 2018

Any software u r comfortable with... I've been trying to do it in NX 10...I need the approach to create the model..can I expect the model to be modelled from.any of u???

Sadanand Bhagat

Jun 30, 2018

MADHU KUMAR BYAGARI Any software u r comfortable with... I've been trying to do it in NX 10...I need the approach to create the model..can I expect the model...

i try.....

Sadanand Bhagat

Jun 30, 2018

as much as i got the dimensions....

MADHU KUMAR BYAGARI

Jun 30, 2018

Wow that's great Bhagat...great work..by the way I'm unable to figure out the right side of model where the inclined portion is present..can u just post me some hints to complete the model...it'll be helpful

Sadanand Bhagat

Jun 30, 2018

MADHU KUMAR BYAGARI Wow that's great Bhagat...great work..by the way I'm unable to figure out the right side of model where the inclined portion is present.....
