Hey guys, I am having trouble sweep cutting this feature out. I'm making a nozzle that has 4 converging holes from .5" to a single .25" diameter hole. When I try the swept cut feature I am getting an errors. Is the swept cut feature even capable of handling different diameter ends? Or any recommendations on how I should go about this?


Mike geesser
Mike geesser
May 29, 2023

try a loft cut to have different diameter start and end

also only loft cut one of the four holes, then try a circular pattern on the lofted feature.

hope that helps


Mike geesser
Mike geesser
May 29, 2023

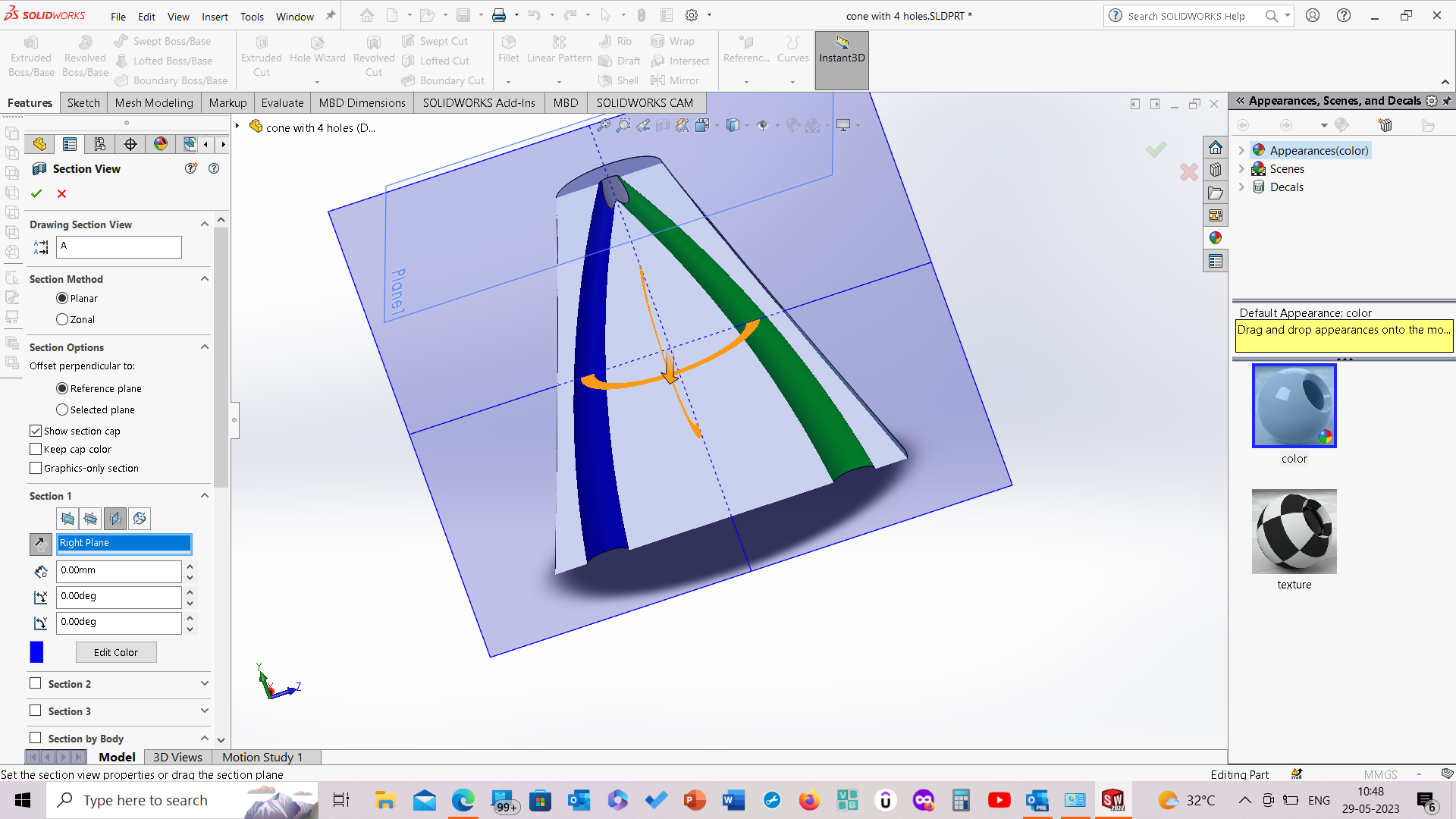

I made a quick model here

https://grabcad.com/library/fun-with-loft-1


divakaran p k
divakaran p k
May 29, 2023

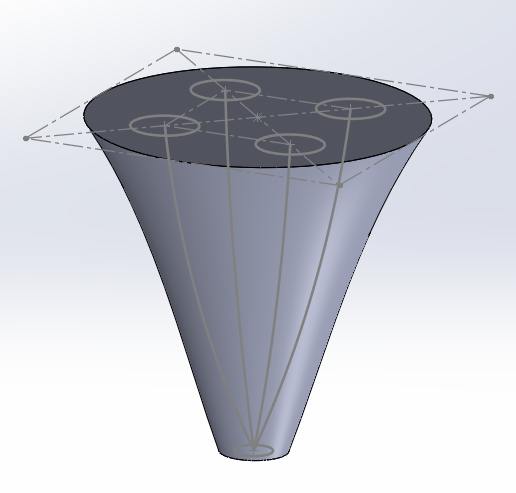

I have done it . I can share to file


divakaran p k
divakaran p k
May 29, 2023



divakaran p k
divakaran p k
May 29, 2023



GE DESIGNS
GE DESIGNS
May 29, 2023
divakaran p k

This is not correct model see original


Gustavo Marquez
Gustavo Marquez
May 29, 2023
divakaran p k I have done it . I can share to file

Thank you!


divakaran p k
divakaran p k
May 30, 2023
GE DESIGNS This is not correct model see original

I think it is OK
