Hello to all. Who knows the mathematical calculation algorithm for such loops?
Which "LOOPS ! " all I see is a Hinge.
CadCloud;
"loops" is a term used in kinematics/mechanism design.

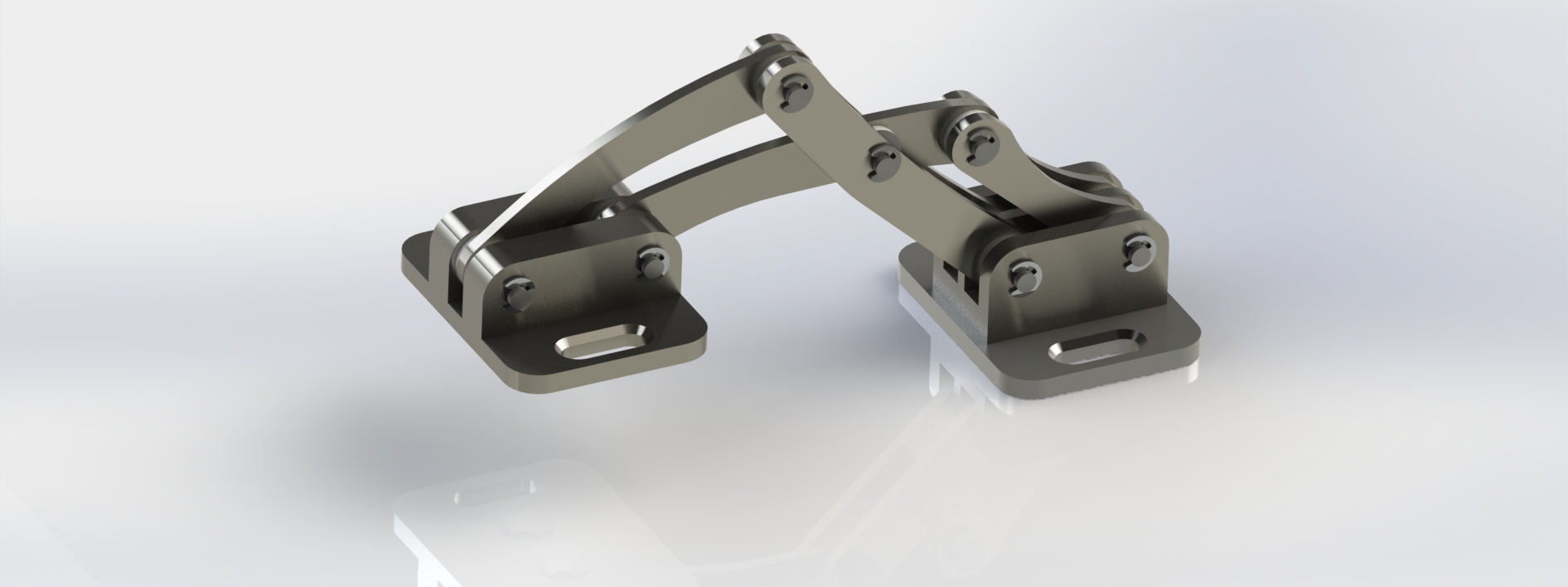

The hinge shown in the figure is made up of two 4-bar linkages, which means 4 of the 6 parts define a "closed loop" of each linkage. (A is linked to B, B is linked to C, C is linked to D, and D is linked back to A which closes the loop)
А размеры????? Размеры рычагов вы знаете?
Impossible to know based only on the attached photograph
Невозможно знать, основываясь только на прилагаемой фотографии
