Angular different transition revlove Help? Inventor

Lahin Khan
Lahin Khan
10 Dec, 2013 04:40 PM

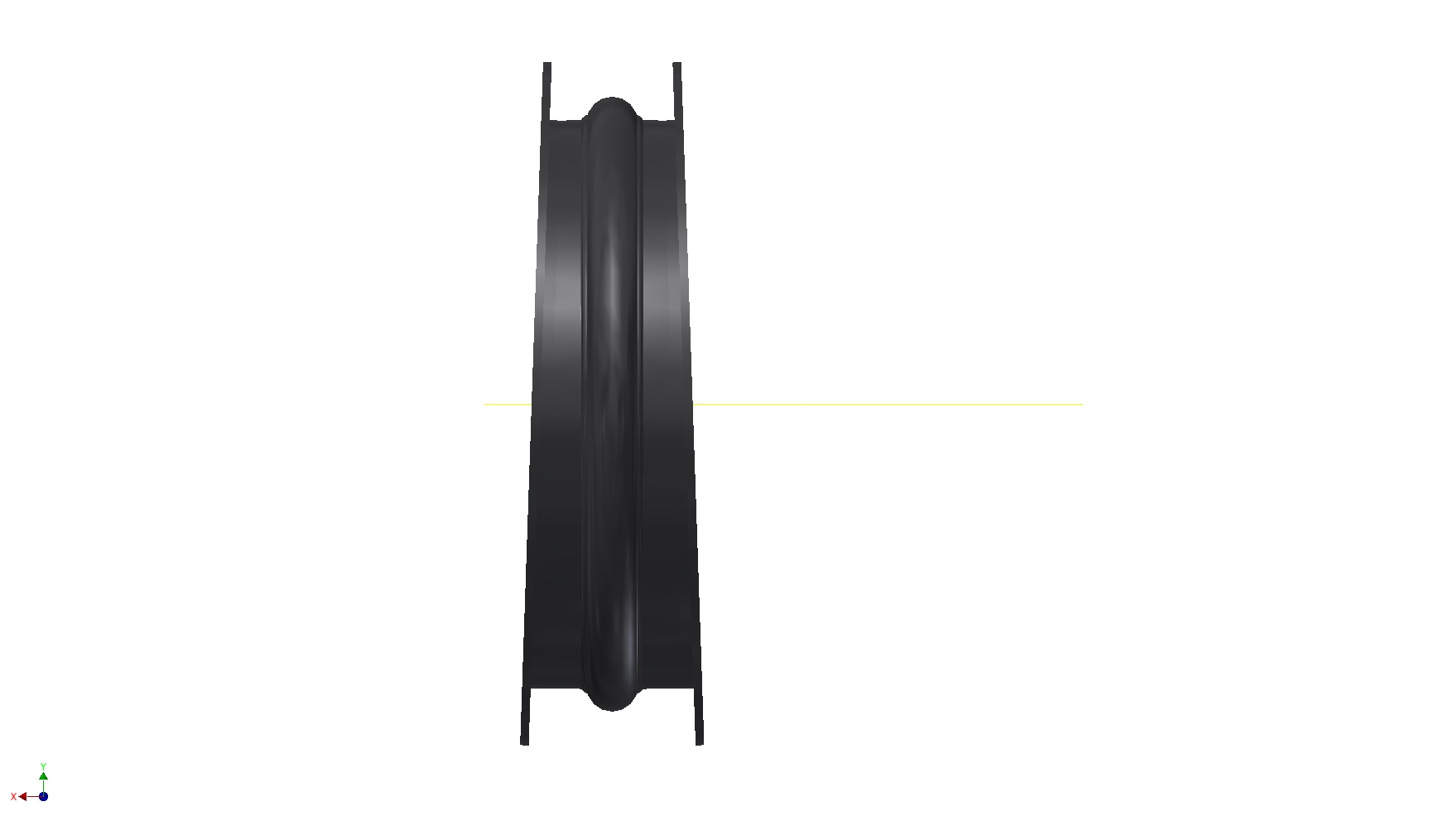

I need help with how I can transition the arch at the top to blend and revolve with the bottom stretched arch on drawing "18" Angular joint.ipt". I want it to look like the photo "48" Angular.jpg" but I want the arch to blend from the top to bottom arch.

48''_Angular.jpg 48''_Angular.jpg 18''_Angular_Joint.ipt

1 Answer

Ioannis Skarlatakis
Ioannis Skarlatakis
Answered on 11 Dec, 2013 10:54 PM

Hi Lahin
Below you can find the link to your part. I really hope to find this helpful enough for your presentation... there are some comment on the description. If you have any further queries please let me know...

Regards
Ioannis

Answered with a tutorial: https://grabcad.com/tutorials/angular-different-transition-revlove-help-inventor
