assembly drawing

Question by Adnan Mourad

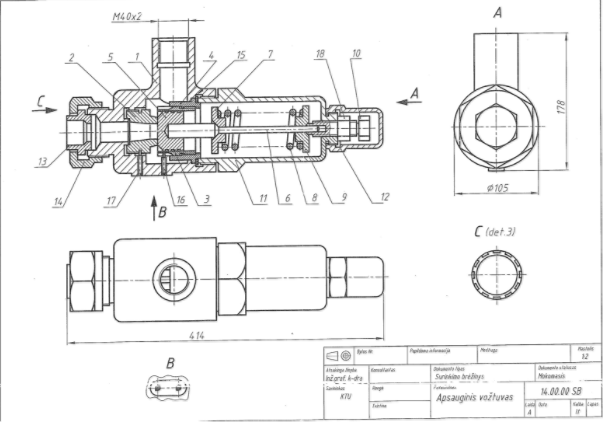

does anyone know what is this ,or how to make it a 3D model using inventor , it is confusing to me and am still a beginner so i hope someone could help

Answer

Comments 0

5 Answers

cmalco
Answered on 4 Dec, 2017 01:35 PM

Looks like a metering valve of sorts. There are literally hundreds of designs of this type, but that should get you looking in the right direction.

Good luck.


Comments 0
Frederik Vollbrecht
Answered on 6 Dec, 2017 11:24 AM

Please clarify what you are confused about. Is it the sketch or how to model it in inventor?


Comments 1
CadCloud
Answered on 6 Dec, 2017 01:20 PM

!. Its a safety valve.

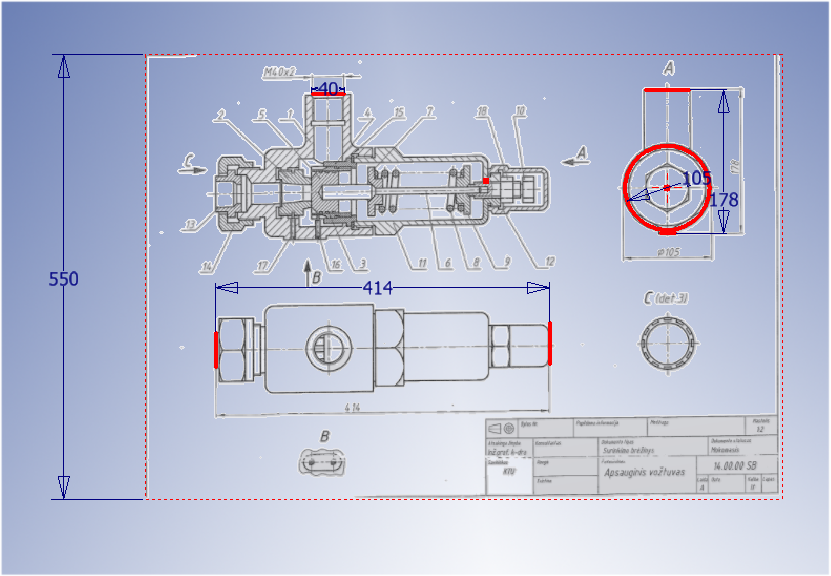

2. Scale your drawing to the dimensions provided.
3. Model your 17+ parts as single parts then place them in a assembly file using constraints. Done.
4 do you require help doing this ?


Comments 1
CadCloud
Answered on 7 Dec, 2017 01:46 AM

Ok what you have to imagine is that the Drawing has been split down the middle cutting the parts in half.to reconstruct them you have to trace the Part and then revolve the sketch around a middle axis. I have placed the part No 6 as in the drawing showing you how to do this. you need to practice doing this with other parts. Also I would recommend that you use YouTube to find out other methods you need to complete Safety valve.


Comments 8
秦逍
Answered on 8 Dec, 2017 08:30 AM

应该是安全阀(也叫溢流阀),流体系统中保护用的阀体,由它来限制整个系统最高使用压力。至于三维画法,如果仅是图片,没有详细的零件图纸,那就画一个大致模型(画成一个外形三维模型);如果有零件图,就按照零件图绘制零件,然后装配。
